Dynamic Line-Side Replenishment in Electronics Manufacturing: AMRs Need a Demand-and-Carrier Loop, Not Just a Route

Dynamic Line-Side Replenishment in Electronics Manufacturing: AMRs Need a Demand-and-Carrier Loop, Not Just a Route

In electronics manufacturing, a line rarely runs short simply because a robot is too slow. The more common failure is a replenishment design that can accept a transport order but cannot tell when a station truly needs material, where a carrier can be placed, or how an empty carrier returns to circulation. A resilient AMR system connects demand, line-side buffering, mobile carriers, and return flow into one recoverable loop.

The challenge is changing demand, not the travel route

Electronics lines consume a mixed stream of components, consumables, WIP containers, and ESD-safe carriers. Product changeovers, inspection holds, short station stops, and rush orders can all change real consumption at a single workstation. A fixed milk-run may arrive when no slot is open, while a station that is close to a shortage waits for the next scheduled round.

That is why replenishment should not rely on time alone. A practical design separates three kinds of triggers. Planned demand prepares material in advance. A lower inventory threshold starts normal replenishment. An exception or urgent signal inserts a short-priority task. As signals get closer to actual consumption, an AMR fleet starts protecting production rhythm rather than merely executing isolated moves.

Define the line-side buffer before asking for faster response

A line-side buffer is not an informal pile of material next to a workstation. It is a controlled, short-stay location with a defined carrier type, capacity, pickup direction, delivery direction, and exception path. In high-mix, small-batch production, a buffer that is too small creates urgent task contention. A buffer that is too large becomes uncounted, hard-to-manage inventory on the shop floor.

A mobile rack combined with a latent-lift AMR is well suited to rhythm-based delivery. The AMR approaches through the rack opening, centers under the lower frame, lifts the rack, and moves it to the buffer. At the station, it places the rack securely on its feet before leaving. The station should support a natural sequence—place, access, and return—rather than force repeated micro-adjustments in a tight work area.

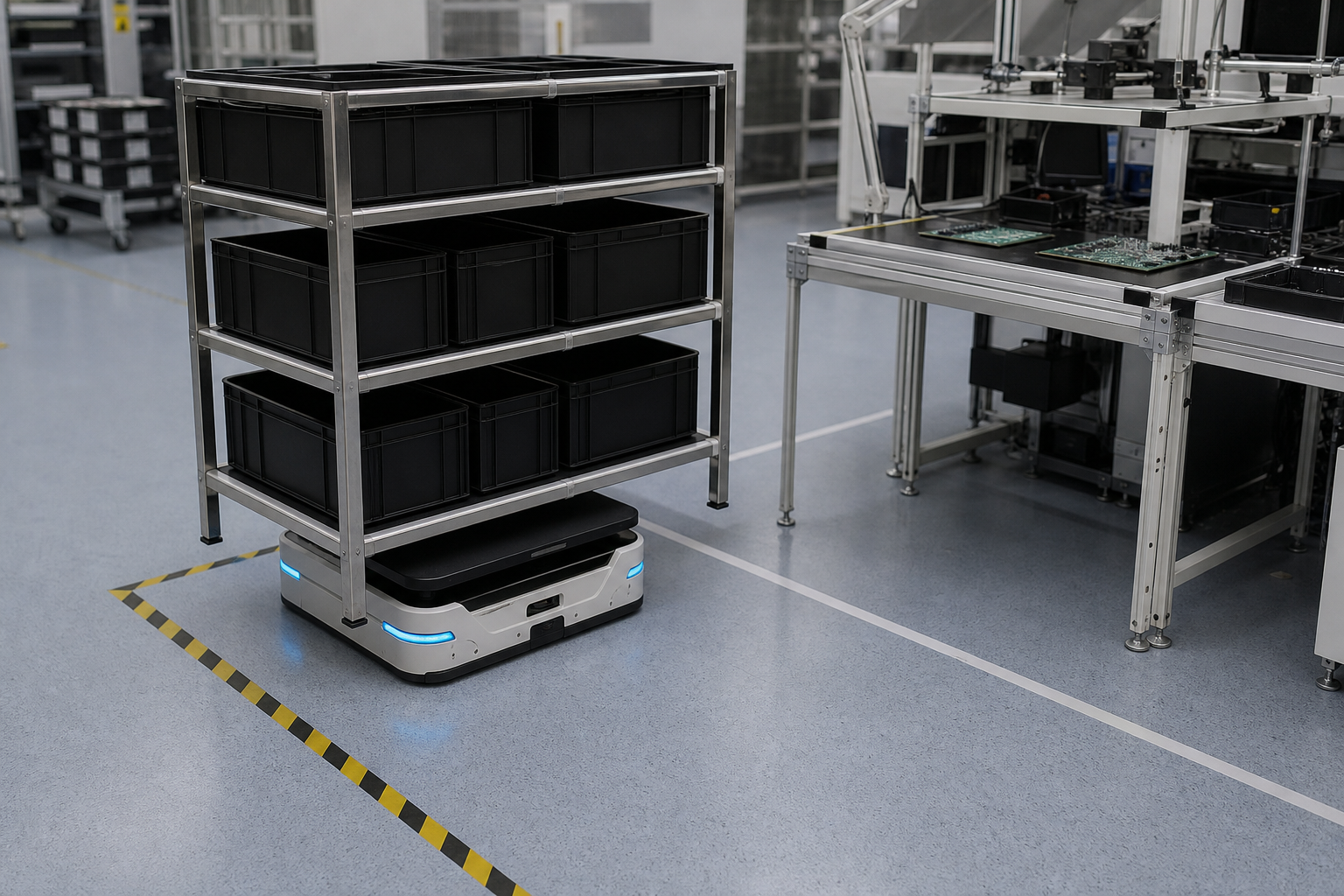

Figure 1. A line-side buffer should protect the handoff rhythm, not become an overflow area.

Replace “arrived at station” with a confirmed handoff

A useful replenishment event contains at least four facts: the carrier was collected correctly, it reached the intended buffer, the station was able to receive it, and the carrier was placed safely. A simple task-complete flag cannot confirm that material is usable. Robot position alone cannot explain why a vehicle at a station is unable to release.

Clear station semantics make the process more manageable: reserved, arrived, ready to receive, occupied, collected, and exception. Reservation keeps several AMRs from crowding a narrow slot. Ready to receive confirms both capacity and operating conditions. Occupied and collected shift attention from whether a robot is present to whether the material is actually available. This does not require an elaborate interface; it requires unambiguous operational states.

Empty-carrier recovery completes the replenishment loop

Many projects design only the outbound trip from supermarket to station, leaving empty racks and totes for ad hoc manual handling. Over time, the line side fills with empty carriers, the next delivery has no landing position, and AMR waiting time grows. In electronics manufacturing, empty carriers also affect ESD control, cleanliness, and turnover discipline. They are not simply a valueless return move.

A more reliable approach plans recovery as part of the flow. When a station has consumed the material and a rack becomes empty or lightly loaded, it can be marked available for recovery. During a suitable idle window, an AMR retrieves it and brings it to a counting, replenishment, or staging area. Outbound and return tasks do not need rigid one-to-one pairing, but they should share the same carrier-state and station-capacity logic. That is how space stays available at the line side.

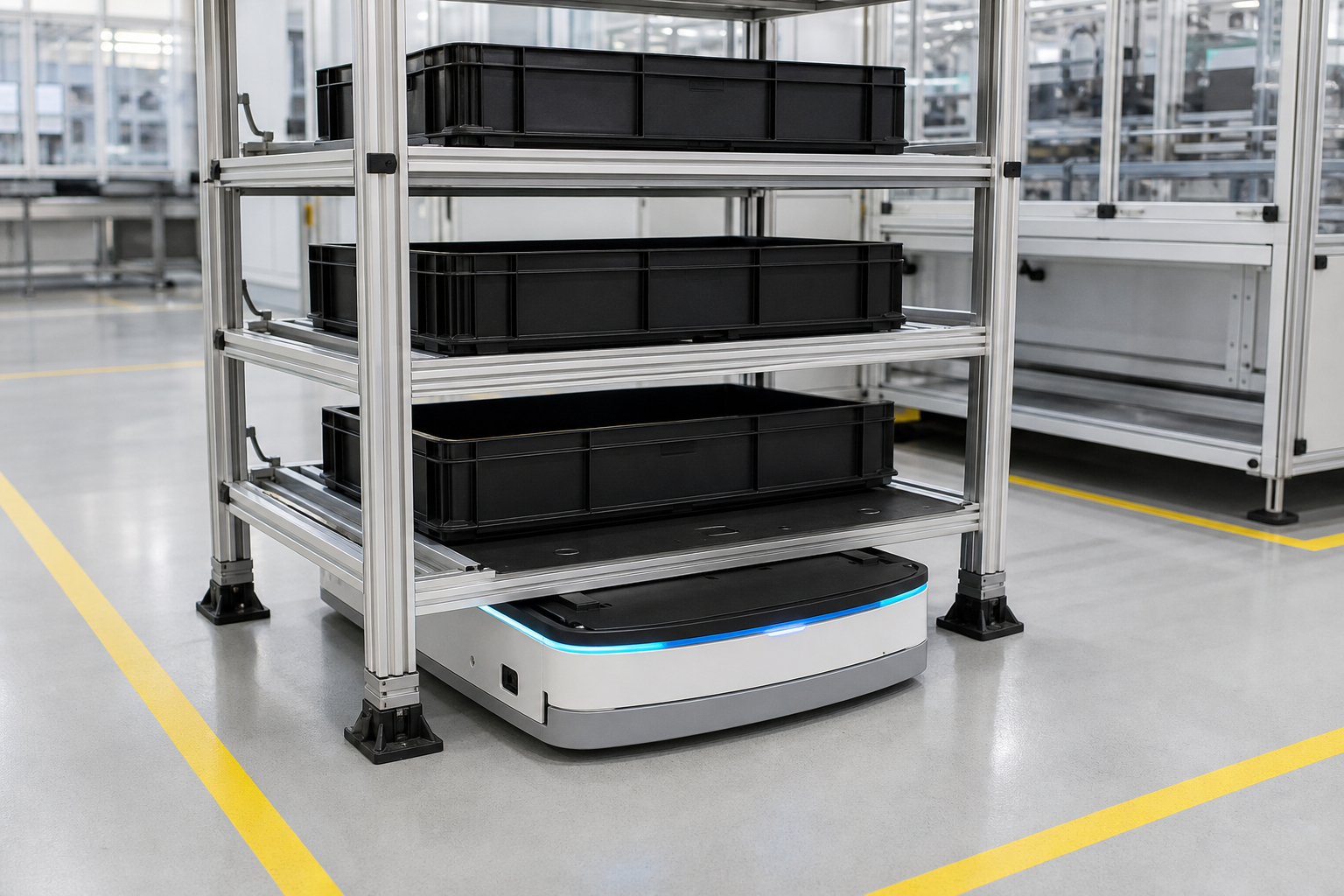

Figure 2. Empty-carrier recovery keeps line-side buffer capacity available for the next handoff.

Start with a focused pilot and validate three questions

A first deployment is best kept to a manageable set of stations and clearly defined material classes. The goal is validation, not immediate plant-wide coverage. First, test rhythm: can replenishment arrive before the buffer is exhausted during a demand peak? Second, test space: do rack deliveries and empty-rack recoveries block each other? Third, test exceptions: when a station is occupied, material is not collected, or equipment pauses, can the task wait, be reassigned, or withdraw safely?

The pilot should also make its operating assumptions visible. Record which signals create a task, what counts as a usable buffer position, how long a carrier may remain at a station, and who handles an unresolved exception. Review not only completed tasks but also waiting time at pickup, delivery, and recovery points. This separates a routing issue from a capacity issue or a handoff issue. It also gives production, logistics, and automation teams a common language for refining the next deployment area.

AMRs do perform transport. Yet the real design question is how material reaches a location that can receive it, in the right batch and at the right time. When demand signals, line-side buffers, and carrier circulation are engineered together, mobile robots can become a dependable part of manufacturing rhythm—not just a replacement for walking.
