AMR Safety Needs More Than a Universal Speed Limit

AMR Safety Needs More Than a Universal Speed Limit

A practical approach to zone-based behavior, predictable yielding, and controlled recovery

A single low speed is easy, but it is not a safety strategy

AMRs in a live factory move through very different conditions: line-side racks, replenishment aisles, machine entrances, temporary staging areas, and pedestrian crossings. A common response is to set a low fleet-wide speed. It is simple to explain and can reduce immediate exposure, but it treats open straight lanes, blind corners, shared crossings, and handoff points as if they carried the same risk.

A stronger approach treats safety as a context-sensitive operating policy. As visibility, aisle width, load condition, pedestrian access, and task state change, the robot's speed, yielding behavior, and stopping logic should change with them. The aim is not to make every robot slow all the time. It is to make its cautious behavior earlier, more deliberate, and easier for people to anticipate when conditions demand it.

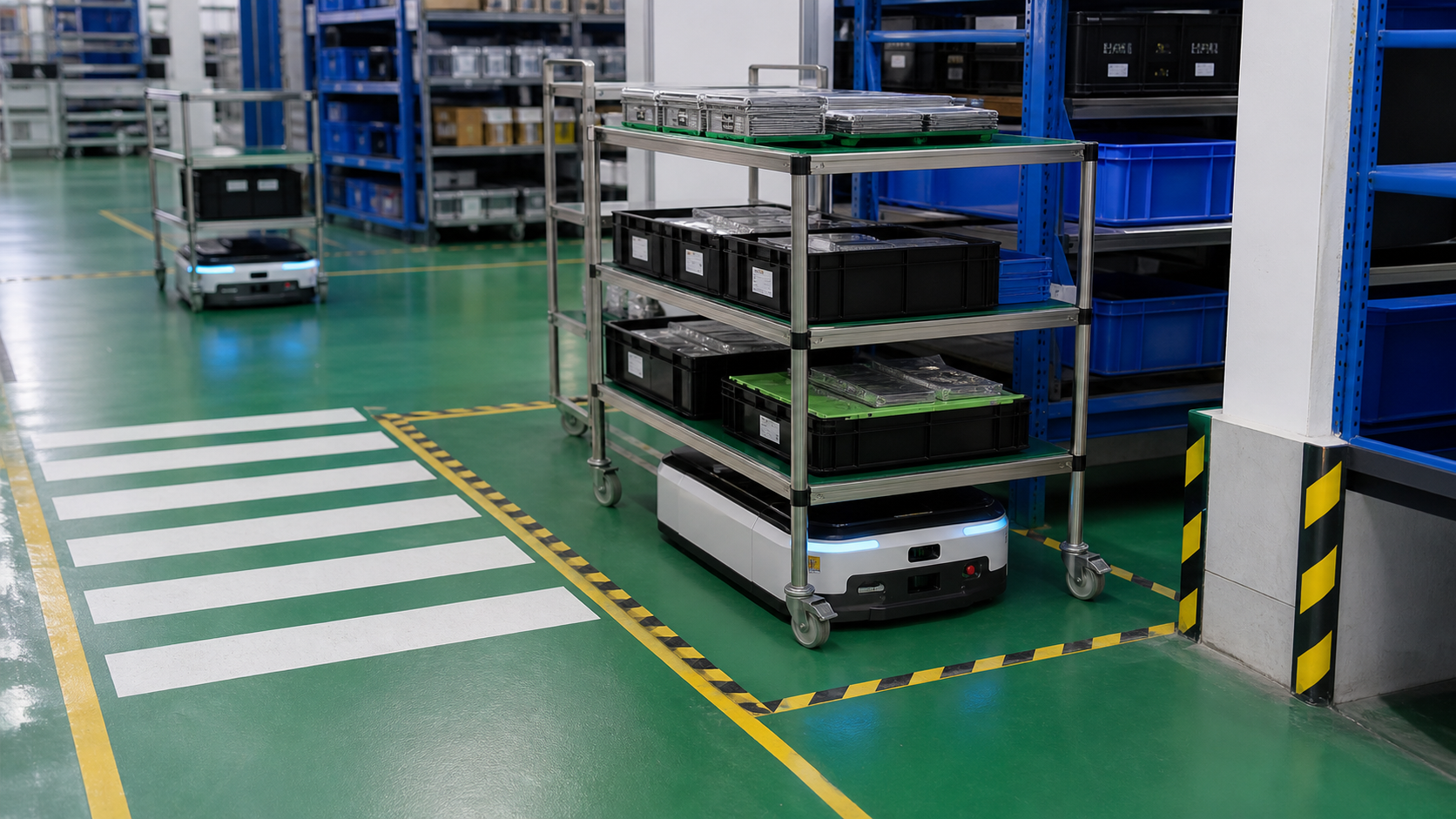

Figure 1 | Narrow corridors and crossing zones need earlier deceleration and clearer boundaries.

Map operating behaviors before adding more avoidance logic

The first step is not simply adding another sensor. It is making the risk-changing relationships in the facility explicit. A practical map can distinguish main travel lanes, blind-corner buffers, pedestrian crossing zones, station handoff zones, and temporary waiting areas. Each zone needs a defined speed ceiling, deceleration trigger, stop boundary, and priority rule.

On an open main lane, an AMR can use its normal operating speed. Near a rack end or doorway, it should enter a pre-slow state before the corner. Where people may cross, it needs a longer observation distance and more conservative conditions for acceleration. This turns safety from a collection of ad hoc parameter changes into a site rule that operators can understand and future layout changes can follow.

Speed is an outcome; predictable yielding is the real objective

What shapes the shared-space experience is usually not the robot's maximum speed, but how consistently it chooses at a conflict point. Crossings, narrow aisles, dock approaches, and material-cart handoffs should each answer the same questions: who proceeds first, who waits, where does it wait, and when may it resume? For an AMR, safe clearance is more than a geometric gap. It also depends on direction of travel, braking margin with a load, and whether racks or carts restrict the available view.

When the system consistently slows to observe, confirms passage, yields where required, and only accelerates after clearing the conflict zone, people learn its behavior. That predictability is often more valuable than abrupt emergency stops at every uncertainty. It can lower friction on the floor while supporting a steadier operating rhythm.

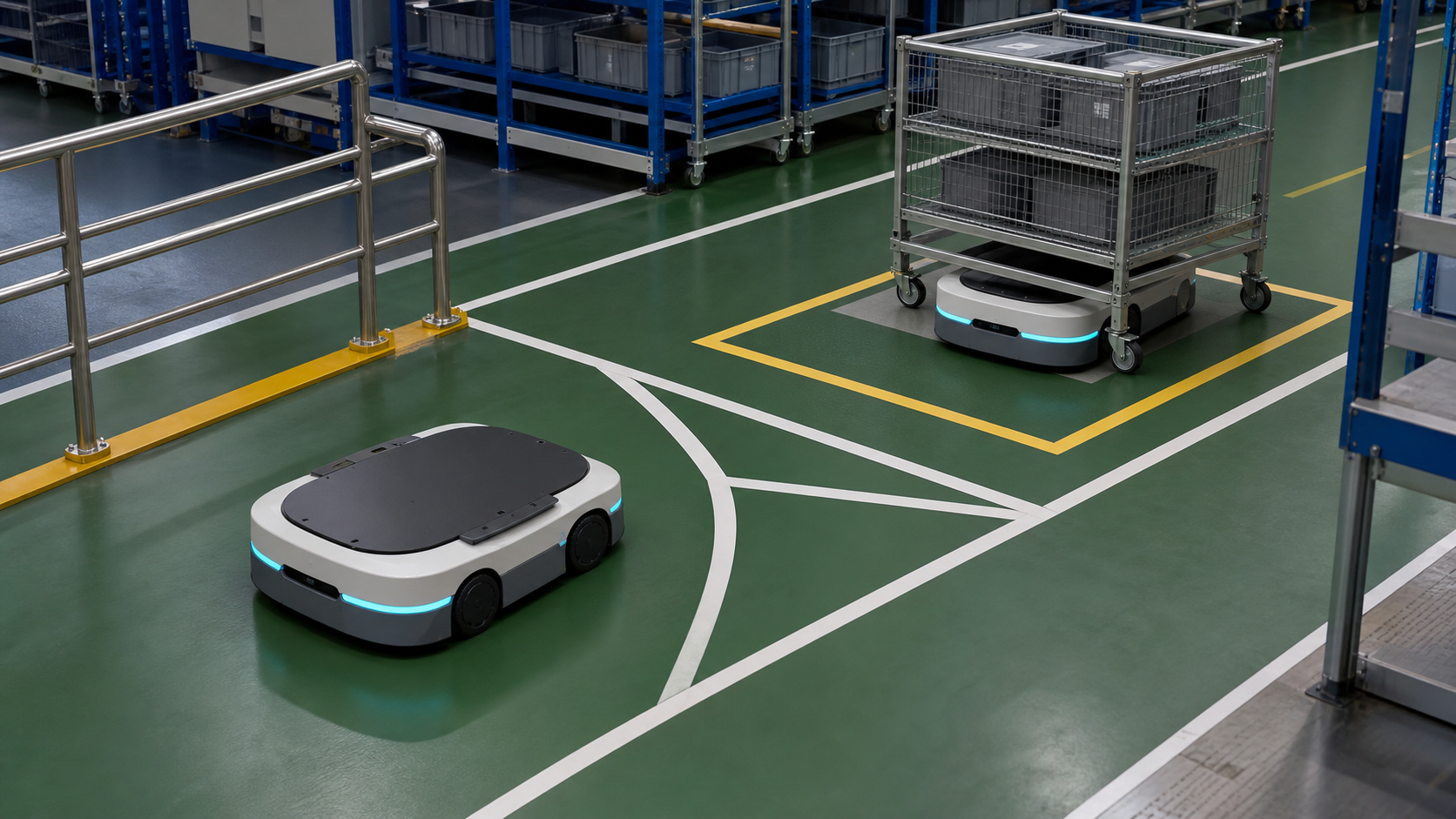

Figure 2 | A defined waiting area makes yielding and recovery easier to manage.

Design the exception path as carefully as the normal path

A safety policy proves its value when an exception occurs. A temporary cart may block a lane, a person may remain at a crossing, reflective surfaces may affect perception, or a station may not release on time. These conditions should not automatically mean an alarm followed by manual intervention. Common exceptions need recovery paths: a safe waiting box, an approved detour, an escalation for human confirmation, and retreat rules that prevent several robots from converging on the same point.

It is important to separate a safe stop from a business interruption. A safe stop is a controlled vehicle state inside a defined boundary. An interruption is a task that cannot continue for an extended period. Recording where an exception occurs, how long it lasts, how it is recovered, and how often it repeats helps a project team decide whether the cause is mapping, site discipline, or the process design itself.

Keep tuning after go-live

AMR safety policies should not freeze at acceptance. Shift patterns, material-rack changes, workstation moves, and peak task waves all change the real risk of a corridor. A regular review of high-frequency conflict points can reveal whether slow zones are too broad, waiting areas are occupied, yielding rules are accumulating tasks, or the same exception is triggered repeatedly.

For manufacturing operations, mature safety design is not another layer of restriction. It is an understandable, executable, and improvable order for people, load carriers, and robots sharing the same space. Clear zones, clear rules, and controlled exception recovery help AMRs become reliable intralogistics partners without sacrificing the production rhythm they are meant to support.

The review should connect operational observations with safety decisions. If a robot repeatedly pauses at one rack end, the answer may be to adjust the buffer geometry, clarify the crossing route, or relocate a staging cart rather than simply lowering every vehicle's speed. If a waiting box becomes a queue, its release rule and upstream task assignment should be checked together. This evidence-based tuning keeps the safety model aligned with actual work, while retaining enough structure for operators, supervisors, and maintenance teams to act with confidence.
