Why AMR Projects Need Dispatch Simulation Before Deployment

Why AMR Projects Need Dispatch Simulation Before Deployment

Many AMR projects encounter their first real constraint during the first peak shift: not whether a robot can follow a route, but whether many tasks compete for the same aisle, handoff point, or buffer at the same moment. Dispatch simulation moves that discovery from on-site firefighting into a design-stage decision.

Simulate resource competition, not just robot routes

A layout can show that an AMR can reach a station. It rarely proves that the station will remain serviceable when demand rises. Intralogistics performance is shaped by order arrivals, line-call rules, station service time, load-carrier circulation, intersection priority, and temporary occupancy. A small change in any one of them can turn an apparently open route into a queue during a particular shift.

A useful simulation therefore does more than animate robot icons on a map. It represents task-arrival patterns, pickup and drop-off durations, station capacity, restricted windows, idle or charging rules, and the recovery logic after an interruption. The question is how the task flow behaves under constraints, not what one robot can do on an empty floor.

Three questions to answer before deployment

First, locate merge bottlenecks. The busiest aisle is not always the limiting resource. Delays often grow where two main paths merge, where a station releases work, or where return traffic crosses replenishment traffic. Simulation makes the buildup visible and allows teams to compare priority rules, temporary buffers, or one-way routing before committing to a floor layout.

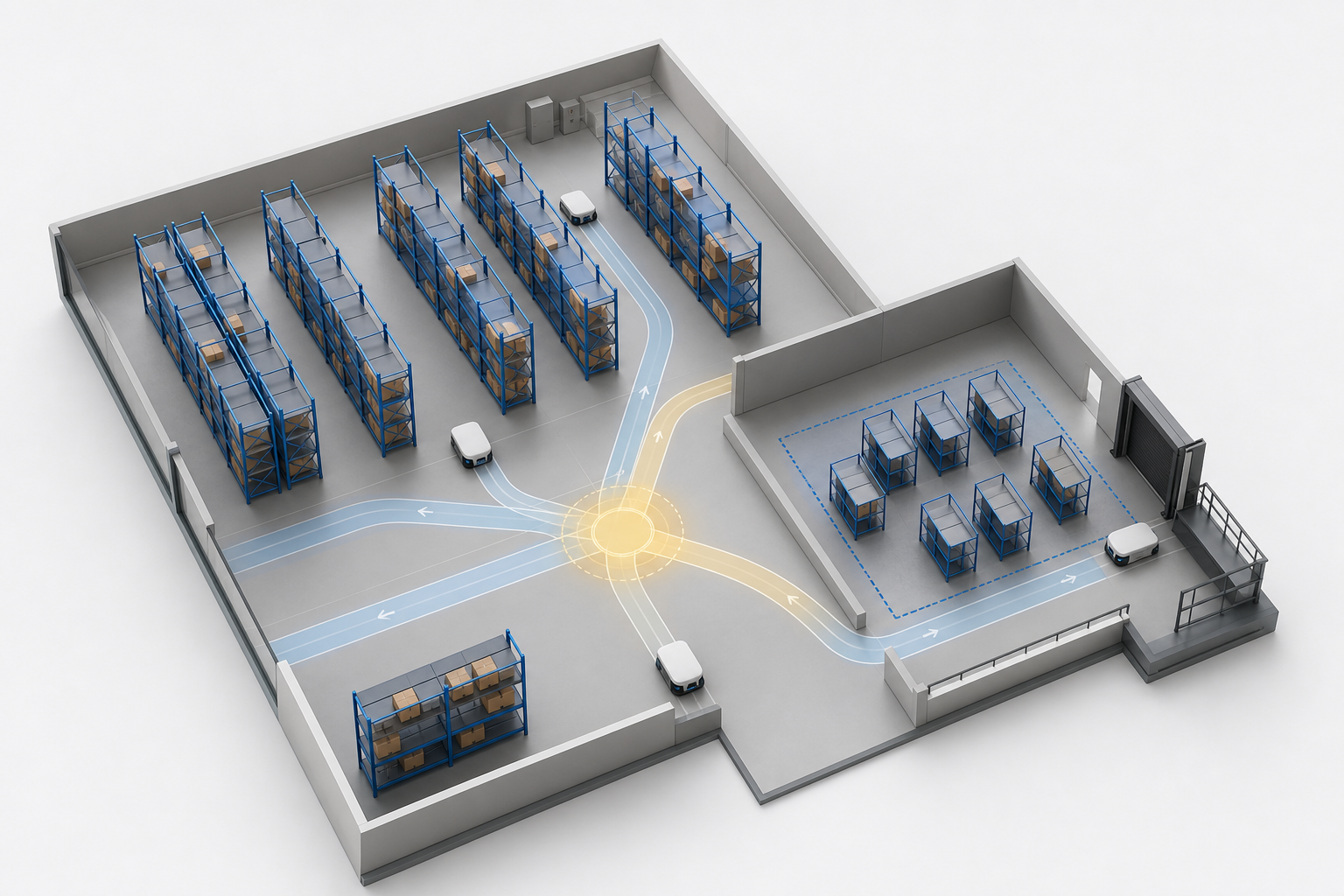

Figure 1. Identifying potential bottlenecks through intersections, buffer capacity, and task-arrival rhythm.

Second, model coincident peaks. Production calls, inbound batches, and manual picking demand are rarely evenly distributed. Changeovers, urgent material requests, and shift handovers can all create short windows of intense competition. Feeding the model with time-based demand rather than a single hourly average reveals whether fleet size, buffer capacity, and route redundancy are sufficient when it matters.

Third, test recovery rather than only normal throughput. A blocked aisle, a station timeout, a robot taken offline, or an urgent order arriving early does not automatically make a project unreliable. What matters is whether the operating policy degrades in an orderly way. Task reassignment, throttling, alternate routes, and station waiting rules can be tested by their recovery time and the scope of their impact.

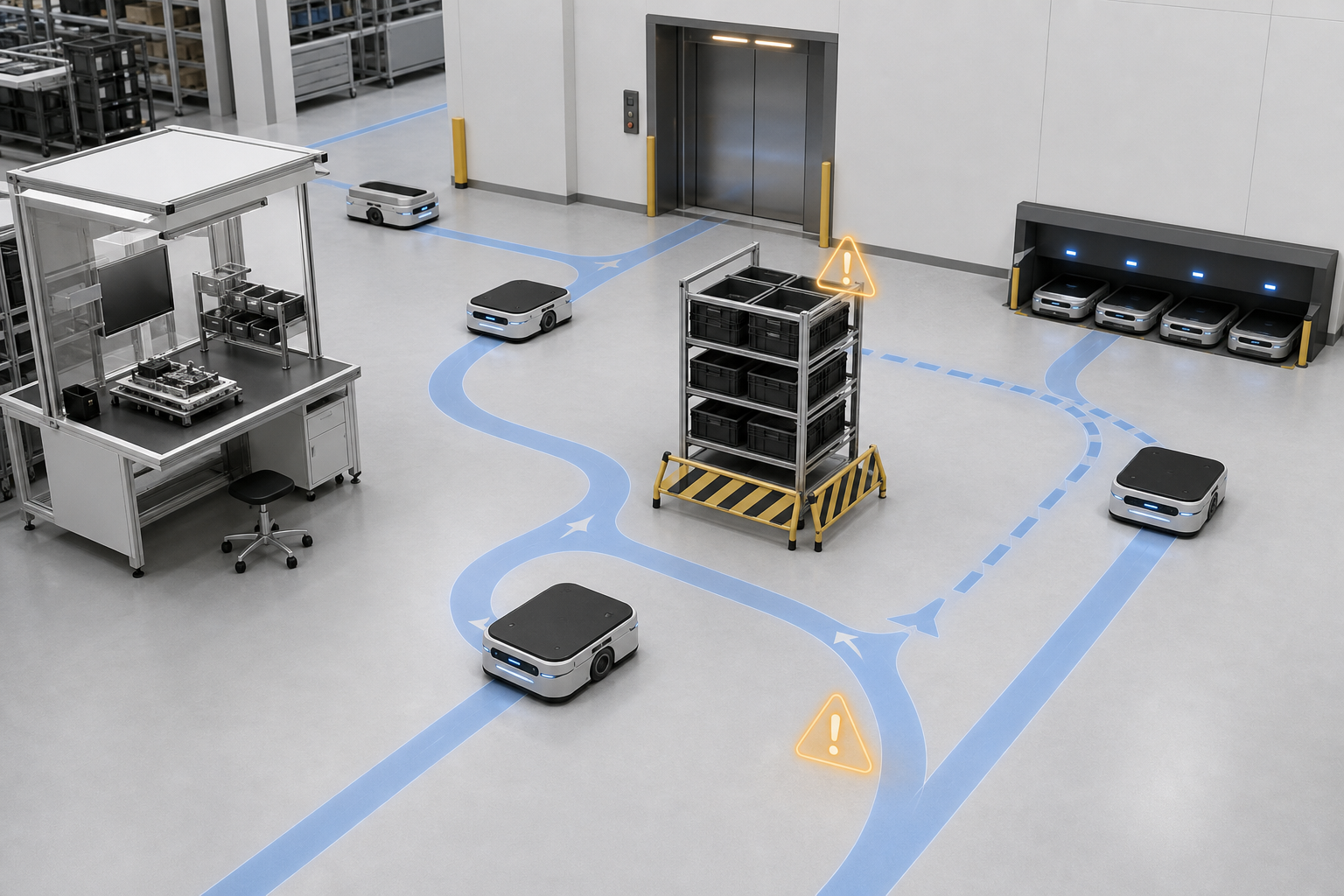

Figure 2. Scenario testing for route switching, throttling, and task reassignment after a disruption.

The best scenarios are concrete enough to challenge the operating rules without pretending to forecast every possible event. A short list often carries most of the value: a delayed release from a line-side station, an aisle blocked for a defined period, a vehicle removed from service, a burst of high-priority calls, or a temporary loss of a transfer point. Each case should have a stated start condition and a measurable recovery target.

Model fidelity should also follow the decision being made. Early planning may need only representative travel times, resource capacity, and demand distributions to compare layout options. Before commissioning, more detailed inputs such as docking duration, scan confirmation, load-carrier handling, and local safety slowdowns can refine the same model. This staged approach prevents teams from waiting for perfect data before learning from a useful approximation.

What a simulation should deliver for project decisions

A simulation should produce more than an attractive animation. Decision-ready outputs include service levels at different demand peaks, waiting-time distribution on critical links, station utilization, variability in task completion time, and the trade-off required to protect priority work during a disruption. These measures give fleet size, route design, and buffer placement a shared basis for discussion.

For example, a design with extremely high utilization in normal operation may repeatedly fill its handoff points during a short peak. It is not necessarily the lower-cost choice. A small amount of deliberate buffer capacity or an additional alternative path may prevent cascading waits. Simulation turns questions such as whether another AMR is justified, or which station needs a buffer, into comparable scenarios instead of assumptions.

Model the operating boundary before discussing algorithms

Define resource semantics first: which areas are travel lanes, merge points, handoff stations, waiting zones, or no-occupancy areas; and how each resource is released.

Add demand rhythm next: describe tasks by shifts, changeovers, line-call patterns, and peak windows instead of a daily total alone.

Configure operating policies: task priority, right-of-way, station timeout, rerouting, throttling, and recovery after manual intervention.

Run comparable scenarios: normal load, peak load, local blockage, and unavailable critical stations should be evaluated against the same measures.

This order has a practical benefit: it forces a project team to clarify its assumptions early. Many late disagreements are not really about the scheduling engine. They arise because no one agreed when a station is released, whether urgent work may overtake queued work, or whether an empty return carrier occupies a main aisle.

Keep simulation useful after go-live

Deployment is not the end of the model. As product mix, shift patterns, or station layouts change, the same approach can evaluate a new workstation, a revised line-call policy, or a fleet expansion. The essential discipline is to calibrate task duration, station waits, and disruption frequency against operating data so that the model continues to explain real rhythm.

For manufacturers planning AMR, AGV, or line-side delivery upgrades, dispatch simulation is not about adding visual complexity. It is a way to expose resource competition early and select a more resilient combination of routes, stations, and fleet capacity. Let the plan experience one realistic peak and one realistic disruption in the model before it reaches the shop floor.
