After a Facility Change, an AMR Map Needs More Than a New Route

Adding a machine, relocating a rack bay, or moving a workstation can look like a local facilities change. For an AMR, it can change the references used for localization, the space available for motion, and the behavior expected in that part of the plant. Moving a route line on a screen is not enough if a stable landmark has disappeared, a turning envelope has narrowed, or a formerly normal aisle should now be a speed-limited, restricted, or waiting area.

A post-change map update should therefore be treated as a joint check of physical geometry, localization references, vehicle envelope, and spatial rules. The aim is not simply to make the new layout visible in software. It is to confirm that the updated environment still supports stable localization, feasible travel, and appropriate robot behavior.

A Revised Drawing Does Not Mean the Robot Understands the Floor

An AMR map is more than a floor plan for people. It commonly represents fixed structures, navigable space, and constraints that apply in specific areas. A change to a wall, column, rack end, fixed machine, or safety fence can affect more than whether a planned line avoids that object. It can also affect whether the robot's sensors still receive sufficiently stable observations where they expect them. Navigation stacks likewise distinguish between environmental representation and spatial restrictions such as keep-out or speed-limited zones; changing one does not automatically update the other.

Consider a newly installed machine that blocks one side of an existing aisle. The vehicle may still fit through the remaining side, but the view before and after a turn, the nearby geometry, and the usable aisle width have all changed. Treating this space as if it belonged to the former map can lead to repeated pose correction in a particular location or to approach behavior based on an outdated margin. An updated drawing, a fleet dashboard, and the robot's motion do not become consistent by default.

It is useful to separate temporary from permanent changes. Short-term storage, maintenance isolation, and construction barriers can first be managed as controlled temporary obstacles or restricted areas, with a defined review when they are removed. Fixed racks, equipment foundations, fences, columns, and long-term workstation changes should enter a formal map and route change process. A temporary restriction is not a substitute for a permanent map revision, and a permanent change should not rely indefinitely on verbal warnings.

Judge Clearance Against the Operating Envelope

An aisle that appears passable is not, by itself, evidence that an AMR can use it consistently. The relevant reference is the operating envelope in straight travel, turning, reversing, loaded travel, and diversion. For a flat-deck AMR, the vehicle body, sensor view, and any carrier can collectively define the clearance requirement. When an under-rack AMR lifts a trolley, the trolley outline, caster position, and allowable movement can change the space that must remain clear. A centerline drawn from an empty-vehicle dimension can miss turning sweep, rack guards, door frames, and machine corners.

Spatial behavior should be reviewed at the same time. A newly installed machine may make the former travel speed unsuitable nearby. An area with frequent human interaction may require restrictions on passing, turning, or temporary parking. A completed but not yet commissioned station may need to remain excluded until its mechanical, electrical, and safety boundaries are clear. Navigation systems can represent keep-out areas, speed restrictions, and preferred travel lanes, but those settings should come from verified physical boundaries rather than an improvised attempt to get a vehicle around a change.

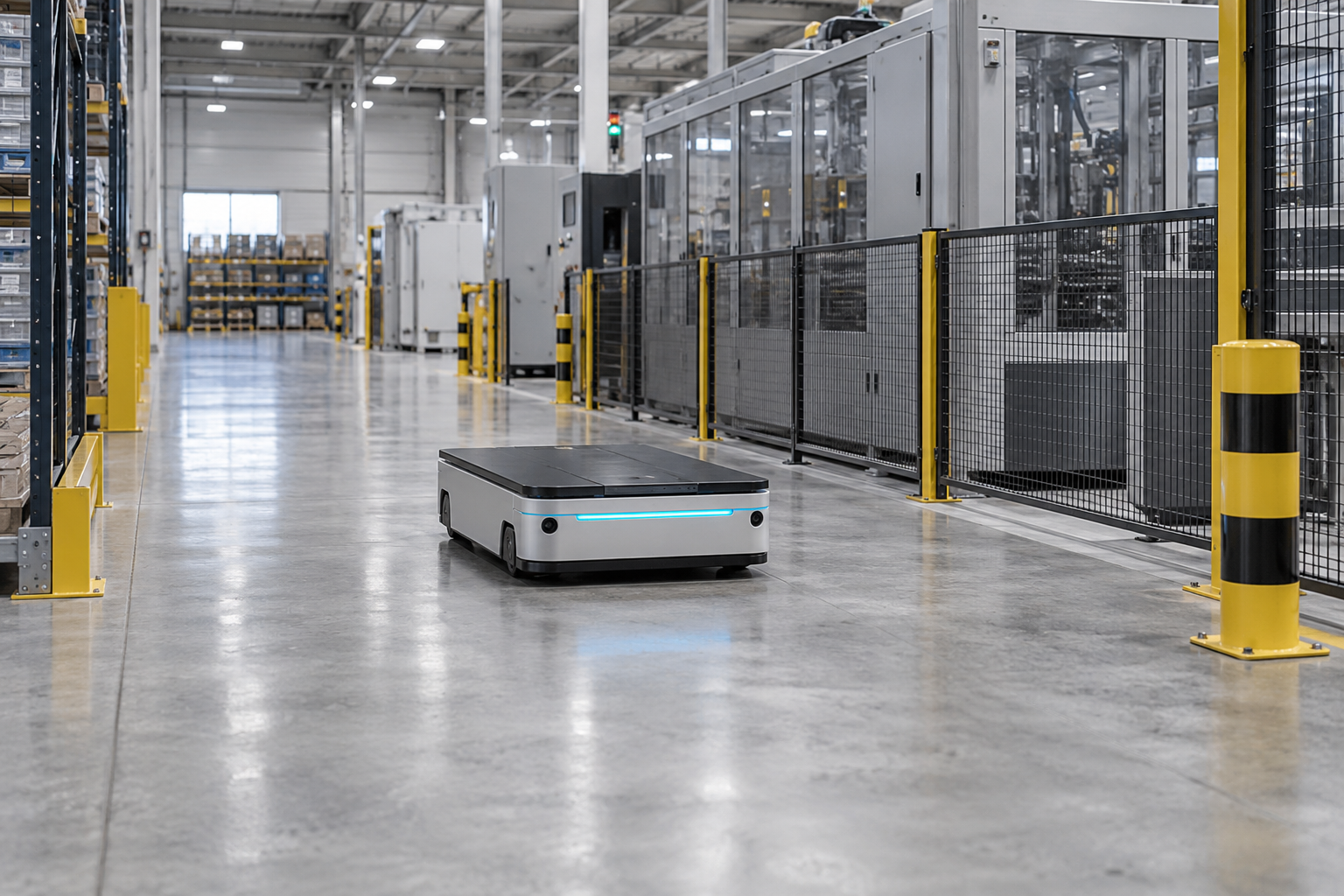

Figure 1: A flat-deck AMR checks operating clearance in a revised aisle between new fixed equipment and safety guarding

Accept Localization, Paths, and Zone Rules Separately

A successful trip from one point to another is not a complete acceptance test after a map update. Localization stability, path feasibility, and zone behavior are connected, but they are different checks. Localization review asks whether the vehicle can maintain a consistent pose estimate near the join between old and new structures, in long aisles, at rack ends, and through corners. Path review asks whether planned travel avoids fixed boundaries with adequate margin for the vehicle and its load. Zone review asks whether restrictions on entry, speed, stopping, and passing activate in the correct places.

The test route should cover entry and exit from the changed area, normal production routes, and alternate routes used during a diversion. For vehicles carrying racks or material, representative loads should also be used to determine whether the carrier affects sensor sight lines, clearance, or turn behavior. Review should not stop at whether contact occurred. It should also look for repeated replanning, waits in unsuitable positions, persistent pose corrections, or inconsistent speed and yielding behavior on either side of an area boundary.

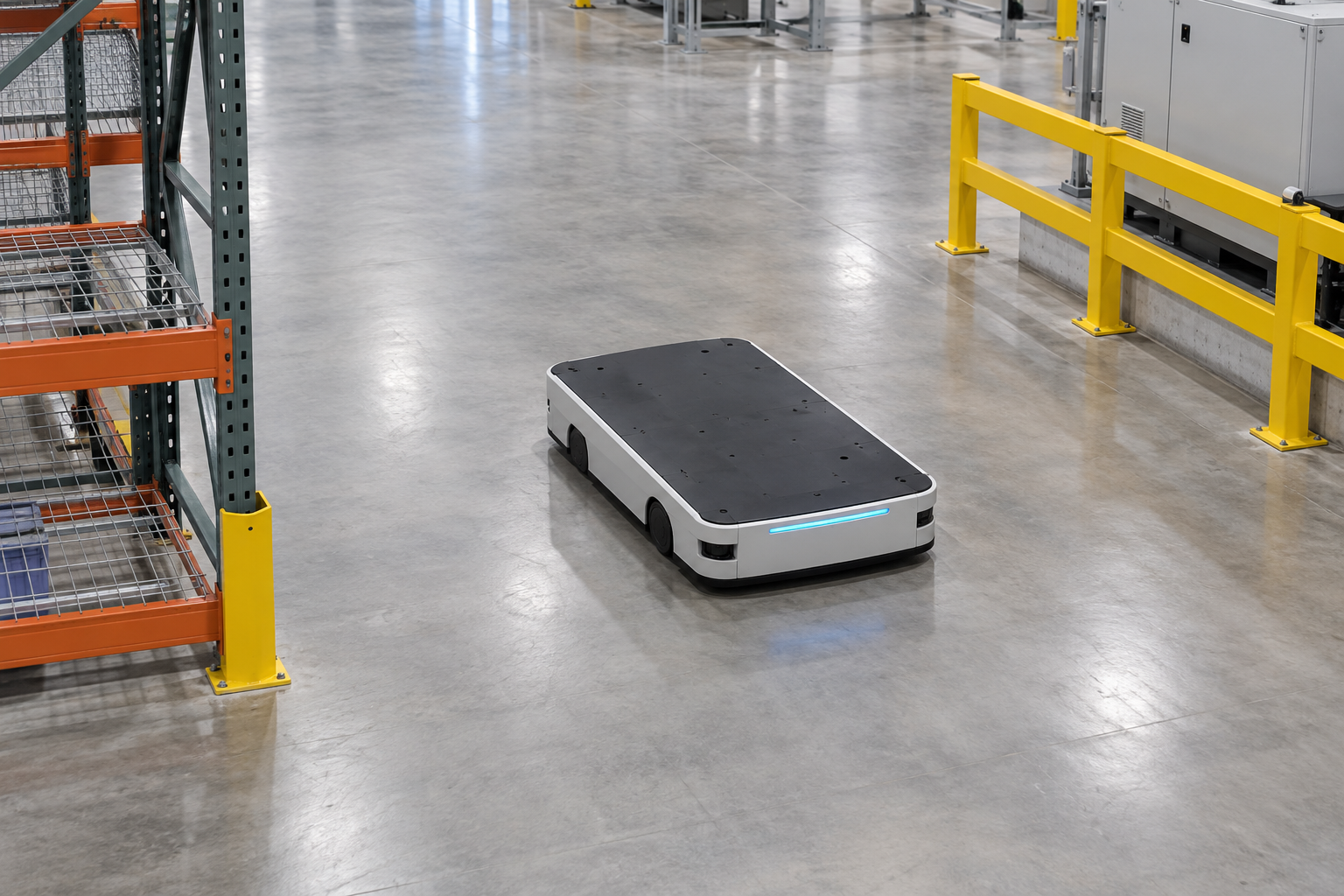

Figure 2: An unloaded flat-deck AMR turns at a rack end in the changed area with fixed guarding and aisle boundaries clearly separated

Make Each Layout Change Traceable

Facility changes often involve equipment, process, EHS, IT, and logistics teams. An AMR map change record should identify the physical scope, the date of site review, the applicable vehicles and carriers, the map or configuration version, and the routes and spatial rules that have been tested. If localization errors, diversions, or waits later increase, the team can assess whether a specific physical change is relevant instead of guessing among vehicle, network, and operating factors.

Release timing should follow the actual state of the floor. During construction, vehicles can avoid a defined exclusion area. Once geometry, markings, and guarding are stable, the map, routes, and zone settings can be updated. The changed area should enter everyday dispatch only after representative vehicles and conditions have been checked. The same record should be used when racks move again or equipment is added, rather than treating every change as an informal exception.

AMR availability depends on a continuing match between the vehicle, its environment, and the rules that govern movement. After a facility change, the real question is not whether a map file was edited. It is whether localization references, usable travel space, and spatial behavior still agree. Reviewing those three elements together makes a new production layout easier to introduce into reliable intralogistics.
