AMRs for Sheet-Metal Parts: Control Edges, Layer Slip and Handoff in the Rack

Sheet-metal blanks, stamped panels, and thin plates look orderly when they are stacked. Once they enter automated internal transport, however, the load can behave less predictably. Edges may be sharp, friction between layers may change with oil or protective film, and a small relative movement can alter both the envelope and the center of mass. If operators still have to straighten the stack, remove loose separators, or rebuild a datum at the destination, the AMR has replaced a pushing task without creating a repeatable logistics unit.

A stronger design starts with a dedicated rack that defines support, separation, restraint, and presentation. The AMR moves a combined load whose boundaries are already controlled. The rack preserves the part condition, and a receiving station continues to support the rack after the vehicle leaves.

A Loose Stack Is Not Yet a Defined Load

Transport readiness cannot be decided from total mass and vehicle rating alone. Sheet thickness, surface condition, separator material, stack height, and center-of-mass position all affect motion. Oil, protective film, or coatings can reduce interlayer friction. Irregular outlines, holes, and formed edges can also interrupt the support area. During a start, stop, or floor-joint crossing, upper sheets may move relative to the lower layers before the change becomes visible as a larger envelope problem.

The sheet stack and its carrier should therefore be specified as one load unit. Loading rules need to define permitted contact surfaces, quantity, orientation, maximum envelope, and combinations that must not be mixed. Where sharp edges are present, the loading zone and travel route must also account for cuts, snagging, and detached protective pieces. A stack that does not meet the release condition should be corrected upstream or routed to an exception process rather than accepted with a lower vehicle speed as the only control.

The Rack Must Support, Separate, and Restrain at the Same Time

For horizontally stacked sheets, the rack needs a continuous, sufficiently rigid support plane. Local overhangs should not make one sheet carry structural load for the layers above it. Process-approved interlayers can reduce direct metal contact, scratching, and sticking. Lateral restraints should act only on permitted contact regions and retain enough clearance for loading. They must prevent transverse movement during turns without deforming an edge. For inclined or vertical storage, bottom support, the backrest, and anti-tip features have to work as one closed load path.

Sharp edges should remain inside the rack envelope wherever people may approach. Edge guards, recessed pockets, or enclosed side frames can provide that boundary. Removable separators, pressure bars, and guards need an observable seated state so that they cannot become loose objects in transit. At the base, the rack should present a stable and symmetric interface to the AMR. The vehicle must support the rack frame, not the sheet stack itself.

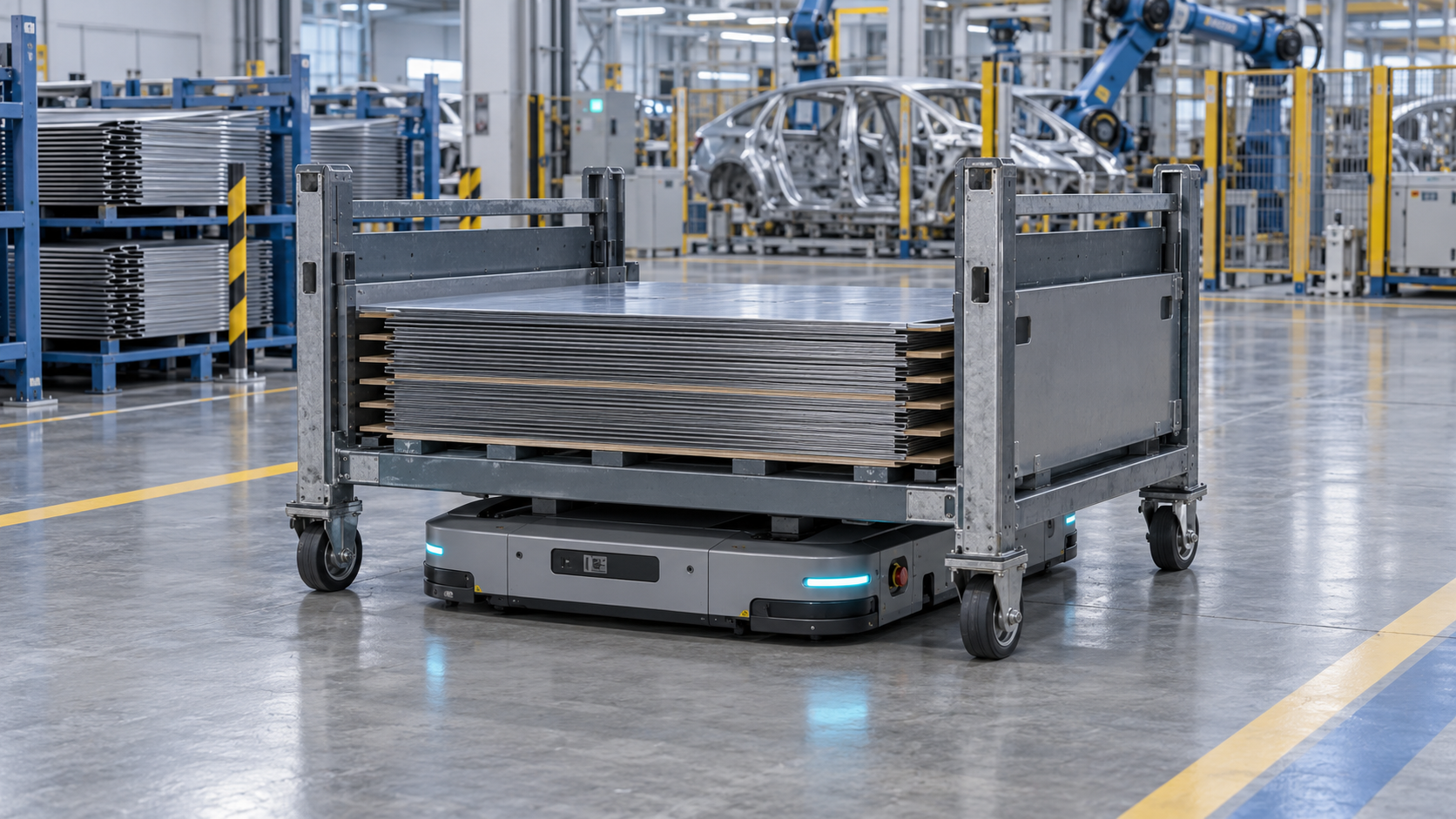

Figure 1: A lift AMR centered beneath a dedicated sheet-metal rack with interlayers, edge protection, and lateral restraints

Handoff Is Complete Only When the Station Supports the Rack

If the AMR remains under the rack while people or a robot remove parts, process time, vehicle utilization, and dispatching become unnecessarily coupled. A fixed receiving stand or locating base should take the rack independently and use mechanical guides to establish the presentation direction, pick height, and working envelope. After support transfer is confirmed, the AMR can lower and leave. A temporary delay at the next process then does not leave the rack suspended on a mobile vehicle.

Sheet separation at the pick face also deserves attention. Vacuum tooling, magnetic grippers, and manual removal can occasionally lift two sheets or disturb the layer below. The need for double-sheet detection, air separation, or other methods must be validated by the process owner. The logistics system contributes by delivering a consistent stack direction, datum edge, and rack state. It should not be expected to decide whether a downstream tool has separated the sheets correctly.

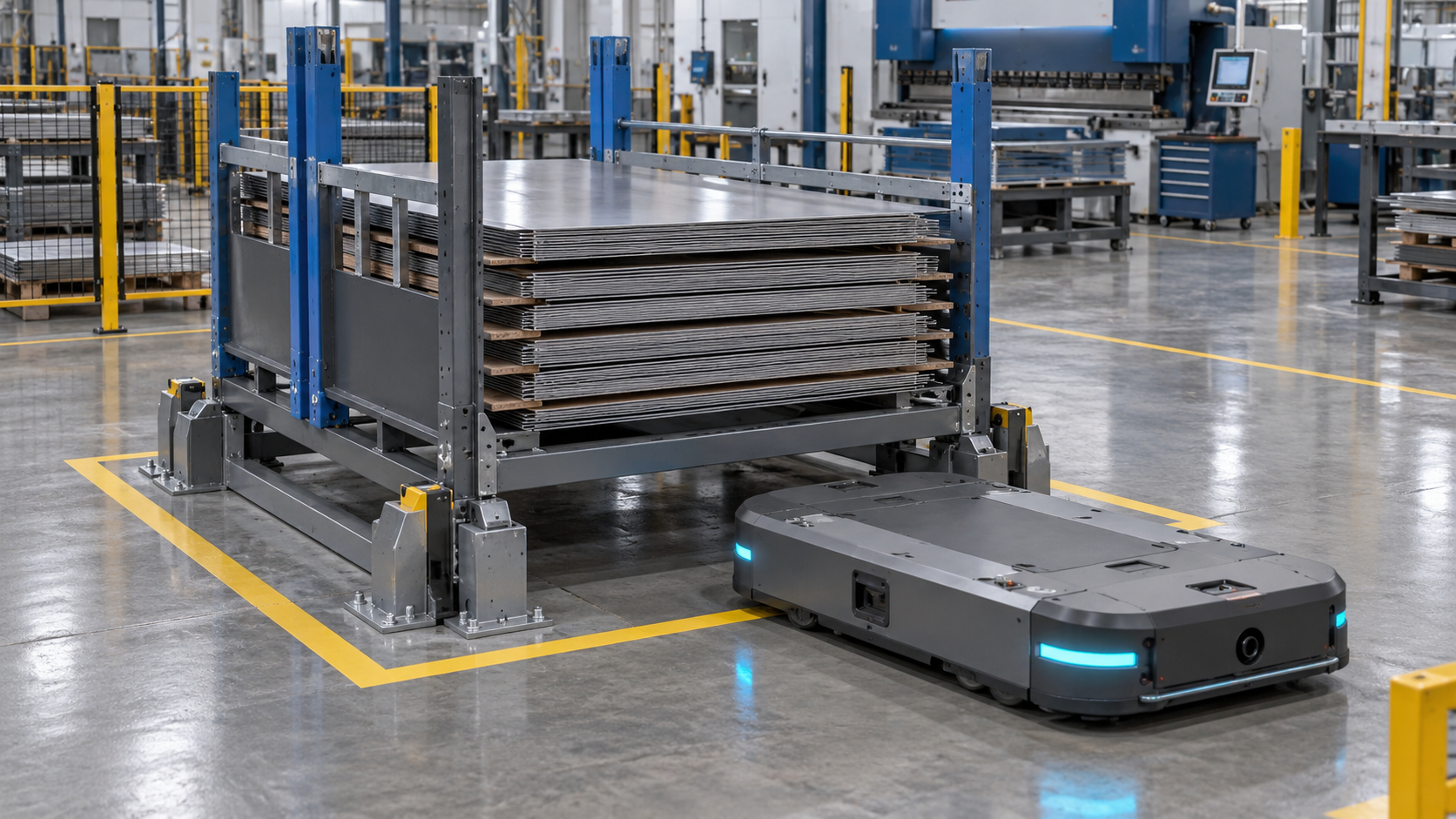

Figure 2: A sheet-metal rack independently supported on a fixed receiving base as the lift AMR lowers and exits

Validation Should Target the Conditions That Create Relative Motion

Initial trials should include representative full, partial, and asymmetric loads. The team should observe relative sheet position after acceleration, braking, turns, slope transitions, floor joints, and station transfer. Acceptance is not limited to whether the vehicle reaches a map position. Edge guards must remain seated, interlayers must stay in place, the stack must not contact the side frame, and the rack base must retain complete support. Empty-rack return, manual recovery, and exception staging also belong in the test because removable parts and status identification are often lost in those branches. The route trial should record the load configuration, rack ID, speed profile, observed movement, and final disposition so that a later change to the part or carrier can be assessed against the same evidence rather than from memory.

Once these conditions are captured in the carrier design, loading standard, and acceptance record, the AMR is no longer moving a stack whose shape can change without notice. It is moving a logistics unit with an inspectable state, a maintained boundary, and a usable destination presentation. The benefit then extends beyond removing a cart-pushing task: it creates a stable interface among storage, stamping, sheet-metal processing, and assembly.

The difficult part of sheet-metal automation is not simply lifting the mass. It is keeping every sheet within its permitted position before and after the trip. When the rack defines support, separation, edge protection, and handoff, the AMR can perform the motion as a repeatable manufacturing-logistics step. Chengdu Beaver can assess the vehicle, rack, and receiving interface together around the actual part and route.
