AMR Alarm Data: What Context Must Be Captured When a Robot Stops

In intralogistics, an AMR may stop because of obstacle detection, reduced localization confidence, a network disturbance, an actuator timeout, or an unavailable station. The costly part is often not the alarm itself. It is the thin record left behind: one code, one timestamp, and a generic failed-task message. By the time an engineer reaches the area, the robot may have been moved, the rack may have been repositioned, and the queue may have changed.

The conditions that matter most are gone.

A diagnostic design should therefore answer more than which component reported a fault. It should also answer what mission, location, and operating conditions existed when it reported it. Capturing that context at the instant of a controlled stop turns an isolated alarm into evidence that can be located, reproduced, and grouped. The principle applies to under-rack AMRs, flat-deck AMRs, roller AGVs, and tote robots alike. The vehicle-specific fields will differ, but the diagnostic object is always a real operating sequence.

A Fault Code Can Identify a Component but Not Explain the Site

Low battery, lidar obstruction, navigation timeout, emergency-stop activation, or an incomplete lift motion are all useful signals. They narrow the search. But the same code can mean very different things under different conditions. If obstacle stops repeatedly occur at one door, the cause may be pedestrian traffic, door timing, or a reflective surface. If they occur only while a loaded rack turns, the load envelope, center of mass, and route clearance deserve attention. Reducing both situations to an obstacle-alarm count makes diagnosis weaker and can incorrectly assign an environmental issue to the vehicle.

A useful event record should preserve four foundations: the event time and duration; the reporting component and its hardware and software versions; the robot pose, speed, and route segment; and the task type, handling phase, and load status. Missions that interact with stations should also capture a snapshot of the relevant door, conveyor, transfer station, or call-device state. The aim is not unlimited logging. Each field should answer a practical question: who reported what, where did it happen, what was the robot doing, and what did the surrounding interfaces report?

The fields also need stable semantics. Map version, route version, task template, vehicle software version, and peripheral-interface version should use traceable identifiers rather than labels such as latest. Otherwise, a recurring alarm weeks later cannot be compared with the earlier condition. A dashboard can simplify the display, but the engineering record needs enough keys to align data across vehicles and releases.

Freeze Context at the Stop Instead of Reconstructing It Later

A frequent weakness is asking staff to add a cause after the alarm has been cleared. That can describe the disposition, but rarely reconstructs the trigger. A stronger approach creates an event package automatically at the stop edge. It captures a short sequence before and after the event: the mission identifier, origin and destination, active route segment, localization quality, commanded and actual speed, sensor health, network condition, and key peripheral requests and acknowledgements. An under-rack mission should add lift and load state. A roller handoff should add readiness, busy, and fault feedback from both the onboard rollers and fixed conveyor.

An event package does not require permanently copying every high-rate signal. The site can retain summaries, selected frames, or bounded time windows according to component importance and storage policy. What matters is a common time base. If the vehicle, fleet manager, station PLC, and network equipment cannot be compared on time, their event order becomes ambiguous. Time synchronization, event IDs, and correlation IDs can appear to be back-end details, yet they determine whether one stop can be reviewed as a continuous sequence.

When an AMR makes a controlled stop in an aisle, personnel and load safety come first, evidence capture comes next, and recovery follows. Diagnostic records never replace risk assessment, functional-safety design, or emergency response. Their purpose is to reduce speculation after safe actions are complete. Repeated low-severity events should not automatically be discarded either. A recurring pattern can expose a route, station, or component boundary before a severe code appears.

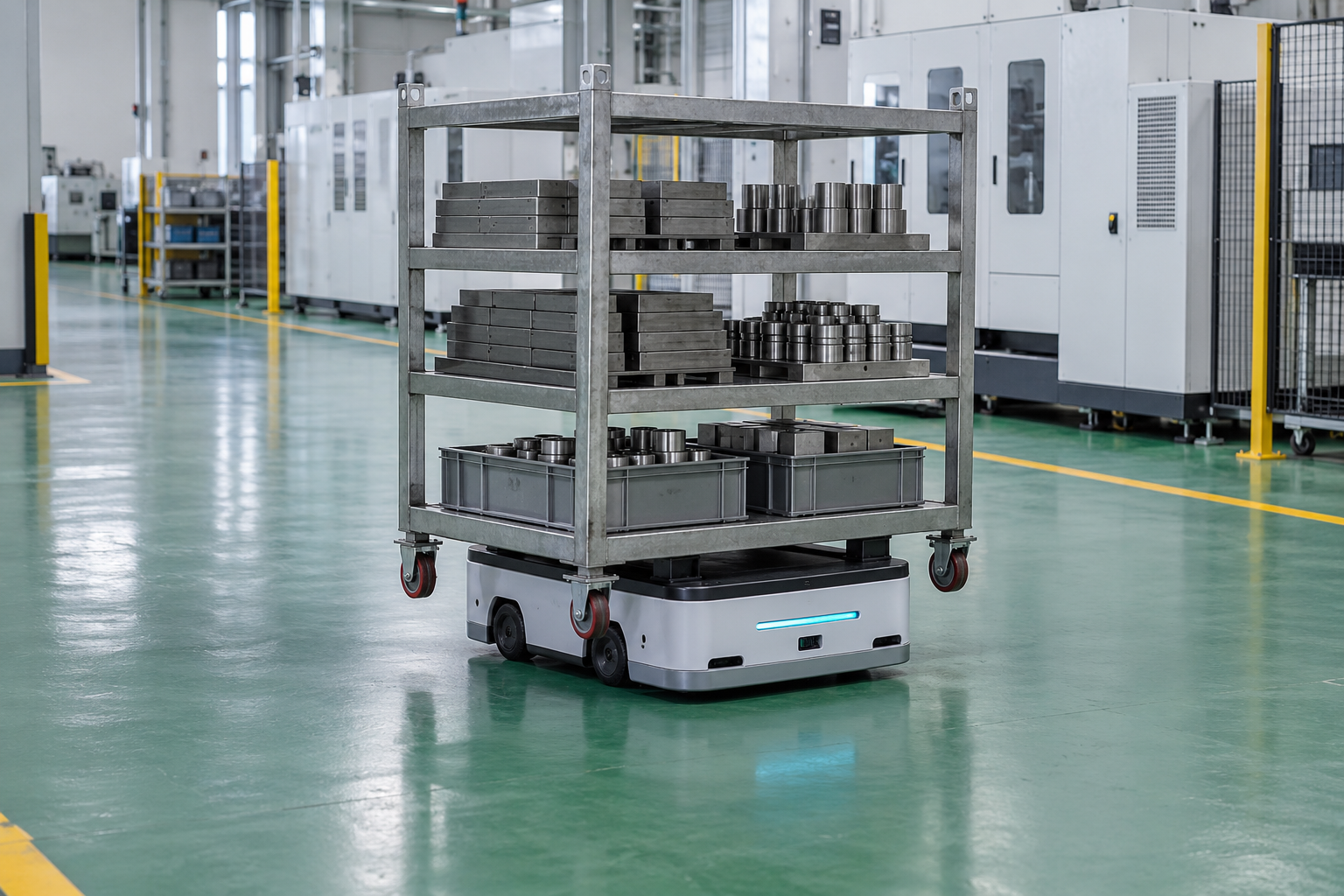

Figure 1: An under-rack AMR makes a controlled stop while the rack remains stably supported from below

Separate Vehicle, Environment, and Process Causes Before Acting

A stop may originate on the vehicle or outside it. Analysis should separate at least three layers. The vehicle layer covers sensors, drives, power, controller, and handling mechanisms. The environment layer covers reflections, obstructions, floor condition, wireless coverage, temporary aisle storage, and lighting changes. The process layer covers dispatch timing, station occupancy, carrier condition, and peripheral feedback. This is not a way to divide responsibility. It is a way to give the next verification the correct object.

If several vehicles from different batches slow or stop on the same route segment, inspect the local environment and rule set first. If one vehicle reports the same drive or sensor issue across several routes, a vehicle-side cause becomes more likely. If events cluster at one fixed phase of a pickup or drop-off task, return to the carrier interface, station rhythm, and PLC handshake. These differences become visible only when events are grouped by route, vehicle, version, mission type, and station.

The purpose of grouping is not an attractive alarm ranking. A better outcome is a verifiable next action for each recurring class: revisit a route segment, retest an interface sequence, inspect a sensor-window batch, or reproduce a carrier combination in controlled conditions. After a change, link the revised version, retest conditions, and result back to the original event class. The log then becomes material for engineering improvement rather than an archive of past incidents.

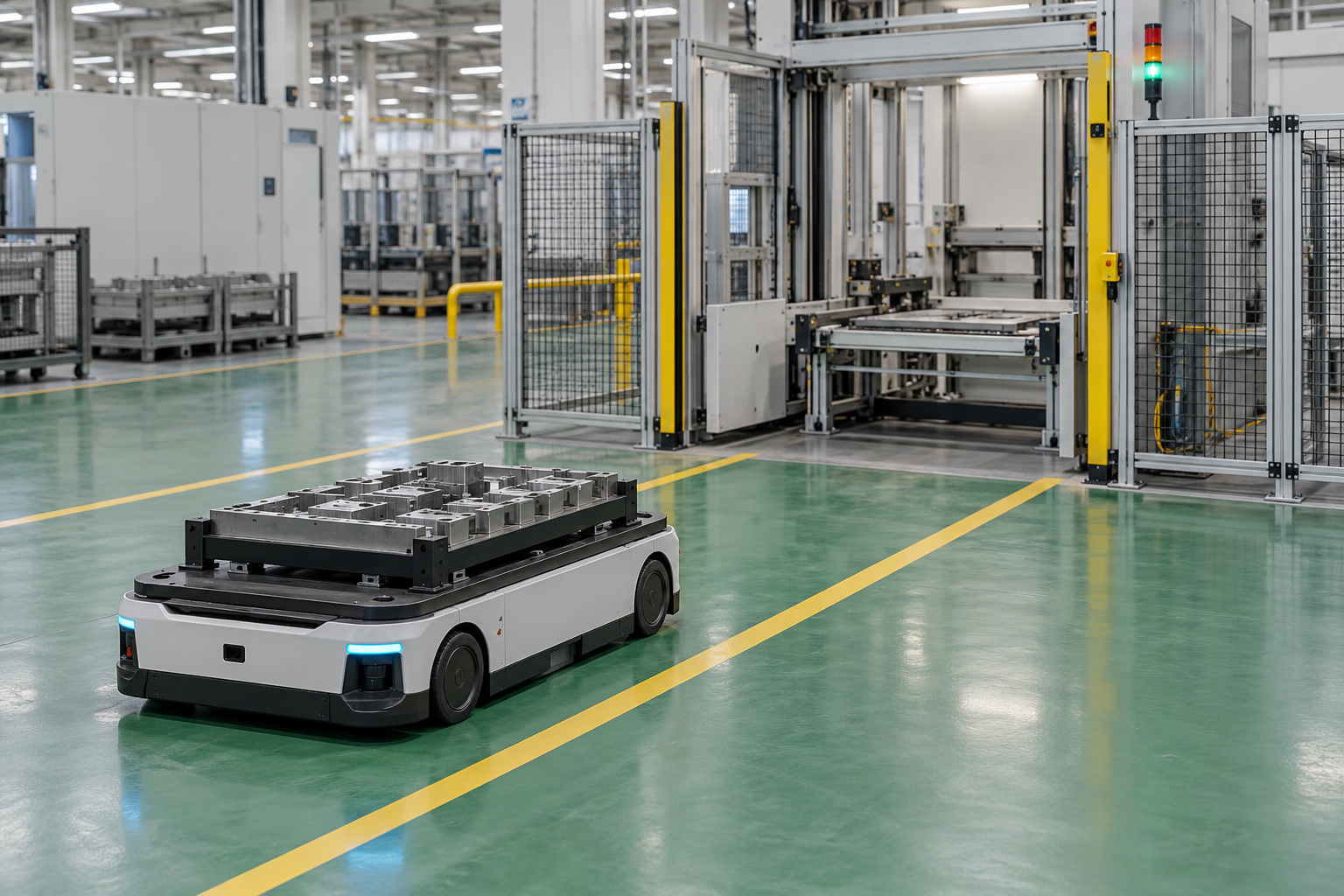

Figure 2: A flat-deck AMR waits before a station where robot, route, and peripheral states can be correlated

Design the Diagnostic Field Set Before Commissioning

A project should define a minimum diagnostic set for likely controlled-stop scenarios early in its design. It does not need to copy any single software schema. It should be derived from the site: which route segments require individual identification, which carrier states affect safety, which station signals change mission judgment, and which version changes need traceability. For a newly deployed point, a small set of representative missions can first test whether the event package is sufficient to reconstruct an abnormal condition. The field set or capture window can then be adjusted with purpose.

For Chengdu Beaver projects in complex industrial settings, robot, fleet, peripheral interface, and plant workflow can be treated as one observable chain. The goal for operators is not more alarms. It is faster judgment about which layer to inspect, which site location to revisit, and how to confirm the effect of a change. When diagnostic data retains its operating context, an AMR becomes a logistics node that can improve over time rather than a device that merely produces a record after a problem.

A mature diagnostic record should let a site answer three questions without relying on memory: why did this robot stop here, what happened immediately before and after it, and are similar events concentrating around one condition? Designing those answers into the instant of the stop makes every safe stop leave an actionable engineering trace.
