Stamping Scrap Collection with AMRs: Make the Bin a Stable Load Before It Is Full

Scrap collection at a stamping line is often treated as a simple support move: fill a bin, call a vehicle, remove it, and place an empty one back under the chute. But punched slugs, trim skeletons, small cut pieces, and oily chips are not dimensionally stable unit loads. As they fall into a bin, they change the pile height, local loading, center of mass, and the likelihood of material catching at the rim. A person pushing a cart may notice these changes and improvise. An AMR cannot be expected to make those corrections during travel.

The practical goal is therefore not to move scrap faster. It is to turn changing loose material into a logistics unit with defined boundaries, closure, support points, and exchange interfaces. If a bin can become over-height, off-center, or partially open before the vehicle arrives, a robot following an otherwise correct route can still introduce a poor load into an aisle or transfer station.

A Scrap Bin Is Not an Empty Container Waiting to Fill

The condition inside a scrap bin is dynamic. Large blanks, thin offcuts, curled strips, and fine chips settle in different ways. The same container can carry a different center of mass depending on chute direction, the geometry of the scrap, liner condition, and where material first lands. Rated weight alone is not enough to describe whether the unit is ready to move. Load shape, position, and weight distribution are all relevant to stability, which is why a bin needs a defined loading geometry rather than a nominal capacity alone.

That geometry starts at the collection interface. An inward-facing rim, chute guide, or fitted cover can keep material within a known boundary. Wear liners, shallow guide slopes, or replaceable internal dividers can reduce persistent buildup on one side. For sharp offcuts, temporary straps, loose covers, or material hanging outside the frame are weak substitutes for a proper container. They can create new interference points with barriers, equipment, or people during movement.

Define a Physical Fill Limit Instead of Relying on a Visual Guess

'Nearly full' is not a repeatable release criterion. Where pile height matters, the permitted load envelope should be visible and difficult to obscure: for example, a structural limit below the rim, an internal reference mark, or a closed height that matches a compactor or tipping station. A site may use weight, volume sensing, a level switch, or a manual confirmation to trigger replacement. The important question is the same in every case: does the container remain within its permitted envelope and closure condition, not merely how many pieces have accumulated?

A defined limit also makes replacement more predictable. An empty bin can be staged before the full bin reaches its boundary, allowing the collection point to recover without waiting for material to build above the rim. Different dies should not be assumed to create the same mass or center of gravity at the same apparent level. Part size, curl, oil residue, and chute direction can change the result. When those conditions change, the bin and its allowable fill condition deserve review instead of inheriting the previous die's settings.

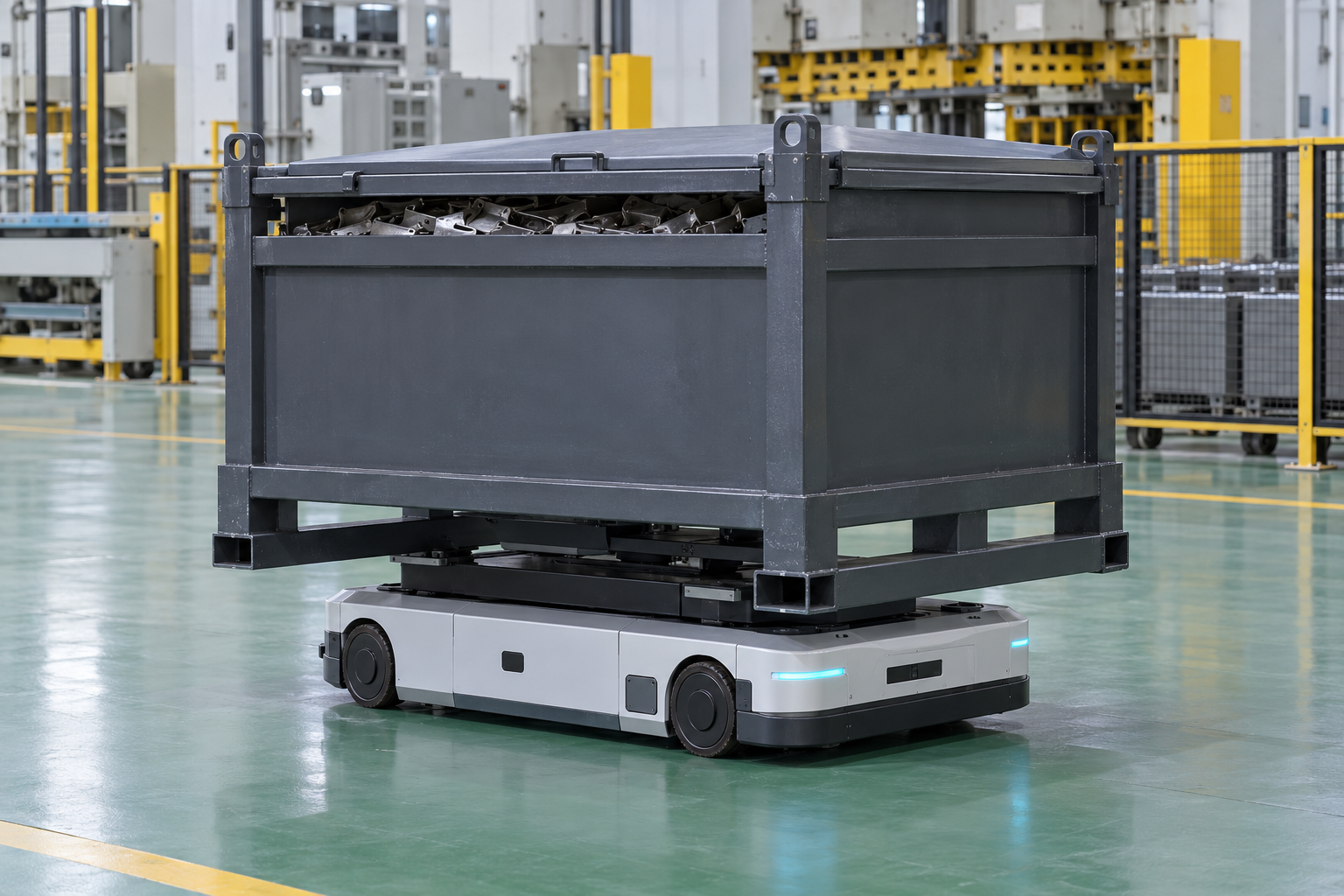

Figure 1: An under-rack lifting AMR centrally supports a contained, height-limited stamping scrap bin through its rigid base frame

The AMR Should Support the Bin Frame, Not the Loose Material

For an under-rack lifting AMR, the load interface belongs on a rigid base frame. The robot should enter centrally below the frame and lift at designed support locations, transferring the load through bottom rails rather than thin bin walls, caster brackets, or add-on guards. The loaded container needs enough underframe clearance for the AMR mechanism to enter and leave. Once raised, the bin should remain level, while casters, feet, and nearby parts stay clear of the floor and the vehicle structure.

Route verification should follow the container, not only the robot chassis. Maximum permitted fill height, external handles, covers, and any residual material near the rim create the real transport envelope. Turns, narrow openings, floor transitions, and crossings with other equipment should be reviewed against that combined envelope. Gentle starts, stops, and turns help prevent loose material from shifting to one side, but motion settings are a final layer of control. They do not replace containment, fill limits, and rigid support.

Give Collection, Support, and Release Their Own Clear Interfaces

At the press, a scrap bin is both a collection vessel and a process interface with the discharge chute, guarding, and downstream recovery equipment. A robust exchange station gives the full and empty bins distinct locations. An empty bin is positioned in a receiving frame or against location stops before collection begins, so its opening is correctly related to the chute. When the AMR lifts the full bin away, the press-side interface should not continue to depend on the vehicle for support beneath the collection point.

The same separation matters at a tipping, compaction, or central holding station. The station should provide independent support and mistake-proof locating features before the AMR exits. This avoids treating the vehicle as a temporary leg of fixed equipment. Once collection, support, and release are designed as distinct interfaces, the system can be checked using straightforward questions: does this bin match the current scrap stream; is the load inside its permitted envelope; is the bottom support intact; is the closure condition correct; and has the collection point recovered its correct receiving position?

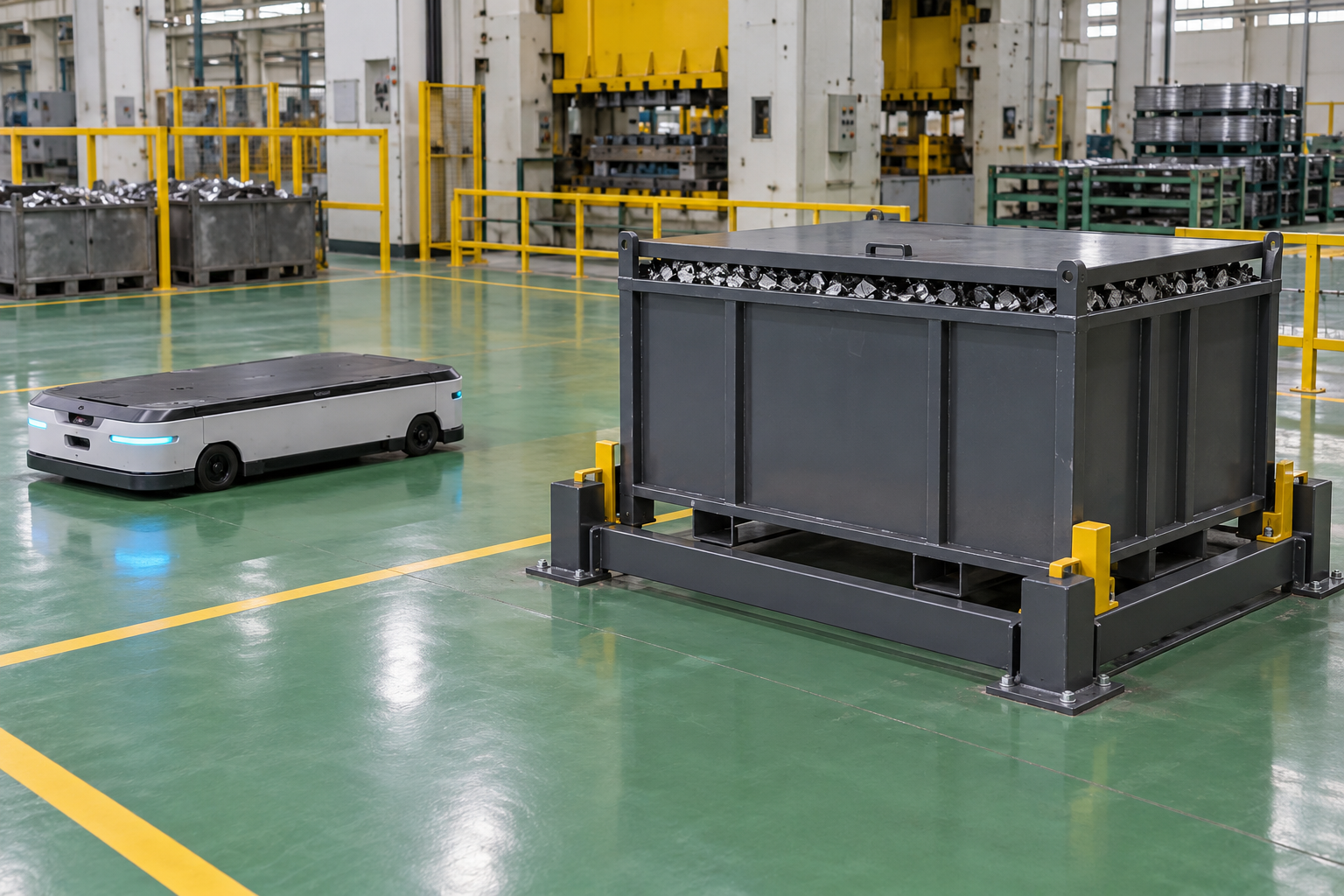

Figure 2: The scrap bin transfers into an independently supported locating frame before the AMR exits

AMR-based stamping scrap collection is more than an alternative to pushing carts. When the bin uses containment, a defined fill limit, internal guidance, and a rigid support frame to turn loose scrap into a stable load, the AMR can transport a well-bounded unit. That makes bin exchange a more predictable part of intralogistics without claiming that one vehicle setting can solve every scrap-handling condition.
