Wire-Harness Logistics with AMRs: Keep Bend Radius and Connector Protection in the Carrier

Wire harnesses in automotive, appliance, and equipment manufacturing are often brought to the line in totes or on simple carts. During manual handling, people naturally support a branch, keep a connector clear, and reshape a loose loop when it begins to sag. Those small corrections disappear when a harness moves on an AMR. The vehicle may follow a safe route, yet the harness can still arrive with a connector displaced, a branch caught beneath another assembly, or a section resting on an edge that was never intended to carry it.

The practical answer is to treat the carrier, rather than the vehicle deck, as the controlled logistics interface. Bend radius, unsupported span, connector position, branch orientation, and picking order should be defined by the carrier geometry. The AMR then transports that protected unit without disturbing its boundaries. A mission is complete not when the vehicle reaches a coordinate, but when an assembly-ready harness is independently supported at the receiving station.

A Harness Is Not an Ordinary Flexible Load

A harness may look soft and compliant, but it should not be treated as a generic bundle that can be folded into any open container. Different cable diameters, shielding constructions, jacket materials, connectors, and branch layouts have different limits for bending, torsion, tension, and local compression. Those limits must come from the applicable harness or cable manufacturer specifications. A sharp bend, a persistent load on one edge, or a branch pulled by a neighbouring part may introduce stress that is not obvious during transport but becomes relevant at assembly or test.

The weakness of a simple tote is usually not its volume. It is that the tote does not define how the harness should occupy that volume. A deep box lets loops settle and entangle. A narrow divider can force a branch into an unintended radius. A connector that is held only by packing foam or a temporary tie can still strike a wall during a stop or turn. For recurring delivery, the carrier should reproduce one known containment relationship instead of asking an operator to recreate it each time.

Let the Carrier Support the Harness and Let Restraints Only Locate It

The goal of a harness carrier is not to tighten more straps. It is to separate support from restraint. Smooth, continuous cradles with an appropriate radius should bear the main harness along a predictable curve. Retainers should prevent sliding, crossover, or connector swing, but they should not become the primary load-bearing element that cinches the assembly. For multi-branch harnesses, layered or zoned positions can follow the intended installation sequence while preserving visible clearance between separate assemblies.

Connector protection should also be designed into the carrier rather than added as a last-minute pouch. Plugs, terminals, sensors, and delicate latches benefit from dedicated pockets, covers, or orientation-controlled slots. The support surface should not press directly against a mating face or locking feature. If the operator must take parts in sequence, the exposed direction of each connector should match the working side of the station. That eliminates searching and pulling at the vehicle, and avoids spreading an entire harness set across the line just to find one end.

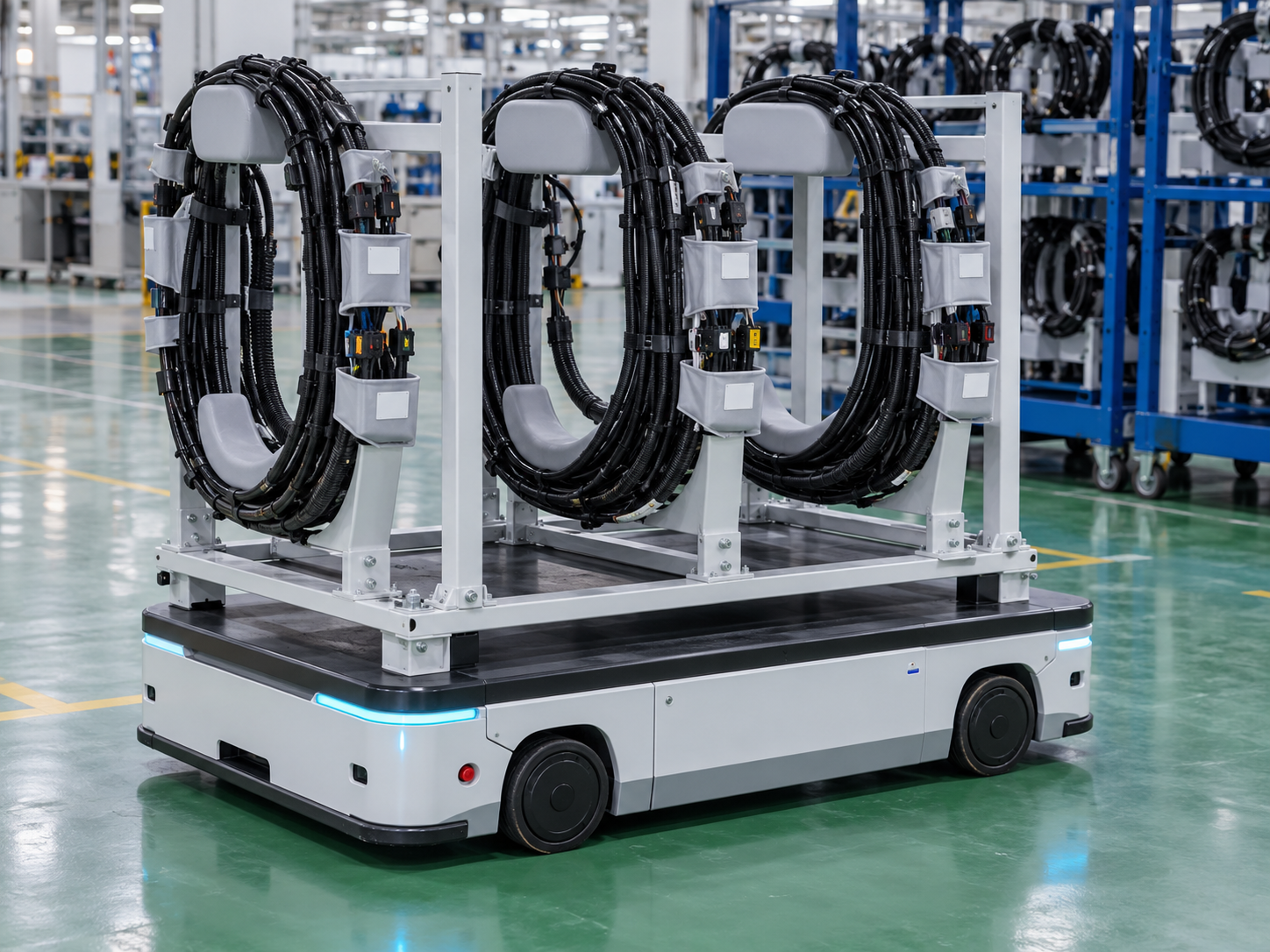

Figure 1: A purpose-built carrier on a flat AMR supports harnesses in broad cradles and keeps connector ends in separate protective pockets

AMR Motion Settings Must Respect Dynamic Margin Inside the Carrier

Correct loading is only the starting point. Acceleration, braking, turning, floor joints, and recovery after a yield event all create small relative movements between a harness and its supports. The question is not simply whether the AMR travels at a conservative speed. It is whether those movements allow a harness to cross a retainer, let a connector contact a hard structure, or create a new concentration point at a cradle edge. Route and motion settings for a flat AMR need to be verified with carrier centre of gravity, support spacing, and harness slack together.

For complex or high-value harnesses, initial trials can use representative assemblies in meaningful combinations: full load, minimum load, the heaviest build, the stiffest build, and the greatest number of branches. Review whether every cradle continues to support the load, connectors remain in protective pockets, restraints only locate rather than tension the harness, and the carrier-to-vehicle connection stays secure. There is no universal speed or bend-radius figure that replaces this assessment. The working boundary comes from the specific assembly, the carrier, and the actual site motion.

Transfer to Independent Station Support Before Picking or Returning

The support transition from the AMR to the workstation is easy to overlook. If an operator removes a harness while the carrier remains supported by the vehicle, or if the AMR leaves before an unload state is confirmed, a small carrier movement can put unwanted tension into the assembly. A fixed receiving rack should provide support points and locating features that match the carrier. Once the rack independently supports the carrier, the AMR can leave; picking, empty-position confirmation, and return handling then have a clear physical boundary.

A usable mission record can stay simple: the carrier type matches, the harness has been loaded into its defined positions, the AMR has reached the specified receiver, the fixed station has accepted the carrier, the vehicle has cleared the station, and the work area has confirmed that the load is available. If a connector has left its pocket, a branch crosses a cradle, the carrier is not fully seated, or the carrier type is wrong, it belongs in a controlled review position rather than being rearranged in a traffic lane and released. For wire-harness logistics, a stable carrier relationship often removes more line-side uncertainty than a faster travel profile.

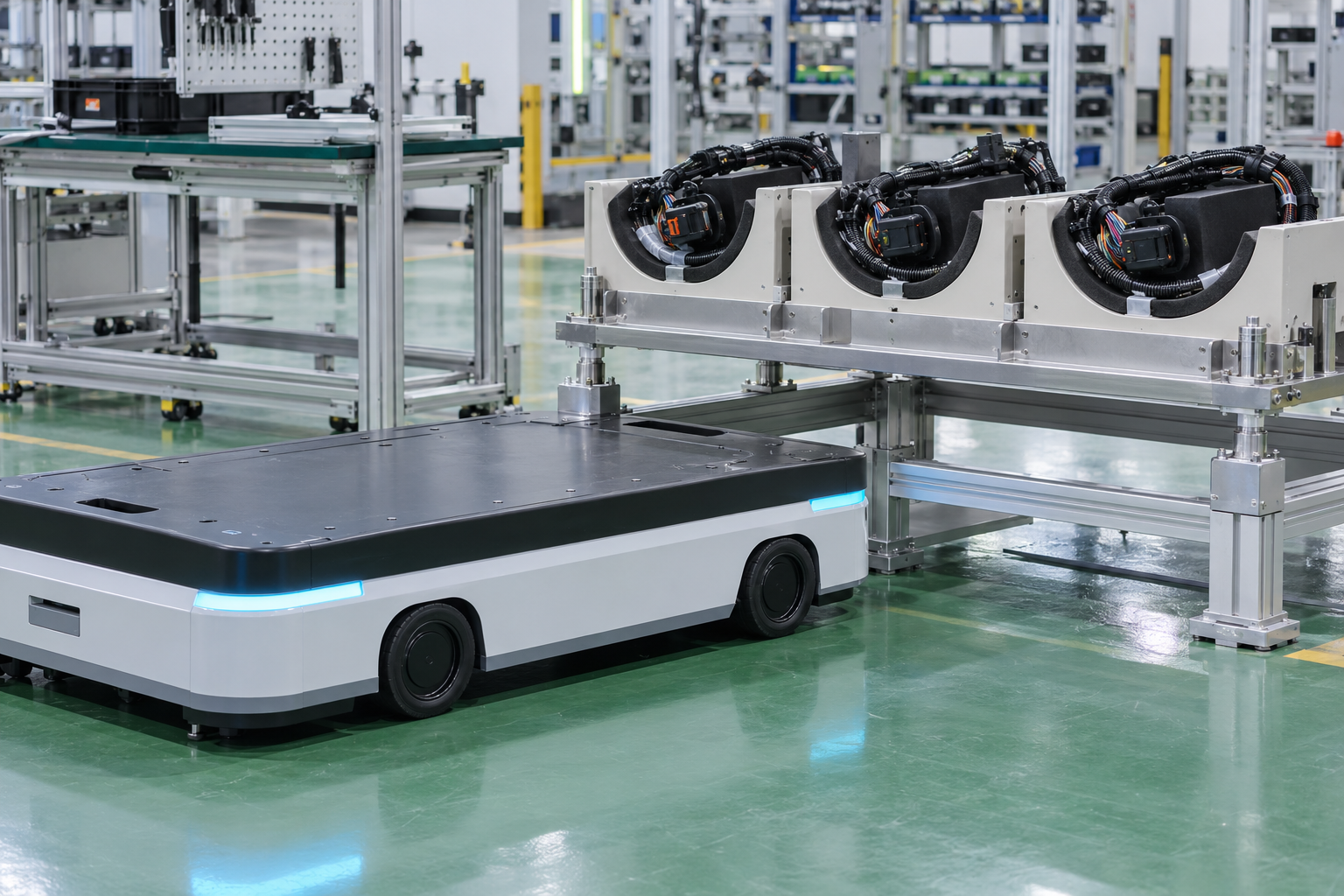

Figure 2: The fixed receiving rack independently supports the harness carrier before the AMR leaves the station

Once wire harnesses enter AMR logistics, the item that needs standardisation is not merely the travel route. It is the support relationship that survives loading, transport, and line-side use. When the carrier preserves bend radius, connector protection, and picking orientation, an AMR can turn a flexible assembly that normally needs constant human attention into a repeatable intralogistics unit.
