Explosion-Proof AGVs Need More Than a Protected Shell: Hazardous-Site Projects Depend on Zoning, Vehicle Certification and Service Boundaries

Mobile robots are increasingly attractive in hazardous industrial environments such as chemical warehouses, coating workshops, fine-chemical plants, solvent areas in pharmaceutical production and dust-sensitive process zones. The business case is clear: reduce manual exposure in higher-risk areas while improving transfer, replenishment, line-side supply and internal logistics stability. Yet many projects start with the wrong assumption. They treat an explosion-proof AGV as a standard AGV with a stronger shell, assuming that enclosure upgrades alone are enough to make the system fit for hazardous duty.

In reality, the decisive issue is not the shell. It is the boundary definition around the system. What kind of zone will the vehicle enter? Which gas or dust environment is it designed for? Are the drive, battery, sensors, wiring, braking, controls and communications treated as one verified vehicle system? Will charging and maintenance happen inside or outside the hazardous area? How will stations and human intervention be structured to reduce ignition risk? These questions define whether the project can be both safe and operable over time. The true value of an explosion-proof AGV is not simply replacing people in a hazardous area. It is turning a risky logistics segment into a controlled, maintainable and verifiable operating capability.

1. Hazardous-area projects begin with zoning, not vehicle selection

The first question in an explosion-proof AGV project is not which vehicle to buy. It is what kind of area the vehicle is expected to enter. Gas, vapor, mist and combustible dust environments are classified differently, and the required level of protection changes depending on whether the atmosphere is continuously present, occasionally present in normal operation or only expected under abnormal conditions. If the zoning judgment is wrong, every later choice, from sensors and battery design to control cabinets and communication architecture, can drift away from the real requirement.

That is why hazardous-site automation cannot copy the logic of a normal intralogistics project. Standard AGVs and AMRs focus on aisle width, task logic and takt time. Explosion-proof AGVs must first align with EHS, process engineering, equipment and electrical teams on zone boundaries, media characteristics, cleaning rules, allowed entry windows and manual intervention procedures. In many sites, the right answer is not unrestricted robot movement across an entire hazardous area. The better answer is to let the robot serve specific transfer segments, wait points or loading windows while minimizing the duration and frequency of human exposure.

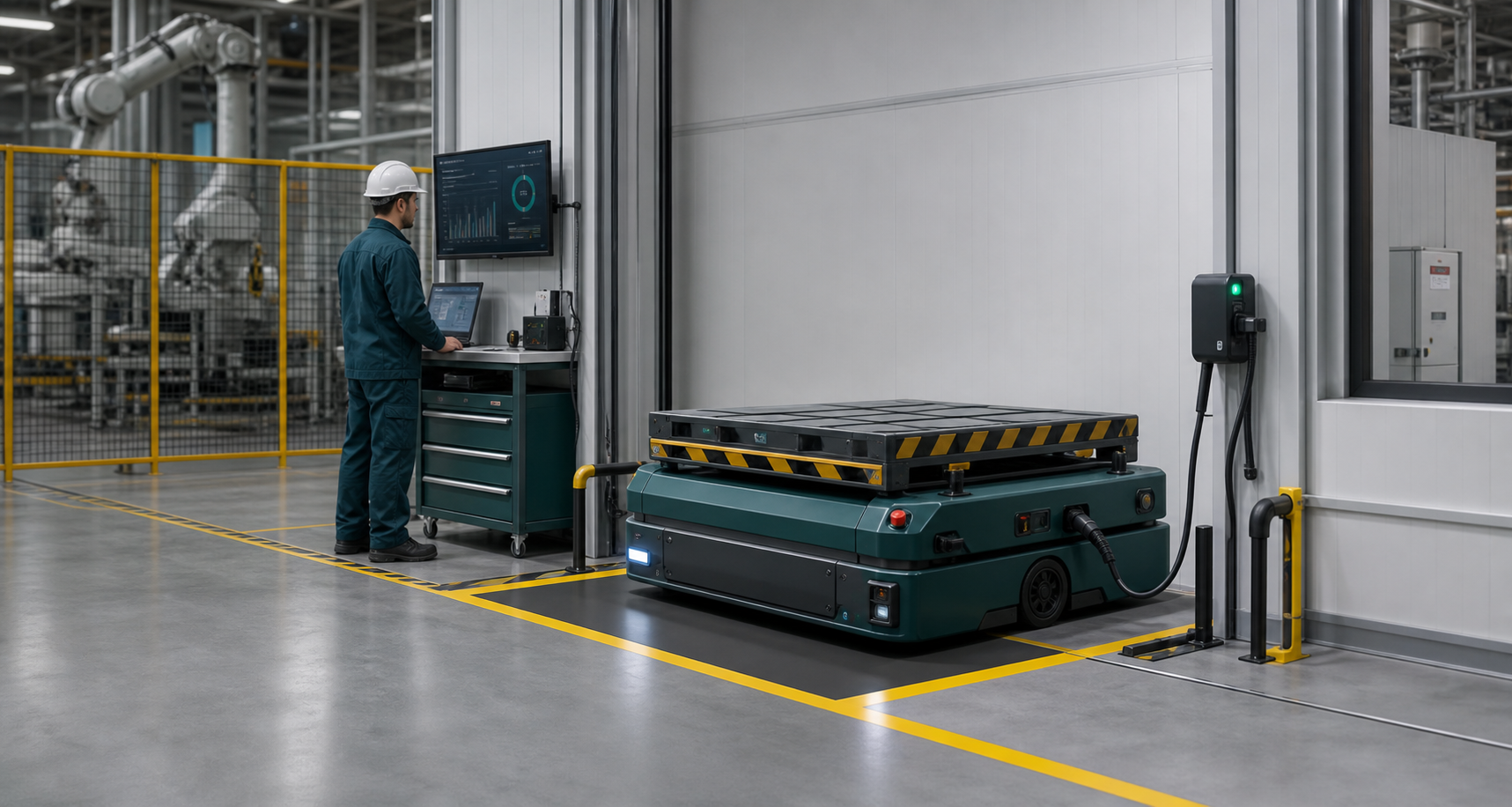

Image 1: Hazardous-area zoning should define the real operating boundary before vehicle selection begins.

2. Explosion-proof design is a vehicle-level systems problem

A second common mistake is to treat explosion protection as a list of special components. In hazardous-duty robotics, the real object of scrutiny is the whole vehicle system. The drive train, battery pack, motors, brakes, connectors, lidar, vision units, buttons, indicators, cable routing, enclosure structure, grounding and electrostatic control have to be designed under one coherent engineering logic. Replacing a few components while ignoring heat sources, spark sources, friction points or surface temperature can create expensive problems during review, commissioning or maintenance.

For solution providers, that means an explosion-proof AGV is not just a specialized chassis. It is the output of a tightly constrained engineering process. Material selection and enclosure sealing can influence heat dissipation and serviceability. Sensor choice can affect navigation precision and enclosure openings. Safety braking and speed reduction logic can affect takt time. Anti-static wheels and grounding measures can in turn affect flooring requirements, turning performance and station interface design. If Chengdu Heli Intelligent enters such a project, the right starting point is not an isolated vehicle specification sheet. It is the site process, load-carrier format, handoff action and software interface model that together define the right equipment combination and the practical vehicle boundary.

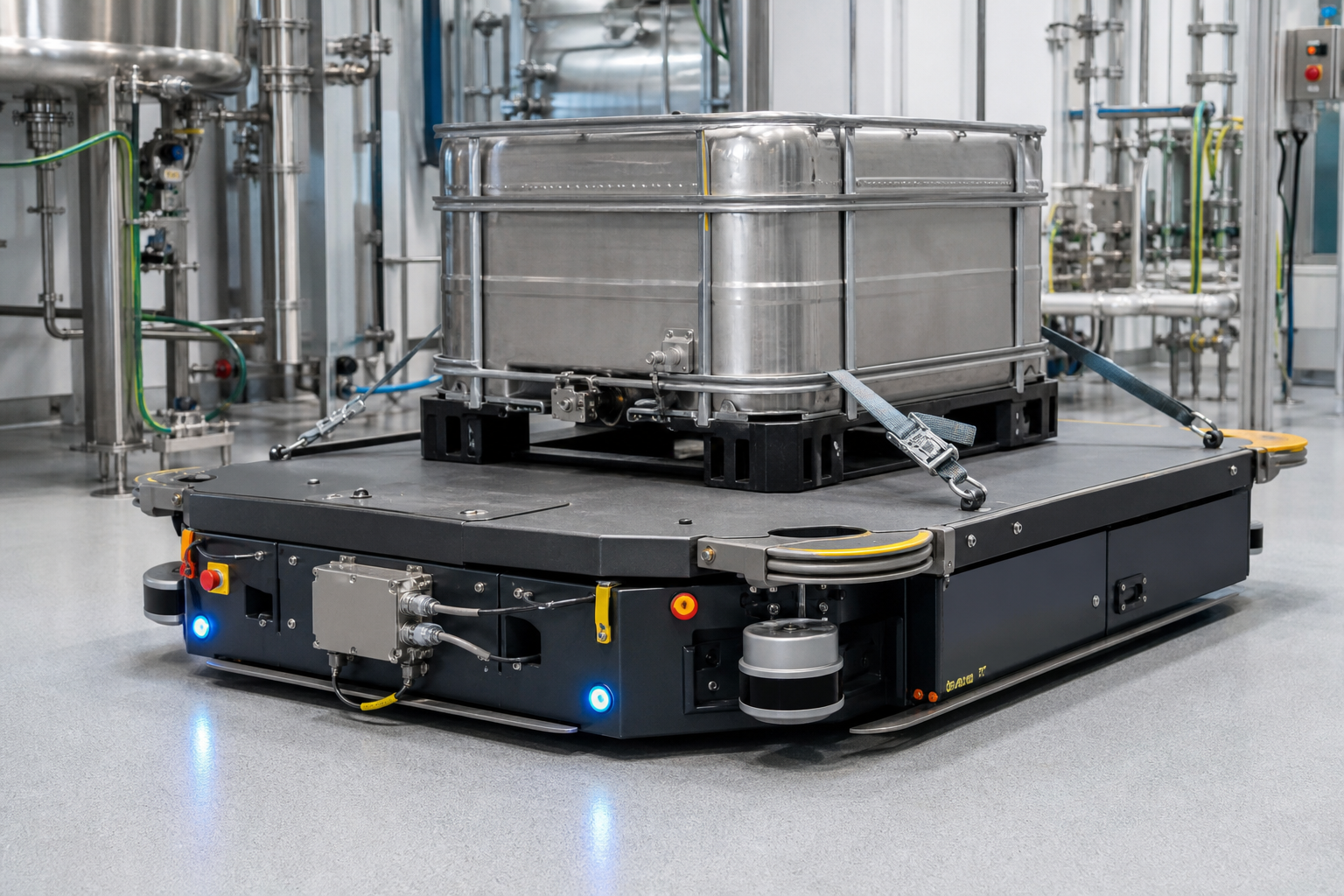

Image 2: Explosion-proof AGVs depend on coordinated vehicle-level design across drive, controls, sensing and electrostatic management.

3. Charging, standby and human intervention often test the design more than driving does

Many teams focus on whether the robot is safe while moving and underestimate the risks around standby, charging, shift change, inspection and exception recovery. For explosion-proof AGVs, the difficult questions are often operational rather than cinematic. Where is the vehicle allowed to wait? Can it charge inside the hazardous area? Who is permitted to approach the robot after an alarm? When can a person manually release a load? Which maintenance actions must be performed only after the robot returns to a safe service zone?

That is why mature projects usually push high-frequency maintenance and service actions outside the hazardous area whenever possible, leaving only clearly bounded production tasks inside. This reduces the combined risk of inspection, cleaning, repair and human intervention. It also helps the operations team build standard maintenance routines, service windows and staffing rules. A few special projects do adopt in-zone charging or dedicated protected docking facilities, but those arrangements demand corresponding protection capability across the surrounding infrastructure and management process. They are not achieved by moving a conventional charger into a hazardous area.

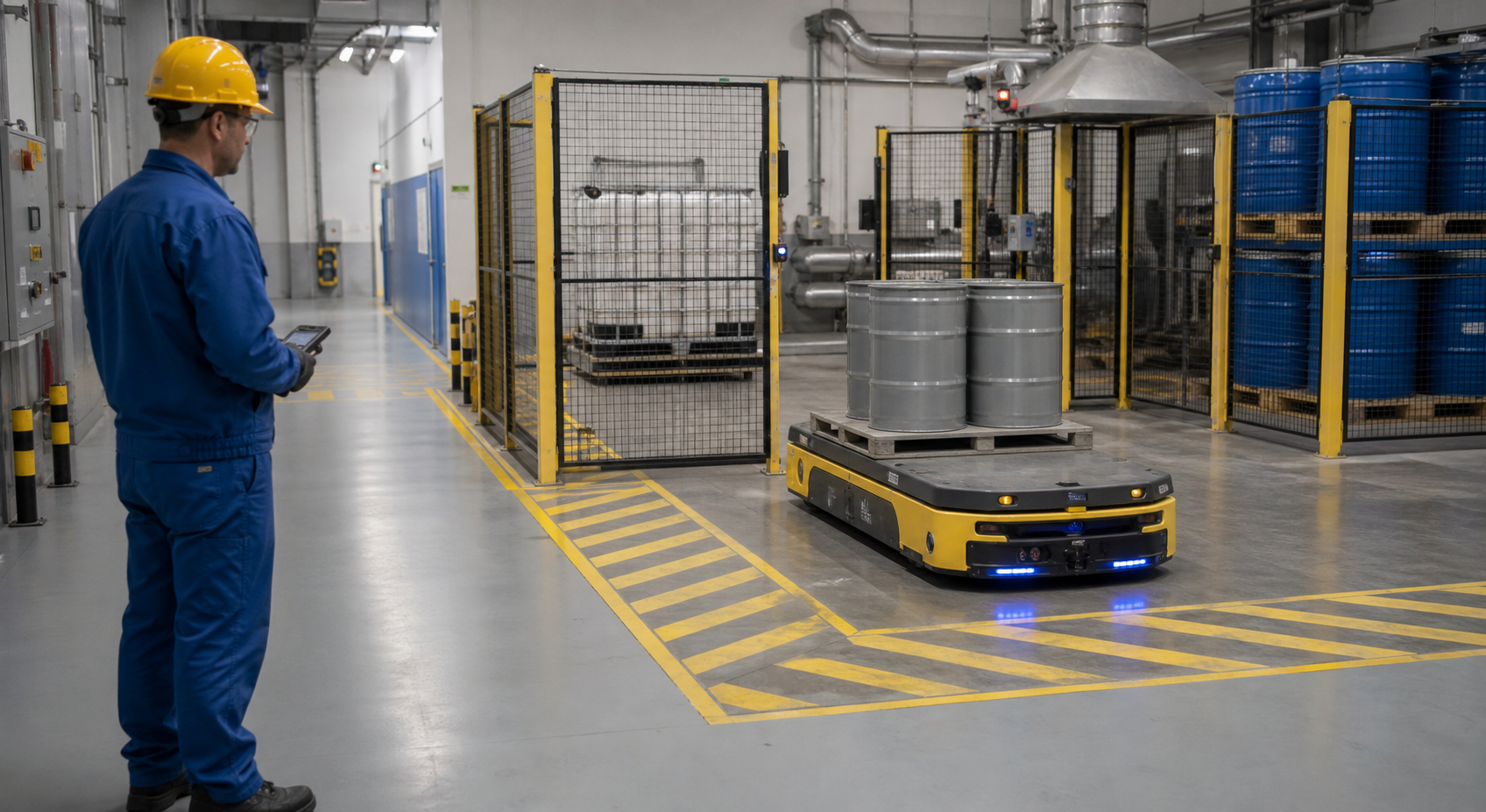

Image 3: Moving frequent charging, inspection and maintenance actions outside the hazardous area improves long-term operability.

4. Station semantics and load-carrier standardization determine long-term stability

In hazardous environments, the goal is not maximum free movement. The goal is controlled handoff. The robot needs clear rules for when it may approach a station, how the load carrier is positioned, whether a manual confirmation step is required, how suspect material is isolated and whether empty and loaded carriers follow the same route. If these semantics are not defined at the station level, people quickly re-enter the loop through manual workarounds, improvised temporary storage and ad hoc rerouting.

That is also why load-carrier standardization matters even more in explosion-proof AGV projects than in ordinary automation work. If pallets, totes, carts or frames vary in size, center of gravity, grasping surface or label position, each interface event introduces uncertainty. For a supplier such as Chengdu Heli Intelligent, whose portfolio spans under-riding, flatbed, tote-handling and composite robotic formats, the real value lies in coordinating the vehicle, the carrier, the station and the control rules as one scene-based solution rather than emphasizing only whether a single model can enter a hazardous zone.

5. Controlled logistics segments are usually a better starting point than end-to-end replacement

From an implementation perspective, the safest entry path is usually not full-process replacement from day one. A better starting point is a controlled logistics segment with repeatable flow, limited variation and high manual exposure, such as raw-material transfer, line-side replenishment, drum or tote transport, or inter-zone handoff. Once entry, pickup, drop-off, exit, return and exception handling work as a closed loop, the site can expand to more stations and more task types with much lower execution risk.

This phased path fits the rhythm of most hazardous industrial projects. It allows the operator to verify traffic behavior, handoff stability and dispatch logic in the real zone while also maturing software interfaces, alarm handling, maintenance scheduling and spare-parts planning. The biggest implementation mistake is to set the initial goal as total unmanned operation and then rely on manual intervention whenever station rules, service boundaries or exception workflows prove incomplete.

Conclusion

Explosion-proof AGVs succeed not because they make a standard AGV look tougher, but because they redefine hazardous-area logistics as a bounded systems-engineering problem. Zoning defines entry eligibility. Vehicle-level design defines the safety base. Charging and service boundaries define long-term operability. Station and carrier rules define whether the site can run stably in practice. The suppliers and operators that bring those boundaries forward into the design phase are the ones most likely to turn hazardous-site automation into a durable capability rather than a one-off pilot.
