Roller AGVs at Automated Labeling Stations: Stabilize the Carton Before Its Logistics Identity Goes Live

At a packaging-line exit or line-side shipping area, a roller AGV may appear to make a simple delivery to an automatic labeler: arrive, align, transfer, apply a label, and leave. The vulnerable part is often the few seconds around the application cycle. Whether the carton is already supported by the fixed station, whether its label face is in the intended orientation, and whether the scanner read belongs to that specific carton determine whether physical flow and the digital record remain aligned downstream.

For that reason, an automated labeling station should not treat label application as the end of the mission. A more useful completion condition is that the carton is stable in a controlled position, support has clearly transferred from the vehicle to the fixed station, label content has been read or rule-checked, and the result has been associated with this station, this mission, and this carton. The AGV then delivers more than a carton in front of a labeler; it delivers a unit ready to enter the next logistics step.

A Finished Label Is Not Yet a Released Logistics Unit

A printer-applicator can print, apply, or wipe down a label without proving that the label is now a reliable logistics identity for the carton. The carton may still be crossing from the vehicle rollers to the fixed rollers. The label may be on the wrong face, wrinkled, or still inside the application area. If the mission is closed at that point, downstream equipment receives an “applied” event but cannot tell whether the carton is stable, whether the label can be read, or whether the captured identifier belongs to the carton that just entered the station.

A stronger design separates the sequence into connected but distinct states: carton arrived, support transfer completed, carton positioned and settled, label generated and applied, read or rule verification completed, and departure permitted. Those states do not need to come from one sensor type. Roller zones, position switches, a scanner or camera, printer feedback, and the control system can each contribute. The important point is that each signal answers a specific question: where the carton is, who supports it, whether it may be labeled, whether the label matches it, and whether the next device may receive it.

Transfer the Carton Cleanly From Vehicle Rollers to Fixed Support

When a roller AGV docks with a fixed conveyor, the roller heights, axes, and transfer direction need to be aligned. The carton should not cross an obvious step, be squeezed sideways, or rest briefly on corners alone. At a labeling-machine inlet in particular, a carton still influenced by two driven roller sections can skew or rotate if their speeds or start-stop sequence differ. A correct label face can then move out of the usable application zone.

The labeling station therefore needs a stable zone that can independently support and position the carton. Once the AGV has delivered it, the system should first confirm that the fixed station has received the carton bottom. The vehicle rollers can then stop or withdraw. Only after that should a stop, guide, or controlled short conveyor move place the carton in its labeling pose. The objective is not to push the carton harder; it is to make support, position, and drive authority explainable at every moment. For carton families with different dimensions, guide clearance, label-face height, and acceptable carton deformation also need project-specific definition.

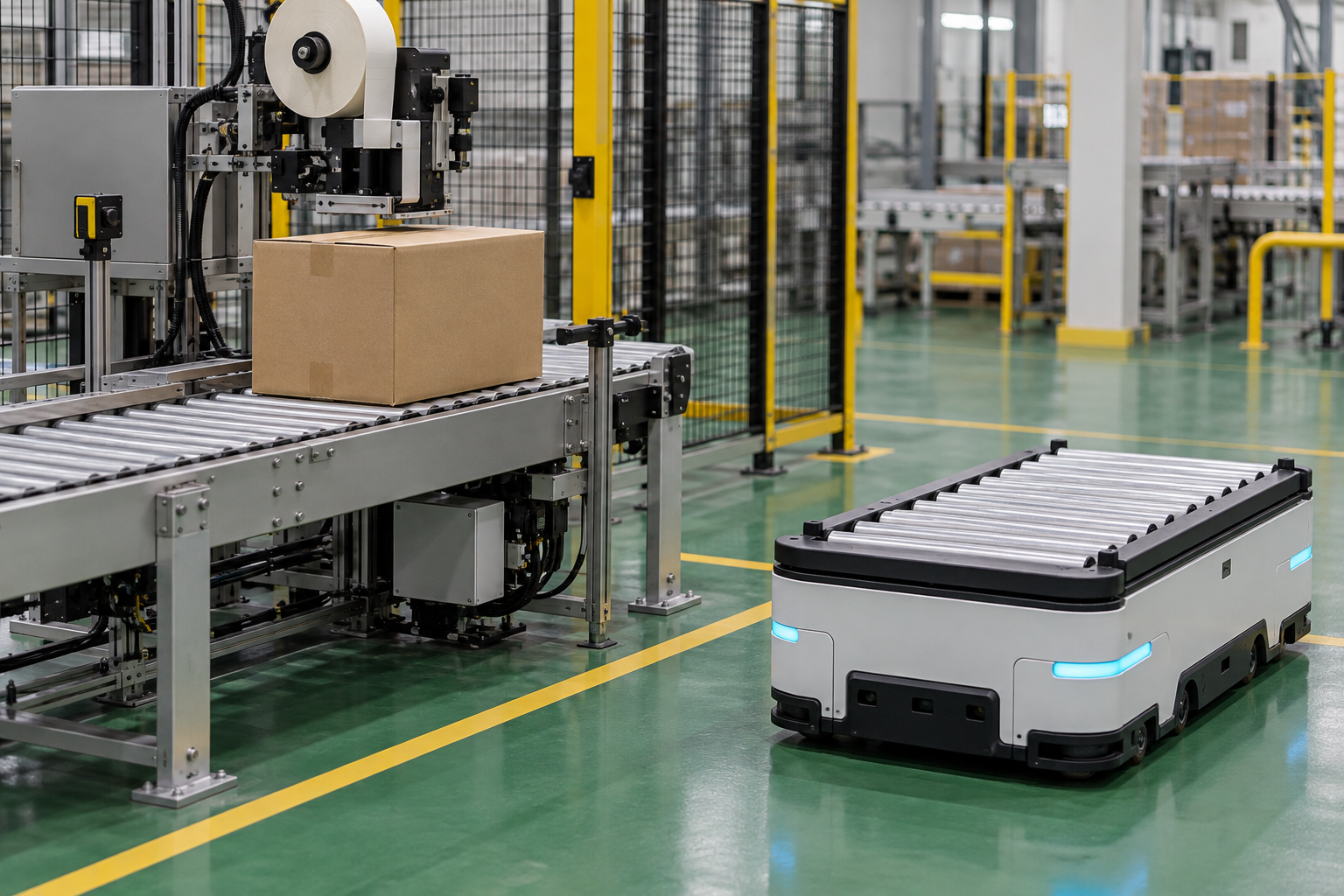

Figure 1: A roller AGV docks level with an automated labeling station while fixed rollers support the carton before it enters the labeling zone

Design the Label Face Orientation and Settling Window Together

A labeling station needs more than a conveyor centerline. A label must land on the intended face, within a defined height range and in a readable zone. The same carton may have case tape, folded flaps, hand holes, printed graphics, or slight bulging that make one face unsuitable. A simple arrival signal can allow application while the carton is still settling, its side is not aligned, or its intended label face is obstructed.

A practical station design starts by defining carton entry direction, label face orientation, permitted envelope, and application location. Stops, guides, scanner viewpoint, and applicator travel then follow from those requirements. When a mission carries a serial number, lot, or destination field, the data should be associated with the task only after the carton enters the stable zone rather than reserved prematurely by an upstream queue. If a preceding carton is withdrawn before application, the next carton will not inherit an incorrect record.

Bind the Read Result to the Current Carton and the Current Station

A logistics label can carry an internal carton identifier, a lot, a serial number, or identification data organized under an agreed standard. Whatever the scheme, a successful scan should not merely mean that the reader is alive. The useful test is that the read occurred inside the correct station window, the value belongs to the currently positioned carton, and it matches the data expected for this mission. Only when all three relationships hold should the result release the carton to the next conveyor, sorter, or storage step.

The event record also needs enough context to be useful: mission number, carton identifier, station, labeling-device status, read result, and time. It does not need to stream every second of machine motion to the business system. It should, however, make it possible to answer which carton left the station under which conditions if a reprint, missort, or unreadable label is found later. WMS, MES, and related interfaces are more durable when they exchange this kind of traceable event rather than one generic completion signal.

Do Not Hide Exception Cartons Behind Repeated Printing

A failed read, crooked label, low consumable level, out-of-range carton envelope, or unconfirmed fixed support should not be concealed through continuous retries. Small recoverable issues may allow a limited repositioning or reread. Once a label has been printed but cannot be applied or verified reliably, the carton should move to a controlled review position that does not block the main line. The process must define whether the old label is invalidated, whether a replacement is allowed, whether it is read again, and whether the carton may rejoin normal flow.

This exception branch does not make a labeling station inherently slower. It prevents an unverified identity from travelling downstream and creating a longer manual investigation. The roller AGV should likewise move only on an explicit station release: it should not retrieve a carton before fixed receiving is complete, and the arrival position should be released for the next carton only after an exception carton has entered its review route. Defined before commissioning, these boundaries allow labeling, conveying, and mobile transfer to sustain a more predictable rhythm.

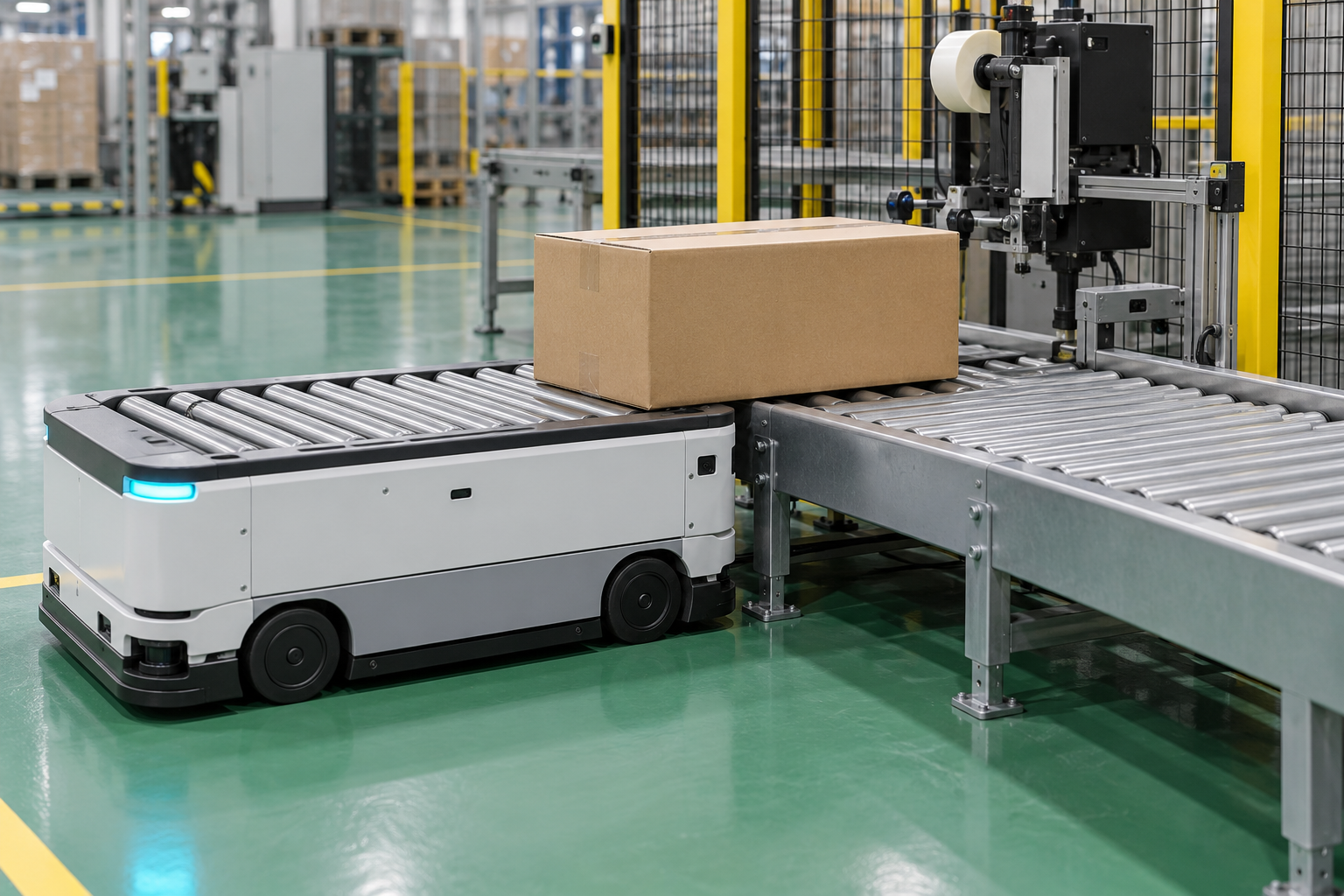

Figure 2: A verified carton is released from the fixed labeling station while the roller AGV waits safely for the next transfer

The real output of an automated labeling station is not a piece of paper attached to a carton. It is a logistics unit that downstream systems can identify, trace, and move safely. A roller AGV brings the carton accurately to that confirmation window. Clear support transfer, stable orientation, label verification, and exception isolation determine whether the window can operate reliably over time.
