Battery Module Line-Side Delivery: Make Terminal Protection an AMR Mission State

2026-10-09 18:04 Beaver Robotics

Terminal protection is not a packaging afterthought

Battery modules moving from assembly and test areas to line-side stations are often framed as a simple transport problem. The more useful question is whether a module remains installable, isolated, and reviewable throughout the move. Terminals are connection points, but they should not be treated as a last-minute detail. If an insulating terminal cap is missing, misfitted, or loose in a tray, an on-time arrival should not put that module back into the normal production rhythm.

An AMR mission should therefore describe more than a module moving from point A to point B. Its true object is a transport unit: the module, insulating terminal caps, a dedicated support tray, restraint features, and an approved release state. A mission is created only when that combination is intact and consistent. Making terminal protection a mission state joins electrical exposure, mechanical contact, and station timing in one executable rule.

Define the transportable module unit first

A dedicated tray does more than hold a module. It should provide continuous support below the module, use low restraint features for lateral control, and reserve protected clearance around the terminal end. A terminal cap should have a defined fitted position, retention method, and inspectable presence. Once these conditions are engineered, the load path, orientation, terminal protection, and handling zones become explainable rather than assumed.

The transport unit also needs repeatable interfaces to the AMR and the receiving station. The geometry between a flat deck, tray feet, and receiving table should be confirmed early. If a tray can shift on the deck or allow the terminal end to contact a metal stop, correct route and speed settings cannot remove the uncertainty. A carrier that preserves the protection state is usually a stronger control than relying on more frequent manual checks.

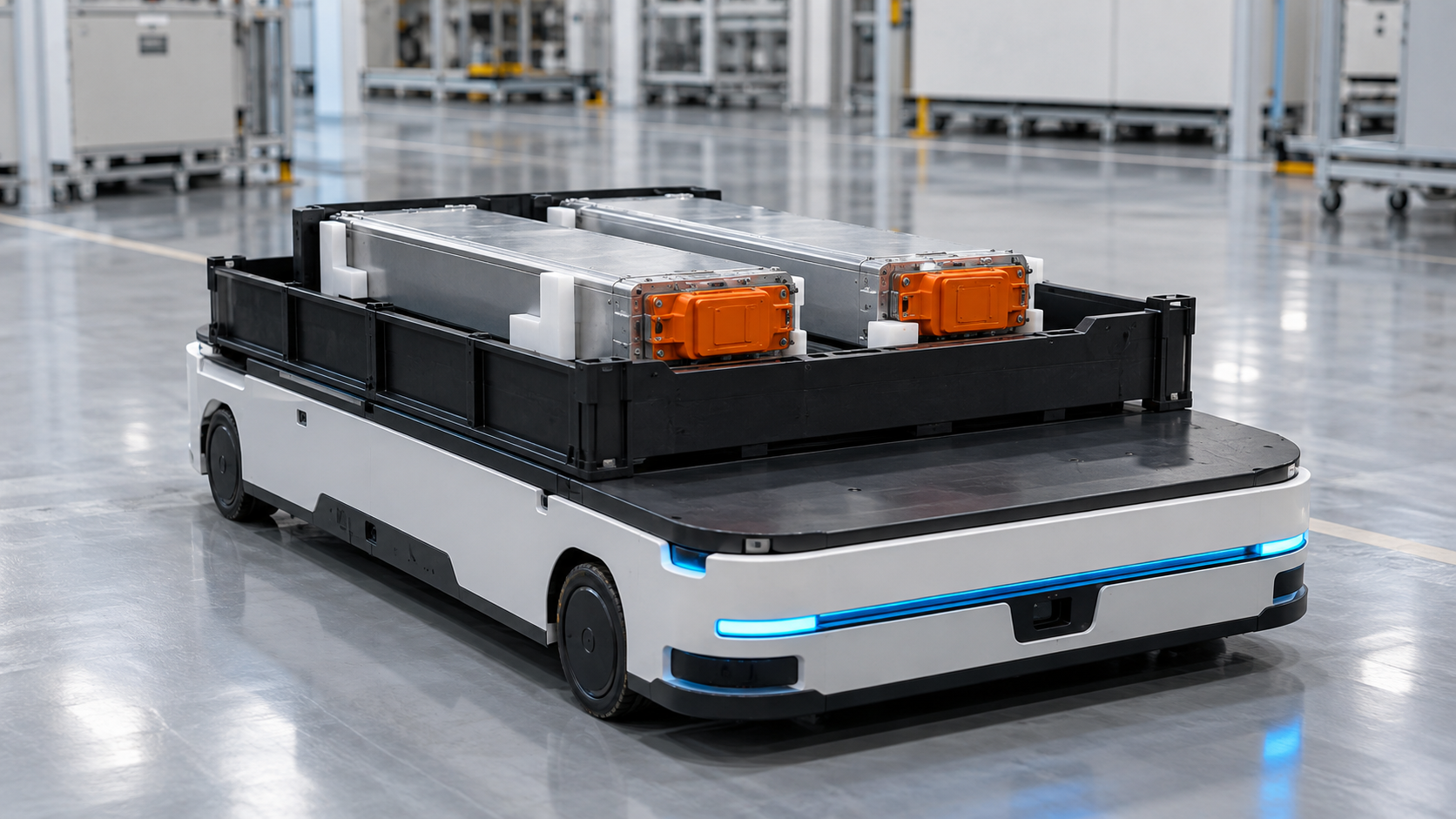

Figure 1: Battery modules with insulating terminal caps remain continuously supported on a dedicated tray over a flatbed AMR

Release the AMR only with an approved state

Before dispatch, useful checks can be separated into readable conditions: the module identity matches the production order; the tray is the specified type; terminal caps are fitted; orientation is correct; and the visual or process check has released the unit for delivery. These conditions do not need to come from one sensor. What matters is that their outcomes converge in one release decision instead of being distributed across paper notes, verbal handoffs, and disconnected system remarks.

When a condition is not met, the fleet should not keep treating the work as an ordinary delayed mission. A better branch marks the unit for review, retains the association between module, tray, and exception reason, and directs it to a controlled inspection location. This prevents the more expensive discovery of missing protection after the AMR has reached the station and gives quality, equipment, and logistics teams a shared view of the same state.

Protect the state in motion, not just the speed

Motion settings for module loads should be based on the transport unit. Starting, turning, passing joints, and docking can all amplify relative movement. During validation, the observations should include whether the tray restraints remain effective, terminal caps remain retained, and the module stays inside its supported envelope, not merely whether the AMR completes a route. Complex route sections may need gentler acceleration, braking, and turning parameters; unsuitable routes should be excluded from that mission template.

The purpose is not to force every module into the lowest speed profile. It is to match speed, route, and carrier capability. Once motion boundaries are defined, dispatch can select appropriate templates for different modules, trays, and stations. Intralogistics efficiency comes from fewer unproductive waits and fewer exception loops, not from moving an uncertain unit faster.

Confirm protection at arrival before releasing the module

Line-side receiving should not end with an AMR arrival signal. The receiving interface needs independent, continuous support. The sequence should confirm station readiness, tray alignment, and protection status before the module is released. This matters especially where terminal caps will later be removed for electrical connection: the end of transport does not automatically mean the module is ready for direct work.

A practical arrival can be organized in two stages. First, the AMR arrives with the tray still supported and confirms identity, station, and state. Second, the station takes the tray independently, the AMR withdraws, and the authorized station process handles the terminal cap. This avoids unnecessary action on a mobile platform and makes the confirmation of protective components a traceable event.

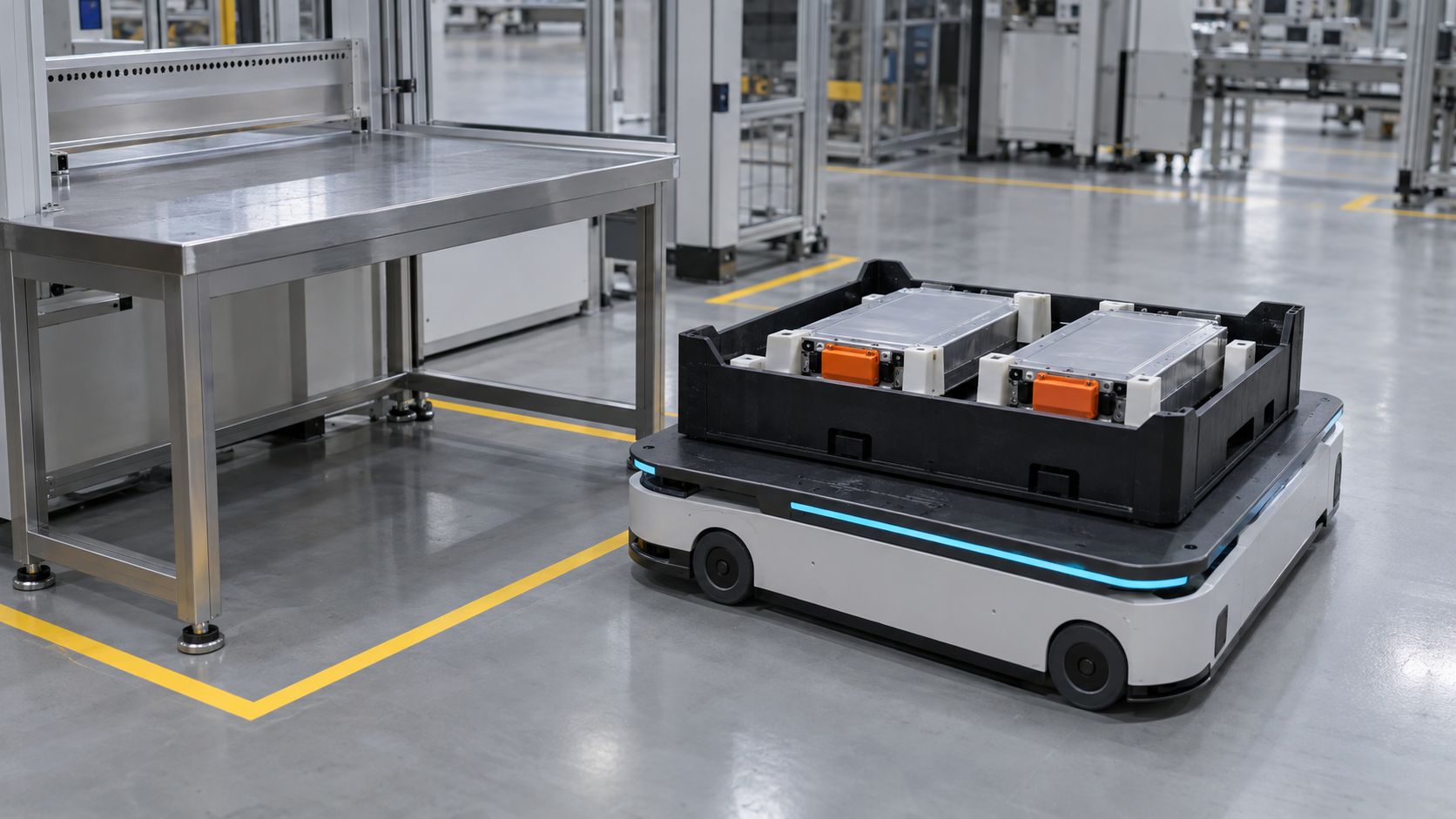

Figure 2: The AMR takes a complete transport unit to a controlled inspection point instead of returning an unknown state to the normal queue

Route exceptions to controlled isolation, not a retry queue

If a terminal cap cannot be confirmed, a tray is tilted, the identity does not match, or the station refuses the unit, repeated retries are rarely the best response. The system needs a predefined inspection point. The AMR takes the complete transport unit there while the tray continues to support the module, and transfers the exception code, stage, and mission association along with it. After review, the unit can be released again, sent to rework, or isolated.

This limits exceptions to an explainable scope. Operators do not need to invent a temporary parking place, and dispatch does not mix an unknown state back into the normal replenishment queue. For battery modules that combine electrical, mechanical, and process conditions, dependable automation does not mean moving forward unconditionally. It means every move has a release basis and every pause has a defined destination.

Make protection a verifiable delivery condition

When terminal protection, tray support, and station acceptance are expressed as one set of mission conditions, the AMR becomes an executor of state preservation rather than a moving platform. It carries not only the module but also the protection conditions required at that stage. It delivers more than a location: it delivers a complete transport state that the next process can confirm.

The starting point is not necessarily a complex algorithm. It is a concrete definition of what may be transported, how it may travel, when it may be handed over, and where it goes when an exception occurs. For battery manufacturing logistics that must keep expanding, those defined conditions create a common decision basis before new stations, trays, and mission types enter operation. Chengdu Beaver can support this kind of structured AMR delivery design with application-specific carrier, routing, and station-integration planning.
