Explosion-Proof AGVs in Enclosed Process Areas: Make Line of Sight a Mission Condition

Explosion-Proof AGVs in Enclosed Process Areas: Make Line of Sight a Mission Condition

Line of Sight Is an Operating Condition

In enclosed process areas, hazardous zones, and high-security workshops, mobile-robot projects often treat communications as a coverage question. Coverage is only the starting point. Where a deployment uses point-to-point optical communication or has a defined communications boundary, the robot must establish a link from the right position and pose before the next task step is released. An explosion-proof AGV that has entered a route is not automatically ready to enter the next operating zone.

A more dependable approach is to define line of sight alongside load state, station permission, and access-control status. Communications then becomes a checkable field condition at mission start, at controlled boundaries, and at handoff—not a background concern investigated only after a fault.

A Connected Robot Is Not Always a Released Mission

Communications in enclosed areas are spatial. Corners, doors, temporary equipment, and carts can interrupt a direct view between an AGV and a communications station. Even along one route, link behavior may differ by stopping position. Instead of using a single online/offline signal as the release criterion, the mission should distinguish three conditions: the vehicle is in a validated line-of-sight zone, a session is established, and the destination is ready to receive.

Those conditions do not always arrive together. The vehicle may be at the door-side confirmation point while the station remains occupied. The station may be clear while a temporary barrier blocks the view. Separating the conditions gives the fleet controller explainable actions: wait at a confirmation point, move to a defined buffer, request a station release, or return along a controlled path. It avoids repeated, ambiguous attempts at the boundary.

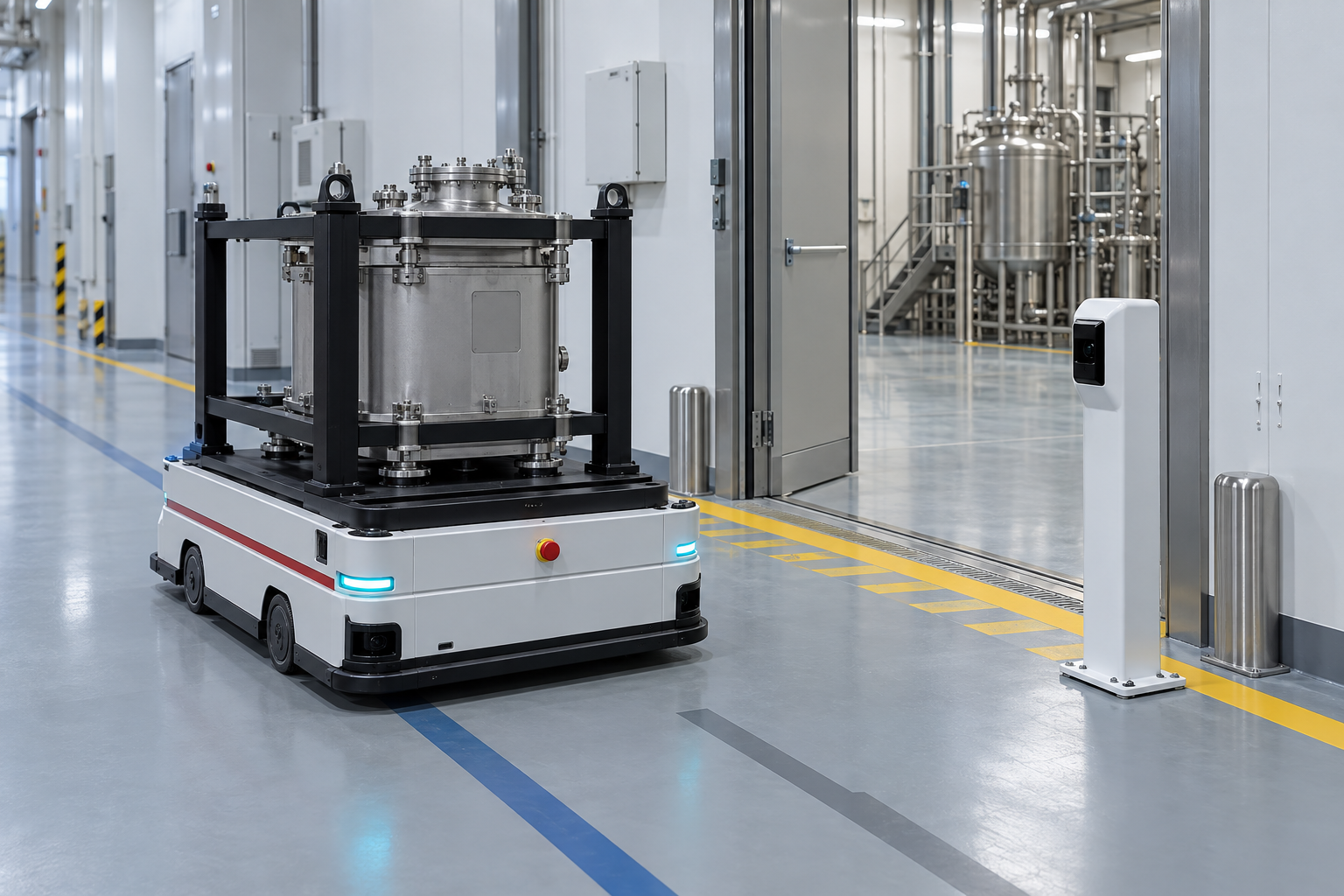

Figure 1: An explosion-proof AGV verifies line of sight and mission conditions at an enclosed-area confirmation zone

Design Confirmable Link Zones, Not Just Route Coverage

Site planning should begin with the places where confirmation can be completed reliably, rather than adding communications hardware as an accessory beside a route. Door approaches, isolation-room entrances, the outside edge of an equipment island, and handoff tables can become link zones. Each zone should define an allowable pose, a station identity, permitted load states, and the condition that releases the next step. A station does not need to cover every square meter; it needs to cover the mission-critical points.

For delivery into an enclosed process area, an explosion-proof AGV can verify carrier identity, line of sight, and destination permission in an exterior confirmation zone. After release, it enters at a predefined low-speed behavior. At the receiving point, the carrier is placed on independent support and the handoff is confirmed. Before departure, the vehicle returns to a visible point and re-establishes the task state. The route is no longer one opaque crossing but a sequence of observable, short steps.

When Sight Is Blocked, Preserve State Before Resuming

A blocked view does not automatically mean that the situation is unsafe, but it must trigger a strategy appropriate to that zone. The important question is not whether the vehicle always uses one communications method. It is what mission state is allowed after interruption: whether the current position is an approved place to stop, whether the load remains safely supported, whether the vehicle may continue to the nearest confirmation point, and which conditions require rechecking after communications return. The answers can differ by area and should not be reduced to one generic reconnect rule.

For deliveries using sealed process modules or dedicated carriers, the load state and communications state should be recorded separately. A short interruption must not erase the current carrier identity, the access boundary already passed, or the intended receiving point. On recovery, the system checks identity, pose, physical support, and station permission before it chooses to continue, return, or move into a buffer. This keeps an interrupted link from becoming an untraceable material movement.

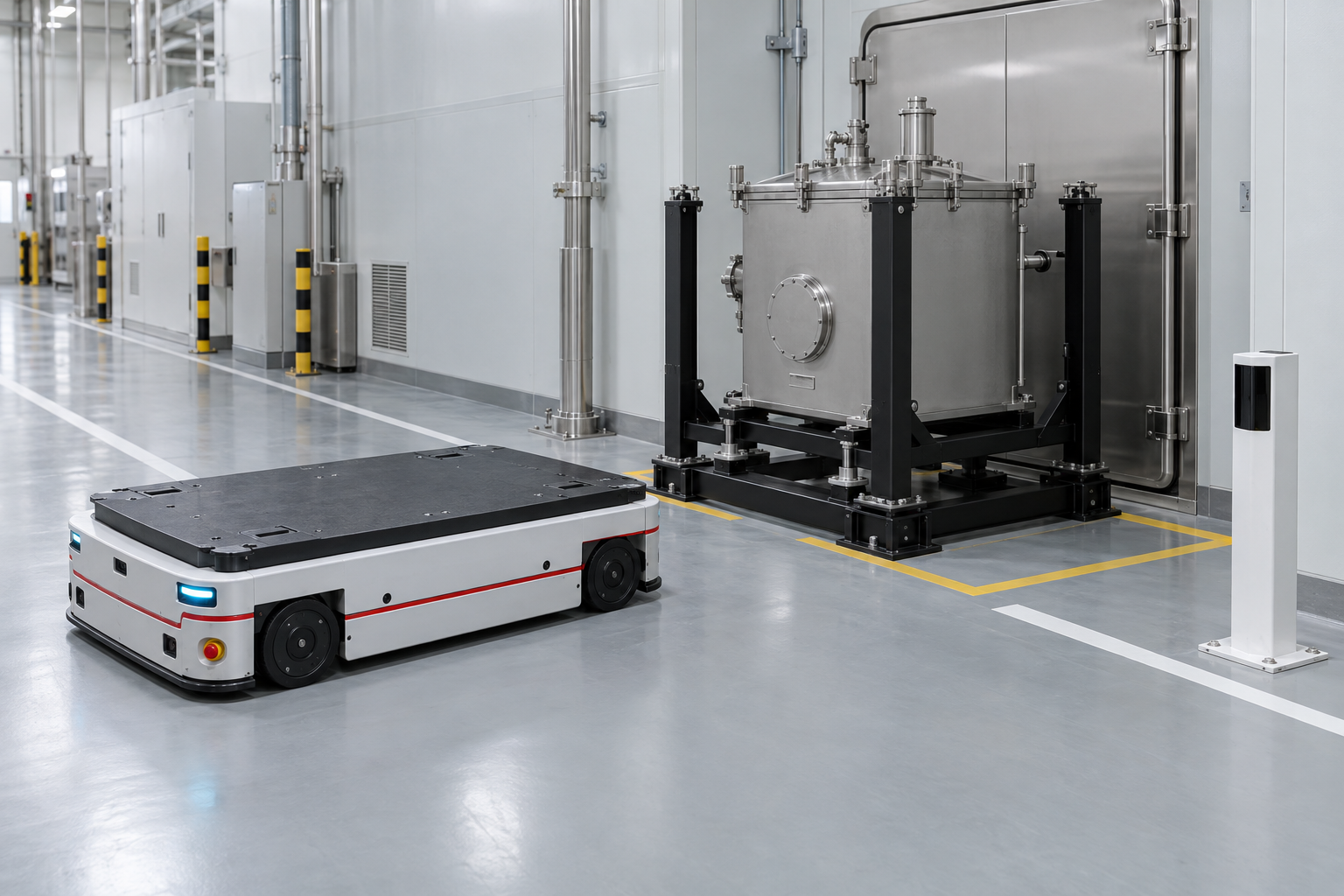

Figure 2: The process module sits on independent receiving support while the explosion-proof AGV withdraws with controlled clearance

Acceptance Should Exercise Interruption and Recovery

Acceptance testing for explosion-proof AGVs and optical communications should examine more than a successful nominal route. Useful tests include a temporarily obscured station, a door that has not reached its expected state, delayed destination permission, an offset vehicle at a confirmation point, and a completed handoff that requires controlled exit. The objective is not theatrical fault injection. Each case should answer the same practical questions: Was the mission correctly blocked or degraded? Did the load remain in a safe state? Could an operator understand the system status? Did recovery return to the correct mission context?

Acceptance criteria should also identify the evidence to retain for each event: station identity, vehicle pose, load identifier, release state, and the reason for any hold or return. The goal is not to create a burdensome record for every meter of travel. It is to preserve enough context that a supervisor can distinguish a planned wait from a blocked handoff and can assess whether a recovery followed the intended rule.

These tests also reveal layout gaps. If many exceptions require an ad hoc human decision, the confirmation point, buffer location, or station placement may not yet be part of the real workflow. Encoding abnormal handling into the map, stations, and mission states gives future process changes a concrete place to be updated instead of relying on site memory.

Make the Communications Space Part of the Logistics Design

The value of an explosion-proof AGV in an enclosed area is not that one communications technology becomes a universal answer. It is that vehicle, station, and boundary are organized into a verifiable logistics process. In areas that need point-to-point, non-contact communications, line of sight can be treated as a mission resource with valid positions, occupancy rules, a defined path after loss, and a recovery check.

With those conditions defined in advance, the vehicle does more than enter a special area. It behaves consistently at the moments that matter and turns a communications boundary into a delivery boundary. For intralogistics projects that prioritize safety, stability, and maintainability, that is closer to daily operational readiness than simply making one route run successfully.
