Liquid Ingredients on AMRs: Make Slosh Control a Verifiable Delivery Condition

Liquid Ingredients on AMRs: Make Slosh Control a Verifiable Delivery Condition

When liquid ingredients move by AMR, the question is not simply whether a mobile robot can reach the destination. For sealed vessels, the condition of the liquid surface, the attitude of the container, and the timing of the handoff all affect whether the next dosing step is controllable. A transport specification based only on top speed misses the combined effect of starts, stops, turns, and floor transitions. A more dependable approach turns slosh control into a set of verifiable conditions for the carrier, route, motion profile, and receiving station.

Slosh Is Not a Single Speed Problem

The same maximum speed does not produce the same transport condition. Fill level, viscosity, vessel diameter, center-of-gravity height, and the sequence of turns on a route can all change how a liquid responds. A short route with a sharp turn, an abrupt stop, or a floor joint can be less forgiving than a longer route with smooth motion. Instead of asking only how fast the AMR can travel, project teams should identify the actions that amplify liquid movement and keep those actions within clear mission limits.

This is why motion settings should be tied to carrier state. Full, partial, and empty vessels should not automatically share one acceleration, deceleration, and turning profile. If a vessel does not meet its defined closure, retention, or fill-condition requirements, the mission should be able to remain unreleased. The difference should not be left for an operator to judge while the system is already moving.

Build a Continuous Support Path Into the Carrier

A liquid vessel should not merely fit on an AMR. The load path needs to be explicit: the vessel base rests in a cradle or drip tray, retaining bands constrain the vessel body, the trolley frame transfers the load to centered lifting interfaces, and the under-rack lifting AMR enters beneath the cart and lifts it. Each layer needs an inspectable contact relationship. This avoids relying on friction alone or leaving local loads to thin sheet metal and casters.

A drip tray also has a role beyond easier cleaning. When selected for the vessel, trolley, and work practice, it defines where incidental residue can be contained during normal transport without obscuring the lifting interfaces, casters, or inspection access. Carrier condition can then become a mission input rather than one-off shop-floor knowledge.

The carrier definition should also make inspection repeatable. A simple pre-mission check can confirm that the vessel is seated in its cradle, retaining bands are closed, the tray is present, and lifting interfaces are unobstructed. The result does not need to become a burdensome manual record; it needs to provide a clear basis for releasing a transport state that has already been designed for the task.

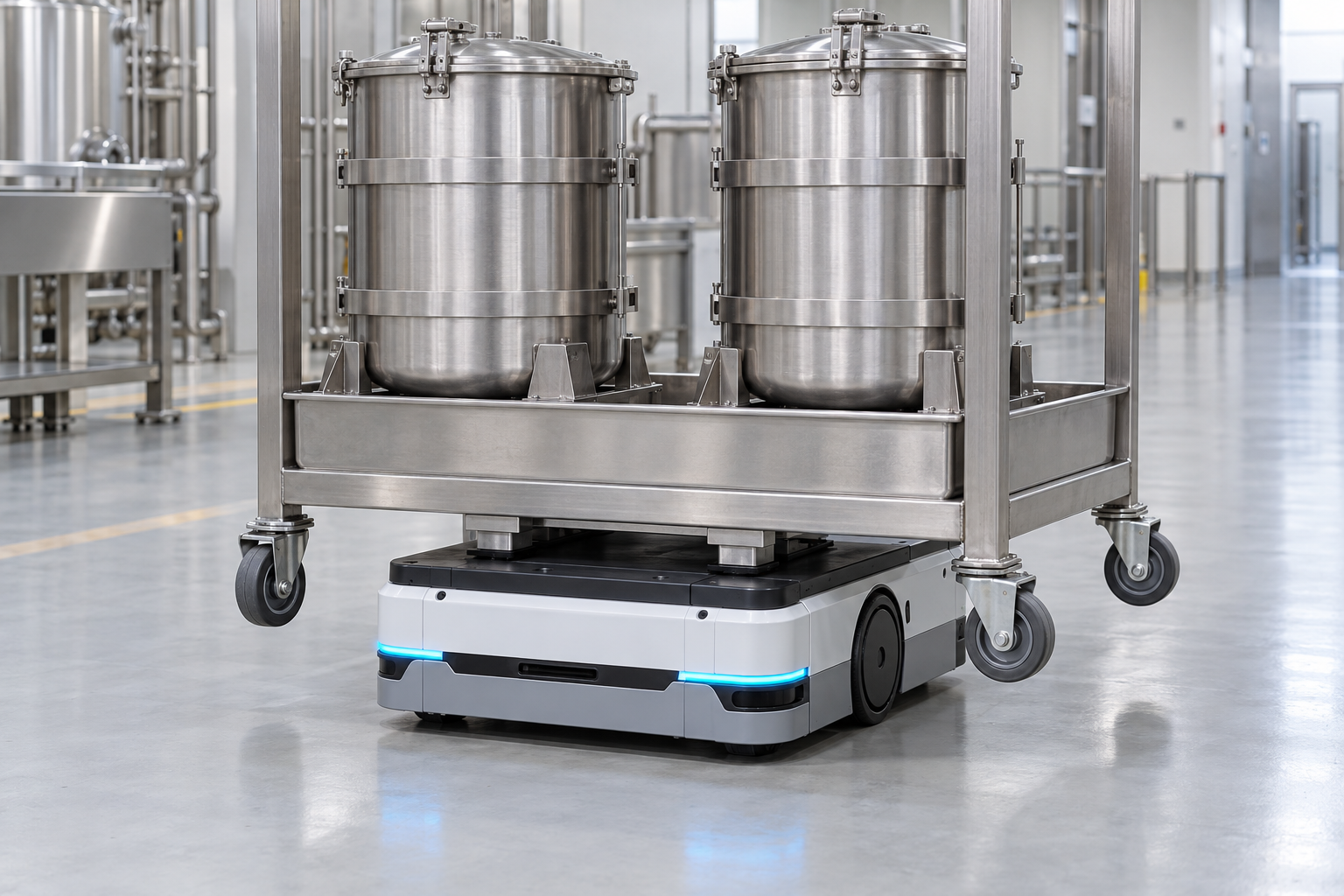

Figure 1: An under-rack AMR supports a sealed-vessel trolley level, with a continuous load path from vessel base to tray, trolley frame, and lifting interface

Turn the Route Into Executable Motion Parameters

For liquid missions, a route is more than a line on a map. Straight sections, turns, doorways, floor transitions, and station-approach zones can each have different motion rules. The AMR may settle to a controlled speed before a sequence of turns, pass a floor-condition zone smoothly, and reserve enough distance to decelerate before the station. The point is not to reduce throughput mechanically. It is to make the relation between vessel state and vehicle motion predictable.

If construction, washdown, standing water, or temporary storage changes the path, a liquid mission should not simply retain its original parameters. Teams should first determine whether an alternate route adds tighter turns, slopes, or joints, and then decide whether it remains eligible. A robot being able to pass through is not the same as a vessel remaining suitable to pass through.

During commissioning, this can be tested with the carrier condition that represents normal production rather than with an empty trolley alone. Teams can observe where movement accumulates, confirm whether transitions and turns remain within the intended behavior, and refine the eligible route segments before routine missions begin. The objective is a stated operating envelope, not a claim that every future route will behave identically.

Stabilize at the Station Before Starting Dosing

Arrival should not automatically authorize connection to a valve, hose, or dosing interface. A more controlled sequence is to reduce speed in a defined approach zone, align the trolley, establish its mechanical location against a fixed receiving frame, confirm that the vessel remains level and secured, and only then allow the next station action. If the AMR must withdraw, it should do so only after the trolley is independently and securely supported. The robot should not leave before the cart has a confirmed receiving state.

This stabilise-before-operate pattern turns an easily overlooked pause into a defined process step. Instead of asking an operator to judge whether a liquid has settled, the mission records the waiting, location, and receiving conditions as state.

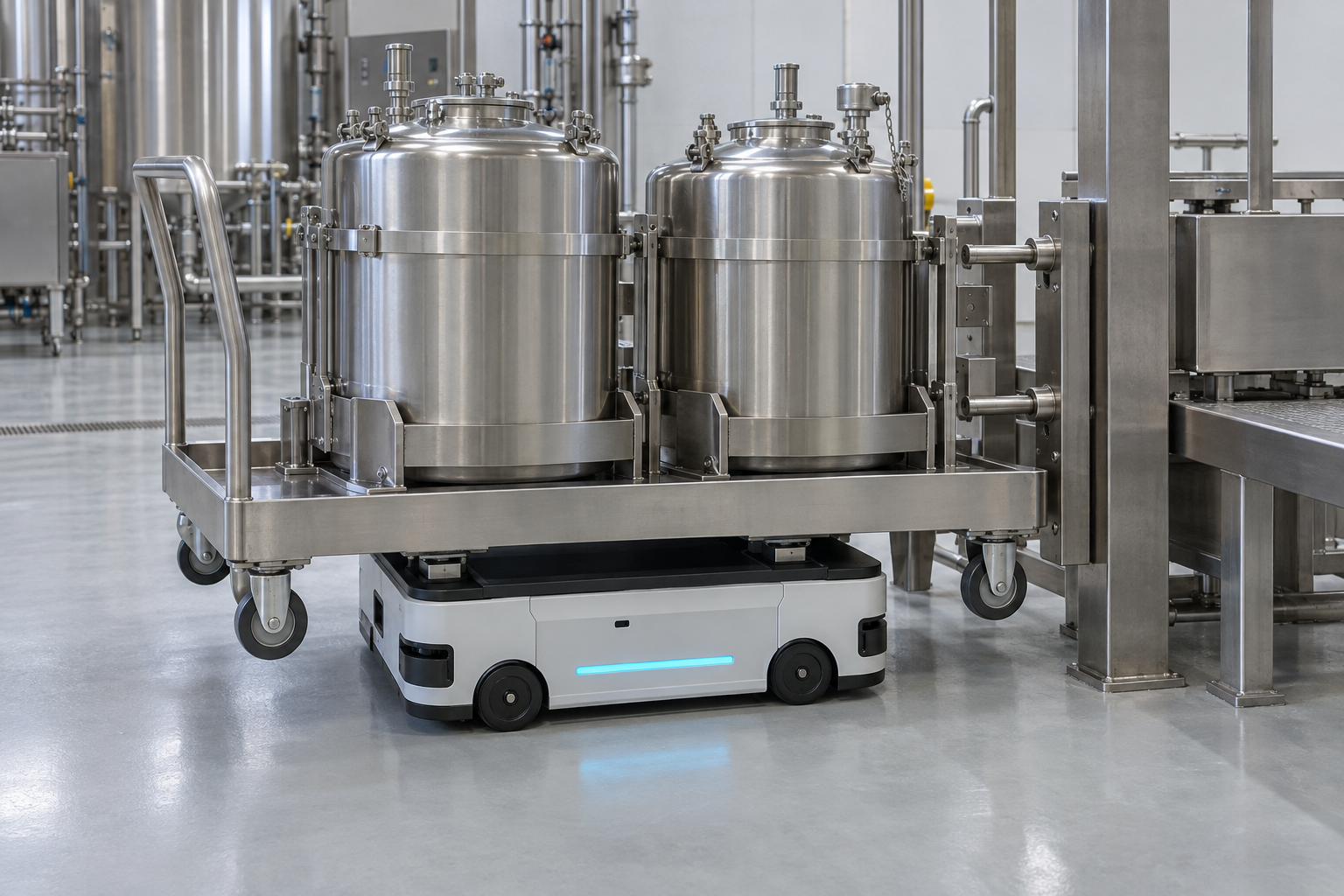

Figure 2: The trolley establishes mechanical location at the dosing station before the next process action is enabled

Give Exceptions a Defined Destination

If a retaining band is not closed before lifting, a vessel closure is incomplete, or route conditions no longer match the motion profile, repeated retries are rarely the best response. The system can direct the trolley to a controlled inspection position while retaining the relationship between the mission, vessel, and observed exception. After review, the next decision can be reset, continued delivery, or cleaning handling. The exception is not reduced to a generic failure to reach a station.

The value of an AMR for liquid ingredients is not limited to removing a manual cart move. A scalable design keeps a sealed vessel in an explainable, inspectable, and recoverable transport condition from storage, across the route, and through station handoff. When slosh control becomes a delivery condition, throughput, floor order, and dosing stability can be improved together.
