A glass panel is not a generic flat load

In glass processing, photovoltaic manufacturing, and display-panel operations, the main risk in moving a panel is often not the travel distance. It is the way the panel is supported throughout the trip. Large panels have vulnerable edges, broad surfaces that are unsuitable for point loading, and packaging details that can change the safe contact areas. A mobile robot can travel smoothly and still create a poor handling condition if the panel is held by a temporary stop, a hard metal edge, or an undefined restraint.

For that reason, a glass-panel mission should not be described only as a move from point A to point B. The real mission object is a transport unit made up of the panel, protective materials, an A-frame, restraints, and a receiving interface. The AMR moves that unit. Whether the unit is ready to move should be determined by its support, containment, and handoff conditions first.

The transport unit matters more than nominal payload

An A-frame for panel transport needs to provide continuous, compliant lower-edge support. A panel should rest on padded rails rather than bare steel. The material of those rails, the panel angle, the spacing of support points, and the permitted contact zones should reflect the panel format, edge treatment, and packaging method. Side guides should constrain position without creating concentrated pressure. Straps or locking devices that prevent tipping should also have an unambiguous closed state and should act only in approved areas.

These are not secondary fixture details from an AMR perspective. The way the A-frame feet connect to the vehicle deck, the location of the combined center of gravity, and any relative movement between the upper frame and the vehicle all influence whether a mission can be released. When those conditions are explicit and inspectable, the team does not need to rely on a visual judgment that a load merely looks stable.

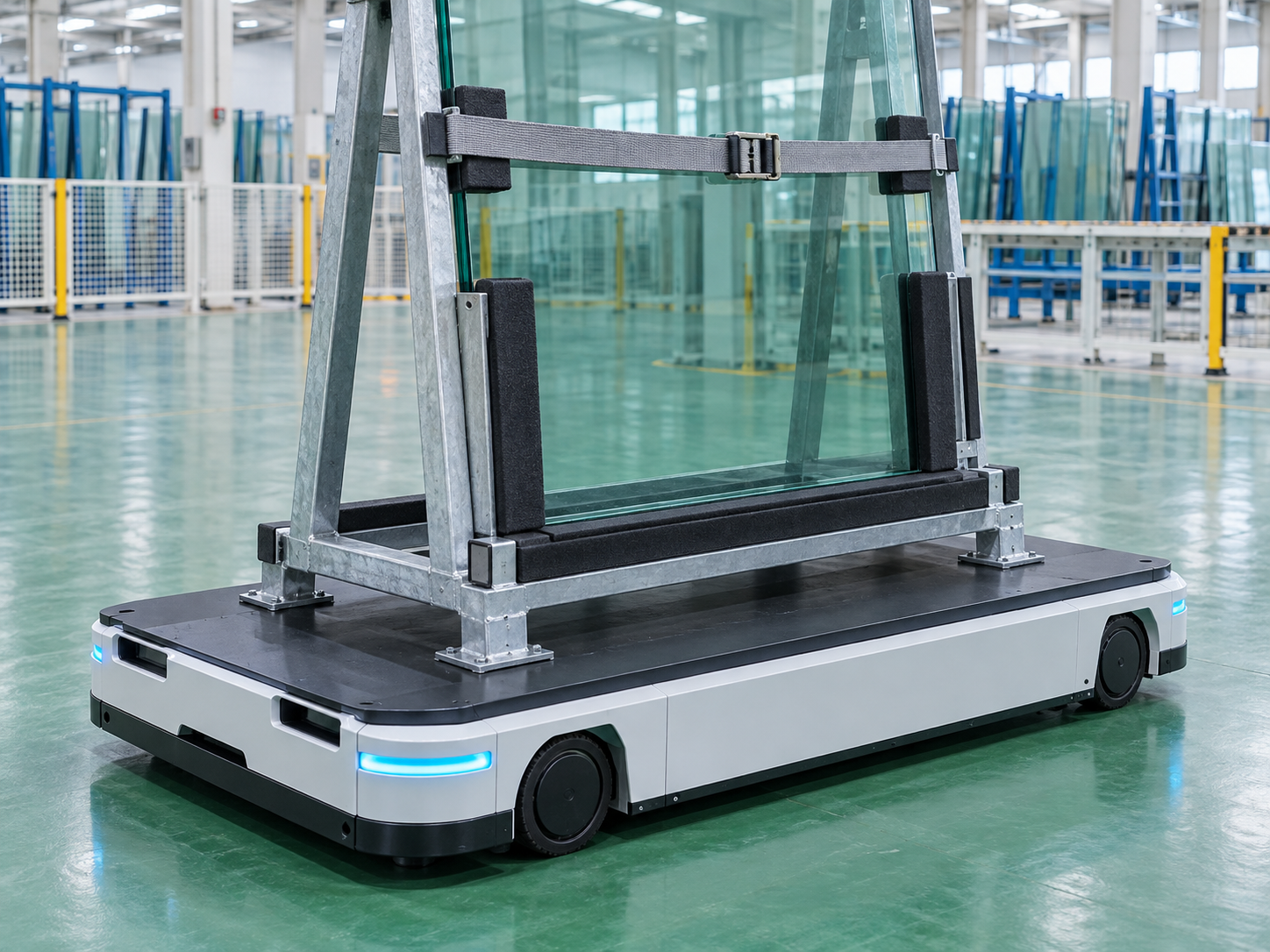

Figure 1: Padded support rails, protective side guides, and locked restraints form one stable transport unit

Validate the combined envelope, not just the robot

Once a panel is upright in an A-frame, the object traveling through the facility is no longer the AMR footprint alone. It is a combined envelope that includes panel height, frame width, protective elements, and the swept area during a turn. Doors, columns, guardrails, temporary materials, and intersections should all be checked against that envelope. Routes that include floor joints, local ramps, or frequent direction changes need a defined speed and turning behavior, not merely a path that navigation software considers passable.

This does not mean that panel routes must be overly restrictive. A well-defined support and restraint state makes it possible to be precise: which segments are suitable, where lower speed is required, and which site changes need renewed confirmation. The goal is to manage explainable engineering limits rather than preserve a one-time operating habit.

Arrival is not the same as delivery

The last few meters are often the weakest part of a panel-transfer design. When an AMR reaches a workstation, the receiving A-frame, turning equipment, or manual station must be ready to accept the load. That includes a clean support surface, intact pads, a confirmed empty receiving location, and correct alignment. Even a small mismatch in height or axis should not trigger a transfer before the interface is verified.

A stronger workflow separates arrival into position confirmation, receiving confirmation, load-bearing transfer, restraint release, and task closure. Each stage proceeds only when the previous stage is true. This means the record shows more than that the robot reached a destination. It shows when the panel changed support, which interface accepted it, and under what load relationship the handoff was completed.

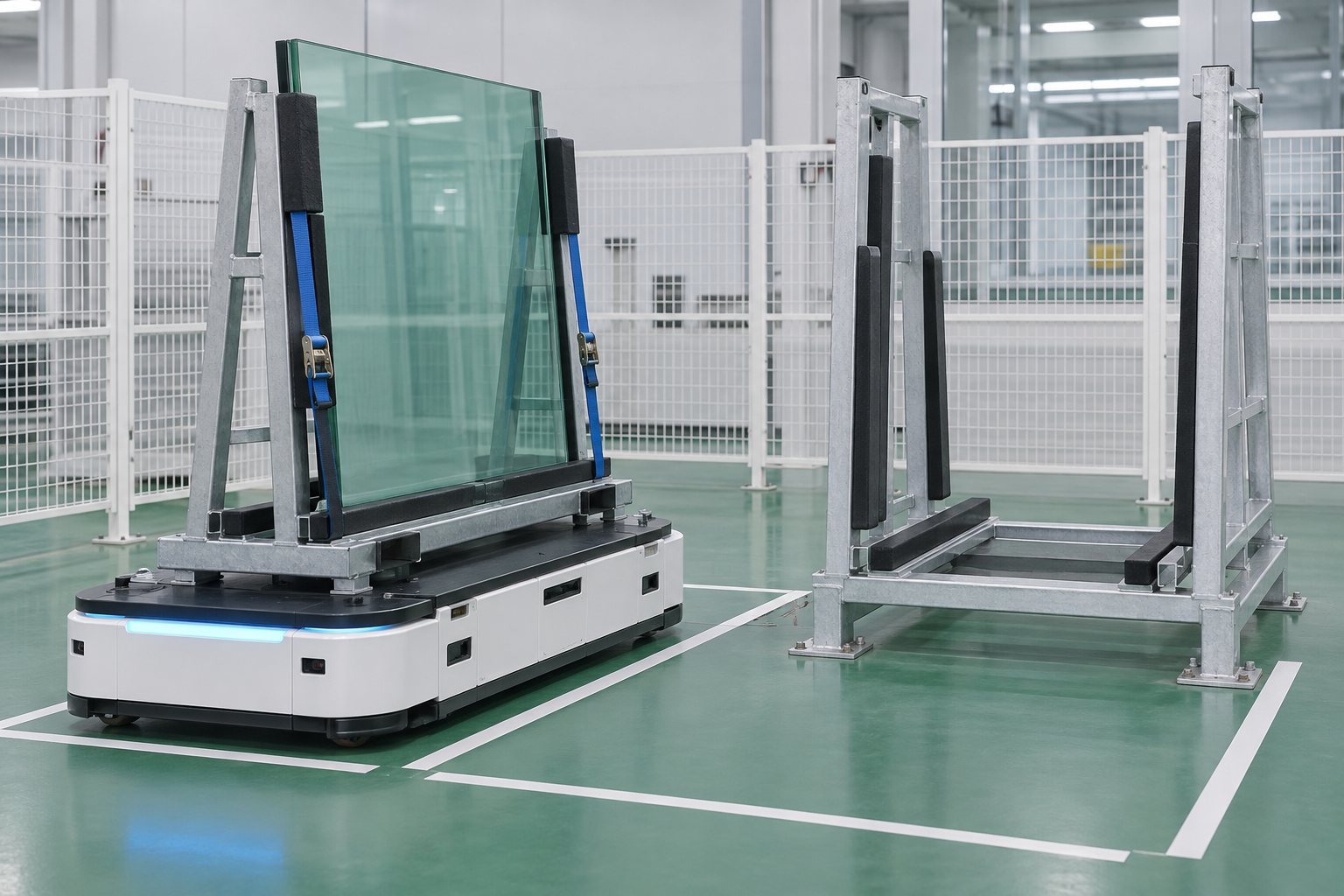

Figure 2: The AMR has aligned at the receiving A-frame while the panel remains padded and restrained on the mobile frame

Give exceptions a controlled destination

A busy receiving station, a missing protective pad, an unlocked restraint, or a temporary route obstruction are all credible conditions in panel logistics. The point is not to force the robot through them. The mission should have a controlled, traceable way to pause. A loaded AMR can be directed to a validated waiting location while preserving the panel identity, current frame state, and intended destination. Work can resume only after the relevant condition has been restored.

Where a load requires review, the A-frame can go to a dedicated inspection position for an edge, strap, or protective-material check. That is safer than repeated adjustment in an active aisle. It also turns exception handling from ad hoc intervention into a planned branch that can be tested before normal production begins.

Design protection into the mission

The value of an AMR in glass-panel logistics is not simply fewer manual carrying steps. It is the opportunity to organize requirements that normally sit separately in fixtures, routes, and workstations into one executable set of conditions. Define continuous support, lateral restraint, and locking status first. Then validate the combined envelope and route behavior. Finally, make receiving readiness and exception destinations part of the mission logic.

For facilities considering mobile robotics, an A-frame is not merely a carrier and an AMR is not an isolated vehicle. Together with the panel and the destination interface, they form a transport unit that deserves validation. When that unit is designed clearly, internal material flow can become more consistent without treating panel protection as a trade-off against flexibility.
