AMRs During Fire Alarm Integration: Safe Parking Is More Than Stopping Nearby

When a facility fire alarm or emergency interlock changes state, an AMR response should not be reduced to “stop at the nearest point.” A protective stop can halt vehicle motion, but a vehicle stopped at a door, intersection, or narrow aisle can still occupy space needed for evacuation, emergency response, or equipment isolation. A workable design treats the vehicle, the load carrier, the route, and the site emergency procedure as parts of one operating state.

That does not mean every AMR should drive to the same place when an alarm occurs, nor that every vehicle should complete its present task. Fire compartments, pedestrian routes, process risks, and local requirements vary by facility. The final response has to be set through the project risk assessment and the site emergency plan. The AMR system's job is to convert those agreed boundaries into conditions it can evaluate, safe places it can occupy, and recovery steps it can execute only when permitted.

Translate the interlock into operating states

Once an alarm-related signal reaches fleet control, the first change should be task permission, not merely a map color. Whether new work may be released, whether an in-transit vehicle may enter its next segment, whether a carrier at a station must remain supported, and which zones require a vehicle to hold in place are distinct questions. Defining them before deployment avoids turning a single blanket stop into a second source of congestion.

A vehicle already in a location that does not affect evacuation or isolation may hold its brakes and its load state. A vehicle in a pre-defined safe movement corridor may travel a short distance to a designated parking bay only when the site strategy expressly permits that move. A vehicle in the middle of a physical station transfer may need to preserve the stability of its mechanism and load instead of being forced to clear the map. Each branch needs an explicit trigger, timeout behavior, and boundary for authorized human intervention.

Give safe parking a verifiable spatial boundary

A safe parking bay is not an unused patch of floor on the map. It needs site-confirmed separation from primary aisles, egress doors, operating faces of emergency equipment, equipment swing areas, and assembly routes. Once stopped, neither the vehicle outline, its load, nor any deployed mechanism should cross that boundary. For a flatbed AMR, the real envelope of the tote or fixture belongs in the bay calculation; an empty-vehicle footprint is not enough.

A useful bay is also easy to verify. The vehicle should approach it with a repeatable orientation, people should be able to see the emergency stop, the load, and the intended departure direction, and fleet control should recognize the bay as occupied without treating it as a dispatchable workstation. If the same space is normally used for charging, staging, or manual handoff, its emergency priority has to be defined so that overlapping uses do not erase the spatial control.

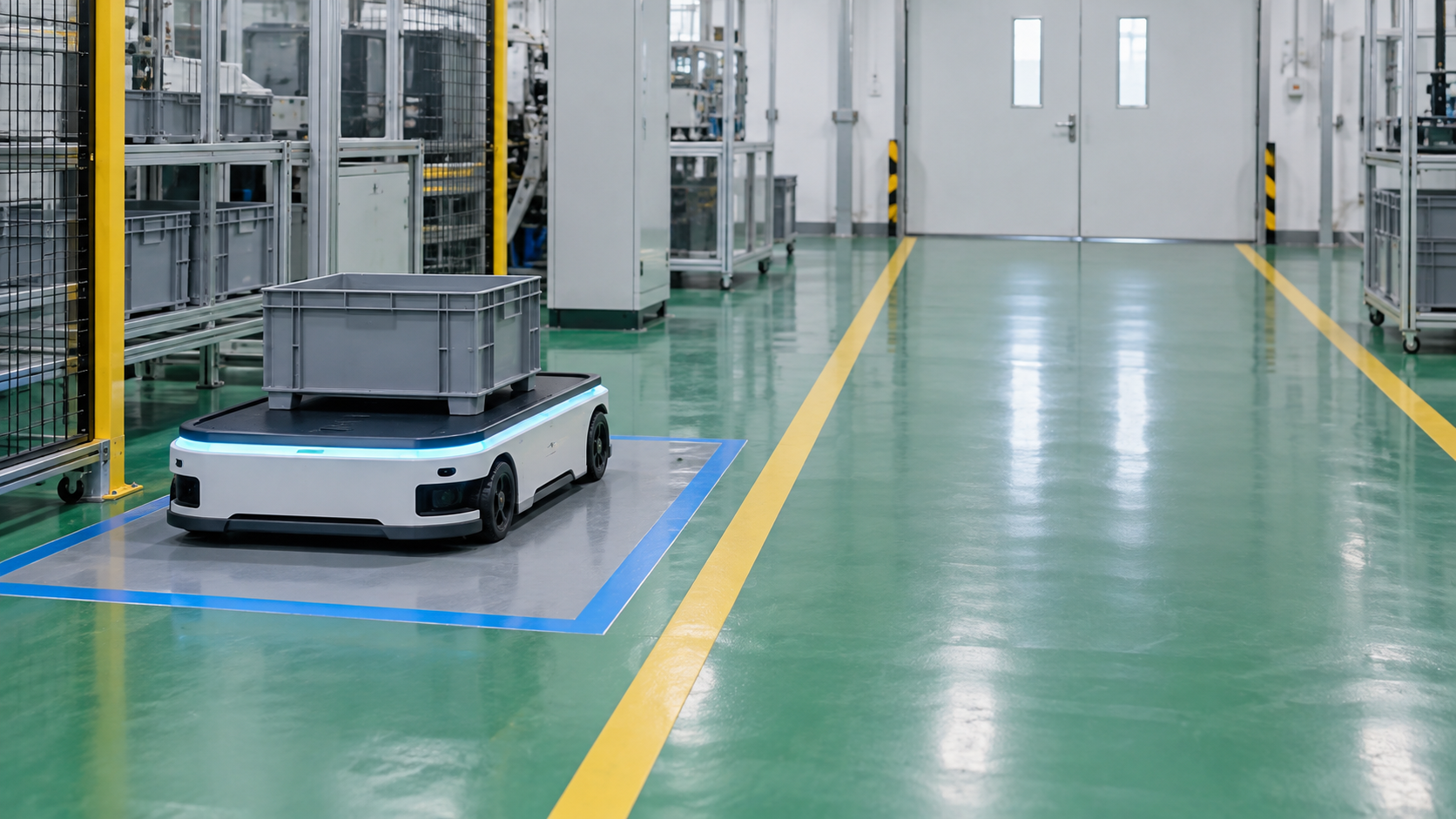

Figure 1: A flatbed AMR holds its load in a dedicated bay while the aisle and doorway remain unobstructed

Keep the load and task intelligible while parked

An emergency hold should not leave only a generic “paused” marker. The system should retain the vehicle position, current load, load-carrier support state, last completed action, destination, and reason for parking. At recovery, this makes it possible to distinguish a vehicle safely waiting with a tote on board from an uncompleted handoff or a task that needs an authorized review.

For a loaded AMR, the priority at a stop is not to release the task quickly; it is to preserve the physical relationship. A tote should remain supported by the platform or carrier. If a lifting, extension, or roller mechanism is under load, it should move to a stable condition according to the equipment capability and the agreed site procedure. When a particular load cannot safely remain on the vehicle, the project should include a dedicated safe-setdown interface during design rather than leave an ad hoc unload decision to the moment of an alarm.

Recovery rebuilds conditions; it does not cancel a pause

Clearing an alarm does not automatically return an AMR fleet to its previous rhythm. Before departure, the system should re-check whether the local interlock permits operation, whether routes and exits are available, whether the bay departure path is clear, whether the destination can still receive, and whether the load and carrier remain in an acceptable condition. If any condition is not met, the task should continue to hold, enter a controlled review, or await an authorized decision rather than repeatedly retry.

The release order deserves deliberate control as well. Allowing a small number of low-risk, verifiable vehicles to leave their bays and perform short moves first gives the site a way to confirm that routes, stations, and fleet state agree. Other work can then be released progressively. Logging the time of the interlock, parking location, interventions, and recovery result supports later review and makes the next drill more representative of actual operation.

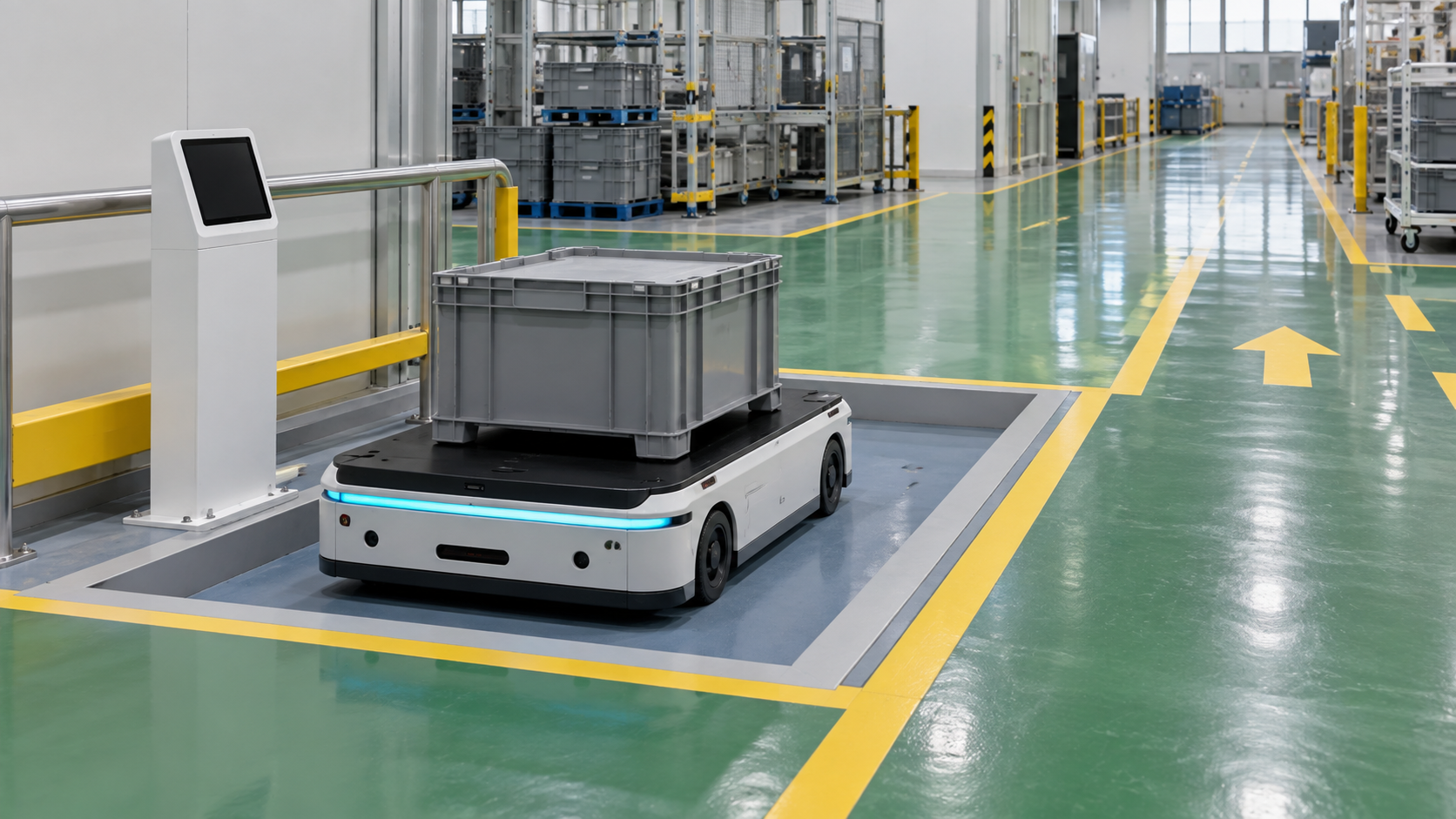

Figure 2: Before restart, the AMR waits in its bay while the site state and departure route are re-checked

Making fire-alarm integration operational is not about adding one more stop command to a robot. It is about giving each vehicle a parking place that does not obstruct the facility, a task state that retains context, and a recovery path that does not bypass site authorization. That is how an AMR system can remain controlled during an abnormal state and return to intralogistics in an orderly way after conditions are rebuilt.
