AMRs for Coil Handling: Build Mandrel Support and End Retention into Mission Conditions

AMRs for Coil Handling: Build Mandrel Support and End Retention into Mission Conditions

A coil is more than a payload number

In battery-material, metal-processing, film, and flexible-packaging plants, coils move repeatedly between winding, staging, and consuming equipment. Introducing an AMR to that flow is not merely a change of vehicle. It moves the judgement once made by an operator—how the coil is supported, retained, and handed over—into conditions the system must recognize, execute, and retain.

Rated mass matters, but it does not establish that a coil can travel safely. A coil can develop a tendency to rotate during acceleration and braking; load passes through the core and mandrel; and a released web end can loosen. If a system only records that a coil is on the vehicle, a smooth route alone says little about whether the combination is ready to turn, wait, or dock. The transport unit should be defined from task creation as coil, mandrel, and carrier together.

That definition also gives production, maintenance, and logistics teams a shared object to inspect. Instead of debating whether the AMR or the station caused an unstable handoff, they can review the same carrier state, retention points, route segment, and receiver condition. This is a more useful starting point for engineering changes than treating every event as a driving problem.

Make the load path and retention visible

For a coil with a core, a mandrel passing through that core and seated in purpose-built supports creates an intelligible load path. The supports need clear bearing locations, while the mandrel ends need positive retention. Edge guards or guides can protect the coil circumference, but vulnerable coil edges should not become the primary structure carrying the load. The AMR is therefore transporting a defined carrier, not an unsupported roll.

End retention should not depend on a local habit either. Straps, end plates, or suited locking hardware need to match the coil specification, process needs, and cleanliness constraints, and their closed condition needs to be checkable. That makes a practical release rule possible: mandrel present, supports engaged, both ends retained, coil end restrained, and the combined envelope approved for the route. If one condition is missing, the task should enter review instead of relying on a slower speed as a workaround.

The release check can be simple without being superficial. It may be a combination of defined carrier presence, fixture feedback, a guarded manual confirmation, and an explicit task state. What matters is that the check describes the physical reality of this coil format and that a later operator can understand why the AMR was permitted to move.

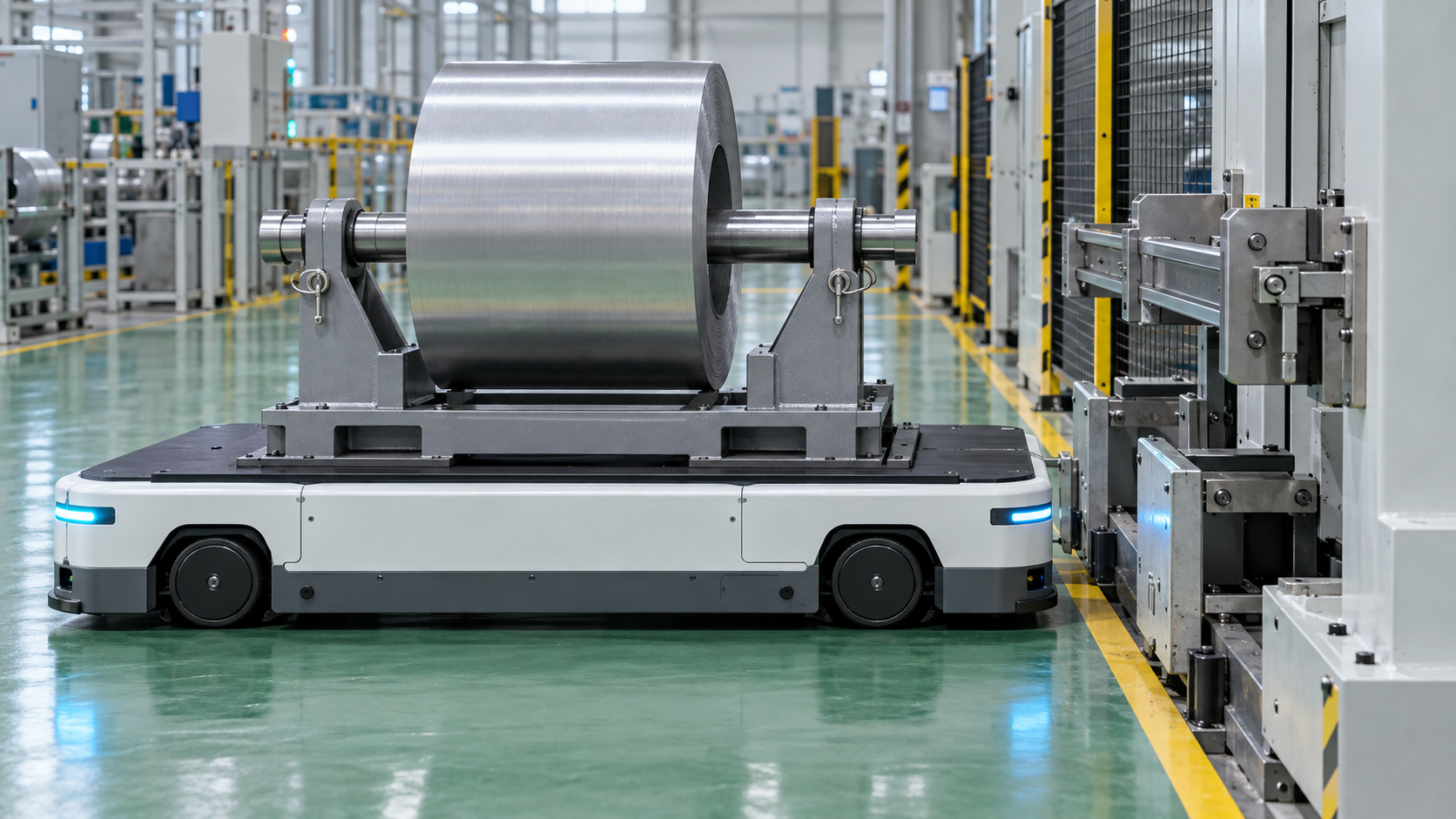

Figure 1: A coil carrier with a visible mandrel-supported load path

Travel settings belong to the coil combination

A coil route should not inherit one generic speed profile. Turns, deceleration zones, floor joints, narrow passages, door waits, and final approaches can be managed as distinct route segments, with behavior suited to the loaded and retained coil carrier. The aim is not to make every trip unnecessarily slow. It is to make acceleration continuous, turns restrained, and stops predictable.

When coil diameter or carrier width changes, the system should recheck the combined swept envelope. The question is whether the AMR, carrier, and coil retain adequate clearance together—not whether the vehicle alone fits on the map. At the destination, this includes verifying that mandrel ends do not enter the space of equipment, guarding, or pedestrian routes. Task templates prevent one vehicle from applying unsuitable behavior to every coil format.

This makes route validation more concrete. A trial should include the most constrained turn, the roughest permitted floor transition, and the longest planned wait near a machine—not only an empty demonstration route. The resulting settings can remain format-specific while the fleet still operates through one dispatching and exception-management framework.

Docking needs continuous support

Machine-side handoff is often oversimplified. A receiving location is not merely a map coordinate; it needs a defined support height, guidance relationship, locking state, available space, and receiving permission. After arrival, the AMR should confirm the fixed receiver is ready, then align and complete the mechanical lock or controlled transfer. Arrival is not delivery until the support relationship remains continuous.

Where a machine uses the same mandrel, the handoff should clearly separate the roles of the transport carrier, the machine interface, and the mandrel. Vision, sensors, and interface signals can confirm position, but they cannot replace physical bearing support. A well-designed station lets an operator see what is supporting the coil, what maintains retention, and when the AMR may exit.

The same clarity supports recovery after a paused cycle. If a machine has not accepted the coil, the AMR should know whether to remain latched, back away to a waiting point, or return the carrier to a controlled buffer. A recoverable handoff prevents an interruption from becoming an undocumented material transfer.

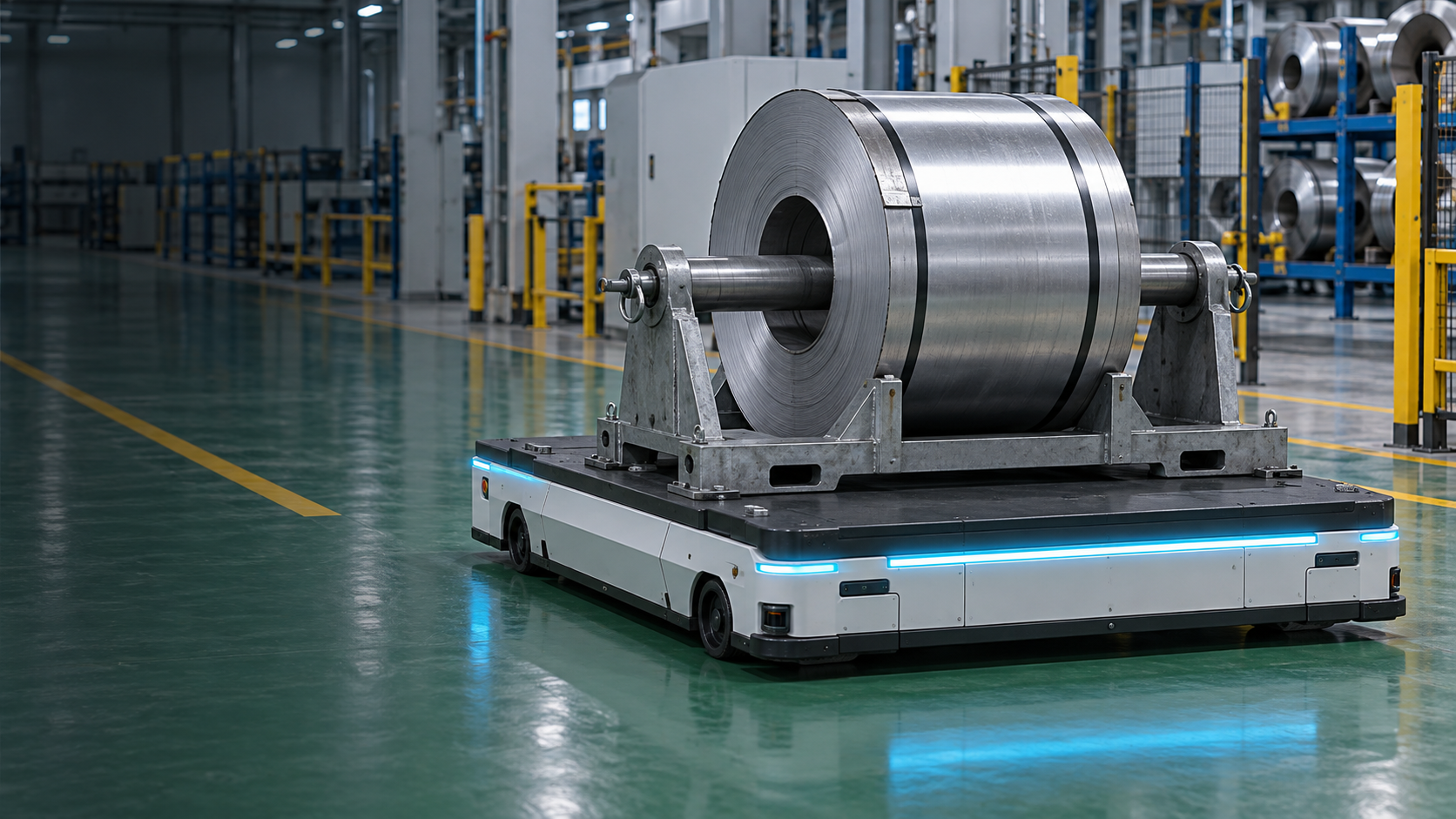

Figure 2: Controlled docking with continuous support at the receiving interface

Turn exceptions into recoverable states

An unconfirmed coil-end restraint, an unlocked mandrel pin, an occupied receiver, or a changed envelope should not collapse into a generic alarm. A more useful design gives each condition a comprehensible status and destination: wait in place, return to a review point, enter controlled buffer, or await station recovery. The exception record should retain coil identity, current support method, and completed actions so that a review does not begin by reconstructing the material state.

For coil logistics, an AMR earns its place not by moving a heavy object from A to B, but by consistently bringing a set of conditions to the machine: correct mandrel support, effective end retention, suitable travel behavior, and a reliable handoff. When those conditions become mission rules, different coil formats can move through one intralogistics system with a repeatable operating experience.

Chengdu Beaver applies this task-oriented thinking to complex industrial intralogistics: choose the appropriate mobile platform and carrier interface, then define the observable conditions that permit movement, transfer, waiting, and recovery. The result is a practical path from a one-off coil move to an operation that can be reviewed and improved over time.
