AMRs for Industrial Gas Cylinders: Make Upright, Secured Transport a Mission Condition

AMRs for Industrial Gas Cylinders: Make Upright, Secured Transport a Mission Condition

A cylinder is not an ordinary load once it leaves its rack

In welding, assembly, test, and utility areas, industrial gas cylinders often travel between storage, staging, and points of use. Giving those trips to an AMR can reduce repeated manual movement, but the more important opportunity is to make transport conditions explicit. Once a cylinder leaves a fixed rack, the transport object is not simply a heavy cylinder. It is a combined unit: the cylinder, its valve-protection condition, a purpose-built carrier, the restraints on that carrier, and a destination that is ready to receive it.

A fleet should not infer that a cylinder is ready because someone has placed it on a platform. A stronger task model binds the carrier identity and the physical state before dispatch: the cylinder is upright, its base is seated in the carrier, the upper and middle restraints are closed, the required protective parts are in the expected condition, and the carrier itself is secured to the AMR. The robot is then asked to move a defined transport configuration rather than an item that happens to be on board.

Define the transport configuration before selecting a route

A dedicated cylinder carrier is not a cosmetic accessory. It makes support and restraint inspectable. Its base should provide a clear load-bearing surface; its upright members and bands should control the cylinder posture at intended points; and its interface with the AMR should remain stable through starts, stops, turns, and small floor transitions. Requirements for different cylinder sizes, gas services, and local arrangements such as regulators or caps should be established through the site's risk assessment and work instructions, not assumed from a generic template.

In practice, the carrier and task definition should also make verification practical. A team needs a way to distinguish an empty carrier from a loaded one, an open restraint from a closed restraint, and a carrier that is staged from one that is ready for dispatch. The method can be selected for the application, but the operating rule should remain simple: a physical condition that matters to movement should be visible to the process and unambiguous to the people who load, receive, or recover the mission.

This makes useful release conditions possible: carrier present, restraints closed, cylinder upright, protective condition acceptable, and destination eligible to receive. If any condition is missing, the correct response is not necessarily a blind retry. The task can remain in a named review state. That simple gate replaces a move-first, decide-later habit with logistics that only begins when the physical configuration is ready.

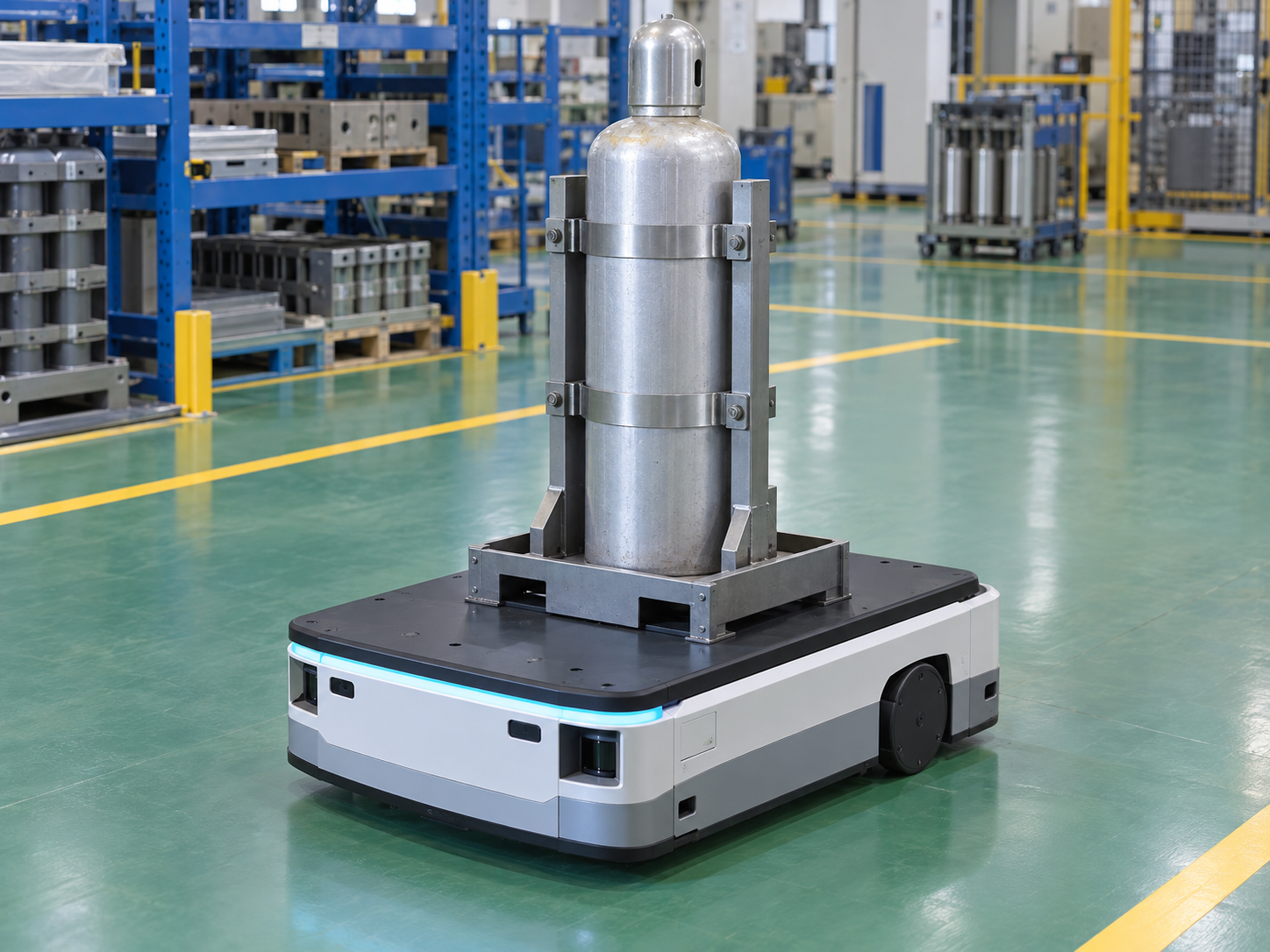

Figure 1: A dedicated carrier makes the upright cylinder, restraints, and flatbed AMR an inspectable transport unit

Route behavior has to serve an upright load

A route for ordinary totes may be designed around clearance and travel time. A route for an upright, restrained cylinder configuration must also account for starts, stops, turns, thresholds, and floor transitions. There is no universal speed value that can be copied into every site. What matters is testing the actual carrier, load, and floor conditions, then turning the accepted acceleration, turning, and transition behavior into route-specific rules.

That is why the shortest line on a map is not automatically the best cylinder route. Small-radius turns, narrow areas created by temporary materials, short ramps, worn floor sections, and frequently used doors deserve specific attention. Where a transition cannot be eliminated, the task may require a reduced speed, straight-through approach, confirmation wait, or an alternative route. The AMR needs more than enough geometric clearance: it needs a controlled way to pass with that particular transport configuration.

Arrival is not a completed handoff

The final meters at the point of use often determine whether a delivery is truly controlled. A receiving location that exists only as an empty map coordinate may have no available rack, too little operating space, or an earlier cylinder still occupying the position. Releasing the carrier at that point would turn a constrained load back into an on-the-spot decision for the local team.

A better receiving point behaves like an interface. It has a defined support height, guide or locating features where needed, a confirmable restraint state, and a visible occupancy condition. Once the AMR arrives, it confirms that the receiver is ready before the handoff begins. Only after the carrier is stably received and the applicable receiving condition is complete should the mission transition from in transport to handed off. The deliberate gap in Figure 2 makes the distinction visible: precise arrival is still not a release.

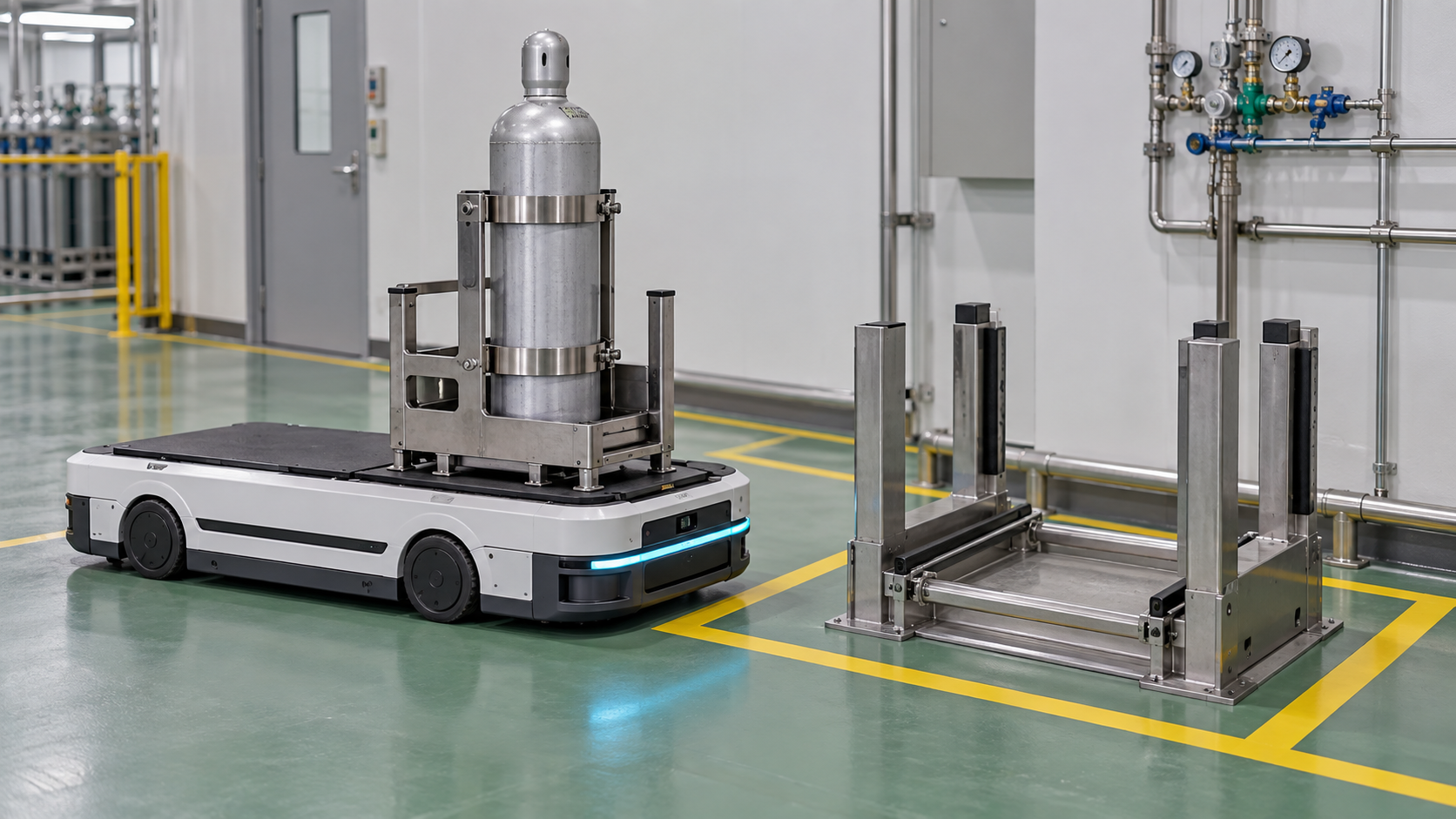

Figure 2: A deliberate controlled gap shows that AMR arrival is not yet a completed handoff

Keep exceptions in explainable states

A mature design does not try to automate every exception to completion. It prevents an exception from creating an ambiguous cylinder state. If a restraint is not confirmed, a receiver is occupied, or the carrier is not aligned with its interface, the system should preserve the relationship among the cylinder, carrier, current location, and destination. The mission can then move to a designated wait or review process rather than leaving an unexplained robot and load in the aisle.

For factories with frequent deliveries across several points of use, this turns safety requirements into repeatable mission language: which configuration may start, how a route behaves in selected segments, which conditions permit a handoff, and who confirms recovery. Chengdu Beaver applies this kind of application thinking to complex intralogistics tasks. The goal is not to overstate the boundary of automation. It is to make each cylinder movement more verifiable, easier to hand over, and easier to improve over time.
