Quality Hold Transport With AMRs Keep Undecided Material Out of Normal Flow

The transport object is more than a tote

When an electronics, automotive, or general manufacturing operation identifies a dimensional, cosmetic, assembly, or process exception, the item that needs control is not merely the tote containing the parts. It is the tote together with an unresolved quality identity. After leaving the inspection point, that tote may move through a review station, a temporary hold area, a rework cell, or a disposition location. If a mobile-robot task recognizes only origin and destination, material can reappear in normal replenishment or storage before its disposition is complete.

For that reason, an AMR task for quality-hold material should carry more than a pick and drop instruction. The task should associate the carrier, the related batch or work order, the current disposition state, the permitted destinations, and the receiving responsibility. The robot executes controlled movement; it does not make a quality decision. Making that boundary explicit prevents the fleet system from treating a movable tote as material cleared to continue through the ordinary flow.

Create release conditions before planning the route

A quality-hold mission should not begin from a call button or a single arrival signal alone. A practical release check verifies that the tote is closed or otherwise ready to move, the carrier is stable, the material has been assigned a hold or review state, and the proposed destination accepts that state. If one of those conditions is missing, the task may remain visible to the operator, but movement should not be issued. The exception belongs back with inspection or an authorized review decision.

This does not require an elaborate workflow for every defect category. A site can begin with a small set of clear states, such as awaiting review, awaiting rework, awaiting disposition, and released. The important design choice is that each state has a limited set of valid destinations. A robot should not be able to send a tote from any exception station directly into a conventional line-side buffer simply because that buffer has space. Route calculation comes after this permission logic, not before it.

Make the hold area a receiving interface

A hold area that exists only as open space on a map is easily consumed by temporary totes, empty carriers, or waiting work. For an AMR, a more reliable design is to define each receiving position as an interface. Before arrival, the system should know whether the support surface is free, whether the tote envelope fits, whether approach and exit space remain usable, and whether that position accepts the material's present quality state.

Arrival is not yet a completed handoff. The correct transition occurs only when the tote is supported by the review table or hold rack, the AMR deck is empty, and the robot has a clear exit. At that point, the material can move from transport in progress to received at the hold position. Separating these events avoids a common mismatch: the record is closed while the tote is still on the robot or while the receiving surface is not truly available.

The physical interface deserves the same attention as the digital state. The table, shelf, or carrier should have a defined support surface, repeatable approach orientation, and clear envelope for the AMR and tote. A receiving signal can be useful, but it should complement rather than replace the visual and mechanical checks that show the tote has been transferred. Designing this interface makes both normal handoff and recovery behavior easier to explain, test, and maintain.

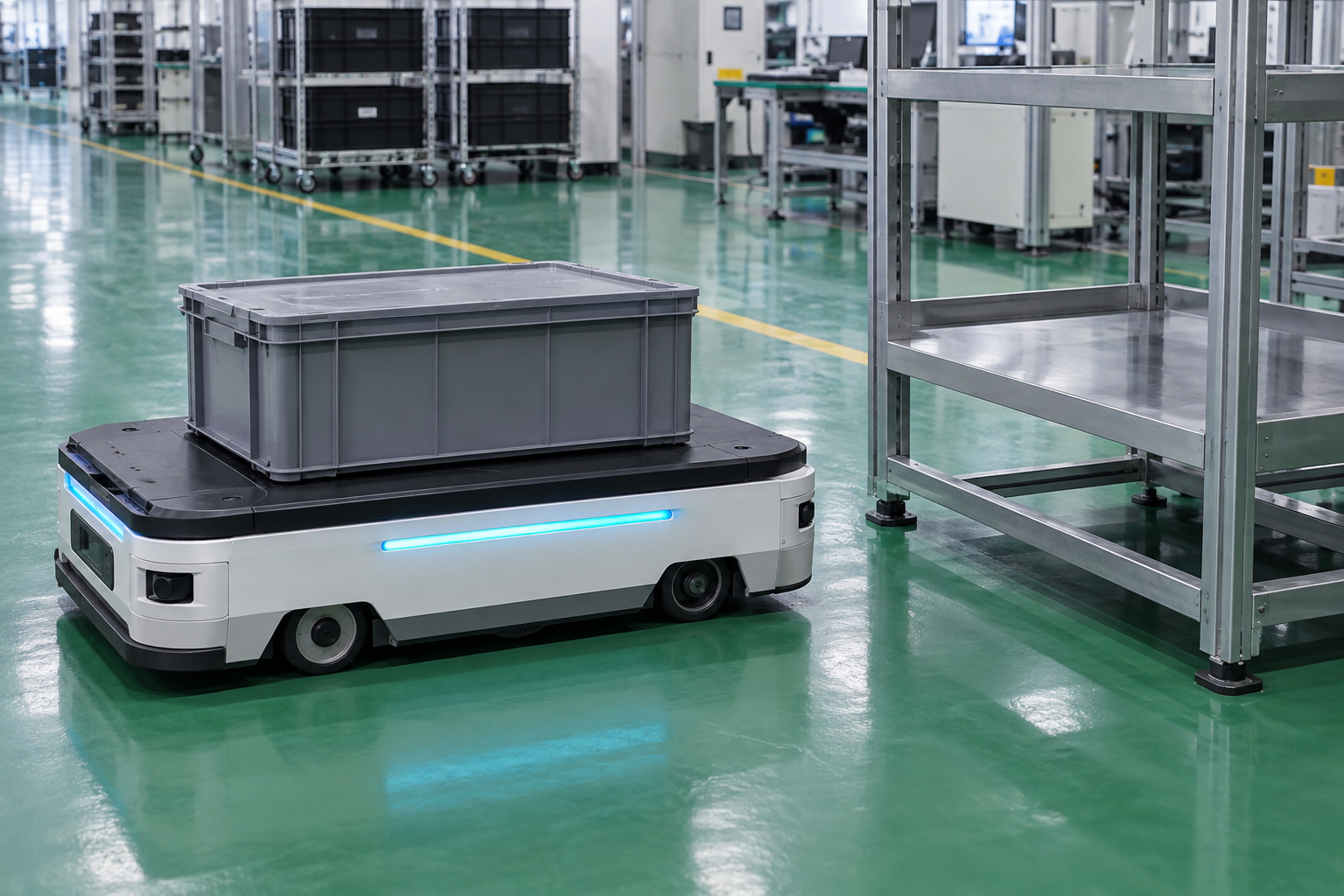

Figure 1: A flatbed AMR holds a safe gap at the hold receiving position while its tote remains fully supported by the deck

Retain disposition context when a task is interrupted

The greater risk in a hold mission is usually not a short stop. It is a stop that loses the reason for the mission. A network interruption, a temporarily unavailable receiving position, or a delayed recheck can leave the task waiting. The system should retain the material's quality state, target type, completed checks, and remaining action. It should not convert the tote back into generic material waiting for transport.

A controlled review buffer is useful for this purpose. It is neither an ordinary circulation buffer nor a substitute for the final hold rack. Its role is to preserve context while the next authorized decision is pending. When the task resumes, the system rechecks the carrier and the destination interface before deciding whether to continue placement, use another hold position, or return to inspection. This isolates the exception without allowing it to dissolve into the normal material stream.

The recovery policy should also distinguish a robot fault from a material fault. A vehicle that needs service can leave its tote only at an approved handoff point; an unresolved tote cannot be released merely because a replacement vehicle is available. Recording this distinction in the mission history gives operations, quality, and maintenance teams a common account of what has happened, without asking the normal material-flow logic to infer a disposition from a vehicle event.

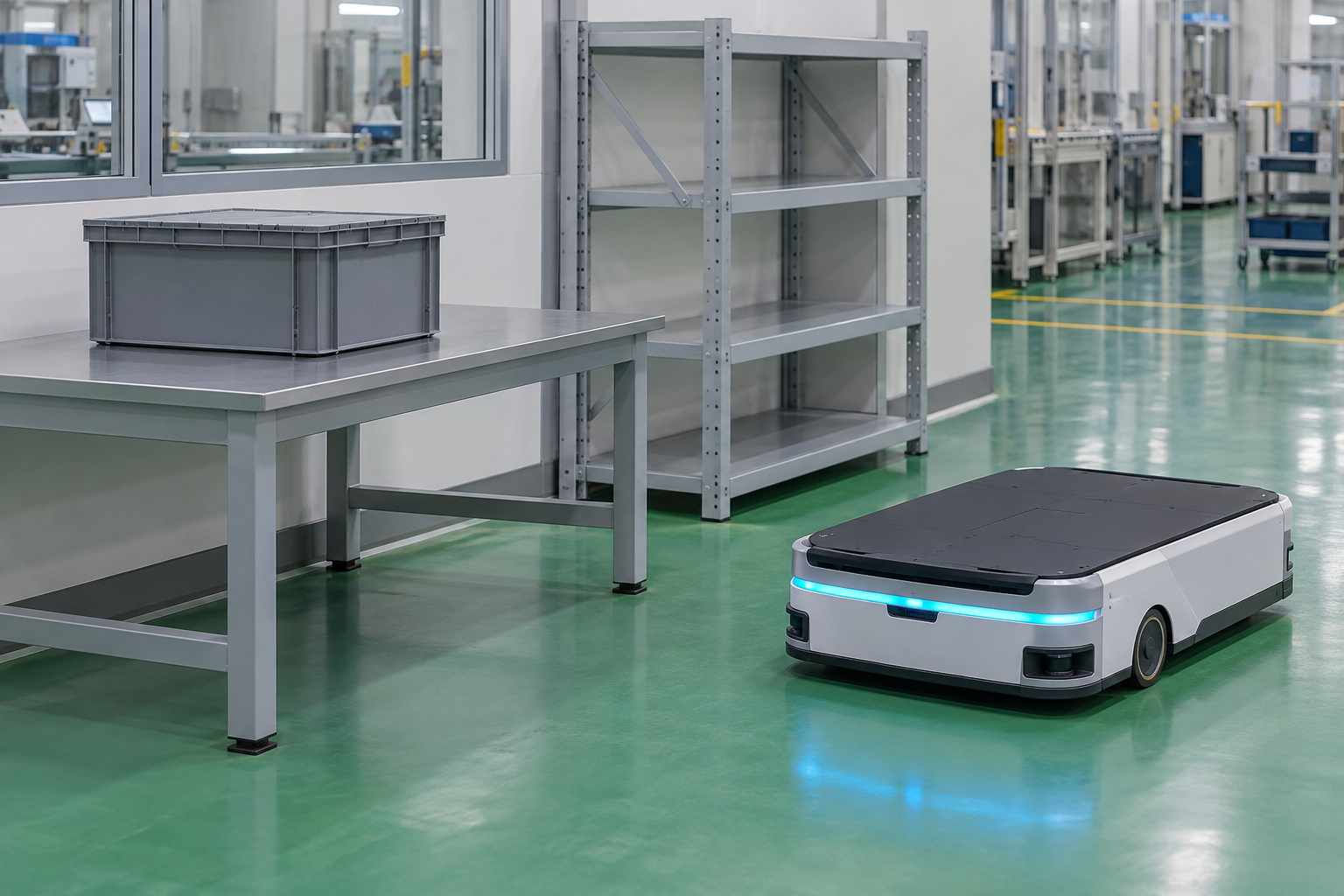

Figure 2: After the review table supports the tote, the empty AMR exits the controlled review buffer

Validate one quality-hold lane before expanding

A site does not need to automate every disposition path at once. Start with one carrier type, one inspection point, one hold receiving position, and one recoverable return path. Test mission creation, carrier support, receiving confirmation, state transition, and interruption recovery repeatedly. Each trial should reveal which conditions actually vary on the floor and which confirmations still require an operator's decision.

Once that small loop is stable, it can expand to rework, repeat inspection, and disposition movements. The value of quality-hold transport is not that an AMR moves a tote away more quickly. It is that undecided material remains inside the correct process boundary for the whole journey. This is where mobile automation can support quality discipline while keeping routine intralogistics clear and repeatable.

For overseas manufacturers evaluating a mobile-robot project, this use case is also a useful scope test. It links a concrete physical journey with quality-system ownership, but does not require an immediate redesign of every warehouse process. A focused lane can show whether the chosen fleet controls, work-order integration, carrier design, and operating procedures create a dependable boundary before the project expands. Chengdu Beaver can support this type of mission design with mobile-robot platforms and integration planning matched to the site's actual material interfaces.
