Autonomous Forklifts at Loading Docks: Why the Dock Interface Belongs in Mission Design

Autonomous Forklifts at Loading Docks: Why the Dock Interface Belongs in Mission Design

A truck trailer often looks like a temporary storage location: the vehicle is docked, the bridge plate is down, and pallets can move. A human operator can make small, immediate corrections from visual cues. An autonomous forklift needs those cues translated into operating conditions that can be checked, authorized and safely withdrawn. The challenge at a loading dock is not simply crossing a steel plate. It is working across an interface whose two sides can change from one vehicle to the next and even during one load sequence.

Treating the dock as a defined intralogistics interface changes the question from whether a robot can enter a trailer to when a mission should enter, pause or exit. The same approach supports outbound loading, inbound unloading and transfers between warehouse zones. It is a practical way to make a narrow, variable scenario more repeatable without pretending that every trailer is a fixed rack location.

A trailer is not a fixed storage location

A racked pallet position normally has stable dimensions, a known support surface and a consistent relationship to the aisle. A trailer does not. Its floor height and position can vary with the vehicle, suspension and load. The dock plate may not be fully seated. The available turning area and retreat distance can change as pallets accumulate. For a ground-level autonomous pallet truck, these factors influence both passage and fork access. Leaving them to informal adjustments makes the same mission perform differently on different visits.

The dock therefore deserves more than a map marker. It should be represented as a bounded operating segment. Before entry, the interface must be available. During the crossing, the robot should use a controlled speed and posture. After pickup or placement, it should confirm the pallet and aisle state inside the trailer. The point is not to add ceremony. It is to avoid treating arrival at the dock as proof that the job can safely proceed.

Define the dock interface through three checks

The first check is the support path. Warehouse floor, dock plate and trailer floor need to form a continuous, reliable travel surface. A raised edge, local gap or height change can increase wheel impact and change the attitude of low forks. The second is the fork path. Pallet openings, load envelope and vehicle alignment must provide a clear, parallel approach. A pallet being generally inside the trailer is not enough. The third is the clearance path. Teams need to account for the robot, the loaded vehicle envelope, turning room, retreat distance and existing pallet stacks. A mission has a usable operating window only when all three paths remain viable.

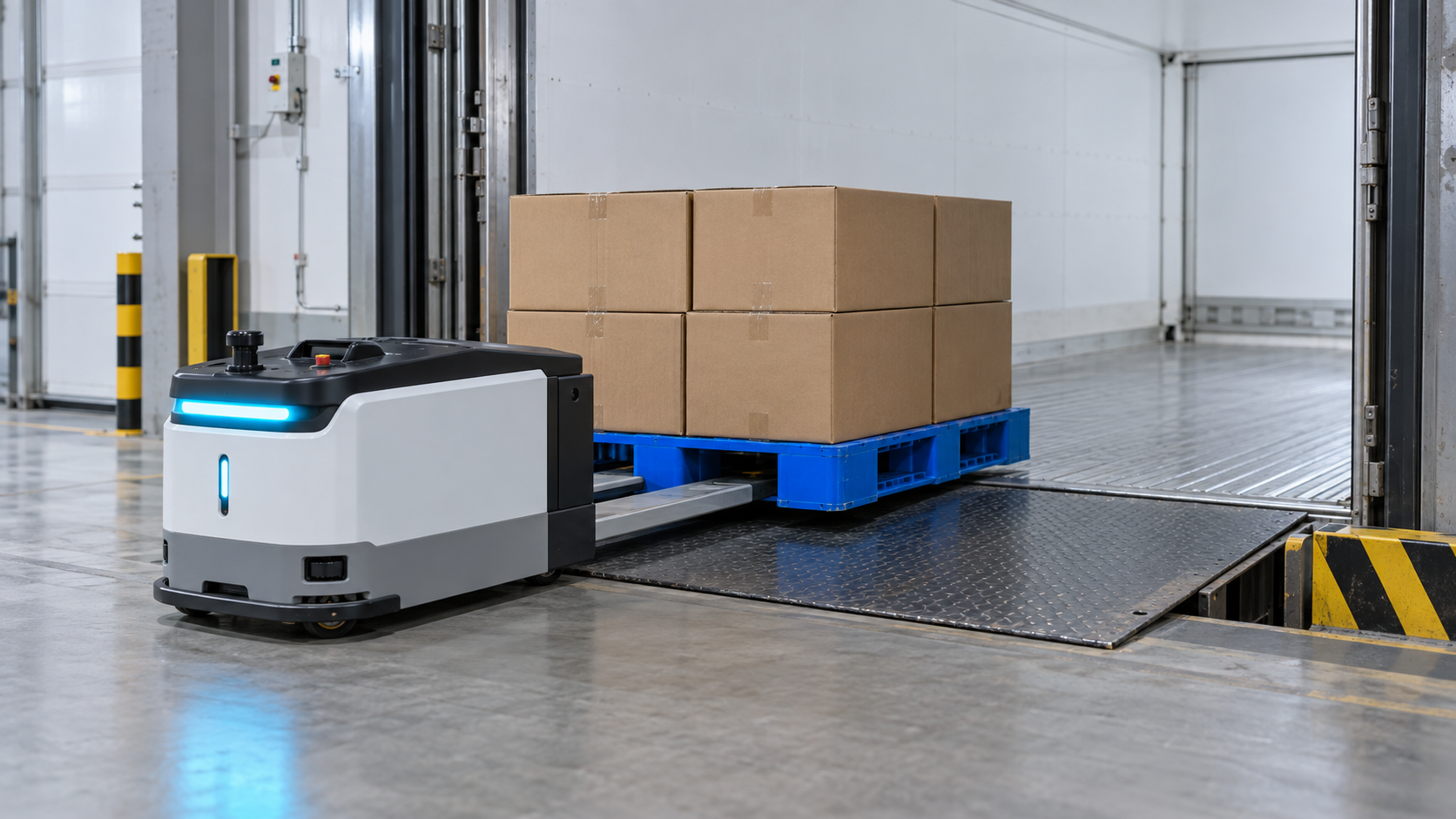

Figure 1: A ground-level autonomous pallet truck collects a pallet after the dock bridge and trailer floor form a continuous interface

This does not require every detail to be sensed in one step. An implementation can begin with the high-impact, fast-changing conditions: bridge plate seated, vehicle docked, door open, work zone clear and pallet available for pickup. Conditions that need manual attention can be assigned a controlled waiting position instead. The robot then receives more than a generic instruction to load a truck. It receives a transport mission with explicit boundaries.

Design a recovery path before variability appears

Reliable dock work does not mean the environment never changes. A vehicle can move slightly in height, a pallet can be offset, or a load sequence can be revised. The important design question is what happens when an operating condition becomes invalid. Where should the vehicle stop? What supports the load? Which mission context is retained? What must be checked again before recovery? A waiting location in front of the dock or a safe stop segment inside the trailer is usually easier to review than repeated attempts at the interface edge.

For a pallet that has already been picked up, teams should also distinguish between load acquired and trailer exit cleared. Center of gravity, internal obstructions, retreat route and dock condition can still affect the next move. Only when the return path and interface remain valid should the system regard the handling sequence as complete. This keeps local exceptions within a reviewable step rather than allowing them to spread into a dock-wide interruption.

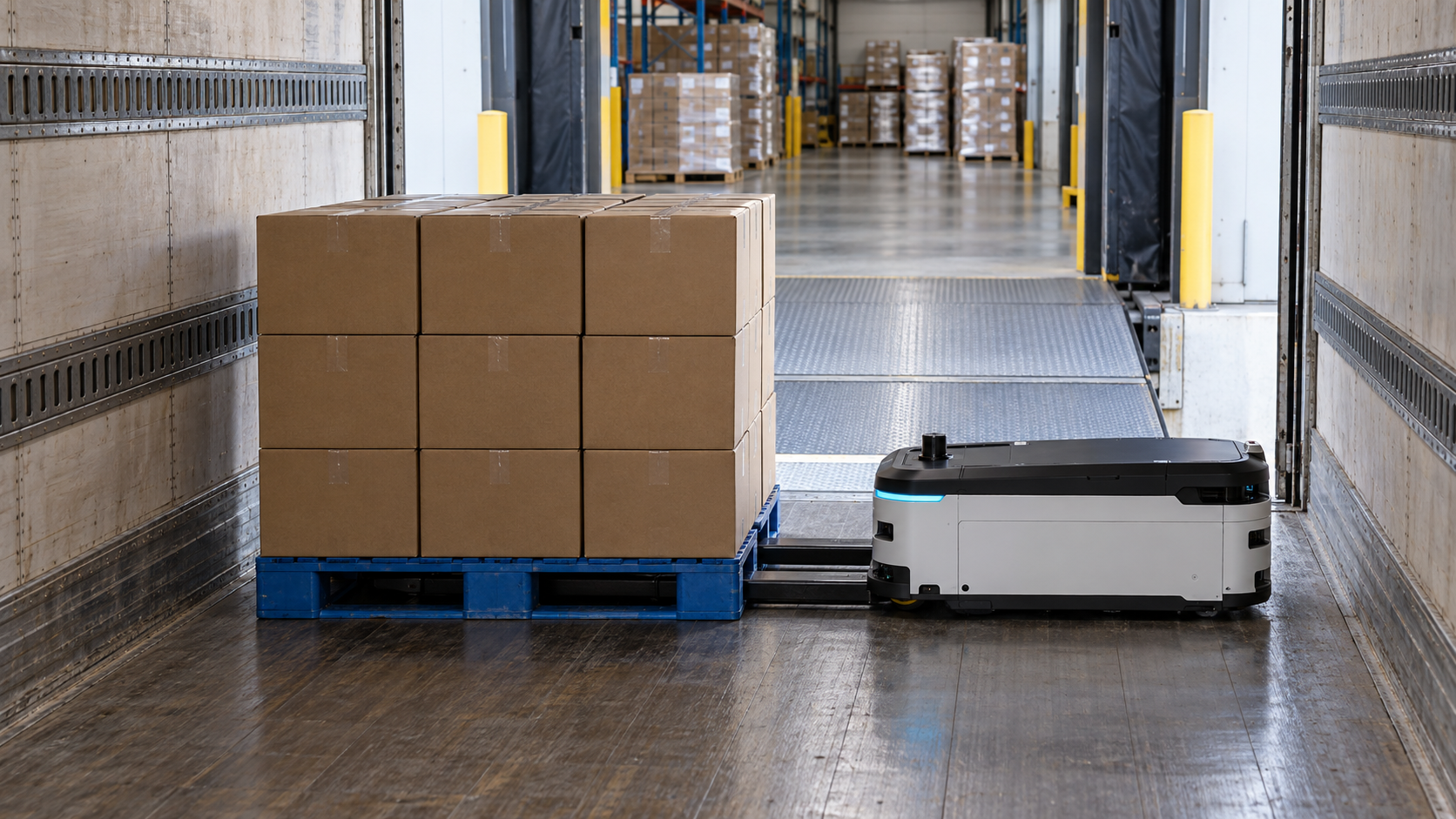

Figure 2: After placement inside the trailer, the autonomous forklift preserves a stable pallet relationship and prepares a controlled exit

Make a narrow use case repeatable before expanding it

A dock project does not need a full site redesign to begin validation. Start with one common trailer type, one stable pallet specification and one defined travel path. Test interface continuity, fork access, loaded clearance and recovery behavior in that limited scope. The findings can then guide expansion to more vehicle types, pallet formats and loading sequences. This sequencing keeps the first deployment focused on the physical and operational facts that shape performance.

In this sense, entering a trailer is not a simple extension of an autonomous forklift route. It is a transfer across a variable interface. When the dock plate, trailer floor, pallet and waiting area are organized as an operating interface, loading automation has a stronger basis for predictable daily work. It also helps operating teams distinguish a temporary dock condition from a reusable process rule, so lessons from one dock can be carried to the next without loosening physical safeguards. Chengdu Beaver applies this task-and-interface perspective when assessing AMR and AGV intralogistics scenarios.
