AMRs at Weigh Stations: A Load Is Not a Valid Weight Yet

AMRs at Weigh Stations: A Load Is Not a Valid Weight Yet

A Weigh Station Is More Than a Stop

At receiving, packaging verification, process feeding, and finished-goods staging, a weigh station can look like a simple stop in an intralogistics route. An AMR or autonomous pallet truck delivers a pallet to the scale, the system receives a number, and the mission moves on. The important distinction is that arrival does not make a weight usable. Fork contact, load placement, signal stability, and the connection between the reading and the active mission all determine whether the number is a traceable process record or just a transient value.

The practical goal is not merely to add a scale interface to fleet software. It is to define valid weight acquisition as a verifiable mission state. That gives teams a clear set of entry, settling, sampling, decision, and release conditions for the materials that need weight verification, without overcomplicating every pass through the area.

Separate the Transport Object from the Measurement Object

A pallet, tote, or rack is the transport object. The load condition on the scale is the measurement object. They often coincide, but they should not be assumed to be the same. When an autonomous pallet truck sets a pallet on a floor scale, the pallet must be fully supported by the scale, the forks must be clear, and the load must not contact a guardrail, ramp, or neighboring structure. Only then does the reading have an understandable mechanical boundary.

That is why station mechanics and route design belong in the same engineering review. Scale size, approach markings, travel direction, fork-withdrawal space, nearby barriers, and waiting locations must be checked against the full load envelope. Wheeled racks also need an assessment of concentrated wheel loads and positioning. For palletized goods, the pallet base, carton overhang, and fork withdrawal motion must not create side contact or off-center loading.

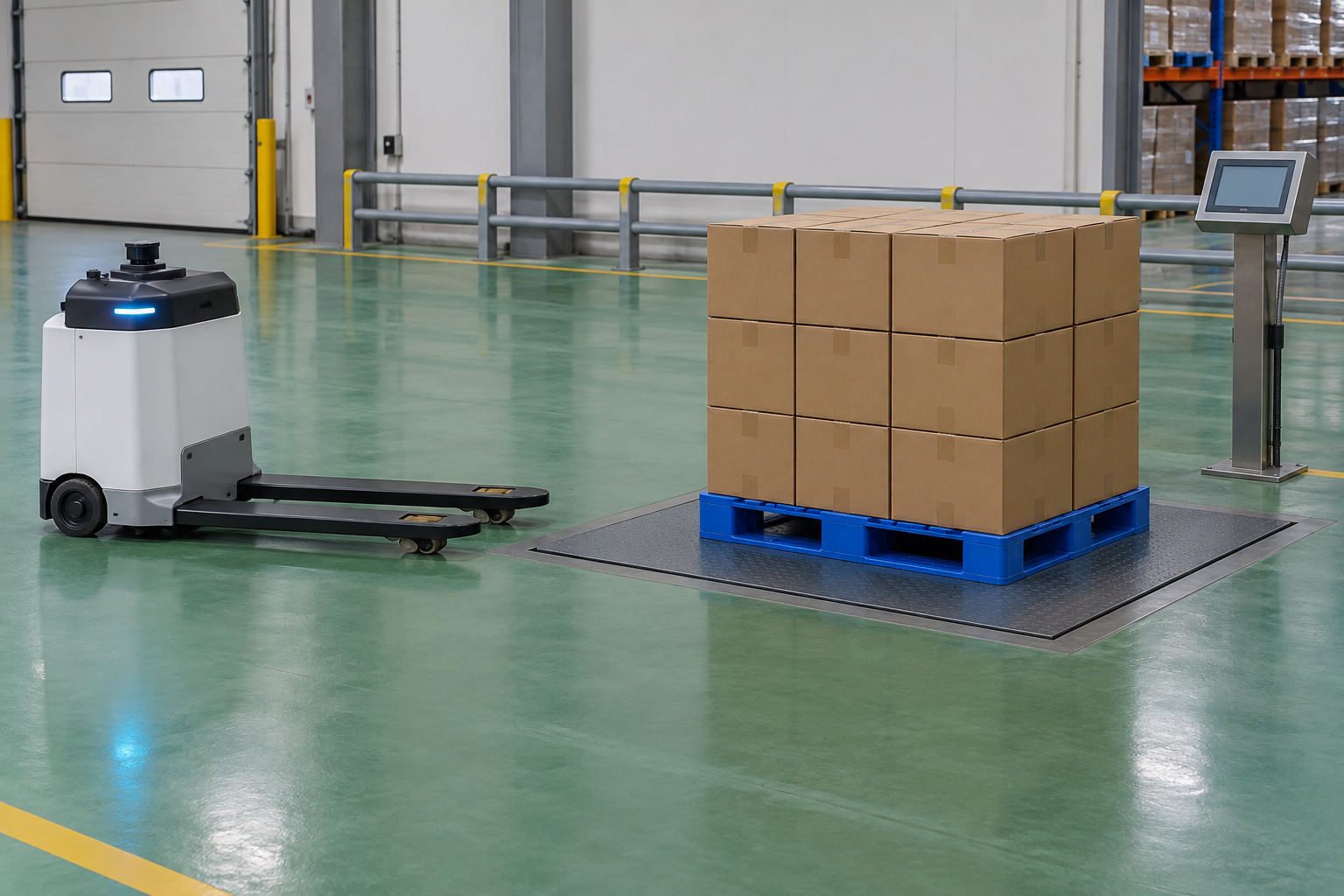

Figure 1: Independent support and fork clearance in a static weighing workflow

Build Valid Acquisition as a State Sequence

A robust weighing mission can be expressed as five consecutive states: entry permitted, load fully supported, handling mechanism clear, reading stable, and result bound. Entry permission confirms that the station is available and the scale is usable or zeroed. Full support confirms the carrier is inside the intended measurement zone. The clear state confirms that forks, lifting mechanisms, or towing hardware no longer affect the reading. Stability combines the scale terminal's own stable indication with the settling rule defined for the application. Binding then records the weight with the mission ID, carrier ID, product or batch context, and timestamp.

The binding state is frequently underestimated. A weight does not establish material identity and should not replace a quality decision. It can support expected-range checks, shortage or overfill detection, and process traceability in filling or batching steps. The project should first define the business decision the reading supports, then decide which fields to record and what route may follow.

Wait Beside the Scale, Not on It

Improving the weigh-station cycle does not simply mean minimizing every second that a robot is near the scale. For a static floor scale, a sound pattern is to place the load in the measurement position, let the scale carry it independently, withdraw the transport mechanism to a designated clearance position, and then wait for a stable signal and data return. This reduces mechanical influence on the reading and makes it easier for operators to see whether the pallet is settled, the forks are clear, and the surrounding area is free of contact.

Fleet control should treat the weigh station as a resource with its own approach and waiting rules. A second vehicle should not enter before a valid reading has been secured. Conversely, a load that has been sampled but is still waiting for its next destination should not occupy the scale as a temporary storage slot. Separating measurement completion from permission to leave, and moving the load to a controlled buffer when required, preserves the scale's role as a measurement asset.

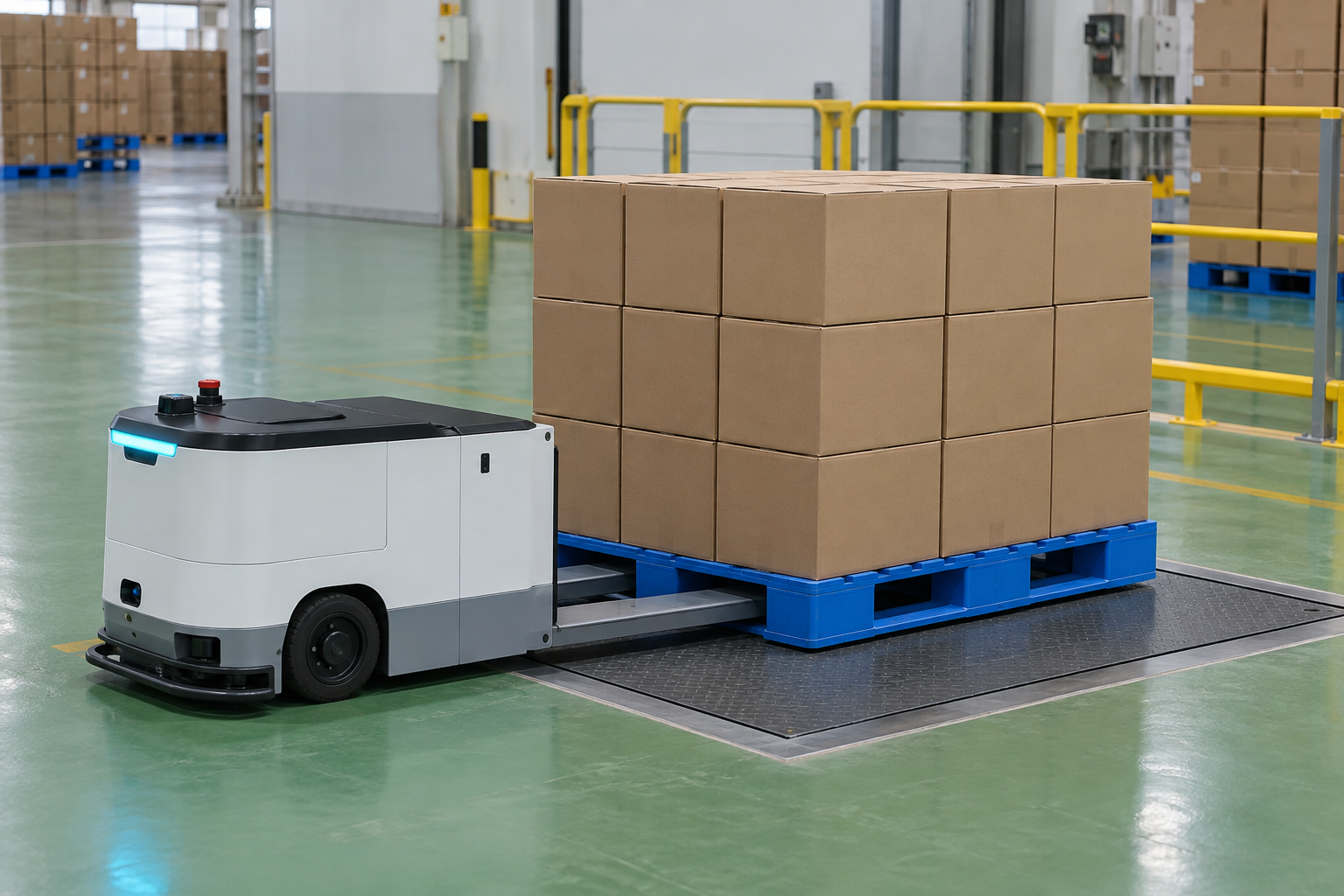

Figure 2: A controlled weigh station separates measurement completion from release

Recover Through Explainable Measurement Conditions

A fluctuating reading, an out-of-range result, or a missing stable signal should not automatically lead to repeated attempts. The first question is whether the issue is in the scale condition, load support, carrier envelope, mission context, or data binding. A pallet that is not fully on the platform, forks that remain in contact, a load touching a barrier, or a non-zero scale are physical measurement-condition issues. A mismatch between mission ID and carrier ID is a record-integrity issue. They call for different recovery actions.

A controlled review position away from the main scale helps preserve both traceability and throughput. Retain the original mission and first-reading status, record the outcome of the local check, and then decide whether the load should be reweighed, reviewed manually, or directed to an isolation buffer. Exceptions are no longer buried by retries, and a single vehicle or pallet does not block the primary route.

Make Weight Useful Logistics Evidence

Once support conditions, stability requirements, and data binding are part of mission logic, a weight becomes a usable part of intralogistics. It does not replace master data in WMS, MES, or quality systems, and it should not be overstated as a final decision for every material. Its value is more precise: at a chosen verification point, it provides evidence of when a load was measured, what was measured, under what support condition, and what reading was obtained.

For AMR weighing workflows, start by working backward from one complete mission: which loads need weighing, which scale supports them, when the robot clears the platform, when the system samples, which business fields receive the result, and where an exception goes. With those answers in place, the weigh station is no longer a platform on a route. It becomes a stable, reviewable logistics node for Chengdu Beaver intralogistics projects.
