Dry-Room AMR Delivery: Make Dew-Point Exposure Time a Mission Constraint

Dry-Room AMR Delivery: Make Dew-Point Exposure Time a Mission Constraint

In battery, electronics, and precision-manufacturing dry rooms, an intralogistics job can look simple: move a sealed container from an external buffer to a line-side point. Yet the most consequential risk often sits outside the drive itself. It appears at the airlock, while waiting for an interlocked door, during station handoff, and when an interrupted task must be recovered. If an AMR receives only a source and a destination, those environmental conditions are left to local judgment.

A stronger approach is to treat dew-point exposure time as a process constraint carried by the mission. The system should know when timing begins, which zones pause or reset a condition, whether a container may proceed, and where it should go if conditions no longer permit normal completion. The AMR then moves more than distance: it helps keep material flow aligned with the environmental boundary.

Define the environmental boundary of each mission

Dry-room delivery should not use arrival at a door as the entry condition. A complete mission distinguishes the external preparation area, the airlock, the internal dry-room route, the line-side receiving point, and a controlled exception buffer. Each has a different combination of door state, container state, and permissible dwell behavior. Before release, the closed container and its interface need to meet the approved condition. Once at the airlock, the job waits for permission rather than silently absorbing a queue into travel time.

Exposure time should not be represented as a single generic countdown. Materials, packaging, and processes may have different approved limits. The logistics system does not replace those rules; it should carry them faithfully. Release time, airlock entry, interlock completion, and station acceptance can be recorded as traceable events. This gives the mission environmental context instead of a disconnected list of door operations.

Routing should acknowledge that boundary too. The shortest physical path is not always the path with the least uncertain exposure. High-frequency doors, congested waiting points, and secondary confirmations can introduce delay. For critical jobs, mission priority, a pre-airlock waiting position, and an alternative buffer should be defined in advance so a robot has a valid location when a condition is not met.

Treat the airlock as a state transition, not a corridor

The airlock matters because it completes a controlled transition, not because it gives equipment a passage. Before entry, the AMR should confirm airlock availability, the permitted state of the target door, and receiving-side readiness. Inside, the robot remains stably docked and the sealed container stays supported by the flat deck. It proceeds only after the next permission is returned. Separating these actions avoids the ambiguous state of a vehicle already at the door with no valid next step.

Figure 1 shows an airlock inspection position that can become a physical mission anchor. Where short queues are routine, the wait start, reason, and duration should belong to the same mission record. As a wait approaches a process-defined boundary, dispatch can select an approved action: prioritize another released job, return the current load to a controlled buffer, or request review. The goal is not to force forward movement; it is to prevent unrecorded exposure growth.

The same distinction applies to return flow. An empty AMR may follow ordinary traffic rules, but an AMR carrying a controlled container should not be treated as just another queue member. Carrying load condition into airlock and door-control logic makes it clear which jobs may wait, which require priority completion, and which must leave the current chain.

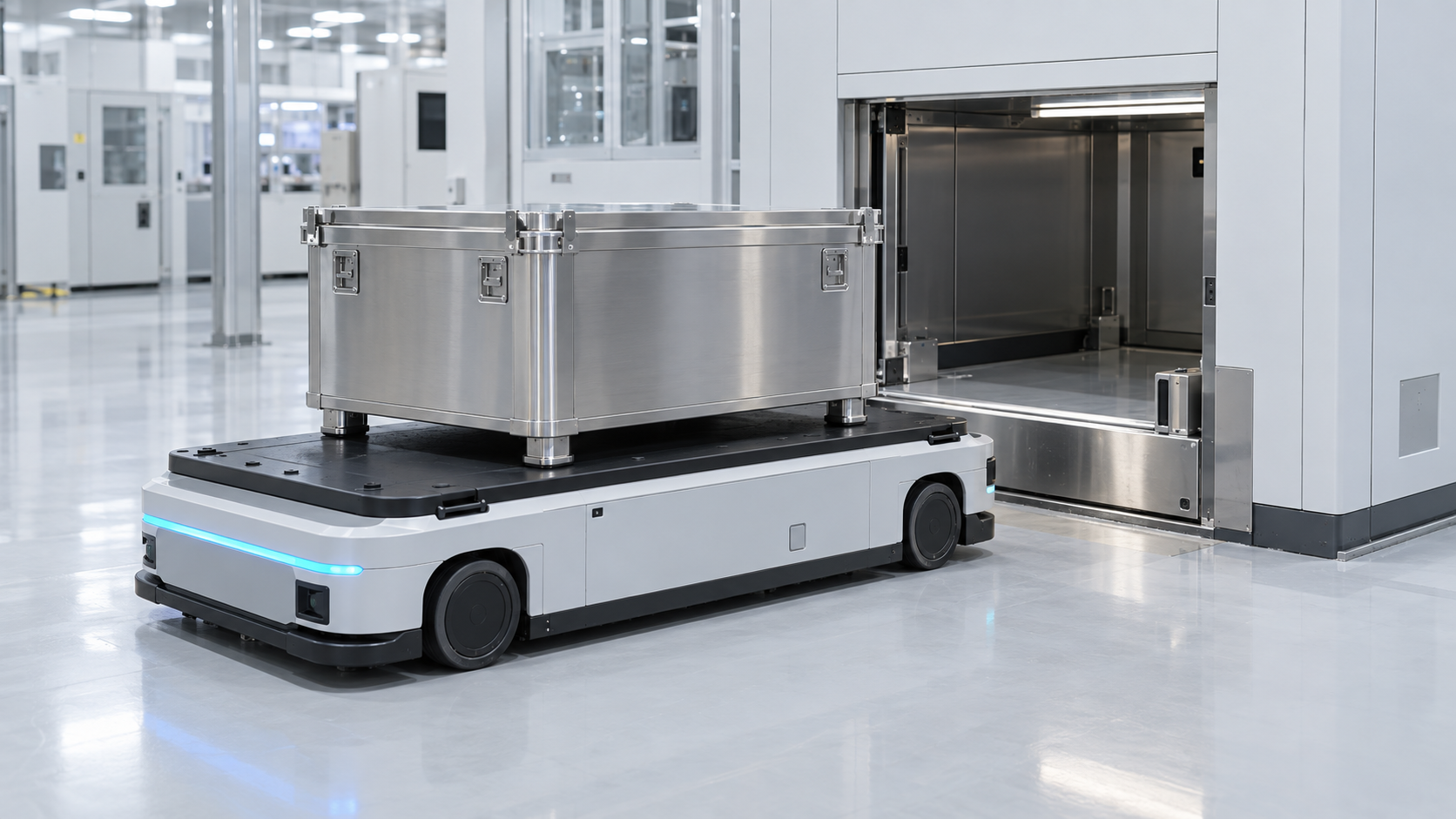

Figure 1: Flatbed AMR waiting at the dry-room airlock inspection position

Make line-side handoff a confirmed end condition

Once inside the dry room, mission completion should not equal stopping beside equipment. A receiving point needs positional, container, and process conditions at the same time: the vehicle is correctly located, the container remains closed and acceptable, and the station has confirmed readiness. With a flatbed AMR, the container should remain centered on the support surface. Before a physical transfer, the receiving interface, free space, and acceptance permission must all be ready.

Figure 2 highlights a practical point: docking is not handoff. If the receiving asset remains occupied or the container needs review, the AMR should remain in a defined waiting state or move to a nearby approved buffer when permitted. It should not stop temporarily at an equipment entrance. This limits traffic blockage and gives every wait a traceable cause.

The completion event should retain the minimum information required for recovery: container identity, receiving location, completion time, and any exception marker. After an interruption, the system can determine whether the container remains on the vehicle, has reached the receiving point, or has been placed in an exception buffer. Staff do not have to reconstruct the situation from scratch.

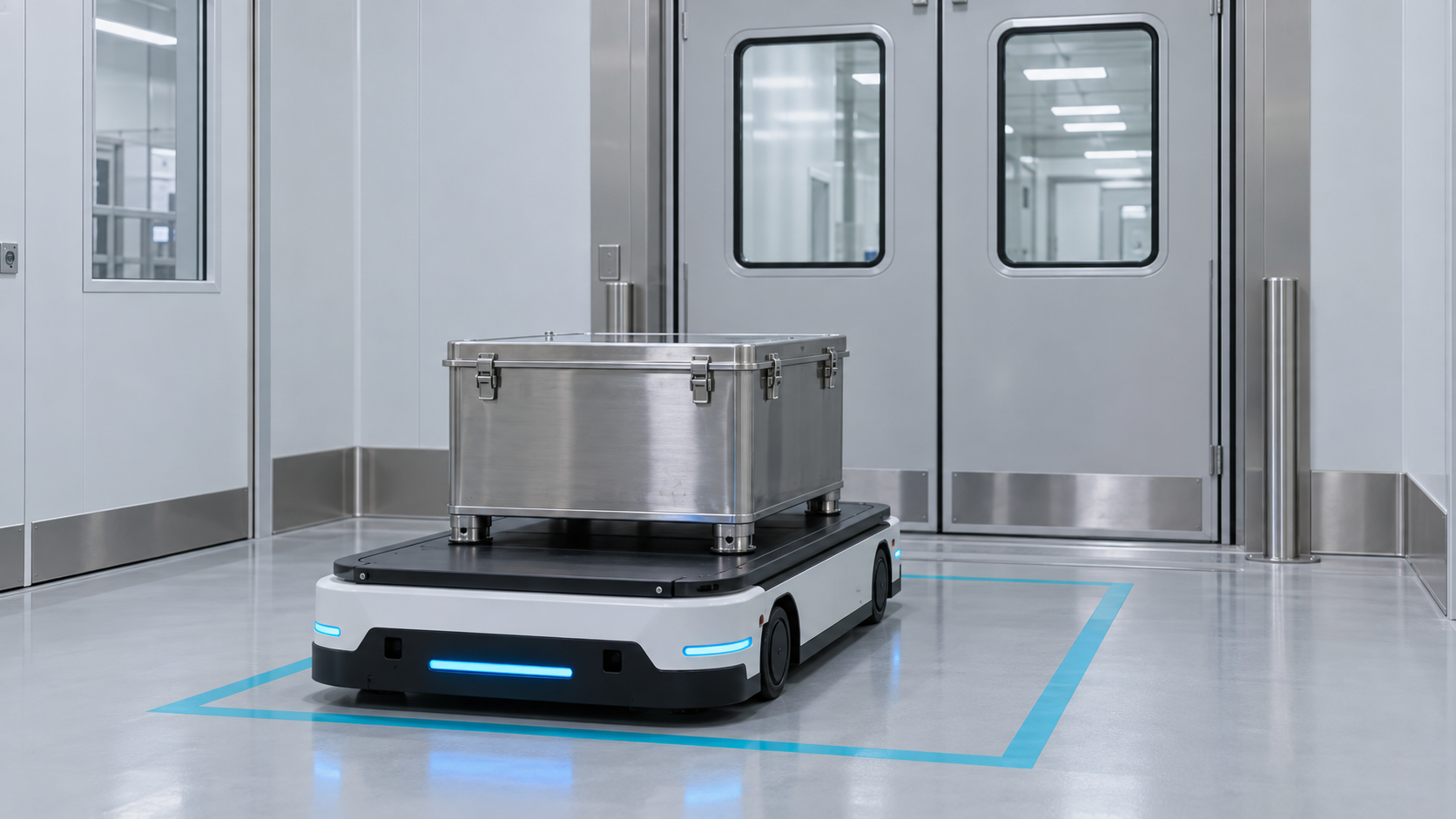

Figure 2: Flatbed AMR in a controlled wait posture at the dry-room receiving point

Recover the condition, not only the route

Many dry-room exceptions are not robot faults. A door may be occupied, a receiving asset delayed, a container awaiting review, or an airlock temporarily unavailable. A recovery plan focused only on route replanning can miss the environmental condition traveling with the load. A more dependable sequence first freezes the load's release state, then uses the remaining approved window and buffer capability to choose continuation, return, or review.

A recoverable mission needs an explicit branch. If waiting remains within the approved boundary and the destination recovers, the job can continue from its controlled state. If the boundary is near or container status is uncertain, the load moves to a designated buffer or review point and the process rule decides the next release. This replaces ad hoc coordination and repeated door cycles with an understandable procedure.

Before deployment, dry-room AMR projects benefit from rehearsing door interlocks, airlock capacity, peak jobs, maximum waits, receiving-point occupancy, and exception returns on one acceptance checklist. The useful test is not whether a robot can pass through a door. It is whether the load stays within the correct environmental boundary through realistic waits, handoffs, and recoveries.

Make environmental constraints part of the mission

The value of dry-room AMR delivery is not simply faster travel through a corridor. It is the ability to organize conditions previously scattered across doors, airlocks, containers, and line-side roles into an executable flow. When exposure time, container state, door permission, and receiving state live in one mission context, the robot can wait, continue, or return in a way that is explainable.

Near a process boundary, experience alone is rarely a sufficient control. Bringing environmental conditions forward as mission constraints gives mobile robots a controlled choice when uncertainty appears and makes the connection between dry-room and external logistics easier to operate and review.
