Collapsible Tote Returns on AMRs: Make Locking and Unit-Load Support Mission Conditions

Collapsible Tote Returns on AMRs: Make Locking and Unit-Load Support Mission Conditions

In manufacturing, retail return loops, and warehouse operations, collapsible totes are often treated as the simplest kind of carrier. They are empty, smaller when folded, and apparently easy to send back to cleaning, sorting, or reuse. For an AMR, however, a folded tote is not automatically a transport-ready object. Folded panels, latch direction, stack orientation, and the interface beneath the stack all affect whether the group remains intact through acceleration, deceleration, turns, and station handoffs.

A task described only as empty-tote return gives the robot an abstract destination. The physical work on the floor is more specific: a group of collapsible carriers must remain closed, aligned, supported, and identifiable as one unit. If that state is left for a person to judge beside the aisle, loose latches, mixed tote types, uneven stacking, and incomplete bottom support can enter an automated return flow without a clear decision point.

The practical objective is not to make every empty tote look identical. It is to define which tote groups can move together and under what conditions. That makes the return flow more predictable without pretending that all empty carriers are interchangeable.

The starting point should not be the number of totes. It should be whether the group can be moved as one unit. An executable bundle definition can specify the folded load envelope, latch condition, permitted stacking orientation, protruding handles or panels, and the surface that carries the load. With those details in place, the fleet is not moving a loose collection of boxes. It is moving a return unit with known boundaries and a visible support relationship.

This matters most where several tote families share an area. Matching footprints do not guarantee that different folded thicknesses, handle locations, or bottom ribs can be stacked freely. One tote may sit on a local edge rather than a full bearing surface. A better approach is to apply compatible-mix rules at the return point, where totes can be grouped by size family or an approved combination before an AMR task is released. That avoids pushing every judgement onto onboard perception and reduces downstream re-sorting.

The bundle definition needs a limit as well as a count. Height, base contact area, tray restraints, and the route conditions around turns, doors, and temporary holding positions should all inform the limit. The aim is not maximum density. The aim is a group whose state remains understandable after routine travel and after a short controlled stop.

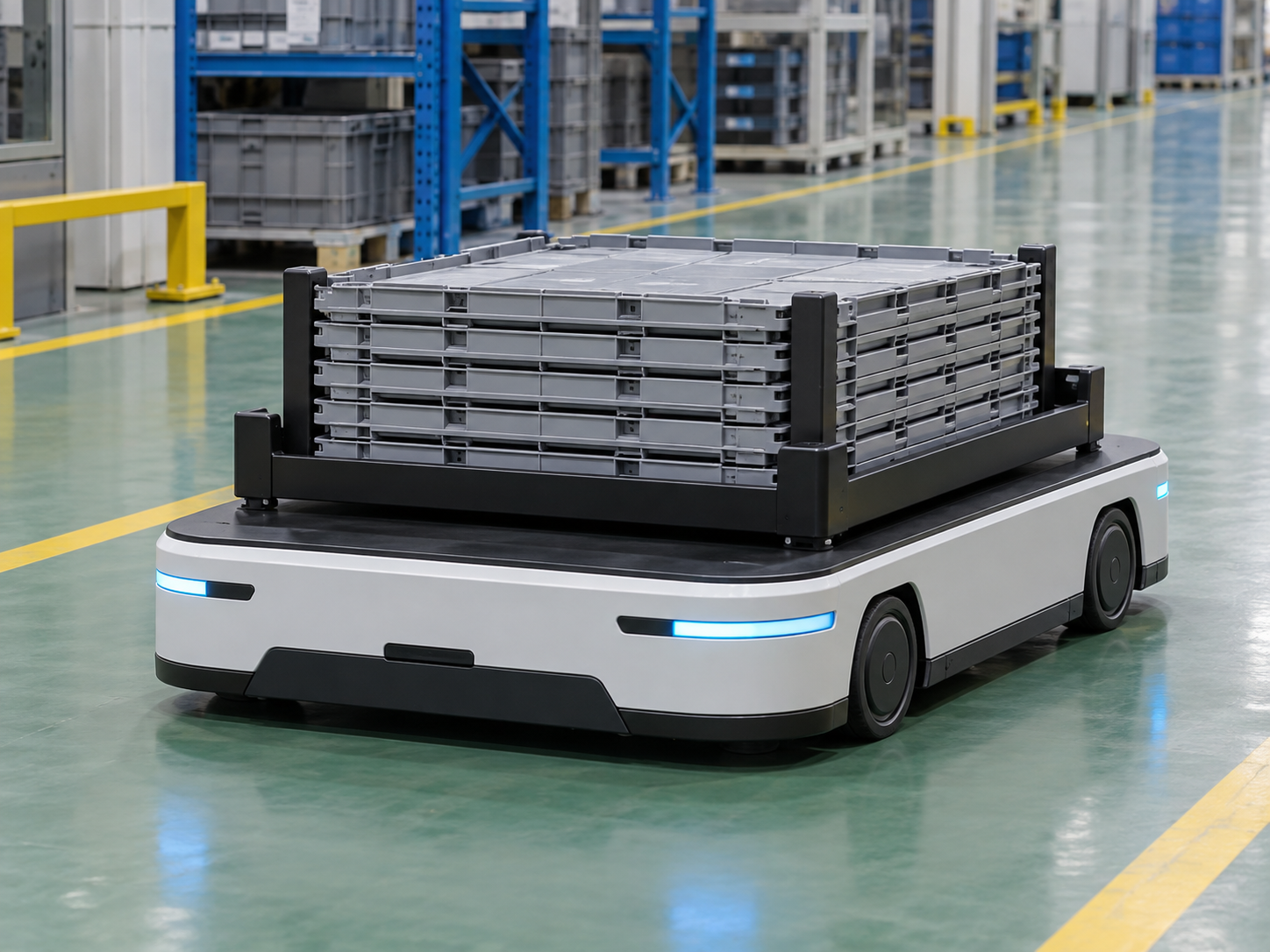

Figure 1: A flatbed AMR transports a folded tote bundle in a low retaining tray

The load interface should solve the question of bottom support before route speed or task frequency is considered. On a flatbed AMR, a purpose-designed tray with a continuous base and low locating corners can let the bottom tote rest fully on a level surface. The corners constrain lateral movement; they do not carry the load in place of the base. When a reusable hold-down bar, frame, or strap is required, it should preserve the bundle relationship rather than suspend the load above the vehicle.

The interface should also make inspection fast. An operator needs to see whether the base is seated, locating features are engaged, and the retaining element is closed. For repetitive return flows, these observations can become release conditions at the station. A bundle that does not meet them stays in a preparation location. A verified bundle is the one that creates the AMR mission.

The same logic applies when a return bundle transfers between a fixed stand and a vehicle. Arrival alone is not completion. The stack has to settle on the receiving support, the AMR has to be unloaded, and the receiving side has to retain the group before the handoff can be considered complete.

A tote-return route may pass through line-side collection, staging, cleaning, sorting, and reuse. Those locations are more useful when treated as state-transition points rather than generic destinations. The line-side point turns individual totes into a folded bundle. The buffer preserves its support and restraint. A downstream station decides whether the bundle enters cleaning, reuse, or a repair branch. At every transition, the operation should be able to answer whether the group is complete, what supports it, and whether the next location is ready to accept it.

This also gives waiting a proper role. If a receiving stand is occupied, an AMR should not park a constrained tote bundle in an aisle or place it on an unrestrained floor area. The mission can move to a holding position with defined support conditions and resume when the receiver becomes available. The held state retains the bundle identity and the load interface, so restart does not depend on guessing what changed at the floor.

Where totes will later be opened or inspected by people, transport-ready and ready-to-unfold should remain separate decisions. One concerns the condition of the carrier. The other concerns whether the carrier has been organized safely as a mobile unit. Combining them into an informal check is how an unsuitable tote group can continue along an otherwise normal return route.

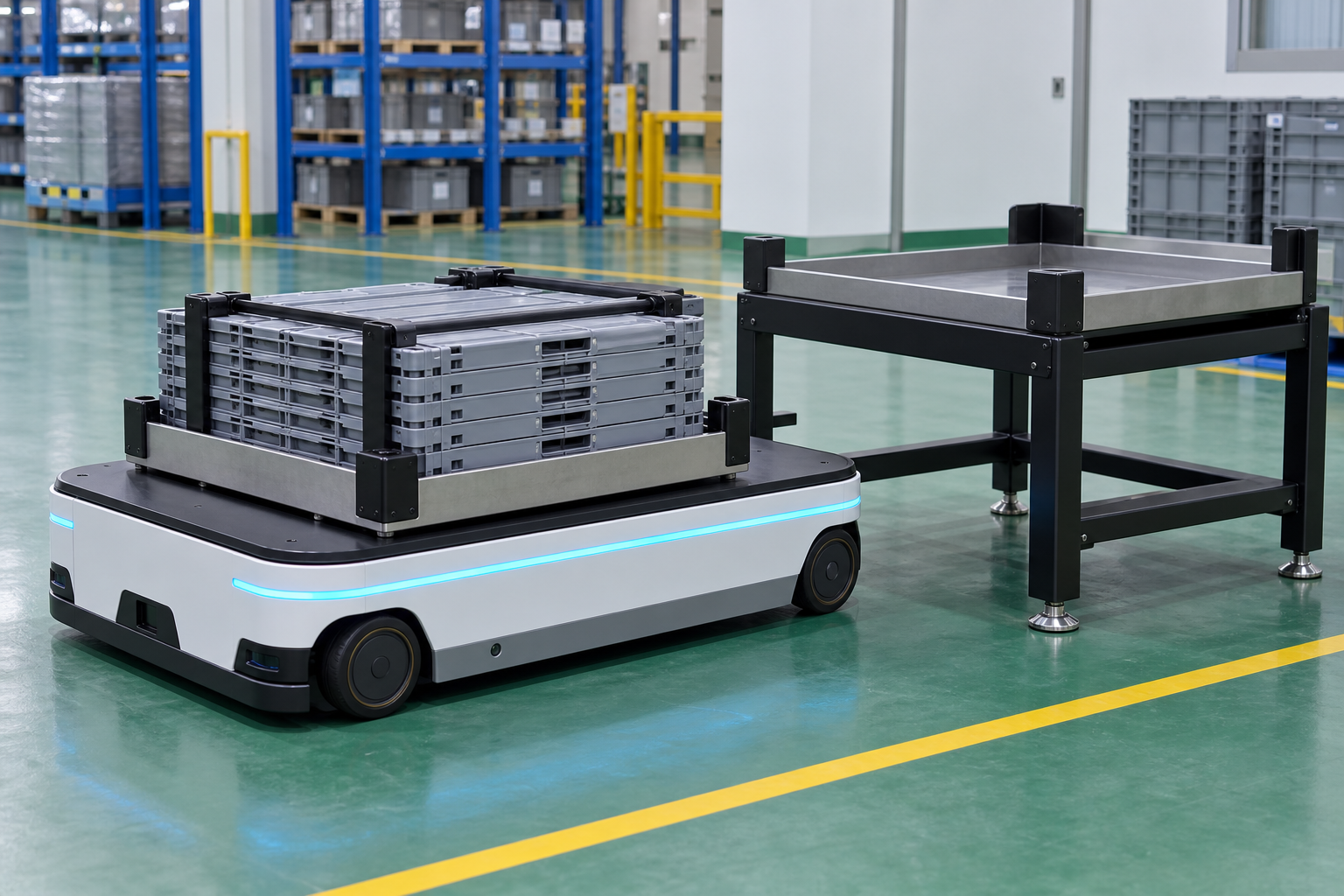

Figure 2: A controlled return stand keeps the bundle support state visible at handoff

Incomplete folding, open latches, mixed tote types, a shifted bottom layer, or an unclosed retaining bar are not conditions that a second drive will correct. Repeated starts and stops can amplify a local problem into a scattered load, a blocked station, or a delay that consumes robot, aisle, and receiving capacity at the same time. A clearer response is to return the mission to a preparation point while preserving the observed bundle condition and location.

A useful exception branch is short and explicit: stop release, move or hold at an accessible preparation point, regroup or repair as needed, reconfirm the support relationship, and then create a new return mission. This is not process overhead for its own sake. It prevents an unresolved carrier state from occupying several operational resources at once.

Over time, the recorded conditions reveal where the return loop needs attention. The issue may be inconsistent folding, a tray whose restraints do not match the tote family, or a receiver that is often unavailable. The return stream becomes an operational signal instead of a final housekeeping task.

The value of AMR tote return is not simply that a robot can remove a stack of empty containers. It is that collapsible carriers can re-enter a usable loop in a known state. When locking, bundling, support, handoff, and recovery are expressed as mission conditions, AMRs can take on repeatable transport with less floor-level uncertainty. Teams can also distinguish clearly between reusable totes, bundles awaiting preparation, and carriers that need attention.

For facilities planning an AMR deployment, it is often more valuable to define one representative tote bundle, its tray interface, its station handoff, and its exception destination than to chase a higher return rate first. Reliable return logistics do not move empty totes faster by default. They finish each return with a carrier state that is ready to be used again.
