High-Bay Forklift Automation: Make Settling Time a Mission Condition

Reaching height does not make a pallet ready for release

High-bay storage adds a transition that is easy to overlook in an autonomous forklift mission. When a mast truck reaches the target elevation, the height command may be complete, but the pallet, mast, forks, and rack interface may not yet be ready for the next action. At elevation, small effects that are almost invisible at floor level can become meaningful at the fork tips: normal mast elasticity, a change in chain tension, minor floor variation, or a load that is not perfectly centered. If the truck immediately begins to extend or retract its forks, the result can be a poorly seated pallet, contact with a rack beam, or pressure on the edge of a carton stack. These are interface failures, not simply navigation failures.

For that reason, settling time should not be treated as one fixed pause added to every job. It is a mission condition that allows the mechanical state to converge, gives sensing a chance to confirm the working geometry, and establishes a boundary for the next motion. In a high-bay task, the practical questions are whether the load remains level, whether both forks are parallel and fully engaged in the pallet openings, whether the mast has returned to a controlled relative posture, and whether the target location still has usable clearance.

A stable lift condition should be checked at the moment it matters, not assumed from a successful command acknowledgement. The truck may need to compare its observed fork, load, and slot relationship against the intended one after each material change: first after engagement, then after lift, and again before placement. This gives an operations team a clear sequence for diagnosing a deviation. It also avoids treating a good travel path as proof that the storage interface is ready.

Convert stability into observable mechanical and spatial conditions

Replacing “wait a moment” with inspectable conditions starts by separating the objects being checked. After pickup, the system can confirm comparable fork insertion depth, continuous support under the pallet, and a load envelope that remains within its permitted limit. After lifting to working height, it can confirm mast posture, load level, and the clear space in front of the target location. This does not require modelling every vibration in detail. It requires identifying the changes that can affect the next mechanical action and including them in the release decision.

The conditions should also be layered by height and load class. A window suitable for a light pallet near the floor should not be copied directly to a full pallet at an upper storage level or to a load with a larger-than-normal envelope. During project engineering, slot height, pallet type, carton pattern, floor segment, and fork-entry method can be combined into task classes. Each class can then carry its own confirmation order and appropriate degree of caution. The system is no longer waiting for an untraceable number of seconds; it is progressing through explainable release conditions.

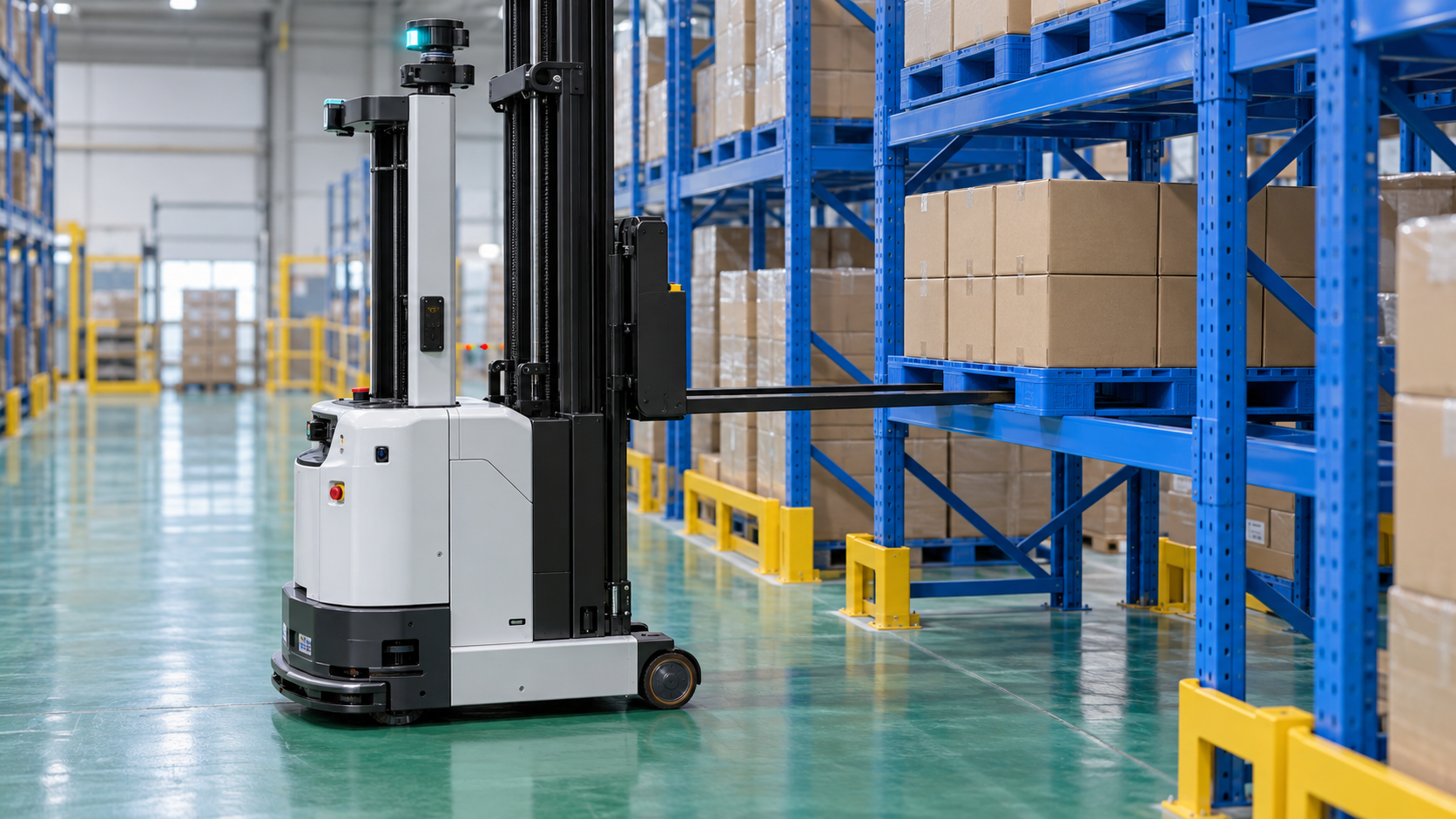

Figure 1: A mast-type autonomous forklift checks level pallet support before high-bay storage

A pallet needs a confirmed support state before fork withdrawal

The placing phase is not complete simply because the forks have descended. The pallet must be fully supported by rack beams or another designed support surface, and the load must remain stable before the forks travel back along their entry path. If one side of the pallet takes load first, if the beam spacing does not match the pallet underside, or if the stack moves noticeably during placement, continued withdrawal can pull a pallet away from the location where it should remain. A robust automation design therefore separates support, unloading, and fork withdrawal into consecutive states instead of compressing them into one completion signal.

A practical approach is to keep a short review point before withdrawal. The forklift can confirm that the lifting force has changed as expected, that the pallet posture has not become abnormal, and that the slot boundary is not obstructed. It can then retract at a controlled speed. When uncertainty remains, the mission should return to a safe elevation or a defined waiting location while the system retains the slot, load, and mast context. Repeated attempts should not be used to hide a mechanical-interface problem.

The same logic makes acceptance testing more useful. Instead of validating only whether the forklift can store a representative pallet, the test can deliberately vary height, load distribution, pallet condition, and rack approach. The result is a set of known operating boundaries: which combinations proceed normally, which require a more cautious confirmation, and which should be directed to review. Those boundaries are far more valuable to day-to-day intralogistics than a single ideal-cycle demonstration.

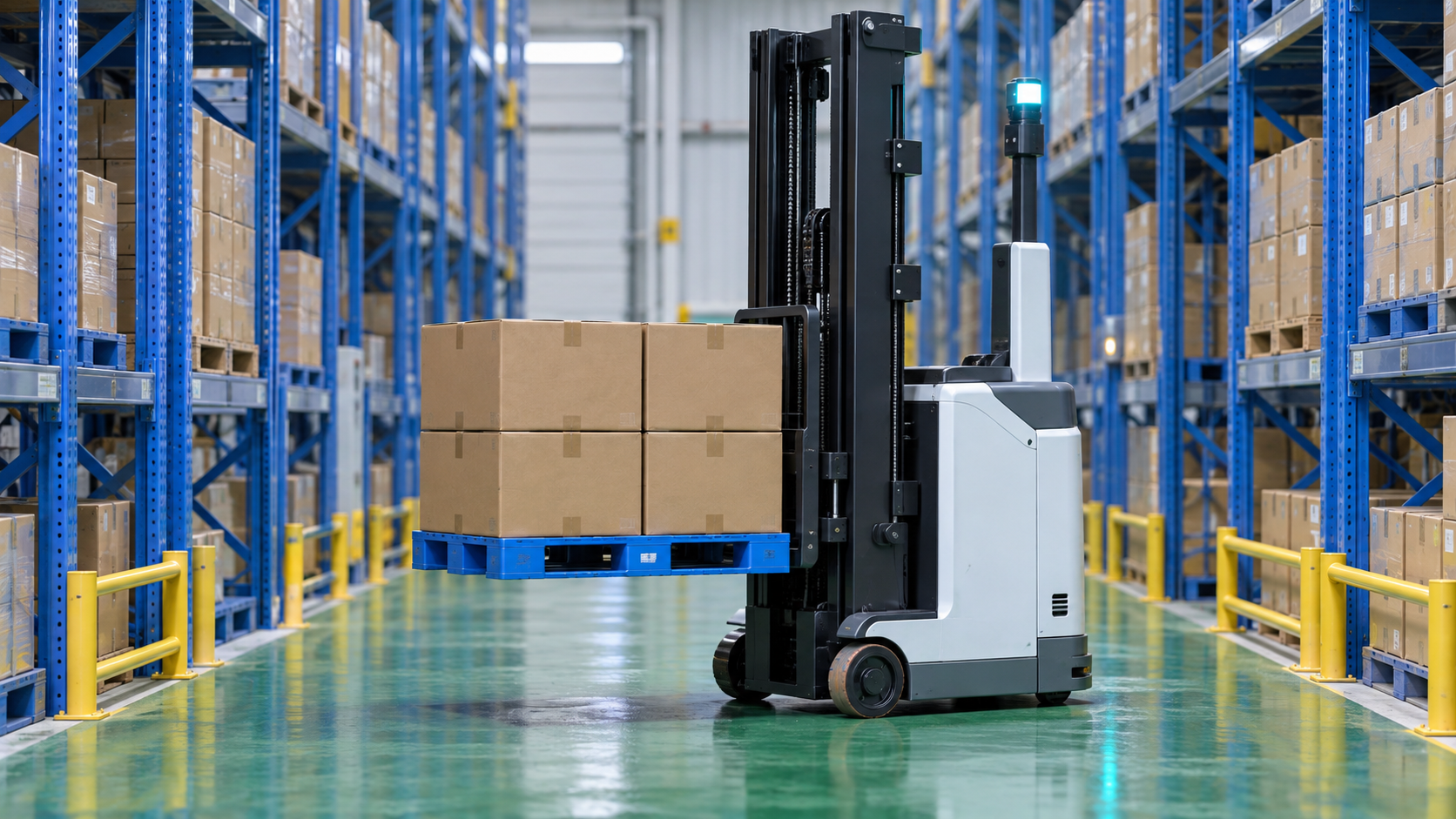

Figure 2: The rack supports the pallet before the forks withdraw

Use layered conditions instead of a universal delay

Stability management is not intended to make an autonomous forklift slower. It makes speed repeatable because actions are released from a verified interface state. Routine missions can continue promptly when their conditions are met, while higher or more complex loads naturally receive a more careful confirmation window. Operational records then help a team distinguish whether a deviation originated in the pallet, rack, load, floor, or motion parameters instead of labelling every event as occasional vibration.

High-bay reliability ultimately depends on preserving the same verifiable support relationship through pickup, lift, placement, and withdrawal. A mast-type autonomous forklift does more than bring a pallet to a height. At the right moment, it confirms that the pallet has been properly received by the rack, confirms that the forks can safely leave, and turns those confirmations into engineering rules that can be reused by the next mission.
