Before an Autonomous Forklift Takes a Wrapped Pallet, Make Load-Envelope Stability a Release Condition

2026-09-09 11:38 Beaver Robotics

Stretch wrap is a transport boundary, not a packaging detail

Between finished-goods packing, inter-process movement, and outbound staging, a wrapped pallet is often treated as simply ‘ready to move.’ An autonomous forklift has to read a more specific physical condition. Is the carton stack vertical? Is the film tail contained? Do carton edges project beyond the supported footprint? Is the pallet deck intact? Does the combined envelope still fit the route and receiving space? If one of these conditions is uncontrolled, a pallet that looked suitable for automation can become an unnecessary manual exception.

That does not require a complex inspection for every load. The useful move is to turn the few packaging conditions that affect travel into explicit release checks. A stable wrap surface, controlled overhang, and an intact support base are packaging-quality attributes, but they are also prerequisites for a robot to perform repeatable work.

Define a transportable load envelope

Envelope stability is not a request to add wrap indiscriminately. It should answer practical questions: are there loose film tails that can change during a turn, stop, or air movement; do cartons overhang the pallet support area; does the wrap hold the carton stack and pallet as one stable unit; and do the pallet openings, deck, and blocks retain the geometry that allows forks to enter straight and level? The goal is not cosmetic tidiness. It is an explainable relationship among contact surfaces, support surfaces, and movement limits.

At the release point, a compact set of checks can confirm envelope condition, pallet condition, contained film edge, and no obvious center-of-mass shift. Where carton combinations vary widely, different pallet formats can carry clear approved envelope classes. The forklift receives an executable load state rather than a mission that contains only an origin and destination.

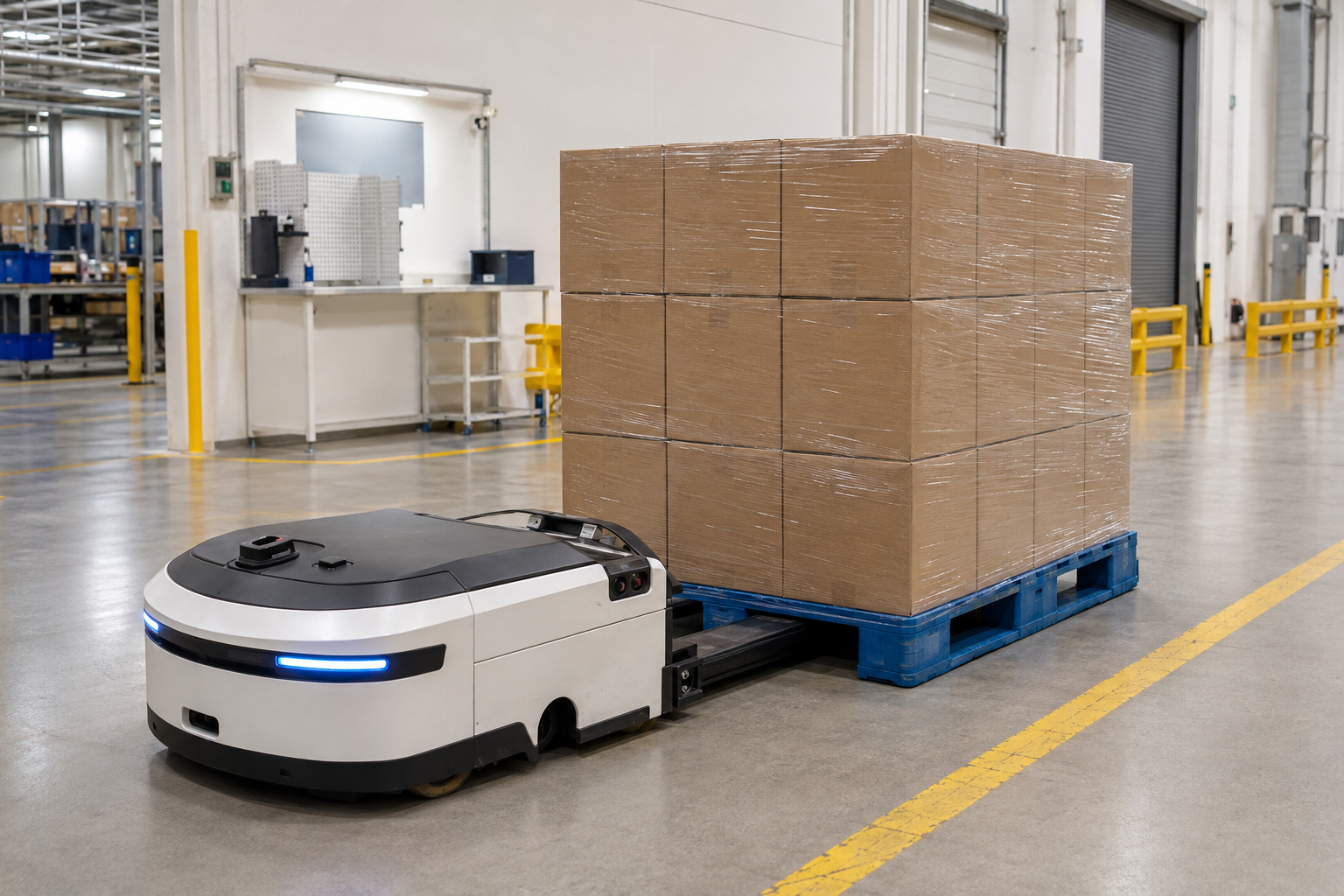

Figure 1: A low-profile autonomous pallet truck fully supports a stable wrapped pallet

Use one constraint set for forks, pallets, and routes

A low-profile autonomous pallet truck needs two forks to enter the pallet openings at low height, in parallel, and with a complete support relationship under the load. A dangling wrap edge near an opening, or a damaged deck that changes fork geometry, is not a problem that a navigation map can solve. Even when the robot reaches the pickup accurately, it should not carry an incomplete support condition into a shared aisle.

Packaging, pickup, and routing therefore benefit from one envelope vocabulary. Packing confirms the real pallet-and-carton dimensions and stability. The robot confirms fork accessibility and the envelope after pickup. The route uses that class to select appropriate aisle width, turning allowance, and a temporary buffer position if needed. This is not an over-conservative route design; it prevents repeated retries and last-minute slowdowns from compensating for a load issue that should have been visible at the source.

A controlled receiving bay adds a final confirmation

At a receiving dock, buffer area, or production handoff, a mission should not end merely because the robot reached coordinates. The bay needs enough space for a complete pallet landing, without carton edges crowding a guardrail, door, or adjacent load. It should also support a quick confirmation that the pallet remains level and that the load envelope has not changed during travel. For a pallet that will be stored or transferred onward, the receiving condition must be process-ready, not merely present.

If the system detects a loose wrap edge, a shifted stack, pallet damage, or an occupied receiving bay, repeated attempts at the same location are rarely useful. A designated review position outside the main aisle can keep the pallet low, supported, and contained while it awaits rewrapping, inspection, or release. A clear exception path reduces the need for improvised decisions on the floor.

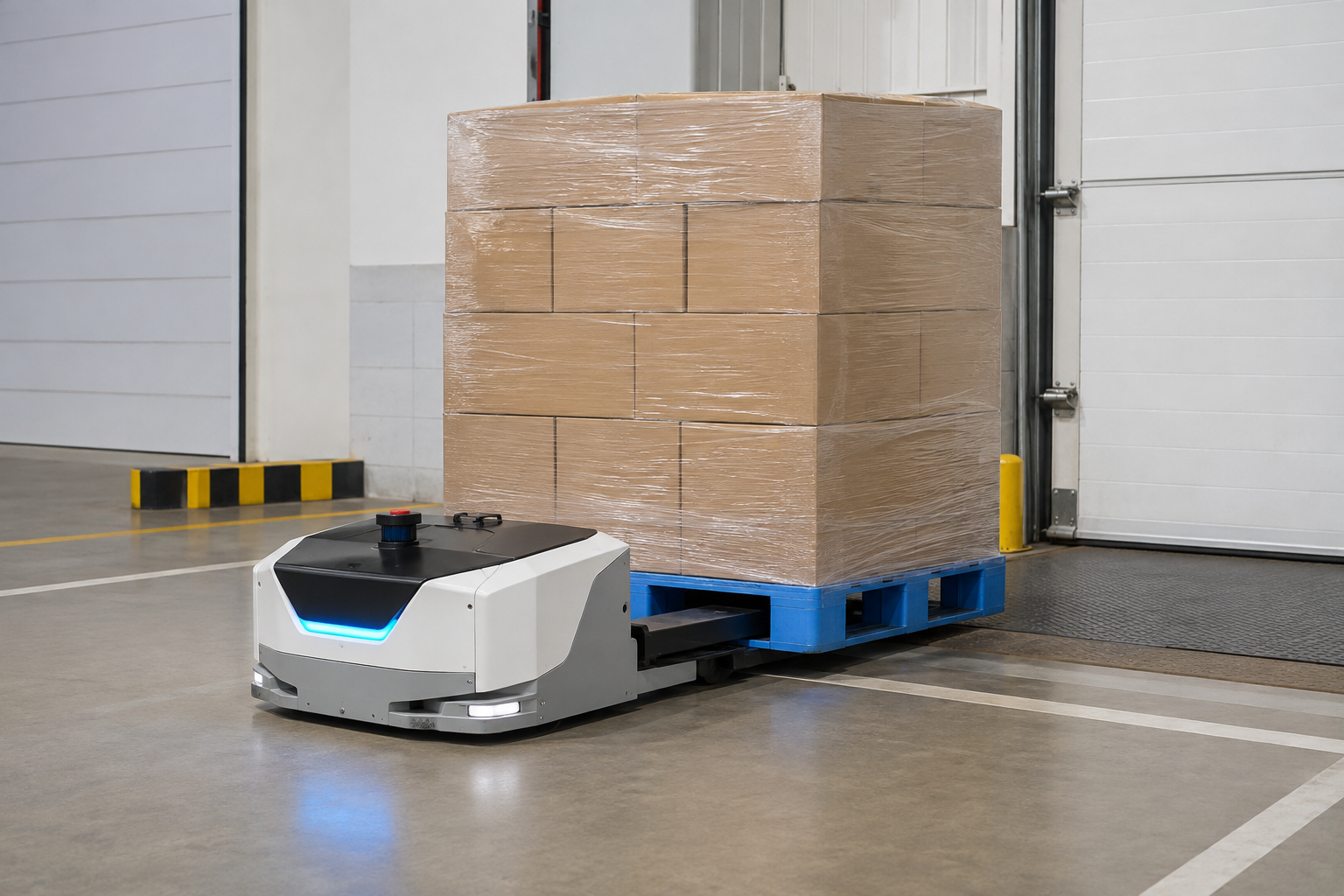

Figure 2: A controlled receiving bay preserves space for landing and condition confirmation

Validate operating conditions, not an ideal demonstration pallet

A useful validation set includes more than uniformly sized cartons and flawless wrap. Test approved pallet formats with different carton heights and stacking patterns, combinations near the permitted envelope limit, pickup, low-speed turns, narrow passages, and the final landing. The aim is not to manufacture extreme cases. It is to identify which conditions the operation can handle predictably and which should be corrected at packing.

For manufacturing and warehouse teams, the outcome is broader than fewer ad-hoc interventions. Packing release, autonomous forklift pickup, route travel, and receiving confirmation can work around one shared definition of envelope stability. Chengdu Beaver can support this kind of task design by connecting robotic motion to clear, physical load conditions: run the standard mission when the condition is complete, and use a visible recovery branch when it is not.

The definition should stay practical enough for shift teams to use. It can be built into pack-out instructions, a simple inspection screen, or a release signal from a wrapping cell, without pretending that every variation can be judged automatically. What matters is that a rejected condition has an owner and a next step. A pallet that needs rewrapping should move to rework; a damaged pallet should be rebuilt; a full receiving bay should route the load to a designated buffer. When those decisions are explicit, the fleet does not have to invent operational logic at the point of travel. The result is a cleaner handoff between packaging discipline and robotic execution, with fewer ambiguous loads entering shared space.
