Explosion-Proof AGVs in Chemical Packaging: Empty-Container Return Is Not an Empty Task

Explosion-Proof AGVs in Chemical Packaging: Empty-Container Return Is Not an Empty Task

In chemical packaging, solvent handling, coating preparation, and similar facilities, an empty-container return is often treated as a simple empty trip. In practice, a container that has left a filling or process station may still carry conditions that matter to the next move: its closure condition, inspection status, permitted destination, or need for controlled holding. For an explosion-proof AGV, the load is therefore not just a rack of metal containers. It is a controlled logistics unit with a defined next state.

Explosion protection addresses whether equipment is appropriate for a specified environment. A workable material-flow design must also define when a returned unit may move, where it may wait, and what makes the next location ready to receive it. Without those answers, a mobile robot can travel reliably while the handoff itself remains ambiguous.

The same distinction also protects operational clarity. A return task should communicate the condition that matters to the next handoff, rather than relying on an operator's memory of where the container came from. This keeps the message short and practical: the rack is available for the intended next step, it must wait for confirmation, or it is assigned to a defined holding position. The mission can then preserve that condition through a pause, a delayed handoff, or a restart, instead of reducing it to an undifferentiated empty trip.

An Empty Container Is Not a Single Logistics State

A return order should not collapse every used container into one generic label. A better approach is to treat the closed container and its dedicated rack as a controlled unit. Is the unit sealed? Does it need a visual or process check? May it enter a normal buffer area, or must it remain at a designated holding position? Those conditions change the next acceptable destination and should be settled before the vehicle is dispatched.

This is not about adding unnecessary handling. It is about removing improvisation at the edge of the process. If the unit has not reached its receiving condition, the AGV should not deliver it to a default empty-rack area. It should wait at a planned position. Once the receiving condition is met, the return can join the intended flow without a new, ad-hoc instruction.

Plan the Buffer Position Before the Return Route

At the boundary between a controlled operating area and a return area, the most important design question is often not travel distance. It is the waiting space. A useful buffer position has enough room for the full vehicle and the dedicated rack, lets the AGV enter and leave at low speed, and keeps the physical handoff easy to understand. It also needs a defined receiving purpose. Units awaiting inspection, units ready for return, and units requiring separate treatment should not become indistinguishable in one shared empty-rack zone.

When an explosion-proof AGV stops at the buffer position, the mission is not automatically complete. Parking confirms the physical position. Acceptance still depends on the condition assigned to the rack and on the availability of the next location. Binding position and condition together helps prevent avoidable searching, temporary rack moves, and repeated robot travel.

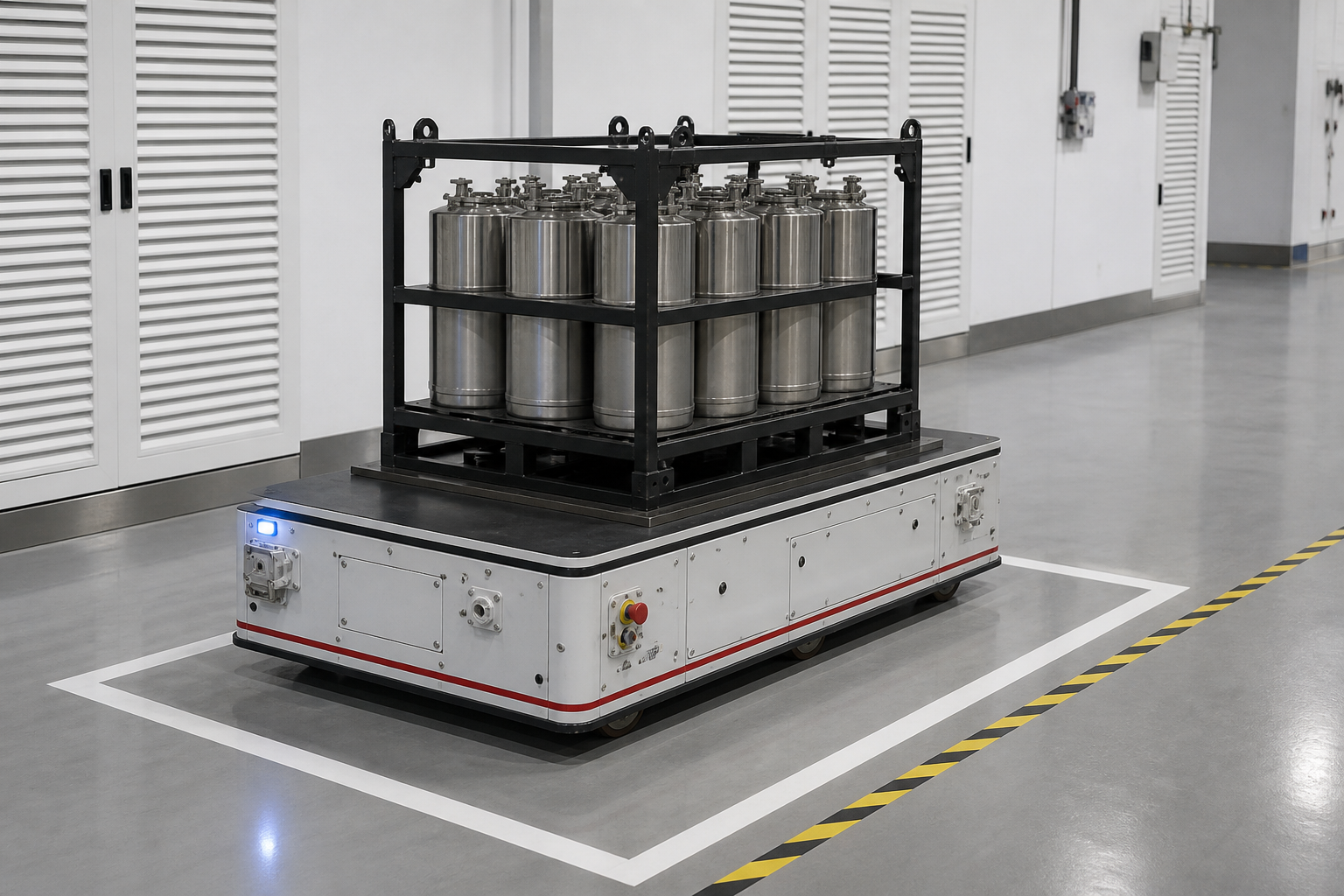

Figure 1: An explosion-proof AGV stopped at a dedicated buffer position with the rack and containers fully supported

The Dedicated Rack Carries Part of the Boundary

In this application, the rack is not a disposable outer package. It supports the containers and defines the mechanical relationship between the load and the vehicle. The contact surface with the vehicle platform, locating features, and center-of-gravity relationship should remain consistent during travel, parking, and handoff. Standardized dedicated racks make the unit's transport readiness easier to judge and reduce uncertainty created by changed shapes, placement methods, or temporary attachments.

For the same reason, empty-container return should not switch loading methods merely for convenience. If containers, racks, or auxiliary fixtures change, the project team should first confirm that the established support and travel conditions still apply. That check belongs at the task entry point, before the AGV departs. A unit that does not meet the condition can stay in a controlled waiting position; a unit that does can move on its planned route.

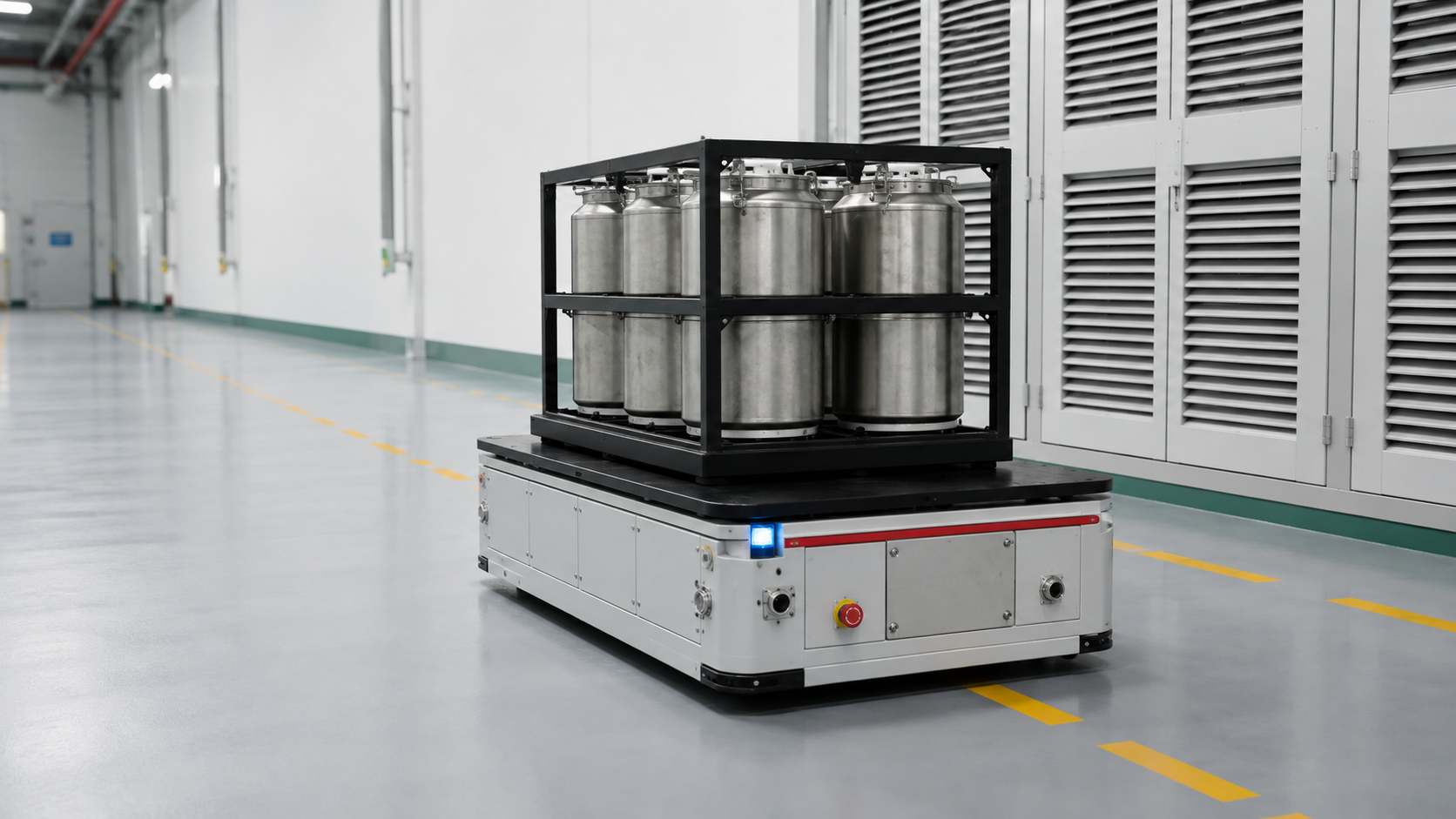

Figure 2: A sealed explosion-proof AGV carrying a dedicated rack through a special industrial corridor

Cross-Area Handoffs Need Receiving Permission

Where a return crosses between operating areas, a route signal or an open door is rarely a sufficient description of the handoff. A more dependable design separates three confirmations: the vehicle is in position, the rack is in the required condition, and the target position is ready to receive it. The first two describe the equipment and load. The third determines whether the next movement can proceed. This does not replace the site's safety management or risk assessment; it helps an automated material-flow system execute the agreed conditions consistently.

For explosion-proof AGV projects, shortcuts from ordinary areas should not be carried into special areas by default. Charging, maintenance, manual intervention, and temporary holding all need deliberate location boundaries. Robot missions can then translate those boundaries into planned stop points and recoverable wait states instead of relying on uncertain field decisions.

Use Recoverable Return Missions Instead of One-Time Commands

An interrupted return does not necessarily indicate a failure. A destination may be unavailable, a confirmation may still be pending, or a required check may be under way. A strong mission design lets the vehicle remain safely at its assigned buffer position, retain the current rack condition, and continue when the receiving condition is satisfied. Operators do not need to reconstruct the entire journey from the beginning.

That is the practical value of an explosion-proof AGV in controlled material flow: it helps organize containers, dedicated racks, buffer positions, and receiving conditions into a traceable movement chain. Chengdu Beaver can plan explosion-proof mobile-robot solutions around site zoning, load-carrier structure, and operating cadence. Equipment selection, area suitability, and operating conditions should always be confirmed through the site's applicable risk assessment and project validation.
