In intralogistics, many route constraints are created not by the robot chassis but by the height that changes with each load. Treating overhead clearance as a mission constraint avoids repeated on-site judgement when an empty vehicle fits but a loaded one does not.

Start with combined height, not vehicle height

Near low beams, shutter doors, sprinkler pipes, cable trays, and local rack cross-members, the relevant dimension is not the height printed on the mobile robot specification. It is the highest point of the robot, forks, pallet, cartons, protective cover, and any required packaging together. A robot may pass an opening by itself while the assigned load cannot. A thicker pallet, a taller carton, or a different stacking pattern can change whether the same route remains usable.

That makes overhead clearance a combined-envelope problem. First define the maximum combined height allowed for a mission. Then map each carrier and load configuration to routes that support it. The conversation moves beyond “this route worked before” to a more useful question: can this robot, with this carrier and this load profile, travel through this route?

Separate route, vehicle, and motion constraints

At route level, the useful datum is the lowest continuous clearance, not an average measurement. Door frames, services, temporary fixtures, and a local protective rail can become the controlling point. In facilities that change regularly, critical segments need an owner, a re-measurement method, and clear triggers for reassessment.

At vehicle level, distinguish the static chassis, sensor housings, forks in travel position, and any raised operating posture. At motion level, ask whether the job requires pickup, placement, lifting, or turning in a constrained space. Collapsing these conditions into one generic height limit can bring a station-level risk into a travel lane where it is harder to recover safely.

This separation also makes engineering changes easier to evaluate. A new carton format may alter the carrier profile without changing the robot. A pipe relocation may reduce route clearance without changing either vehicle or load. A revised handoff station may introduce a lift operation where none existed before. Treating these as separate conditions makes the impact visible before a new mission is released.

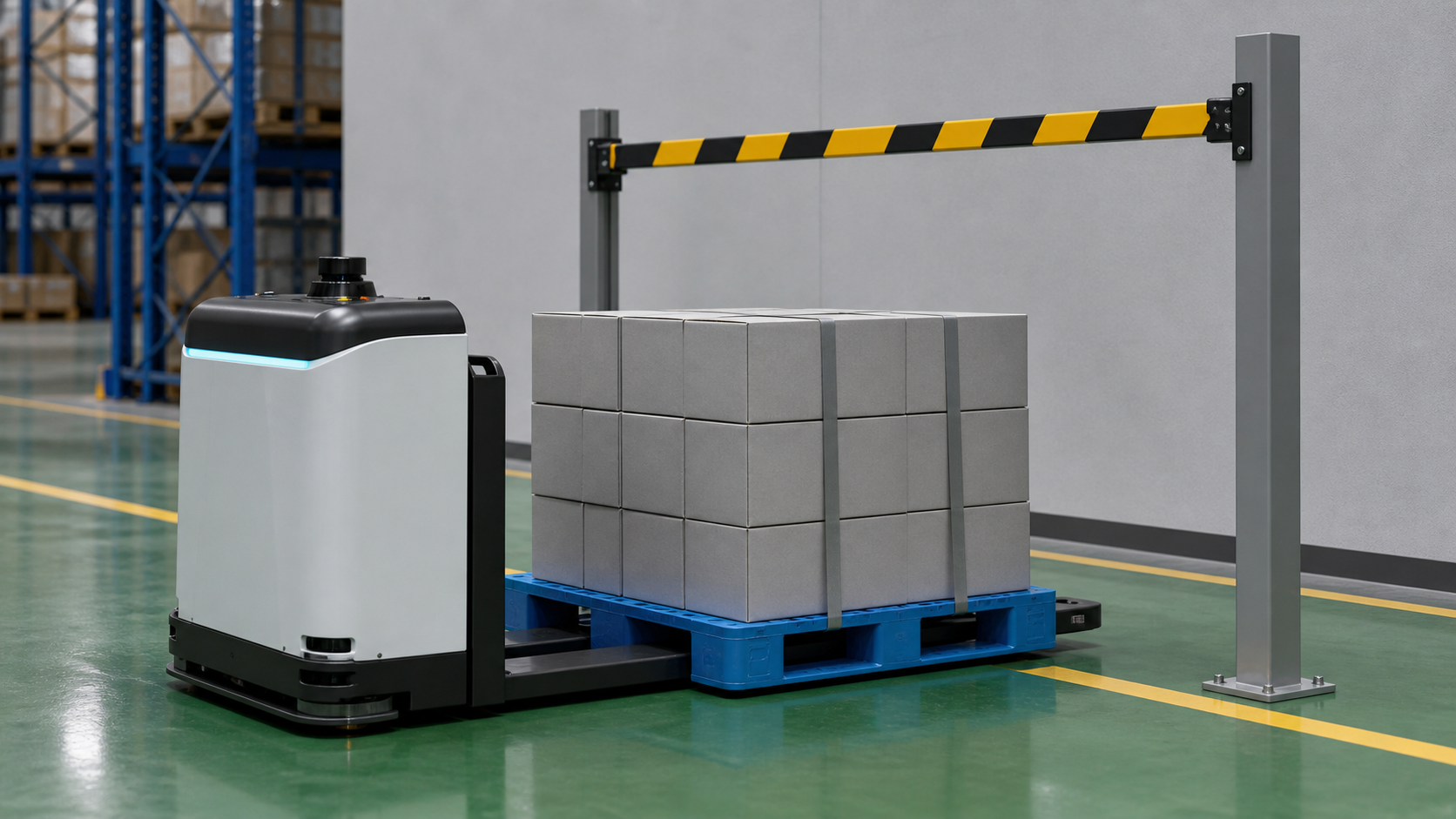

Figure 1: A driverless pallet truck verifies combined height before entering a restricted route

Bring carrier height into the mission

High loads should not depend solely on operator memory. A more repeatable approach is to give pallets, containers, and standard carts identifiable height classes and carry that attribute into mission creation. The fleet manager can then select compatible routes, openings, and stations. A carrier with an unknown height, an unconfirmed cover, or a non-standard stack should be routed to review rather than assumed safe by default.

A clearance-check frame or vision point at the entrance to a restricted segment does not replace every measurement. Its role is to place the final confirmation before the robot commits to the constrained area. This is especially useful for variable cartons, temporary protective packaging, and inbound pallets that have not yet entered the site's normal material-flow standards.

The height class should describe the condition that actually travels. If a cover is removable, if a dunnage pad is sometimes added, or if carton orientation changes, those differences should not disappear inside one generic pallet record. A small number of well-defined classes is usually more useful than a nominal dimension that is technically correct but operationally ambiguous.

Make restricted-zone missions recoverable

When a combined height does not qualify, stopping with an alarm is not enough. Practical recovery options include using a pre-validated alternative route, moving to a low-level staging position, waiting for packaging to be adjusted, or assigning a compatible carrier. These choices need to exist in the layout and operating logic before the aisle is blocked, not after the exception has already interrupted flow.

For a driverless pallet truck, the travel posture matters as well. The load should remain low and stable, and the two forks should stay level inside the pallet openings. Jobs that require meaningful lifting belong at stations with verified space above them. Clearance management is not an extra prohibition; it is a way to place pickup, travel, and placement actions in the locations that support them.

Operators also need a clear way to resolve the exception without informal workarounds. The system can present the failed condition, the location of the check, and the approved next action: remeasure, reconfigure the load, select another route, or request a compatible vehicle. This preserves the task history and helps recurring combinations become candidates for permanent process improvement.

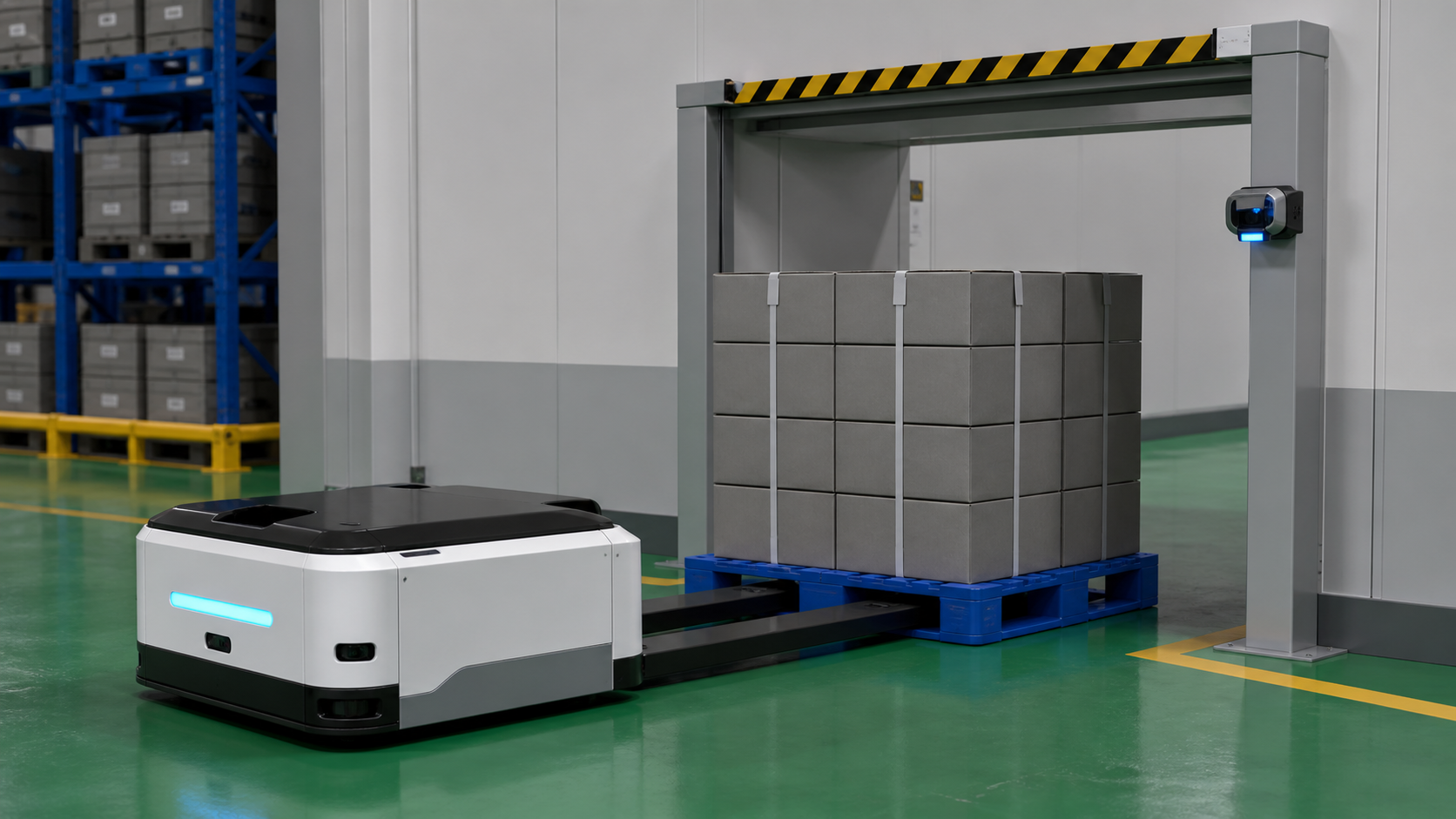

Figure 2: The load stays low and stable while travelling through a validated clearance corridor

Validate the worst credible combination

Acceptance should use the highest configuration that normal operations can plausibly create: the thicker approved pallet, the maximum permitted stack, a common protective cover, packaging straps with realistic allowance, and the vehicle's highest fixed feature. Test entry, straight travel, turns, and station actions rather than checking a single sample carton. Once these cases are translated into mission rules, small changes on the shop floor are less likely to consume clearance margin unnoticed.

Verification should be repeated after relevant layout or packaging changes. A clearance is not a one-time drawing value if a route later gains a protective bollard, a hanging service, a different pallet supplier, or an additional cover. Keeping a compact record of the route segment, approved combined-height class, and applicable motion state gives operations and engineering a common basis for controlled change.

Overhead clearance may look like a simple dimensional check, but it tests the completeness of the mission definition. When height status travels with the carrier, route capability is tied to the combined envelope, and exceptions are contained before a restricted segment, high-load AMR transport becomes a repeatable intralogistics capability rather than a case-by-case judgement.
