Blind-Intersection AMRs: Turn Three Confirmations into a Travel Condition

Blind-Intersection AMRs: Turn Three Confirmations into a Travel Condition

The Risk Is Not Simply Whether the Robot Can See

The difficult intersections in intralogistics are rarely the main aisles. They are the cross-aisles hidden by racks, machine enclosures, work cells, doors, or structural columns. The problem is not merely that a robot may lose sight of an object. Several independent movements can converge on a small shared space in a short interval: an AMR may be turning, another vehicle may approach from the side with a load carrier, a pedestrian may step in from a walkway, or a process door may open. Treating that location as an ordinary map segment turns waiting, yielding, and recovery into improvisation.

A blind intersection should be managed as a controlled resource, not as open floor. Permission to enter should depend on the AMR's own state, a clear entrance zone, the current occupancy of the crossing, and the ability to leave and fully release it. The purpose is not to slow every vehicle. It is to make every reduction in speed, wait, and passage explainable, verifiable, and repeatable.

Break One Passage into Three Confirmations

The first confirmation is approach readiness. Before entering the controlled approach zone, the AMR should account for its load envelope, braking capability, route priority, and whether the intended exit can receive it. A loaded vehicle, a vehicle with a larger turning envelope, and an unloaded straight-through movement should not inherit the same approach rule. The approach zone also needs enough physical distance for deceleration and a stable stop, not merely a coordinate on the map.

The second confirmation is entry permission. An AMR should not cross the stop line simply because its local sensors report no obstacle ahead. At the entry boundary, it needs a short-lived right to use the crossing. That permission must exclude conflicts such as an occupied lateral route, an activated pedestrian protection area, or an equipment door in motion. Convex mirrors, floor markings, and warning beacons make the boundary legible to people on site, but they do not replace a system-level occupancy decision.

The third confirmation is release. Leaving the geometric center of the intersection does not mean the resource is free. A load carrier, a turning rear envelope, or a following movement can still occupy the conflict space. Releasing the next direction too early merely moves the risk to the exit. The passage should close only when the complete combined envelope has crossed the release line and the next route segment can accept the vehicle.

Use Four Verifiable Operating States

A practical blind-intersection model uses four states: approach, wait, occupied, and released. Approach starts deceleration and a request. Wait must correspond to a safe stopping position that does not block a walkway or a primary aisle. Occupied allows only one direction, or a proven compatible group, to enter the conflict area. Released confirms that the vehicle, its load envelope, and the exit buffer have cleared the shared space. Each transition needs an explicit trigger rather than an operator's ad hoc judgment.

This changes how the nearby waiting space is designed. It is not simply unused floor: it must accommodate the worst-case load combination without allowing a stopped vehicle to obstruct another entrance. High-frequency routes also need timeout, permission-expiry, and fallback rules. For example, a granted permission can be cancelled if the vehicle does not enter within a defined interval; if perception degrades after entry, the vehicle must follow a predefined low-speed or safe-stop behavior.

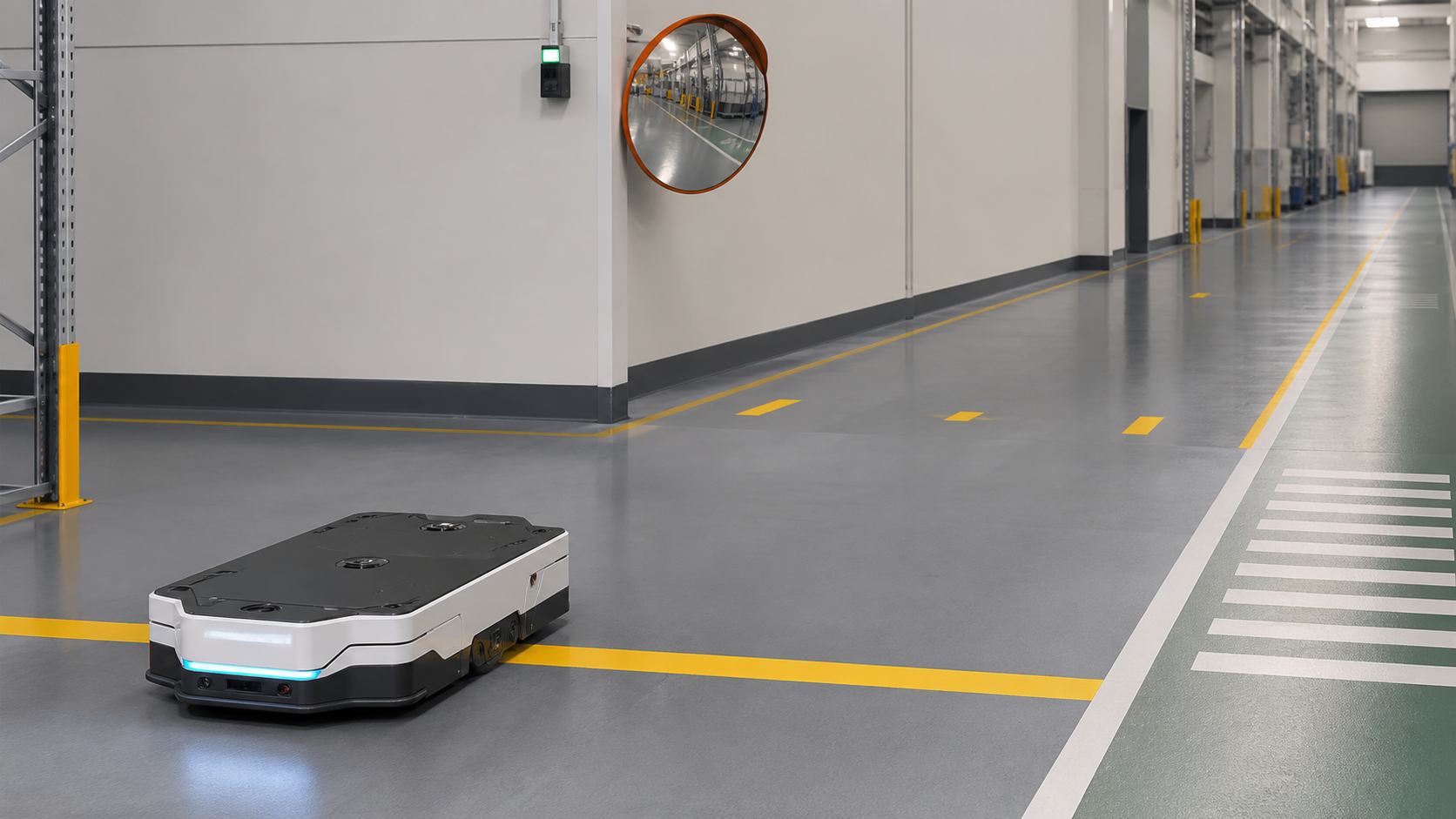

Figure 1: A stop line, convex mirror, and empty crossing establish a visible entry boundary

Make the Physical Layout Support the Decision Logic

An effective intersection control scheme aligns route design, physical safeguards, and operating rules. In the route layer, approach zones, stop lines, crossing space, release lines, and waiting locations are separate control segments. In the physical layer, mirrors, guardrails, pedestrian boundaries, and any necessary warning devices align with those segments. In the operating layer, priorities, compatible movements, and exception responses are clear. When the layers are disconnected, a virtual boundary may exist on the map while people on the floor cannot understand where the boundary is.

At mixed pedestrian-and-vehicle entrances, the goal is not to eliminate people from every nearby area. It is to make the possible vehicle path obvious to people and to make pedestrian presence a higher-priority condition for the vehicle. A walkway should not cut directly across an AMR acceleration zone. If a person enters the protected area, the vehicle should complete a controlled deceleration before the stop line, rather than brake sharply inside the crossing. This protects people while reducing abrupt stops that disrupt load stability and task rhythm.

Verify the Worst-Case Combination, Not Average Speed

Validation should focus on the most demanding combinations: whether loaded and unloaded vehicles need different deceleration parameters; whether priority remains deterministic when two vehicles request entry almost simultaneously; whether waiting locations remain clear when pedestrians approach; and whether the other directions are safely blocked if a vehicle loses communication or perception while occupied. The most useful records are not a single fastest crossing time, but a complete sequence of request, permission, occupancy, release, and exception fallback.

After commissioning, operating data can reveal conditions that are safe but inefficient. Persistent queues may indicate an approach zone that is too short, insufficient exit buffering, a poor priority rule, or uneven task release upstream. Reviewing state events rather than only distance travelled lets a team tune the control logic for both orderly safety margins and predictable throughput.

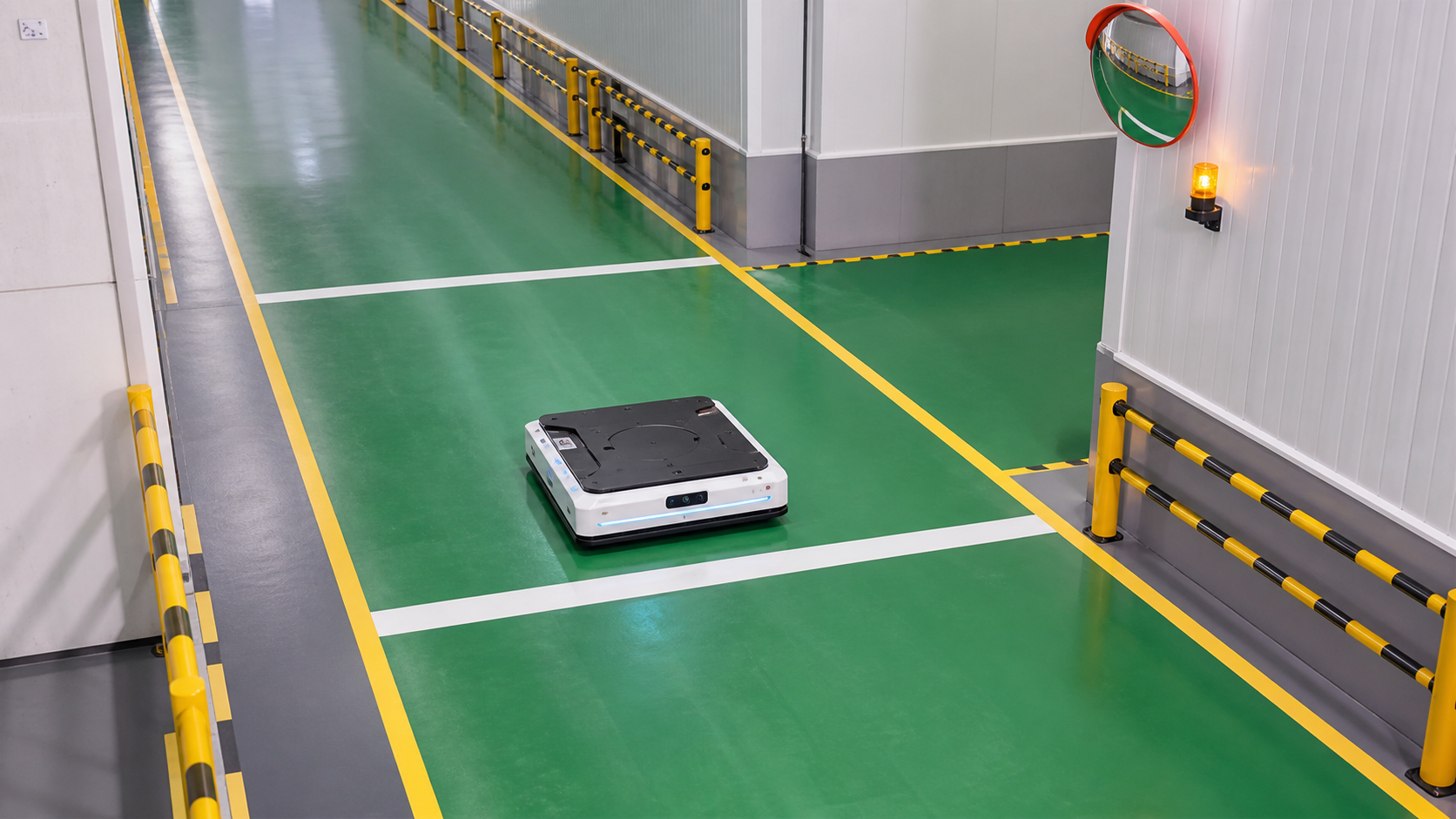

Figure 2: The crossing remains singly occupied until the vehicle has fully cleared its release boundary

Let an AMR Prove It Can Pass Before It Moves

A mature blind-intersection strategy is not a permanent low-speed restriction. It translates an unseen conflict into managed conditions: when to approach, who is waiting, who owns the crossing, and when it is truly released. When those states are reflected in route design, fleet control, and the physical work area, AMRs can maintain a measured safety margin without giving up predictable intralogistics flow.
