Standardizing Load Carriers Before AMR Deployment: Why Totes, Pallets and Carts Shape Automation Performance

Standardizing Load Carriers Before AMR Deployment: Why Totes, Pallets and Carts Shape Automation Performance

In many AMR and AGV projects, early discussions naturally focus on robot specifications: payload, navigation, battery life, traffic control, integration interfaces and fleet management. Once the system enters a real factory or warehouse, however, some of the most persistent issues often come from much simpler objects: pallets, totes, carts and turnover racks.

A pallet may be slightly deformed. A cart wheel may be worn. A rack may have inconsistent bottom clearance. A tote may belong to a different size series than the one assumed by the station design. These details may look secondary, but they define whether a robot can pick up, dock, tow, lift, identify and release a load reliably.

Load Carriers Are Physical Interfaces

From a system perspective, load carriers are not accessories. They are physical interfaces between material, robot, station, conveyor, operator and software system. If the interface is unstable, even a well-designed dispatching system will face recurring exceptions on the shop floor.

Typical problems include insufficient ground clearance for lift modules, inconsistent fork pockets, high center of gravity, worn casters, loose frames, damaged pallets, missing labels and mixed tote sizes. Each issue may appear small, but together they can increase manual intervention and reduce confidence in automated workflows.

What To Audit Before Automation

A practical load carrier audit should start with three categories of parameters. The first is geometry: length, width, height, base clearance, fork pocket location, caster envelope, stacking condition, center of gravity and deformation under load. These parameters determine whether the robot can physically handle the carrier.

The second category is condition consistency. Many factories already have usable carriers, but the same carrier type may differ widely after years of use. Some wheels resist movement, some frames are bent, some labels are damaged and some bottom structures are no longer flat. Automation is sensitive to objects that look identical but behave differently.

The third category is identification. A carrier should have a stable identity in the operational system. Barcode, RFID or visual marking positions should be protected from wear and should correspond to clear records in WMS, MES or related systems. Without reliable identification, it becomes difficult to connect task, carrier, material, station and status.

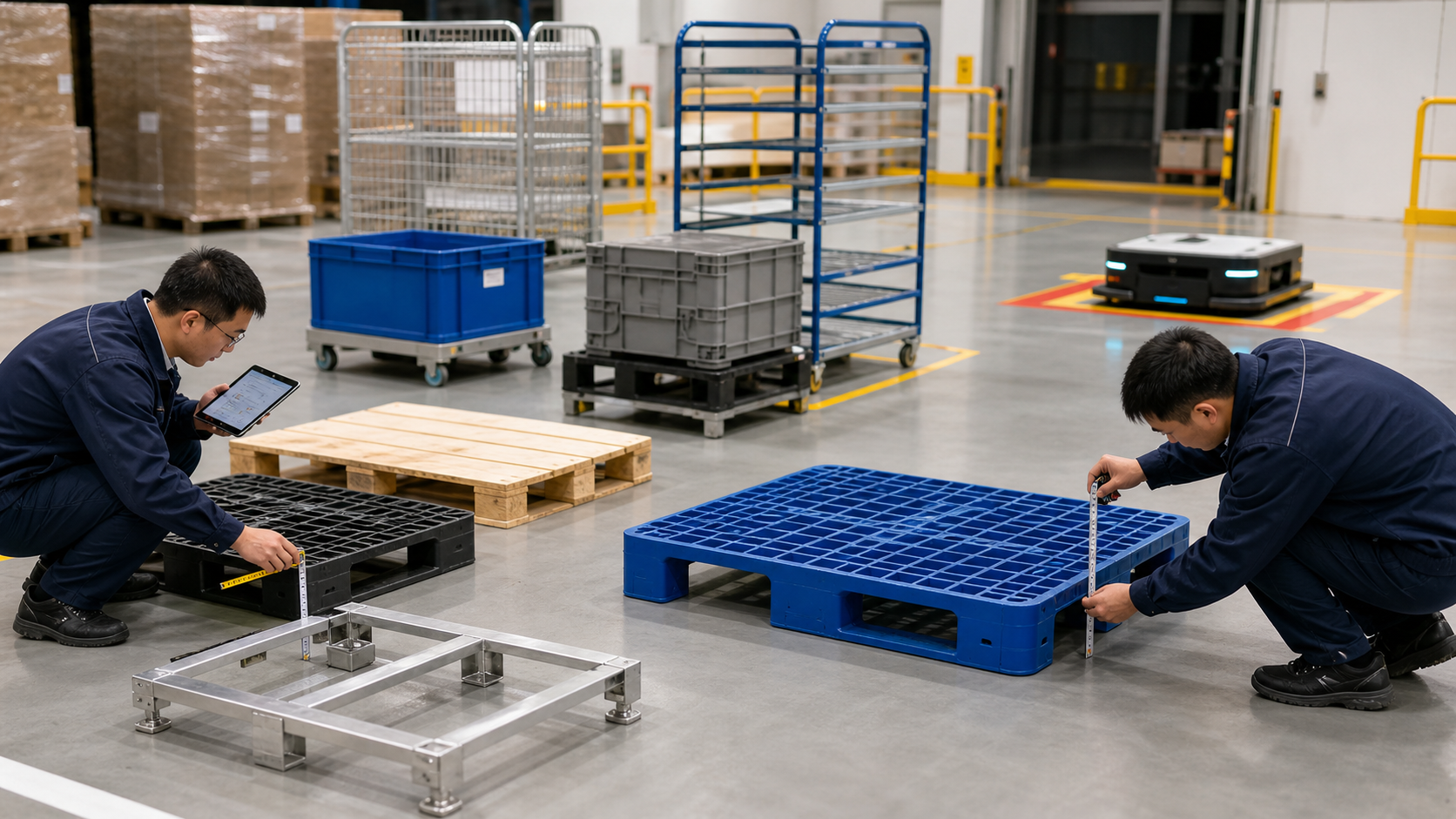

Image: Carrier audits should cover dimensions, condition and identification.

Standardization Does Not Mean One Size Fits All

Load carrier standardization does not require every pallet, tote or cart to become the same size. A more realistic approach is to define standard carrier families for different process roles. Pallets may serve inbound and outbound flows, totes may support small-parts picking, carts may support line-side delivery, and turnover racks may support work-in-process movement.

For each family, the project team should define payload range, dimensional tolerance, docking method, identification rule, maintenance requirement and retirement condition. The goal is not visual uniformity; the goal is predictable handoff behavior.

Station Design Should Follow the Carrier

Once the carrier family is defined, station design becomes more reliable. AMR docking points, guide rails, positioning blocks, safety zones, buffer areas, visual markers and operator access should all be planned around the actual carrier. A station is not simply a parking position. It is a shared handoff interface for robot, carrier, people and equipment.

In a line-side delivery scenario, the same station may support loaded delivery, empty return, temporary storage and manual picking. If the station only considers robot parking, but ignores operator reach, tote height, empty/full state recognition and aisle occupation, the project may technically run but remain inconvenient for daily operation.

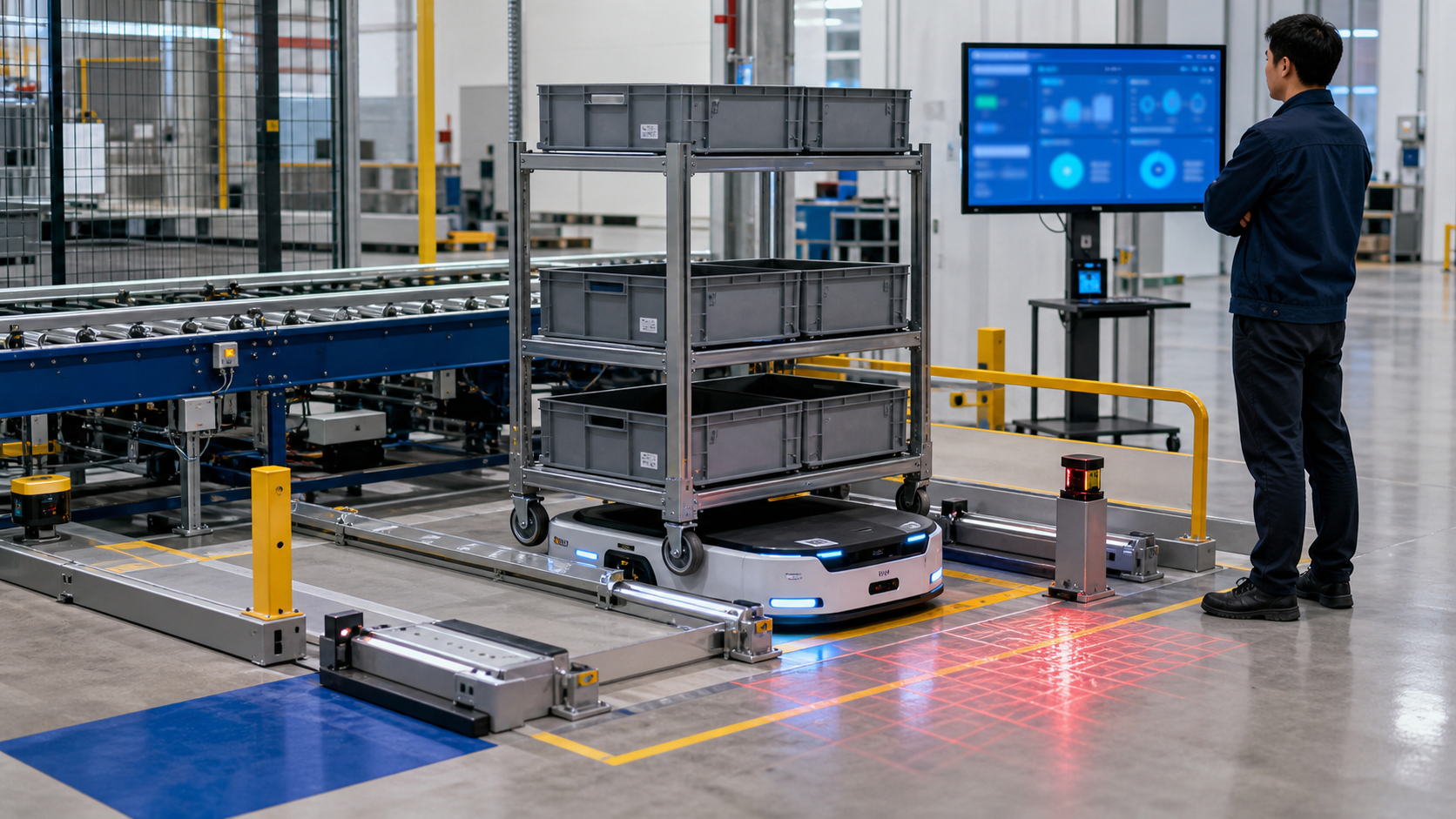

Image: Handoff stations should be designed around the carrier and workflow.

Maintenance Keeps Standards Alive

Carrier standardization should not stop at project acceptance. After weeks or months of operation, casters wear, frames loosen, labels become dirty, pallets crack and totes deform. These changes can gradually affect robot positioning, docking and safety margins.

A better approach is to include load carriers in the maintenance loop. Define inspection items, exception levels and removal rules. Then connect carrier exceptions with robot alarms, station congestion, manual interventions and task logs. This helps the operations team distinguish whether a problem comes from the robot, the station, the process or the carrier itself.

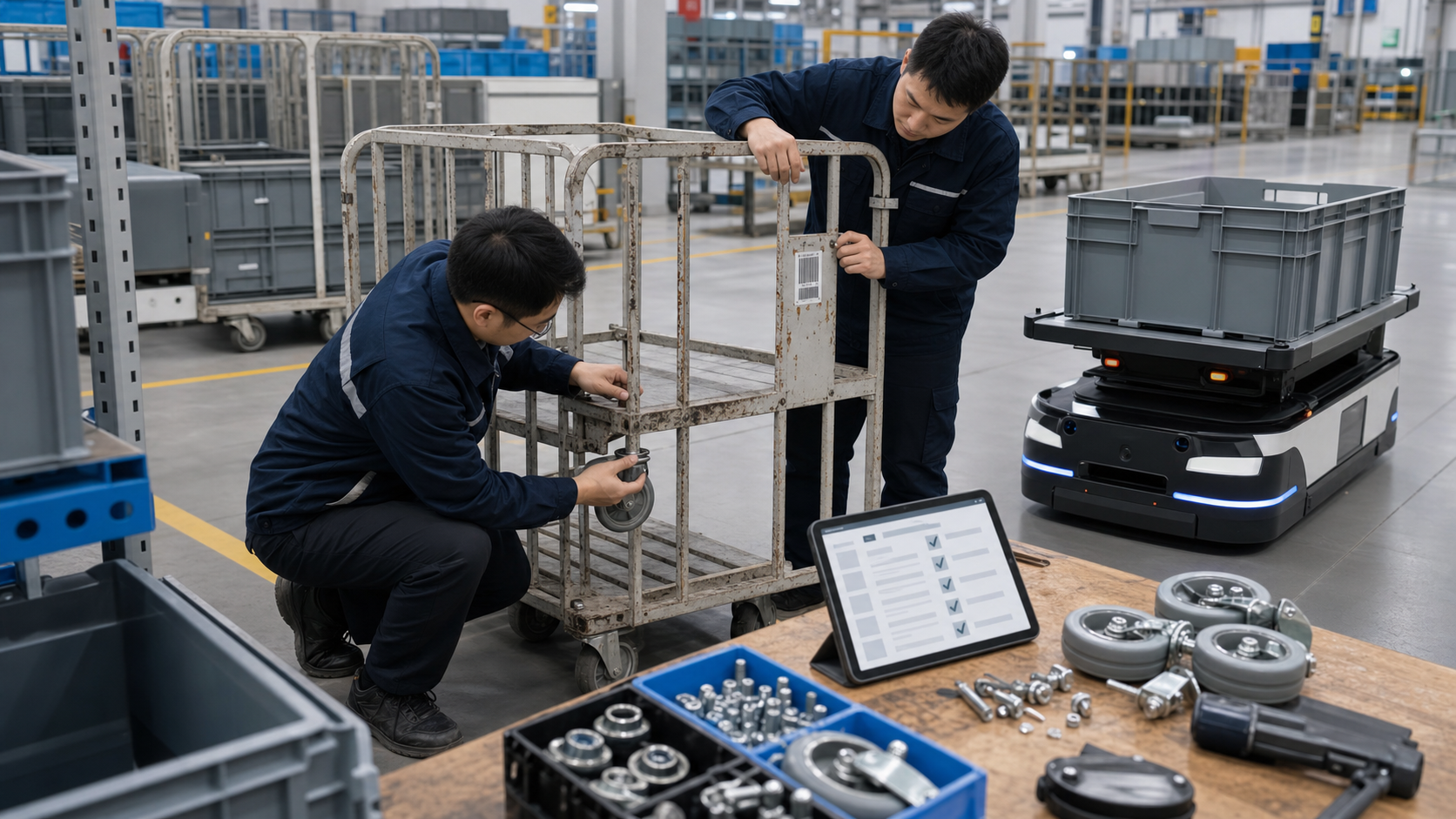

Image: Carrier inspection and maintenance reduce recurring operational exceptions.

Implementation Perspective

For manufacturers preparing an AMR or AGV deployment, the first step is to map the current carrier population. Identify the main pallets, totes, carts and racks, list their quantities and conditions, and prioritize the high-frequency flows. It is rarely necessary to replace every carrier at once. The more practical route is to stabilize the carriers on the core automated routes first.

Chengdu Heli Intelligent can approach mobile robot projects by evaluating the relationship between robot type, carrier structure, station handoff and system integration. For factories with many non-standard carriers, aligning the carrier, station and dispatching rule in one design process is often more valuable than optimizing robot parameters alone.

Conclusion

The upper limit of a mobile robot project is not determined only by the robot. Pallets, totes, carts and racks shape how materials are handled, identified, handed over and maintained. Standardizing load carriers before deployment is not an extra layer of complexity. It is a practical way to build the physical foundation that reliable automation requires.
