AMRs on Indoor Ramps: Engineer Travel Conditions, Not Just Lower Speeds

AMRs on Indoor Ramps: Engineer Travel Conditions, Not Just Lower Speeds

A ramp is not an ordinary route segment

Indoor ramps are often drawn as one line in a material-flow map: an AMR leaves a flat storage area, travels up or down a ramp, and arrives at another station. Once a latent-lifting AMR carries a rack, fixture, or tote cart across that slope, however, gravity, traction, caster behavior, and stopping distance all change together. The ramp becomes a task zone with defined entry, travel, and exit conditions, not simply a short stretch of roadway.

ISO 3691-4 identifies the condition of the operating zone as a significant factor in the safe operation of driverless industrial trucks. The practical question is therefore not simply whether a robot can climb a ramp. It is whether, with a particular grade, floor condition, load envelope, and carrier state, the robot can start, hold, decelerate, stop, and return to level travel predictably.

Separate the vehicle, the carrier, and the floor

A useful ramp review begins by separating an apparently simple payload rating into three objects. On the vehicle side, verify drive and braking capability, wheel contact, lifting condition, and approved grade. On the carrier side, verify center of gravity, caster orientation, load restraint, lifting interface, and structural stiffness. On the floor side, verify grade continuity, crest and toe transitions, surface traction, dust or moisture, edge protection, and sight lines. A change in any one of these can change the real travel condition.

This is especially important when a latent-lifting AMR moves a wheeled rack. After lifting, the combination is not just the vehicle plus the rack. The relationship between the rack's support point and the vehicle center, full caster clearance, tote restraint, and confirmation that the lift has completed before ramp entry all affect stability on the slope. Converting those checks into carrier admission rules is more robust than using a single generic ramp speed.

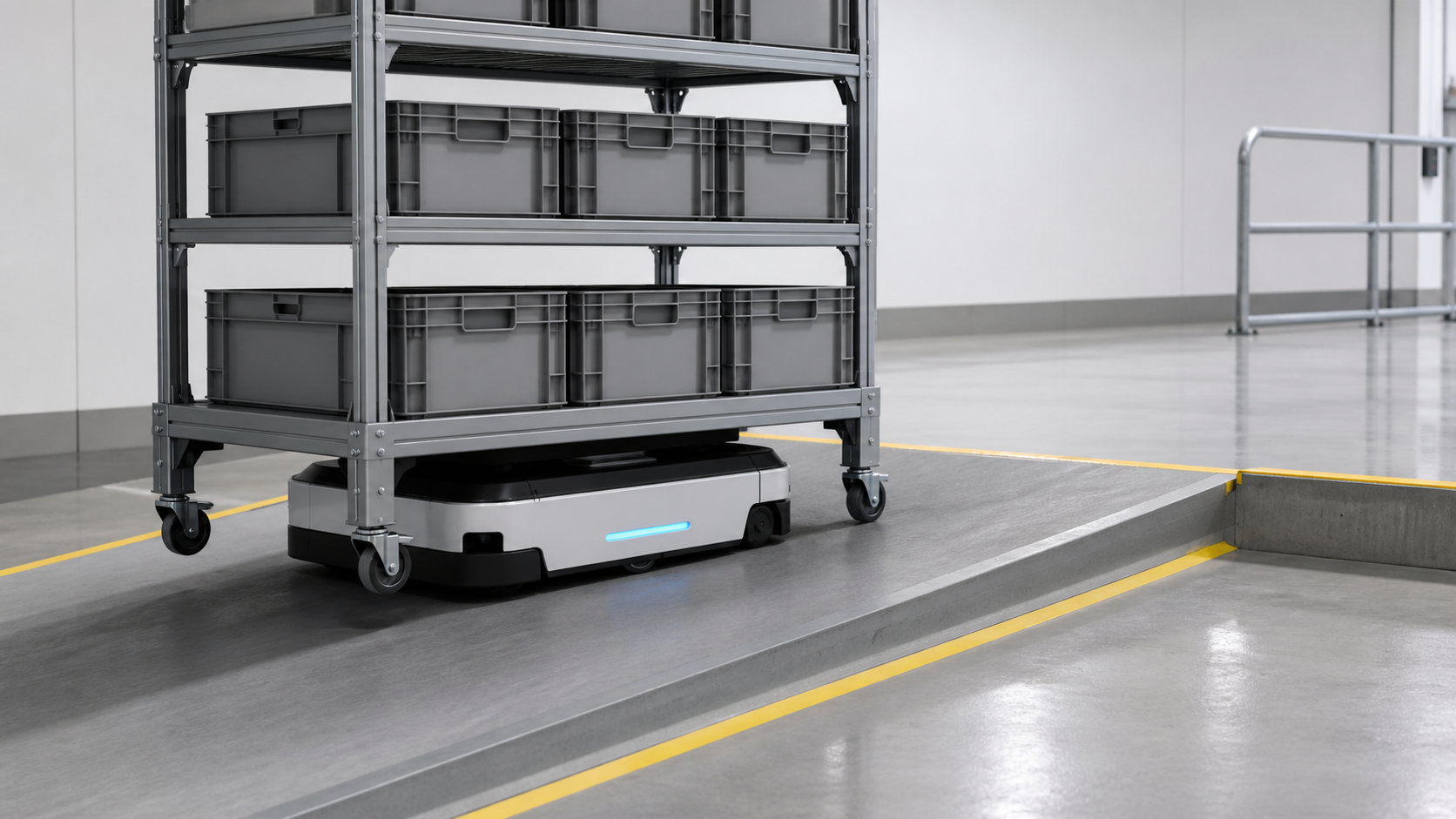

Figure 1: A latent-lifting AMR stably supports a wheeled material rack on an indoor ramp

Control begins before the slope and continues beyond it

The connecting areas around a ramp are often the real weak points. A level approach should provide space for deceleration and load-state confirmation before entry. The ramp itself should use one continuous travel strategy, without opportunistic turns, passing, or repeated abrupt stops. A level exit zone should allow the loaded combination to settle back into normal travel before it is asked to dock, merge, or accelerate.

For that reason, a ramp should not be represented only by a geofence. A more useful model defines a connected approach zone, ramp zone, and exit zone, each with its own speed limit, occupancy rule, exception response, and release condition. If the exit is occupied, the robot waits before the slope instead of stopping there under load. If lift confirmation is missing or the carrier state is abnormal, the mission is stopped before the combination enters the grade.

Use mission conditions rather than a universal speed

The same ramp is not equivalent for an empty chassis, a light rack, and a high-center-of-gravity fixture. Travel parameters should at least be bound to load state: a setting acceptable when empty may not be acceptable when climbing loaded, and a steady uphill speed may not suit downhill approach to a transfer station. Where ramps are crossed frequently, wheel condition, floor cleanliness, caster wear, and battery state also belong in routine checks rather than post-incident review alone.

Stopping distance is not a single robot specification either. It is affected by direction of grade, load, traction, wheel condition, and control behavior. Commissioning is better organized around foreseeable worst-case combinations: loaded uphill starts, loaded downhill deceleration, a stop after crest exit, degraded traction response, and the ability to place the loaded combination in a planned safe position when localization or communication becomes abnormal.

A practical control matrix can make those combinations operational. It should connect each approved carrier type and load class with a route direction, an allowed state of charge, a release condition for the approach zone, and a defined response if a required condition is lost. The aim is not to create a complicated rulebook for every journey. It is to prevent an AMR from entering the slope with a combination that has not been assessed for that mission.

The same matrix should distinguish controlled recovery from normal throughput. If traction conditions are uncertain after cleaning, a planned reduced-speed verification run can be more useful than silently applying a permanent speed reduction to every mission. If repeated wheel slip, lift-state mismatch, or exit-zone blocking is observed, the recorded event should point maintenance or operations teams toward a specific carrier, surface segment, or release rule rather than treating the ramp as a black box.

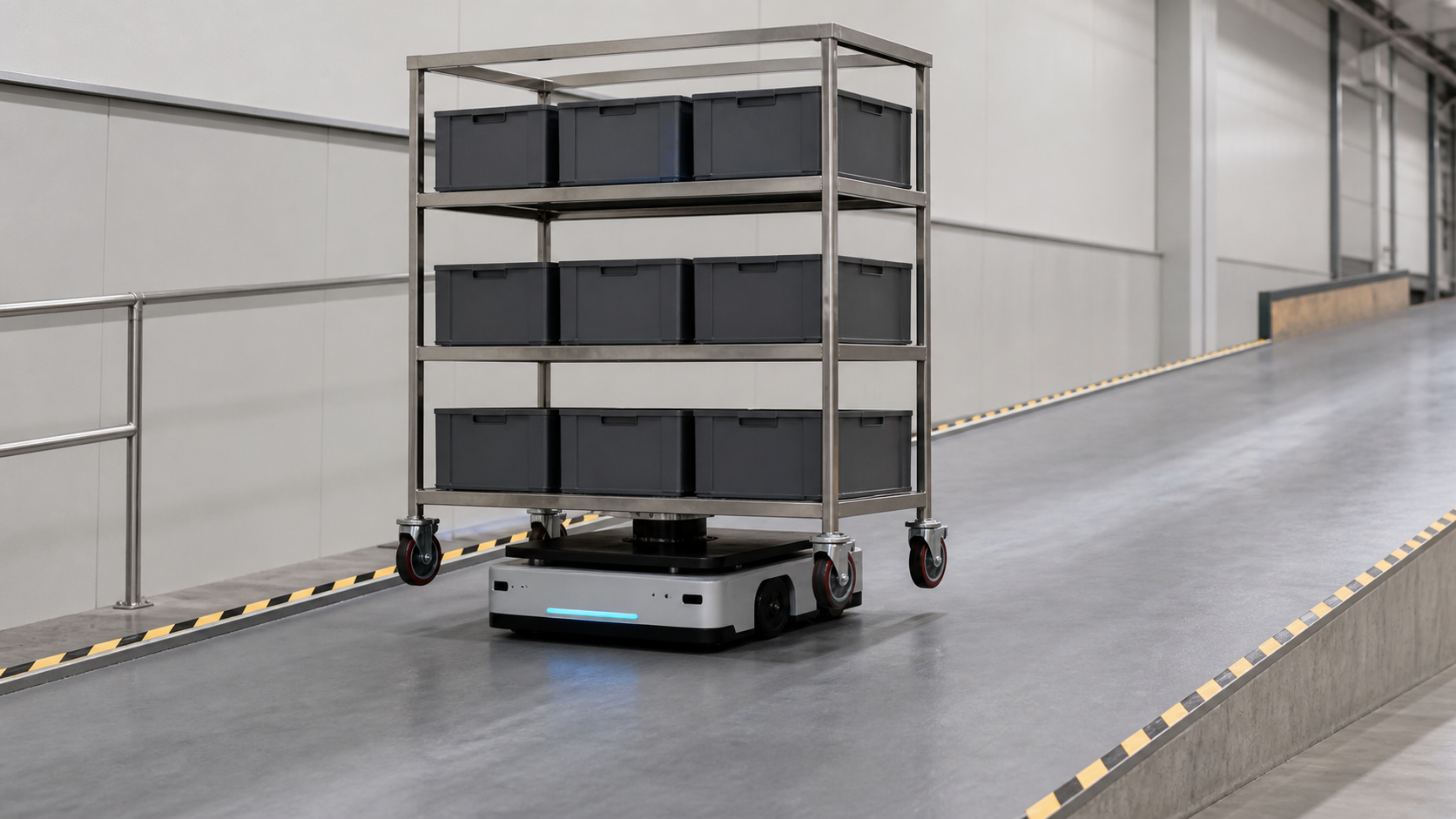

Figure 2: The crest transition should be verified with grade, stopping, and carrier conditions

Make the ramp a manageable site object

A mature ramp solution does not ask the chassis to absorb all the risk. It provides clear physical boundaries, maintainable flooring, reviewable carrier states, and designated waiting positions in the plant. It also retains carrier admission, route occupancy, and exception-recovery rules in the control layer, then verifies them with representative loads and floor conditions during delivery.

This approach does more than reduce the chance of a slip or a harsh stop. It gives different shifts, carriers, and load types a consistent operating boundary on the same ramp. It also creates traceable inputs for later floor maintenance, carrier modification, and route changes. In practice, AMR stability is often built in these modest but consequential transition zones.
