Shaft assemblies, wheelsets, rollers, and axle-mounted fixtures are often treated as heavy loads that simply need more payload capacity. On an AMR, however, weight is only part of the engineering problem. A cylindrical load can roll, move axially, or pass through a brief and poorly controlled load transfer at a station. If those relationships are not defined, an AMR may arrive reliably yet still fail to produce a repeatable transport process.

The starting point for rotational heavy-load automation is therefore not only vehicle capacity. It is a defined answer to a more useful question: under what conditions is this load allowed to move? Once support locations, restraint directions, locking conditions, and handoff order form a verifiable load state, route rules, speed limits, and dispatch decisions have a dependable basis.

Rotational-load risk is not only a payload issue

Unlike a flat pallet, a wheelset or shaft assembly usually contacts its carrier along curved surfaces. Small floor joints, acceleration and deceleration, lateral force in a turn, or a minor station offset can create rotation, sliding, or axial drift. This is not necessarily an overload condition. It is a sign that one or more degrees of freedom remain uncontrolled.

Placing an axle on a bare deck or temporary blocks often shifts the real control work to people: add a stop, watch the load, or correct its position at the next station. Those workarounds are difficult to encode in task logic and difficult to repeat after a shift change, a batch change, or an interrupted task. A stronger design maps each possible movement to a physical constraint: radial support carries the load, axial references prevent drift, and a transport lock confirms that the load may travel.

Make support and restraint reusable load references

For wheelsets and shaft-based loads, V-cradles, roller saddles, or surfaces matched to the axle journal should first establish where load is carried. Support points should avoid sensitive functional surfaces and keep the combined center of gravity within the effective support envelope of the vehicle and fixture. Their height, spacing, and contact material should be repeatable, so the same load does not sit in a different posture every time.

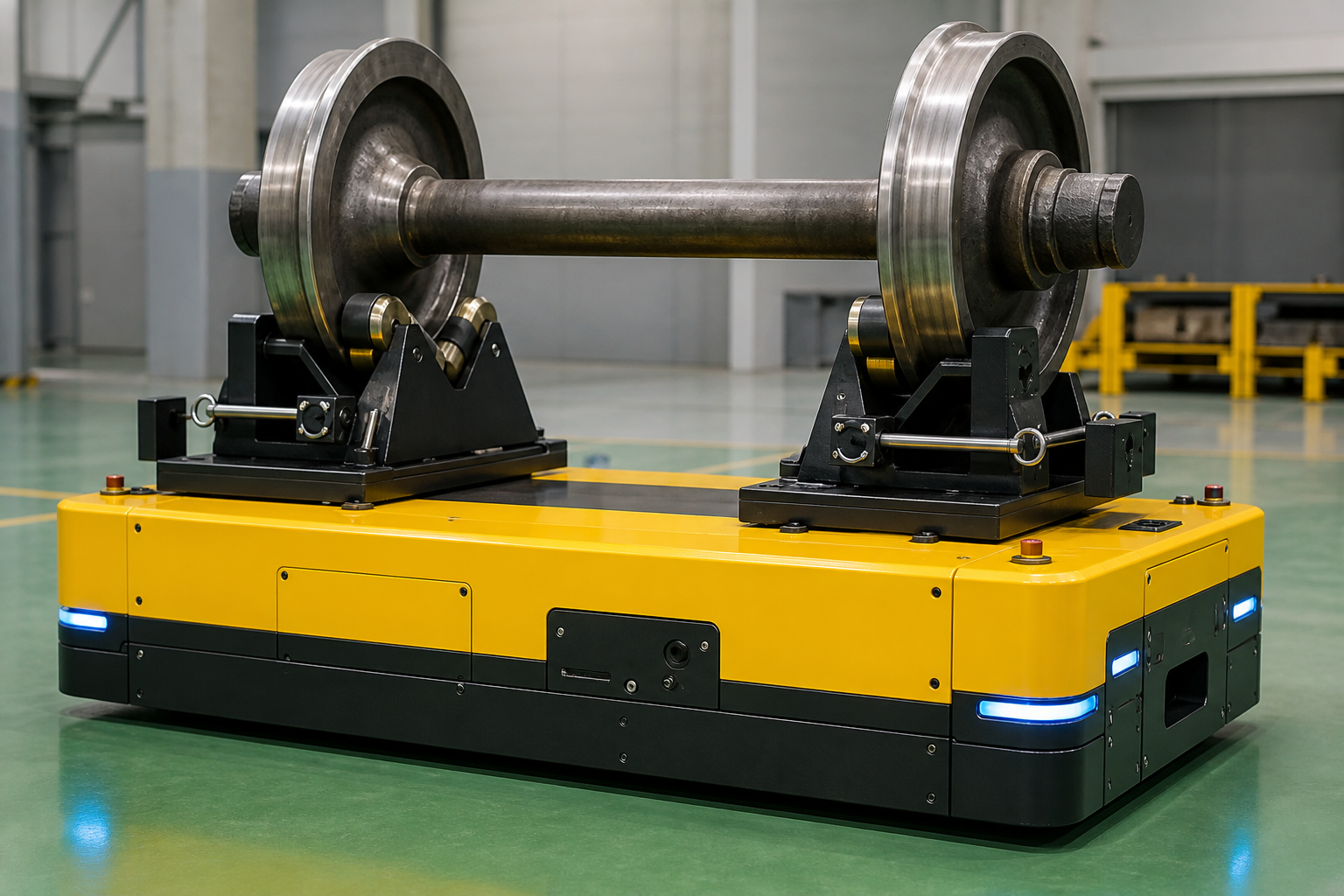

Figure 1: V-cradles, axial restraint, and locking create a transport-approved load state

Support is not the same as restraint. Cylindrical loads also need an axial reference: for example, a locating face on one side with a repeatable stop on the other, or a suitable clamping arrangement. The purpose is not mechanism for its own sake. It is to make correct seating observable. Transport should be released only when support is established, the stops are engaged, and the lock is confirmed closed.

Treat the lock state as a prerequisite for dispatch

In many mobile-robot projects, vehicle arrival is a prominent task milestone. For a rotational load, arrival only says that the vehicle is near a destination; it does not prove that the load can travel safely. A more useful status model separates questions: Is the load fully seated on the support? Is axial clearance within the permitted condition? Is the locking mechanism engaged? Is the fixture in a transport-approved posture?

These conditions do not require elaborate algorithms. Proximity switches, travel checks, position sensors, and validated mechanical stops can provide a practical interlock layer. They turn a visual impression - it looks stable - into a recorded decision - it is permitted to depart. After an interruption, manual intervention, or canceled task, the system can verify the load state before continuing, reversing, or routing the item to a controlled exception process.

Station handoffs must align two load-bearing systems

The most sensitive moment is often the handoff. A V-cradle on the AMR and a receiving cradle at a fixed station may look compatible without actually being designed as one interface. Their height, centerline, stop position, and release order need to be aligned. If the vehicle releases before the station carries the load, or if the station removes restraint too early, the load can lose control during the force transfer.

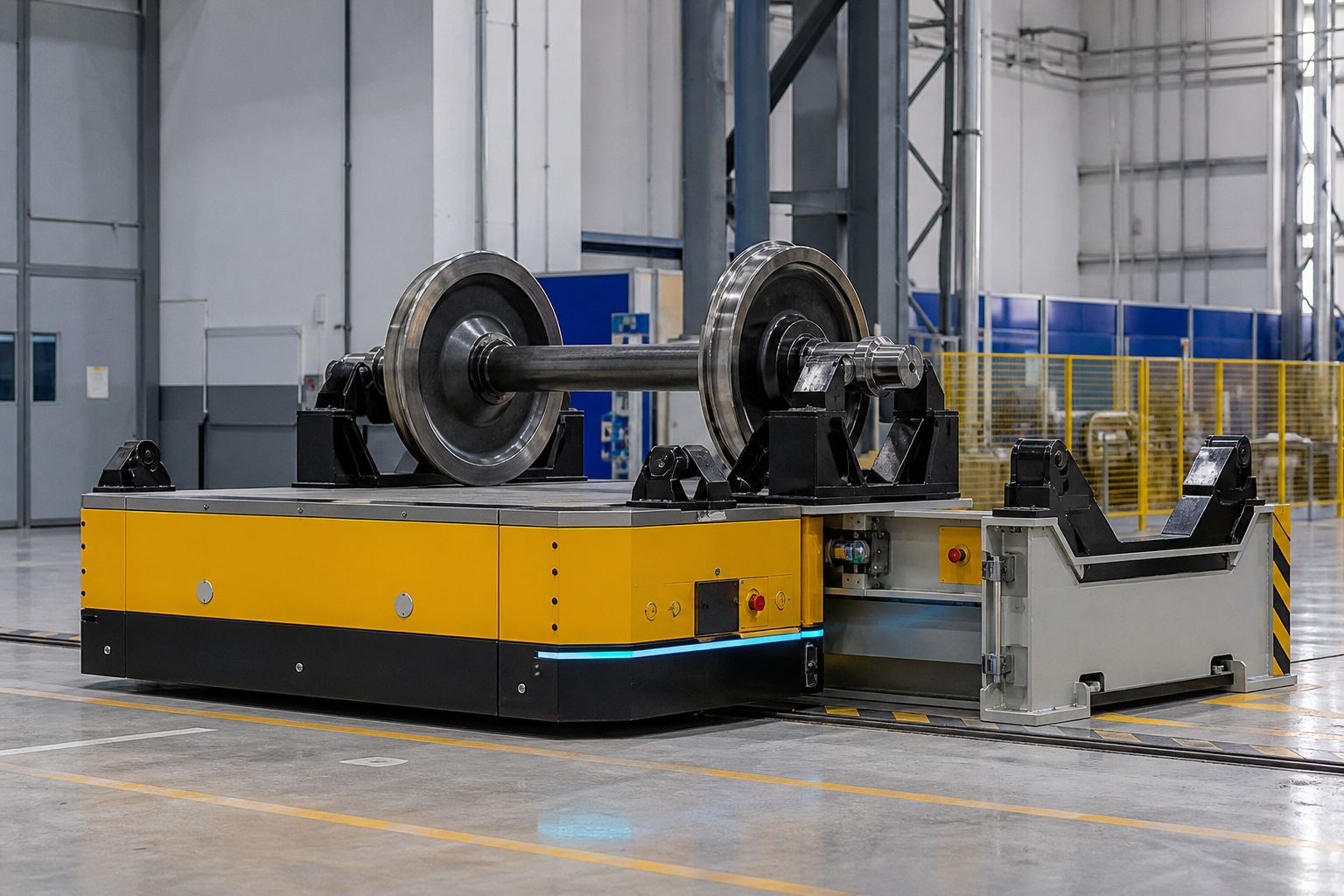

Figure 2: The AMR and receiving station align support, centerline, and lock-release sequence

A workable sequence is simple: the AMR slows in the approach zone and positions itself; both fixtures confirm centerline and support height; the receiving side establishes support and restraint; the vehicle releases its transport lock only after receiving is confirmed; and then it withdraws. The goal is not to add unnecessary steps. It is to give every transfer of load force a clear prerequisite and a recoverable state.

Keep reliability visible in daily operation

A well-designed fixture does not eliminate field variation. Roller wear, incomplete lock-pin return, loose fasteners, or a temporarily occupied receiving station can all change the intended load state. Daily operation should therefore include short checks of contact surfaces, stop positions, and interlock signals, together with a record of conditions that prevented release or required a controlled rollback.

With that information, a team sees more than an AMR that stopped. It can distinguish a load that was not seated, a lock that was not closed, a station that was not ready, and a route-side exception. For wheelsets and shaft-based heavy loads, the value of mobile automation is not merely replacing one segment of manual movement. It is making each transport cycle a controlled industrial process with a clear load-bearing relationship and a reviewable state.
