Mobile Inspection Robots: Make Equipment Checks Repeatable and Reviewable

Mobile Inspection Robots: Make Equipment Checks Repeatable and Reviewable

When a mobile inspection robot enters an equipment area, two changes are usually obvious first: people no longer need to walk every repetitive or constrained route, and the site begins collecting more images and readings. Yet if position, viewing angle, and equipment context vary from one pass to the next, the result is often only a growing archive of hard-to-compare snapshots. Useful inspection is not about seeing more places. It is about making critical points consistently observable, reviewable, and traceable across shifts and dates.

For manufacturers, the mobile base, vision module, and robotic arm are execution tools. Inspection quality depends on whether the robot can stop at the right location, observe the target from a sensible angle, and return to the same point with enough context when a change is found. Once these conditions are designed deliberately, a mobile inspection robot becomes more than a camera on wheels; it becomes a dependable node in the equipment-management process.

Inspection quality starts with observation conditions

Pressure gauges, valve positions, indicator lamps, instrument windows, pipe joints, and equipment surfaces may all appear easy to photograph. In practice, each requires a particular observation condition. A dial needs a stable frontal view; a valve position may require both the actuator and its indication to be visible; an exterior check needs enough surrounding context to be meaningful. A mission defined only as reaching the vicinity of a machine often produces glare, occlusion, inconsistent angles, or missing context. Later, it becomes difficult to tell whether a difference came from the asset or from the way it was captured.

The better approach is to work backwards from the target: define what to inspect, the approach direction, distance, height, lighting requirements, and whether the robot must be stationary. For a mobile manipulator, travel and capture poses should be separated. The arm stays folded while the robot moves, then operates within a defined envelope after arrival. Reachability, visibility, and stability all become part of the inspection-point definition.

A fixed observation point is more than a coordinate

A reviewable observation point includes an arrival reference, orientation, settling condition, and capture envelope. A floor marker, geometry on the equipment side, or a clearance line can help the mobile base hold a consistent relationship to the asset. Coordinates alone are not enough, however. The design should also confirm that all wheels are grounded, the chassis remains within the permitted area, the arm does not intrude into protected space, and temporary objects, doors, or normal personnel traffic do not obstruct the view.

At this point, the robot captures more than a reading. It captures on-site evidence with positional context: the target, adjacent components, viewing angle, and sequence in time can all be revisited. For critical assets that still require human confirmation, that consistency is often more valuable than a single sharp image. It allows a team to compare what is seen today with what was seen from the same stance before.

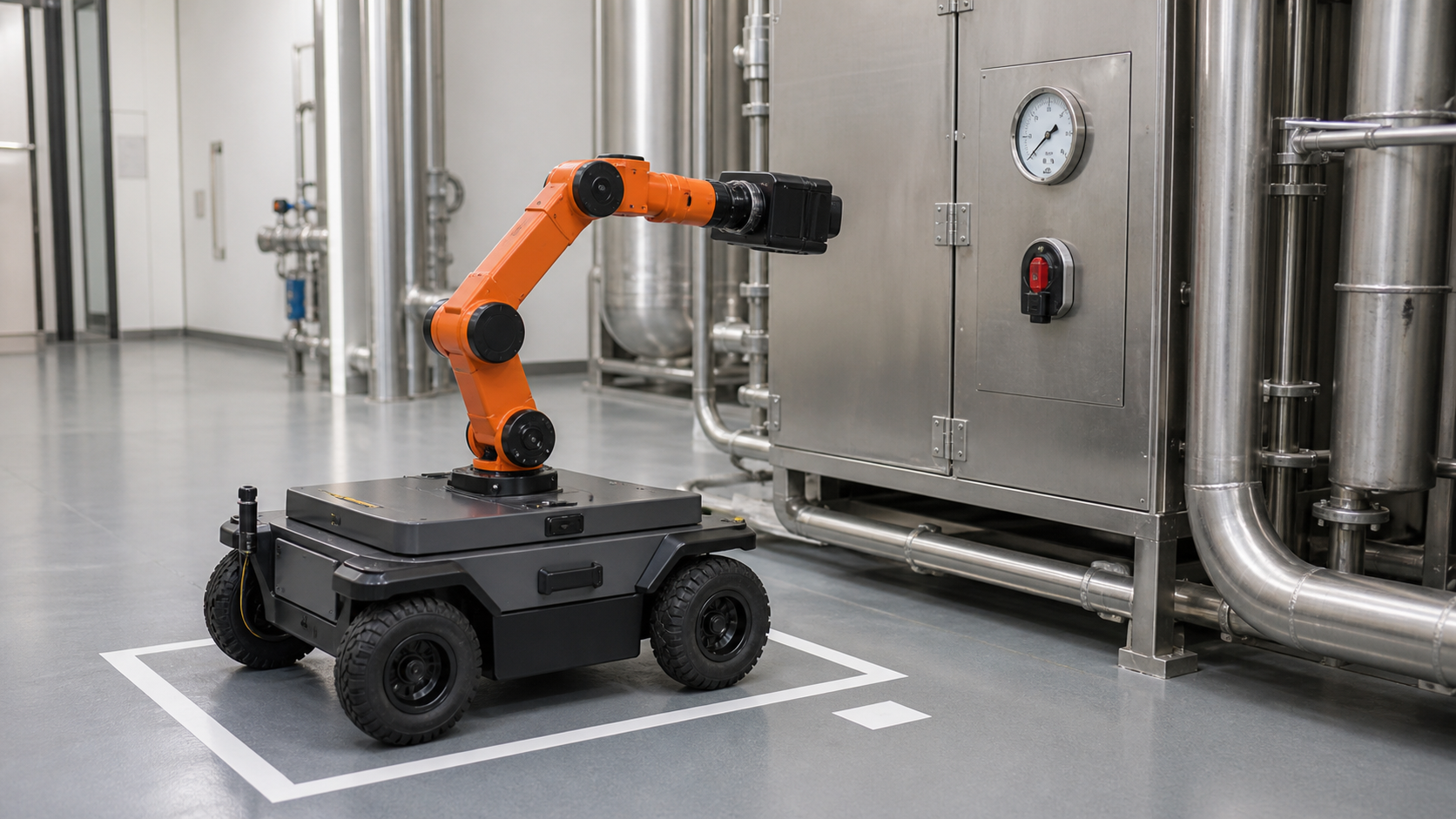

Figure 1: A fixed observation stance supports stable equipment-state capture

Separate anomaly detection from reliable on-site verification

Automated recognition is well suited to raising a prompt; it should not replace a site conclusion. Changes in lighting, surface residue, temporary occlusion, or ordinary process transitions can all make one capture appear different. A more dependable workflow separates first-pass detection, repeat capture at the same point, a closer follow-up view when appropriate, and human disposition. The first pass identifies a deviation. The verification pass checks whether it persists under the same observation conditions. The work order then receives information already linked to time, point, and visual context.

This layered approach is not intended to make the robot diagnose every failure. Its purpose is to keep ambiguous information from flowing into the next step. If the difference disappears on repeat capture, the team can investigate capture conditions or a short-lived state. If it persists, equipment specialists can interpret it with process context. The robot preserves a comparable observation process; engineering teams retain responsibility for explaining asset condition.

Route design should serve the inspection point, not only travel

A route should not be accepted merely because the robot can complete a loop. A temporary cart at the approach zone, insufficient clearance for safe arm movement after a turn, an observation stance that blocks people or logistics traffic, or a pipe that obscures a gauge can all prevent repeatable results. In equipment areas that change regularly, observation points should be treated as maintainable assets. When piping, guards, fixtures, or lighting changes, the arrival pose and image baseline for the affected point should be reviewed as well.

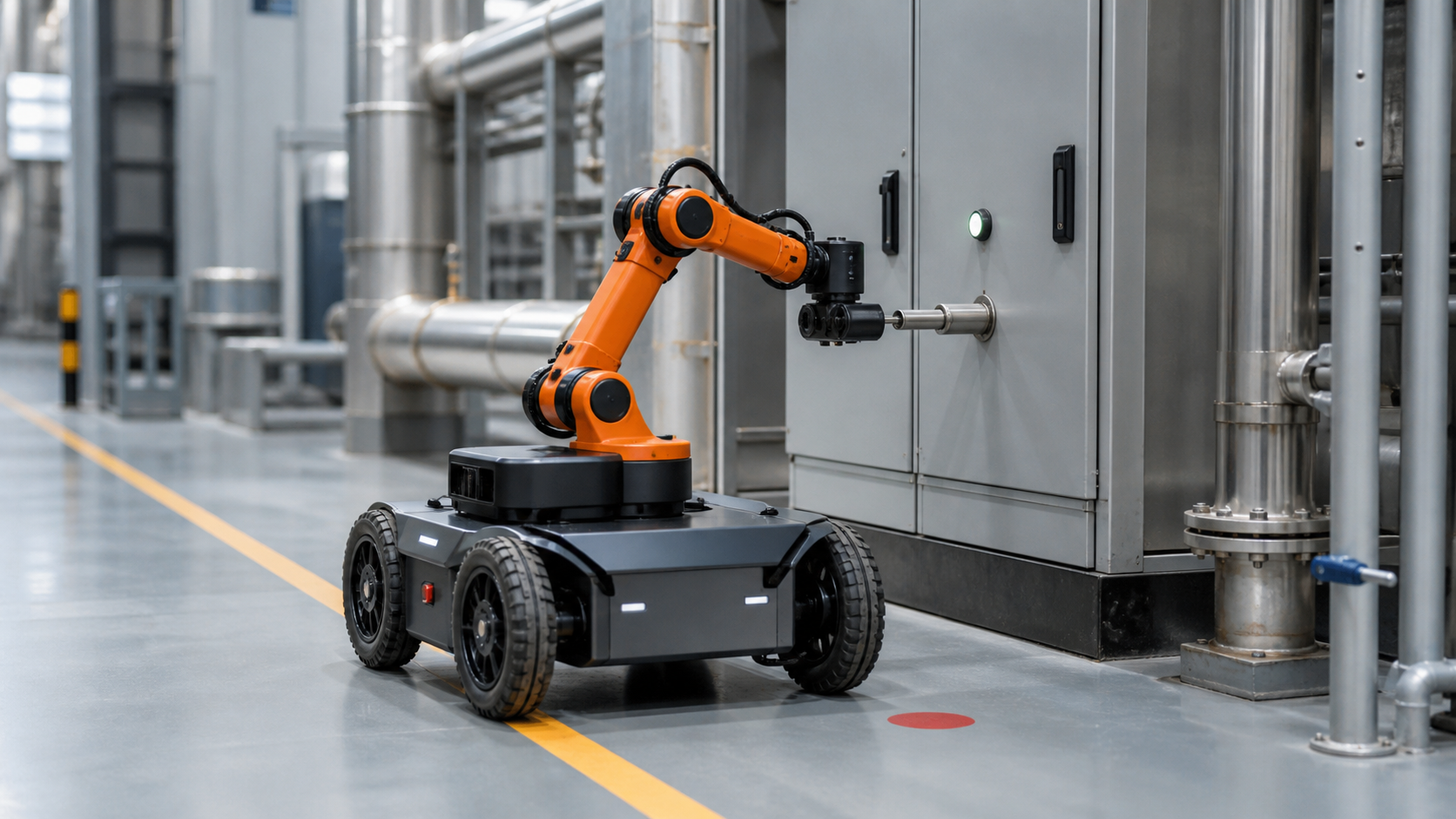

Figure 2: A verification view preserves both the target and safe access space

Start with a few high-value points and build an executable standard

Early deployments do not need to cover an entire facility. A more productive path is to select one route with a clear equipment state and a mature human-review chain, then choose a limited number of high-value points. For each one, define the target, arrival conditions, capture pose, verification rule, and ownership after an exception. After a period of operation, adjust the points using repeat-arrival performance, false-prompt patterns, and work-order feedback instead of expanding coverage solely by distance or image count.

When equipment points are designed as reviewable objects, a mobile inspection robot does more than reduce walking. It turns repetitive observation into a controlled on-site action with conditions, evidence, and a verification path. That creates a clearer information channel among maintenance, process stability, and intralogistics operations.
