Long loads are more than longer transport jobs

Aluminum extrusions, pipes, guide rails, cable trays, and elongated fixtures are often treated as ordinary loads with one special attribute: length. Once they enter an intralogistics flow, however, length changes far more than the load record. An AMR that can pass through an aisle, a corner, or a station edge while empty may no longer have the same operating envelope when a long profile is on board. The first exposure is often not the robot body. It is the load end moving through space that was never included in the original route assumptions.

That is why a long load should not be assigned only by weight or quantity. A stronger approach is to define how it is supported, how its envelope changes in motion, and where it is permitted to approach. The AMR is then transporting a repeatable load-and-carrier assembly with known constraints, not an abstract piece of long material.

Make multi-point support a defined reference

The first engineering question is where the load is supported, not how much open deck area remains. A profile or tube supported only at two improvised end blocks may deflect as the robot accelerates, decelerates, or crosses small floor transitions. If operators choose support locations differently from one move to the next, the center of mass, restraint loading, and acceptable motion parameters also change.

A transport-ready carrier needs repeatable support references. The number and spacing of cradles, the contact geometry, and the anti-slip material should fit the profile or bundle. For bundled loads, straps and guides should prevent lateral migration; they should not be the only elements carrying vertical load. The deck, carrier, and cradles take the load weight. Restraints and guides preserve the load attitude. Keeping those functions separate makes the physical relationship easier to inspect and maintain.

Once the support relationship is fixed, task parameters have a defensible basis. Different lengths, cross-sections, or loading patterns can be linked to specific routes, turn radii, speed limits, and docking rules. A pre-dispatch check can then confirm that cradles are present, restraints are correctly placed, and the load ends remain inside the expected maximum envelope.

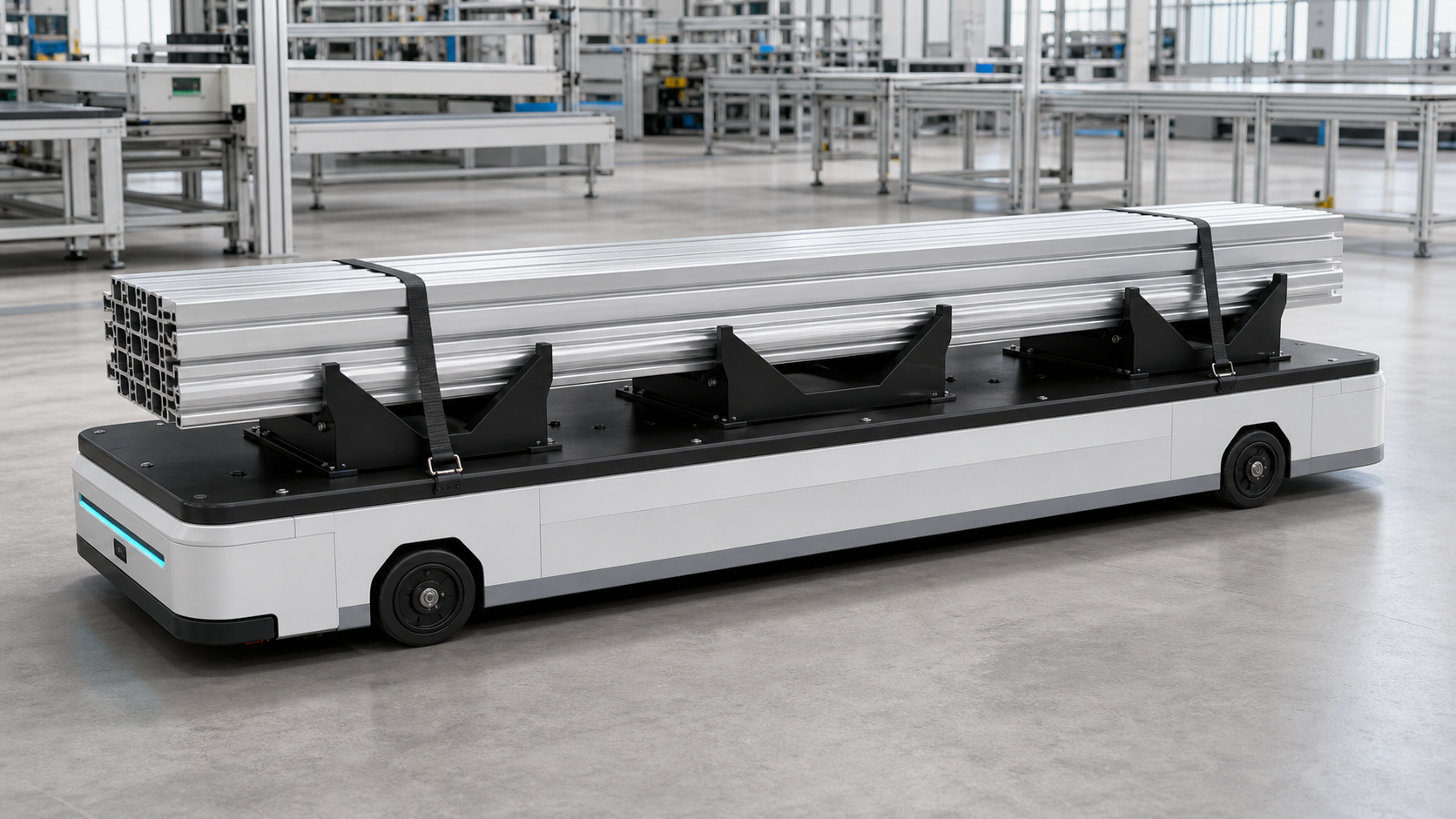

Figure 1: Multi-point cradles and restraints keep a long profile bundle stably supported

Validate the dynamic envelope, not only the robot footprint

For long loads, a map that contains only the AMR footprint and a static aisle width is incomplete. During a turn, the leading and trailing ends sweep paths that differ from the vehicle body. Near columns, barriers, door frames, buffer racks, and other fixed assets, the load end is often the first point of potential interference. When routes are validated only with an empty-vehicle model, teams end up relying on informal rules such as slow down here or watch the corner there.

A more usable method is to examine the combined envelope of the vehicle, carrier, and material on critical route segments. This includes straight aisles, but also inside and outside turn zones, doors, cross-area buffers, intersections, and the last approach to a station. Where the envelope varies by batch, load lengths can be grouped into task classes. Each class can carry an explicit list of permitted routes, restricted narrow passages, and areas that require a controlled speed.

The objective is not to reserve excessive space everywhere. It is to assess the real maximum envelope, permitted attitude, and fixed site obstacles together. Route capacity becomes repeatable only when clearance for the load ends is visible in the same operational condition as clearance for the robot.

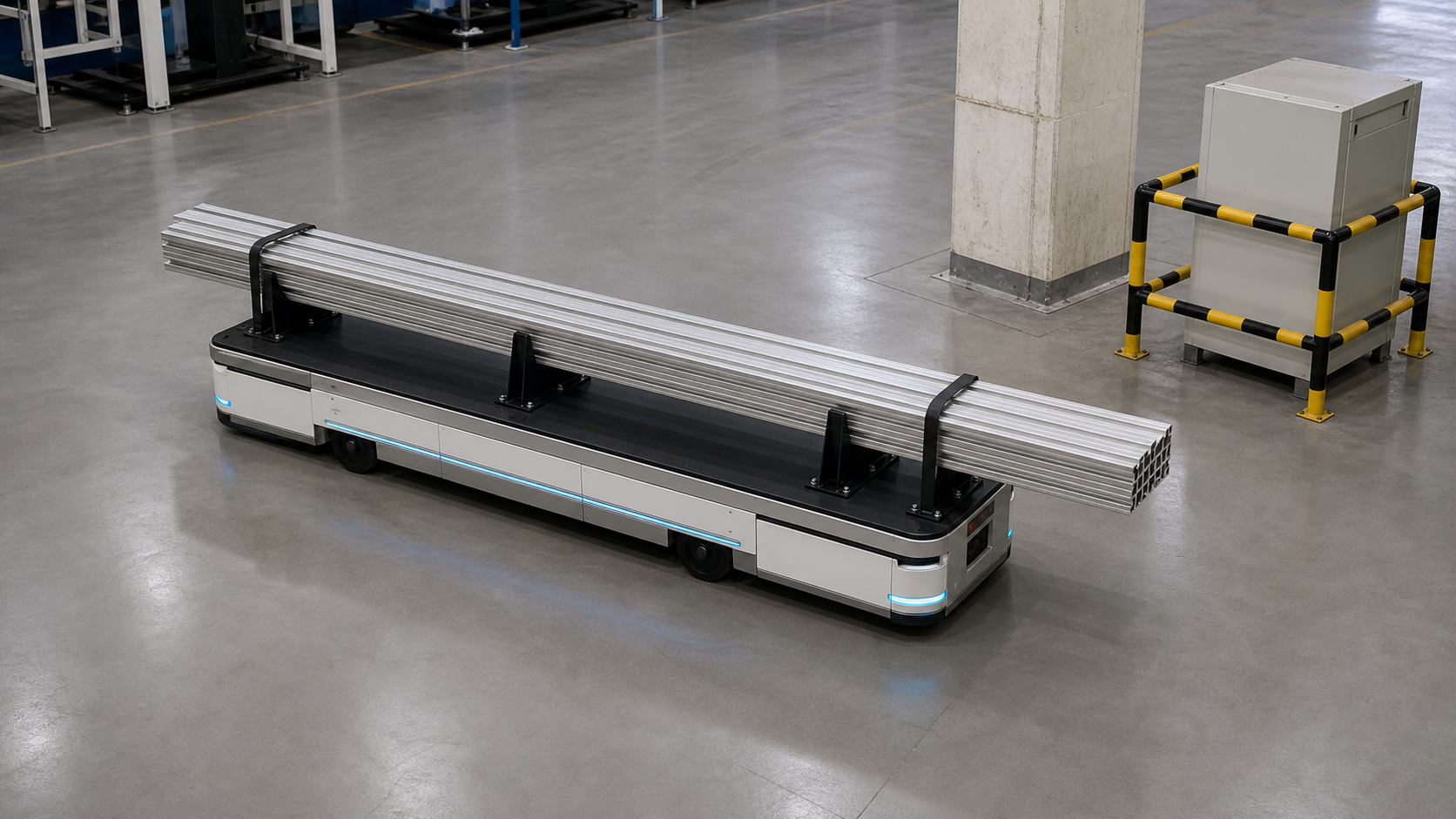

Figure 2: Route clearance needs to be reviewed against the full load envelope

Extend motion rules from the robot to the load

Motion management for long loads should go beyond a single fleet-wide speed value. The more useful question is where the AMR is moving, what it is carrying, and what load attitude must be preserved. Starting, braking, turning, crossing floor joints, and approaching a station do not necessarily deserve identical parameters. For loads prone to movement or sensitive edges, smooth starts and stops, constrained turns, and a post-stop inspection rule can be more meaningful than a generic slow mode.

At the destination, the receiving surface should follow the same support logic as the mobile carrier. When material must move from an AMR to a fixed rack or station, the support points and guide positions should be confirmed before transfer. Arrival at a coordinate does not prove that the overhanging ends are clear of fixtures, barriers, or adjacent workstations. If transfer conditions are not ready, an envelope-controlled waiting location is normally safer and easier to recover from than a last-minute adjustment beside the station.

Operating records should retain load-related context: the material class, carrier version, route class, and location of any exception. If an end touches a barrier, a restraint loosens, or an aisle loses clearance, the team can review the combined envelope and support conditions rather than reducing the issue to a vague claim that the robot did not travel smoothly.

Turn long material into a verifiable transport object

Putting long material on an AMR is not simply a matter of making the platform longer or reducing the travel speed. Multi-point support establishes stable load bearing. The dynamic envelope defines how the assembly can travel safely. Motion and station rules turn both into repeatable daily operation. Together, they reduce dependence on individual experience and on-the-spot judgement.

For manufacturers that want long-load movement to support a flexible production rhythm, the practical first step is not to open every possible route. Select one representative material class, define its support reference and maximum envelope, then validate the route and station segment by segment. When these conditions are captured as executable task rules, AMRs can take on long-material delivery with a clearer boundary for safety, quality, and operational consistency.
