AMR Wheel-to-Floor Readiness: Manage Traction Before It Becomes an Alarm

AMR Wheel-to-Floor Readiness: Manage Traction Before It Becomes an Alarm

The wheel-floor interface is where variability often starts

AMR programs usually monitor speed, localization, task logic, and fleet status closely. The contact surface between a wheel module and the floor is more easily treated as a housekeeping detail. Yet every start, stop, turn, and station approach depends on a finite traction margin. Fine dust, cleaning residue, moisture, packaging fragments, or material attached to a wheel can gradually turn a repeatable move into a conservative slowdown, a retry, or a route exception.

That is why wheel-floor readiness should not be checked only after a traction alarm. It is a run condition, comparable to a route or station condition. Operations teams benefit from knowing which route segments are sensitive, when floor conditions tend to change, and which vehicles or material flows can introduce contamination into the main travel lanes.

Three sources quietly consume traction margin

The first source is visible particulate matter. Metal chips, carton fiber, stretch-film fragments, and cured adhesive spots can interrupt a wheel's contact with the floor and accumulate around the module. They may not create an immediate fault, but they can make start-stop behavior inconsistent on the same route. The second is a thin, less obvious film: settled oil mist, detergent residue, or localized moisture. Its effect can differ with wheel material, payload, and steering behavior.

The third source is the operating environment itself. Forklifts, carts, and inbound material carriers can bring water and particles into a previously dry lane. If a site records only a robot exception, without relating it to wheel condition, location, and recent cleaning activity, it becomes difficult to distinguish an equipment issue from a route condition or a temporary environmental change.

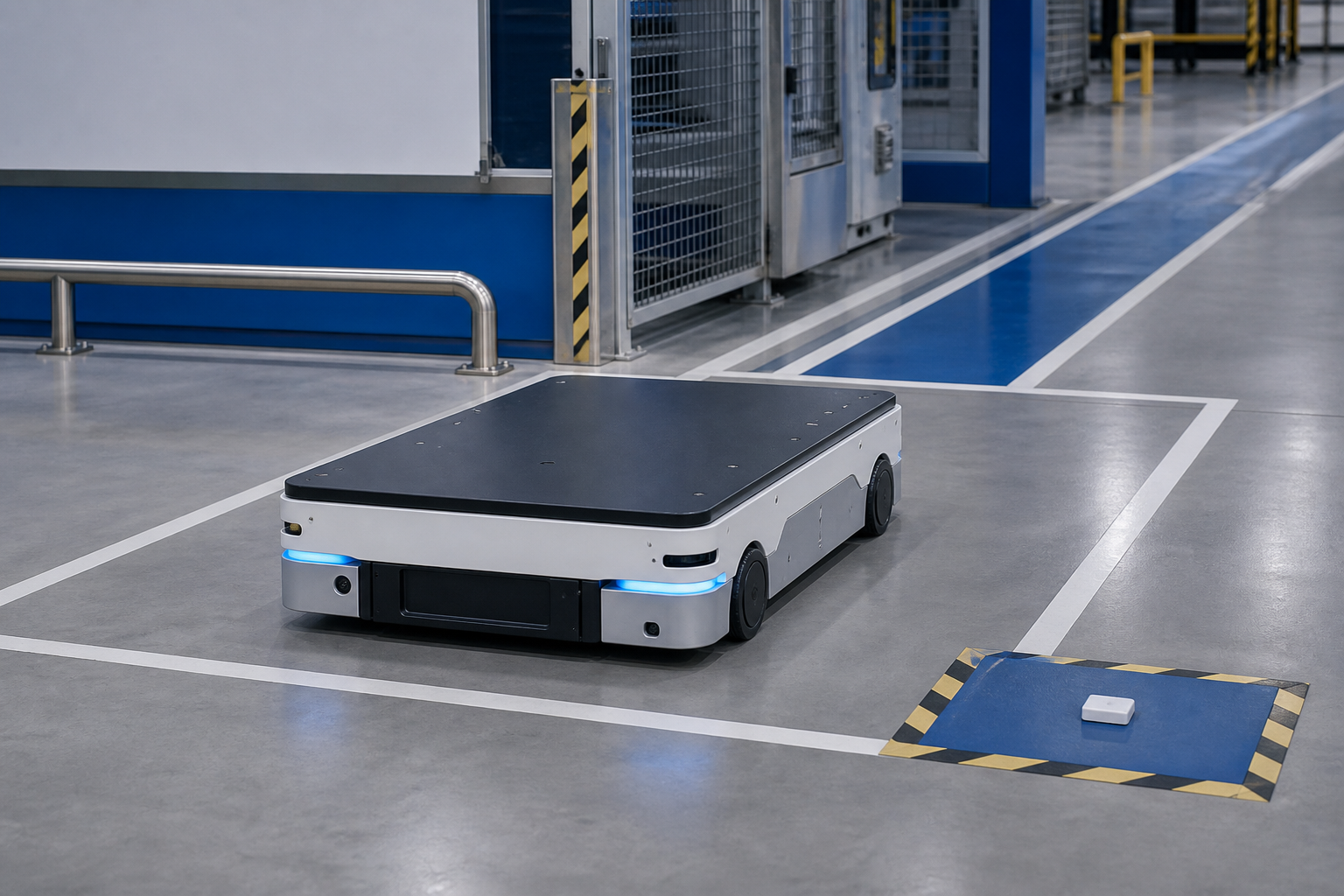

Figure 1: Inspecting wheel-to-floor conditions before a critical route segment

Move from reactive cleaning to segment-level conditions

The first step is not to apply the same cleaning frequency everywhere. Map the traction-sensitive points first: high-frequency handoff zones, tight turns, exits near wash areas, packaging-line edges, and cross-zone routes. For each point, use a small practical condition check: Is the floor dry? Are visible fragments or residues present? Are route boundaries clear? Has the area been released after cleaning?

When a condition is not met, dispatch logic should allow a localized speed reduction, a temporary avoidance route, or a controlled wait. It should not force repeated attempts at the same place. The objective is not to promise zero variation; it is to give environmental change a clear path for discovery, response, and recovery before a minor condition is amplified across a high-frequency route.

Make the check part of the operating rhythm

Wheel inspection does not need to become a long stop that sits outside production. Short, defined checks can be placed before a shift, after washdown, after temporary work is removed from a route, or after a cluster of light exceptions. The sequence can be simple: inspect wheel surfaces for attached debris, confirm that critical floor sections are clean and dry, run an unloaded low-speed pass on a representative segment, and then decide whether standard tasks can resume.

The important point is to make release criteria actionable. A vehicle being powered on and a map being available are not enough. Release should consider the wheel condition, the critical route condition, and the behavior of the first verification movement together. Tasks with sensitive loads or frequent turns can use more conservative acceleration and turning settings until the site condition is stable.

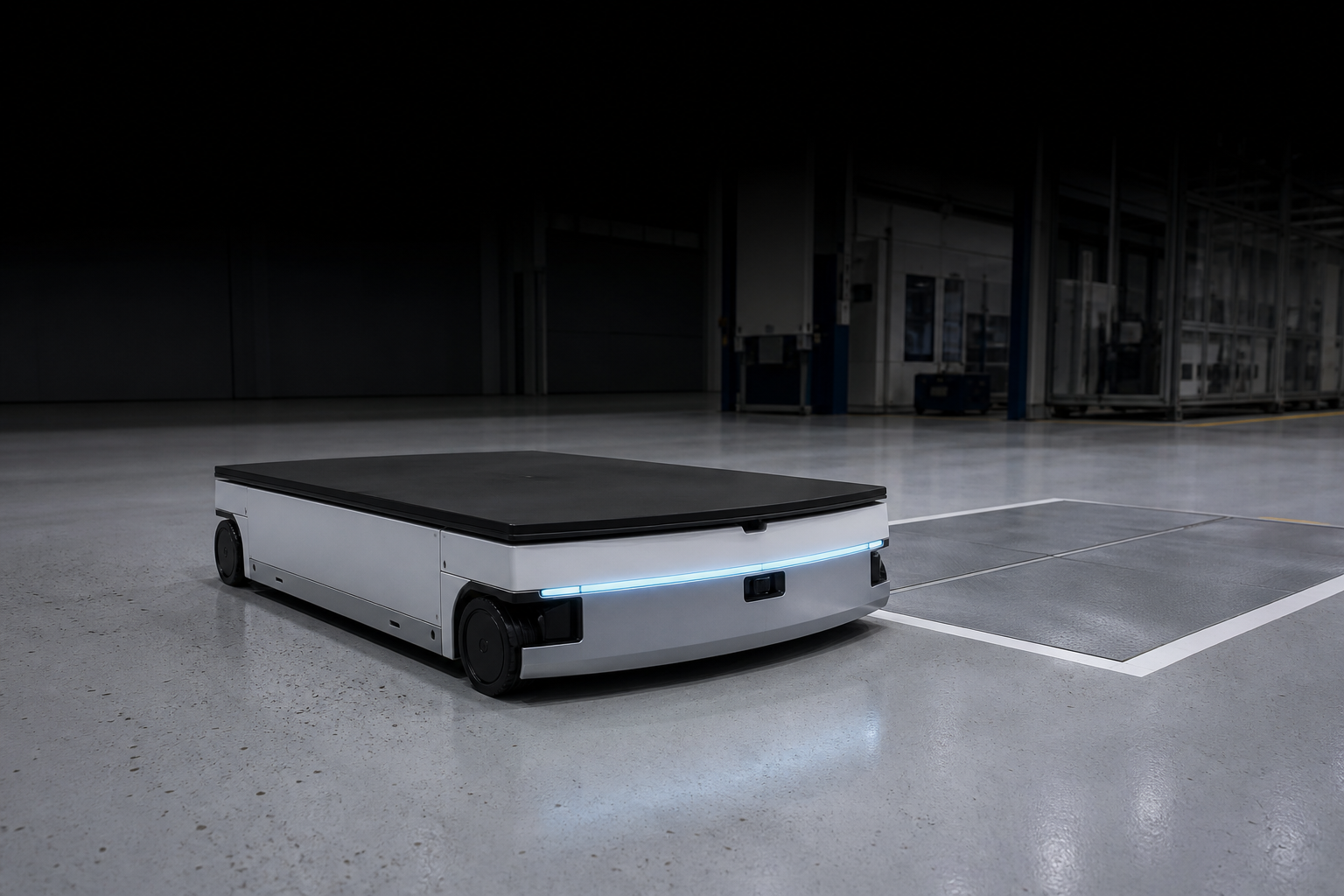

Figure 2: A controlled verification bay confirms release conditions after cleaning

Use events to improve both the floor and the fleet

A minimum event record is often sufficient: route segment, payload and maneuver, visible wheel state, latest cleaning or washdown time, and the recovery action taken. Over time, these records separate recurring environmental causes from isolated equipment causes. They can also reveal whether a particular station is repeatedly introducing fragments, moisture, or packaging residue into a shared lane.

Once a pattern is visible, improvement becomes more precise. Teams may adjust cleaning windows and drying time, change the path used by material carts, add a visual check at a high-risk point, or configure a route segment to return to normal dispatch only after a condition has been restored. This is far more actionable than a generic instruction to keep the floor clean.

The record should be light enough to support fast use on the shop floor. A location, a time, a maneuver, a visible condition, and an outcome are usually enough to start. What matters is consistency: the same fields should connect facility work, robot operations, and maintenance review so that a recurring condition is not described three different ways.

A small contact point supports a durable logistics capability

Stable AMR performance is not determined by navigation software or a single vehicle specification alone. Each real wheel-floor contact affects whether a task can be completed predictably. Managing that interface is not merely another checklist; it preserves practical margin for speed, route availability, and recovery in a changing factory environment.

For manufacturers that want mobile robots to become a long-term production capability, wheel-floor readiness should progress alongside route maintenance, floor care, and exception review. When traction conditions are visible, recorded, and recoverable at a small scale, the wider intralogistics system has a better chance of holding a stable rhythm every day.

The result is a more practical operating model: teams do not wait for a warning to discover that a route has changed. They preserve a defined traction margin, validate recovery with a small movement, and return capacity to the fleet with a clear decision instead of an assumption.
