In a fast assembly environment, an irregular fixture is rarely a standard pallet. Its outline may be asymmetric, its support points limited, and the receiving station may include clamps, stops or inspection hardware. Arriving along a rail is therefore only the first part of the move. Stable handoff depends on height, lateral clearance, reference surfaces and the current orientation of the fixture all being acceptable at the same time.

The value of a mecanum-wheel rail transport vehicle should not be reduced to the phrase lateral movement. A lateral correction is useful only as a low-speed, short-distance approach action with clear references. Put it inside a controlled sequence and the vehicle can support the positioning requirements of the assembly station rather than work around them.

Define a handoff-ready state first

A handoff-ready state should answer at least four questions. Has the vehicle entered the authorised docking area? Is the fixture still constrained by the load deck and guide blocks? Is the receiving station free and permitted to accept the fixture? Do both transfer surfaces meet the agreed height, gap and orientation conditions? If any answer is missing, moving a little closer is not a decision.

This changes a task from simply deliver to station A into a clearer instruction: reach the specified waiting position, establish the lateral-alignment condition, verify receiving permission, then release the handoff. Transport and transfer remain connected, but each can be verified on its own terms.

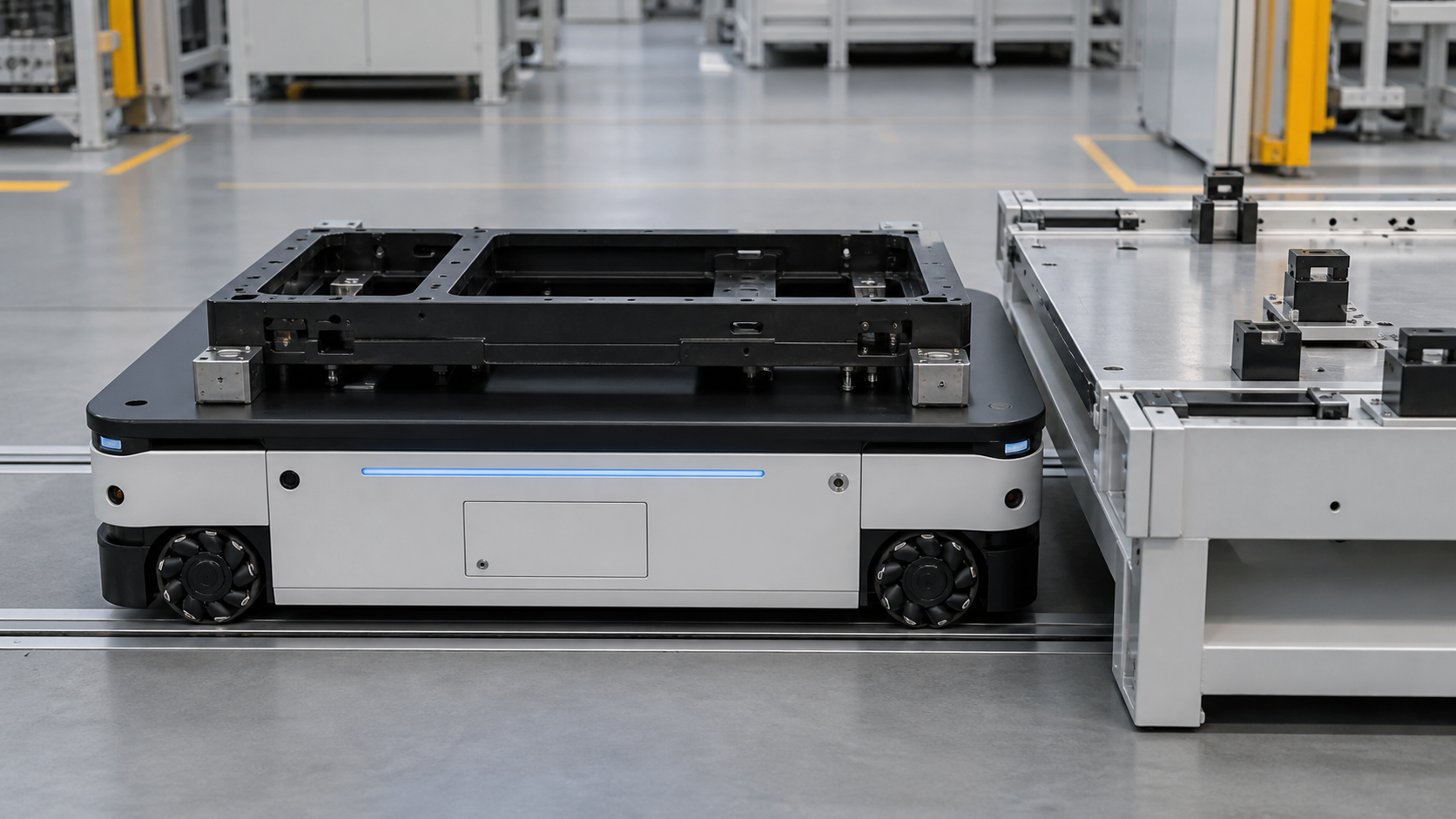

Figure 1: The vehicle confirms deck height, guides and lateral clearance before station handoff

Separate approach, correction and lock-in

The approach phase follows the rail direction and brings the fixture into the station's safe window. Only then should a constrained lateral correction remove a small, known offset. It is not a way to cross an unknown obstruction or replace the station's own locating features. In the lock-in phase, the vehicle is stopped, the fixture guides are controlled and the receiving references are confirmed. This makes a mobility capability into an observable, bounded sequence of actions.

For large fixtures, the permitted correction range, speed and acceleration should be considered together with centre of gravity, support area and surrounding clearance. The more rigid and geometrically complex the fixture, the less appropriate it is to treat lateral travel as unconditional compensation.

Give the receiving station its share of the work

The rail vehicle can deliver a fixture reliably into a handoff window and make a small final adjustment within that window. The receiving station should provide a defined receiving plane, lateral guides and final locating references. If the station lacks repeatable references, even a highly manoeuvrable base is left trying to find a position that does not consistently exist.

Project assessment should therefore review rail straightness, station height, guide wear, fixture base references and nearby safety clearance together. Writing these conditions into station acceptance is usually more durable than asking vehicle software to absorb every physical variation.

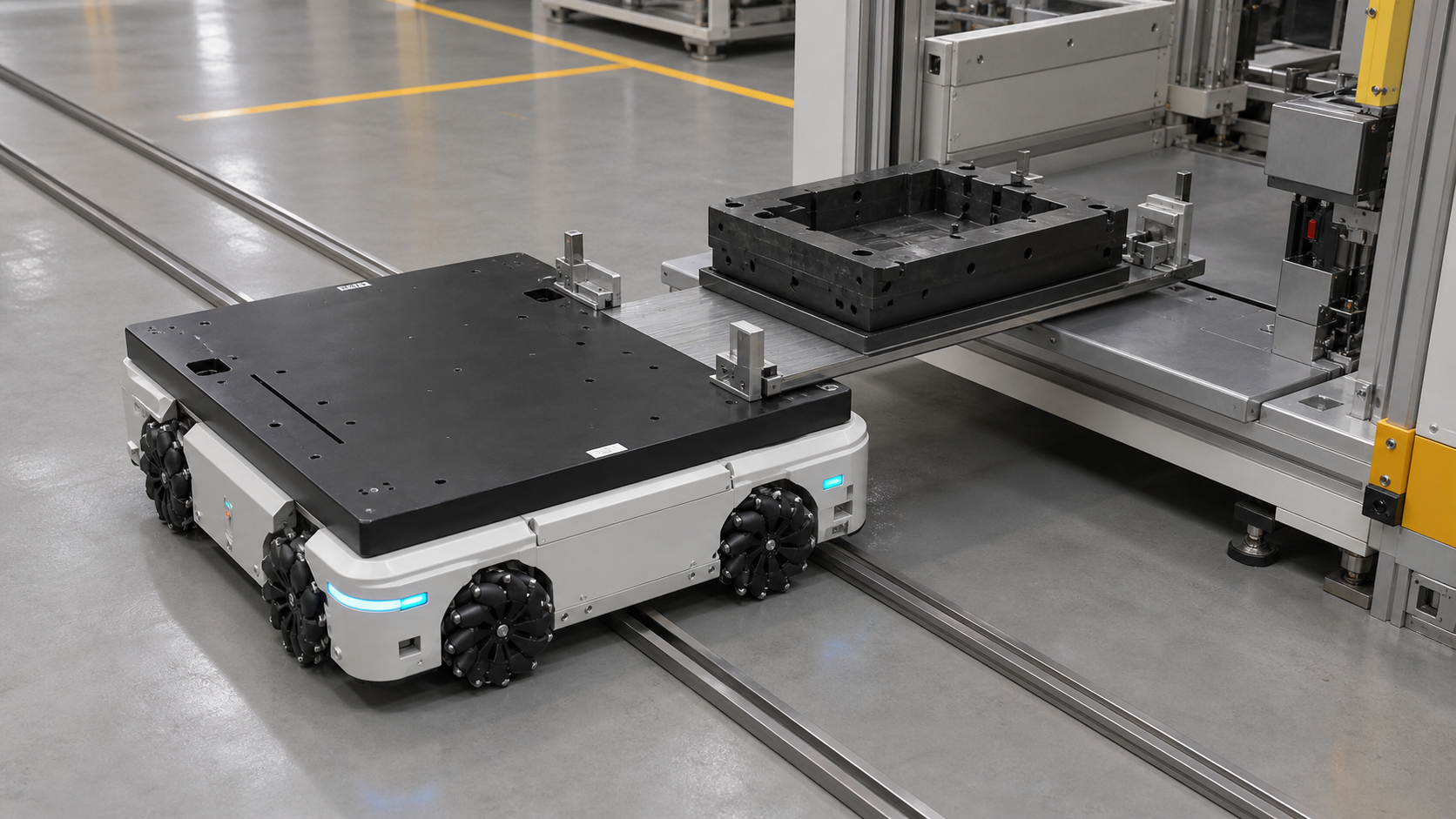

Figure 2: Level transfer surfaces and side guides constrain the fixture handoff

Engineer a transfer envelope, not a perfect moment

A useful design output is a transfer envelope: the defined region in which the fixture may arrive, pause, make a limited lateral correction and be accepted. Its boundaries are physical as well as digital. They include the load deck, mechanical guides, station face, rail corridor, clearance to nearby equipment and the permitted operating speed. The envelope should be visible in the station design and reflected in the task logic, so that people, fixtures and vehicles are working to the same assumptions.

This is especially important when fixture families share a route but not the same geometry. Rather than treating every variant as a special case, teams can specify a supported set of base references, allowable offsets and station-side guide arrangements. A fixture outside that set should enter a planned exception path instead of relying on an improvised correction. The result is not less flexibility. It is flexibility with a clear physical contract.

Do not solve exceptions by trying again

If height, gap, receiving permission or fixture orientation is outside the allowed condition, the system should remain at a controlled waiting position, record the exception and follow a defined rollback or confirmation rule. Repeated lateral attempts can increase the risk of edge loading, interference and cycle-time variation.

Teams should distinguish small deviations that can recover automatically from structural exceptions that require review. The first group may retry within a limited range and a limited number of attempts. The second should lock the task, preserve site state and resume only after the rail, fixture and station conditions have been checked.

Turn each handoff into a reviewable record

A mature handoff leaves more than a completed signal. It records arrival, correction, receiving permission, transfer completion and any rollback. The point is not to accumulate logs; it is to identify whether a later problem originated in transport, alignment or reception when the fixture, station or rail condition changes.

For irregular fixtures that circulate through multiple stations, stability comes from a shared handoff language. Each lateral correction has a boundary, each transfer has a receiving reference and each exception has a defined place to wait. That is how a rail transport vehicle becomes a controlled mobile node in flexible manufacturing.

The practical outcome is a calmer station: fewer ambiguous recovery attempts, clearer responsibilities between vehicle and equipment, and a more repeatable basis for expanding the route to future fixture variants.
