Why AMRs Miss the Dock by Half a Step: Engineering Repeatable Station Handoffs

Why AMRs Miss the Dock by Half a Step: Engineering Repeatable Station Handoffs

Arriving Is Not the Same as Handing Off

In many intralogistics projects, a mobile robot can reach the area around a workstation reliably and still lose time in the final meter. A cart is parked slightly off, so an operator takes an extra step. Its access side faces the wrong direction, so material handling becomes awkward. A temporary item is placed beside the station, and the usable docking envelope disappears. The issue is often not whether the AMR reached a navigation point. It is whether the workstation defines a repeatable, confirmable, and recoverable handoff position.

Once AMR arrival is treated as a handoff rather than a parking event, the engineering question changes. The robot, the load carrier, and the workstation each have their own coordinates. What determines performance is whether they form a stable relationship at the handoff: what supports the carrier, which side faces the recipient, where a person or machine accesses the load, and where the robot can wait safely when confirmation fails. Without that definition, small physical changes on the floor can erase the benefit of excellent navigation accuracy.

This distinction matters especially where the same station receives several carrier types or operates across shifts. A point that is adequate for a single demonstration may not provide enough positional context for routine replenishment, inspection, or traceable material presentation. The station needs an operating envelope that is understandable to both the AMR and the people who work beside it.

Three References Define a Docking Station

The first reference is the approach path. Before entering a station, an AMR needs a short, unobstructed straight approach with defined points for slowing down, alignment, and waiting. Its purpose is not to make the route look orderly. It makes repeated arrivals start from comparable poses, reducing large steering corrections near the dock.

The second reference belongs to the load carrier. The clearance beneath a wheeled rack, caster height, support-beam positions, and center-of-gravity range must correspond to the lifting points and carrying surface of an under-rack AMR. If a rack continues to sway after lifting, or if its envelope varies from one batch to another, that variation will be amplified at the workstation. A robot can only dock predictably when the carrier is predictable too.

The third reference belongs to the workstation. Its front edge, receiving surface, physical stops, visual markings, and safety clearance together create a handoff window. The window does not always require a complex mechanism, but it must make “in position” concrete: does it mean an edge is aligned, a platform is level, a locator is engaged, or a sensor confirms the condition? Clear criteria let operations distinguish normal tolerance from an exception that needs attention.

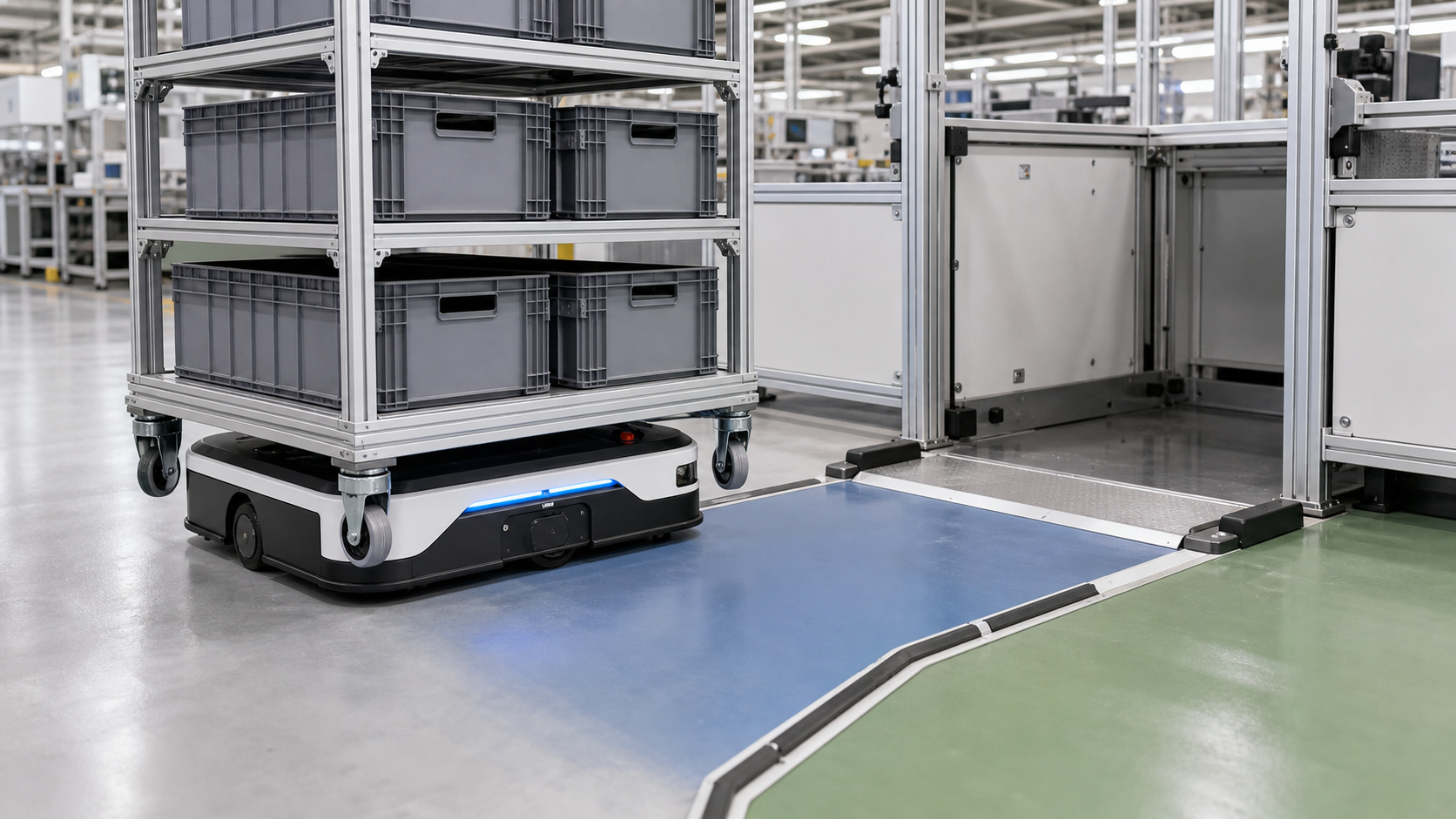

Figure 1: An under-rack AMR pauses in the preparation zone, aligned with the station approach corridor and docking boundary

Replace Habit with Verifiable Final-Meter Conditions

A robust docking sequence normally has two stages. The AMR performs a route-level approach into a preparation zone, then completes final alignment at low speed while checking the conditions that matter at that station. At manual pick-and-place stations, these conditions may be a defined boundary and a clear access side. At fixed receiving tables or equipment interfaces, they should also include height, lateral position, and load-carrier orientation.

The goal is not to push every error toward a theoretical minimum. It is to keep variation inside an acceptable workstation envelope and make that variation observable. A preparation zone can keep the main aisle clear. A final docking zone should serve one handoff only. When the confirmation condition is not met, the AMR should retreat to a safe waiting location instead of making repeated tiny corrections at the station entrance. This prevents an unresolved arrival from turning into a hidden cycle-time loss.

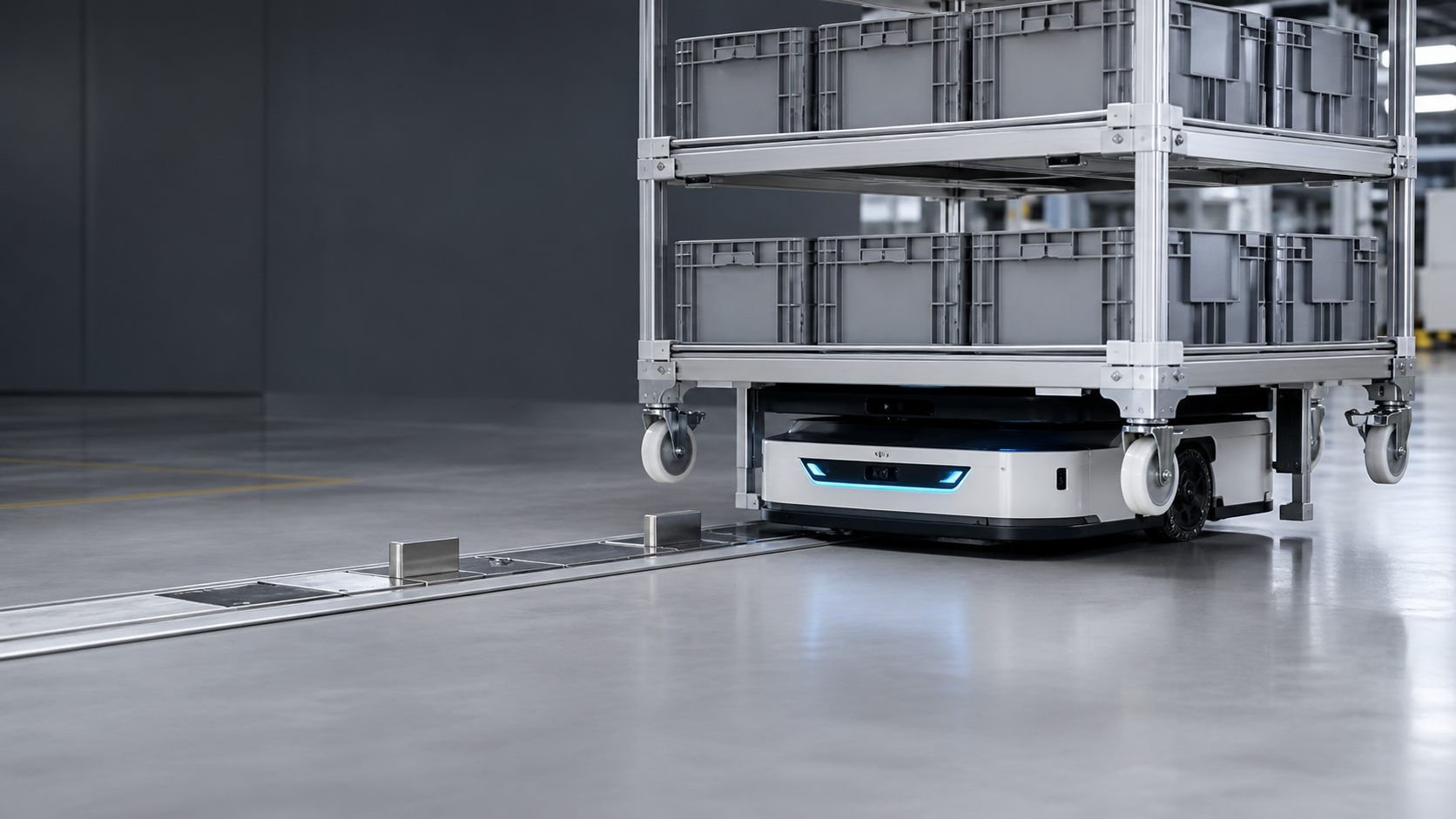

Figure 2: The AMR supports the material rack while physical guides define a confirmable workstation handoff window

Docking Standards Must Survive Daily Drift

A station that aligns well during acceptance does not automatically remain stable. Floor wear, loose guide elements, aging cart casters, wheel wear, workstation modifications, and temporary storage can all shift the relationship over time. Docking should therefore have a few reviewable operating signals: the number of final adjustments on comparable tasks, retreat events, waiting time at the station, the frequency of manual repositioning, and deviation patterns by workstation.

These signals do not need to become a complicated reporting program. They simply turn “the robot sometimes stops badly” into an engineering question that can be located. If deviations concentrate in one carrier family, inspect mechanical consistency first. If they concentrate at one station, inspect its reference and clearance. If they appear only at busy times, review temporary occupancy and arrival rules. Root-cause adjustments are more durable than repeatedly editing the route.

Make Docking a Workstation Capability

For manufacturing operations, the value of an AMR is not merely that it delivers material nearby. It is that it presents the load on the correct side, at the correct height, and in the correct state with predictable effort. When the approach corridor, carrier support relationship, final confirmation, exception retreat, and review signals are designed together, docking stops depending on one tuning session or one experienced operator.

That principle applies to assembly replenishment, inspection stations, staging handoffs, and line-side delivery. Equipment choices will vary, but the engineering logic should remain the same: define the handoff, verify it, and maintain it as operating conditions change.
