Pharmaceutical AMR Delivery: Move Material Status with the Load

Pharmaceutical AMR Delivery: Move Material Status with the Load

In pharmaceutical manufacturing, an AMR does more than carry a container from point A to point B. Once raw materials, intermediates, packaging components, or fixtures leave their original locations, the operating question is whether they remain in a condition that is permitted to move, enter the next area, and be handed over. If “arrived” is the only completion signal, an automated move can create a status gap that operators must resolve manually.

A more dependable approach treats the material, its carrier, the destination area, and the handoff as one controlled object. The route provides movement, but movement cannot replace confirmation. Higher speed may improve rhythm, but it cannot replace continuity of material status.

This perspective is especially useful when a manufacturing site is introducing robotics into flows that were previously managed through local habit, paper notes, or verbal coordination. The robot does not need to decide the quality disposition of a material. Its role is to execute a clearly bounded move and expose the moment when the next party must confirm readiness. That separation keeps operational responsibility where it belongs while giving transport a repeatable, observable structure. It also gives engineering teams a practical way to discuss the workflow: not as an abstract automation layer, but as a sequence of physical states, positions, and permissions that can be tested at the station.

Ask whether delivery is allowed before asking how fast it can be completed

Many logistics flows begin with dispatch, pickup, and delivery. In a facility with defined zones and controlled transfers, a stronger starting point is the delivery condition: Is this material eligible to move? Can the destination receive it? Is the workstation ready? Does the handoff need a record that can be reviewed later?

This does not turn an AMR into an approval machine. It moves the essential checks forward. Before a task is released, the operation should distinguish states such as ready, in transit, staged, and pending confirmation. Before the AMR reaches the station, the station should declare whether it can accept the load. The robot is then not merely delivering a tote; it is completing a logistics action inside a confirmed window.

The carrier is a status boundary, not just a container

For sealed bins, drums, and stainless-steel transfer boxes, the carrier first provides support and protection; only then does it become something to move. In the figure, the flatbed AMR uses a complete black deck to support the container's full base. The load stays centered and stable, without an overhang or temporary gripping arrangement. That simple physical relationship is the foundation of controlled transport: establish a dependable resting place before discussing routes, throughput, or handoff.

In project design, the carrier outline, underside, locating features, closure method, and cleaning boundary should become repeatable interfaces. They give AMR positioning, stopping clearance, and receiving surfaces a consistent engineering reference. What scales is not a single trip, but the ability to bring each trip into the same handoff window with the same load relationship.

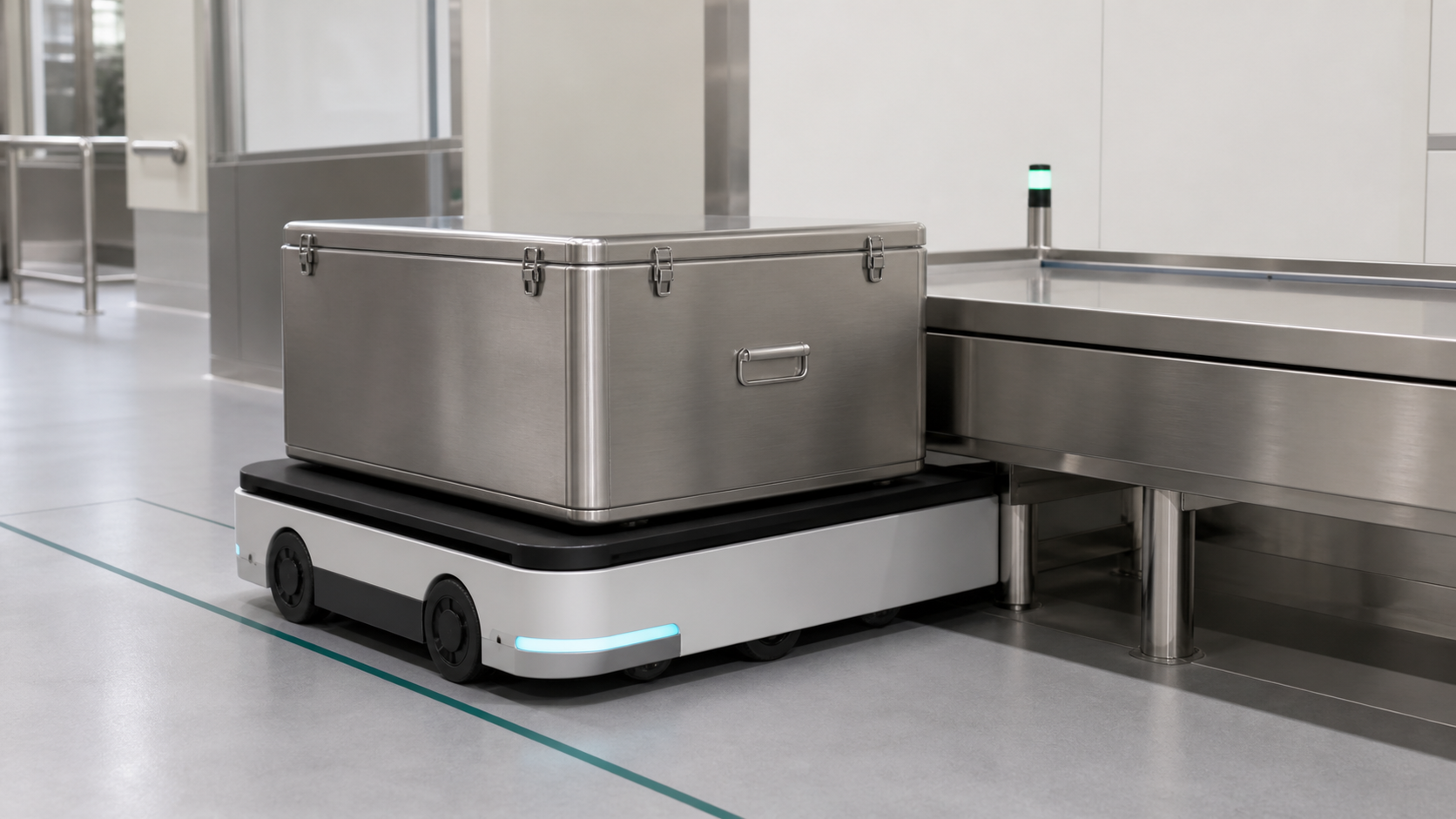

Figure 1: A flatbed AMR parks stably at a controlled transfer station with the sealed container fully supported by its deck

Keep confirmation close to the material during area-to-area handoffs

When a move crosses a functional boundary or a controlled area, arrival should not automatically mean delivery is complete. A steadier pattern separates the handoff into two actions: the AMR parks securely in the defined position, then the receiving station confirms that it is ready before unloading or taking custody. This keeps the material on its carrier until the right moment and ties the question of who received what, and when, to a clear physical event.

Controlled handoff does not require elaborate mechanisms. A level receiving surface, a defined docking position, and a restrained status indication can make many vague steps inspectable. For stations with human participation, the operator sees more than an arrival alert: the material is already in the right place and waiting for permission.

Exceptions need a controlled landing point

Real facilities face receiving stations that are not ready, temporary route restrictions, and loads that require review. The worst response is to let an AMR circulate in a corridor with material on board, or to place the material in an unbounded temporary corner. Exception handling should be designed like the normal flow: preserve the carrier-to-load relationship, move to a defined waiting or isolation position, and then let the appropriate role confirm the next action.

The purpose of an isolation position is not storage. It turns an exception into something visible and manageable. In the figure, the AMR is stable inside a marked bay, its container remains supported on the deck, and an empty stainless-steel receiving rack is nearby. The material has not been made to disappear; it has been retained at a node where it can be reviewed safely.

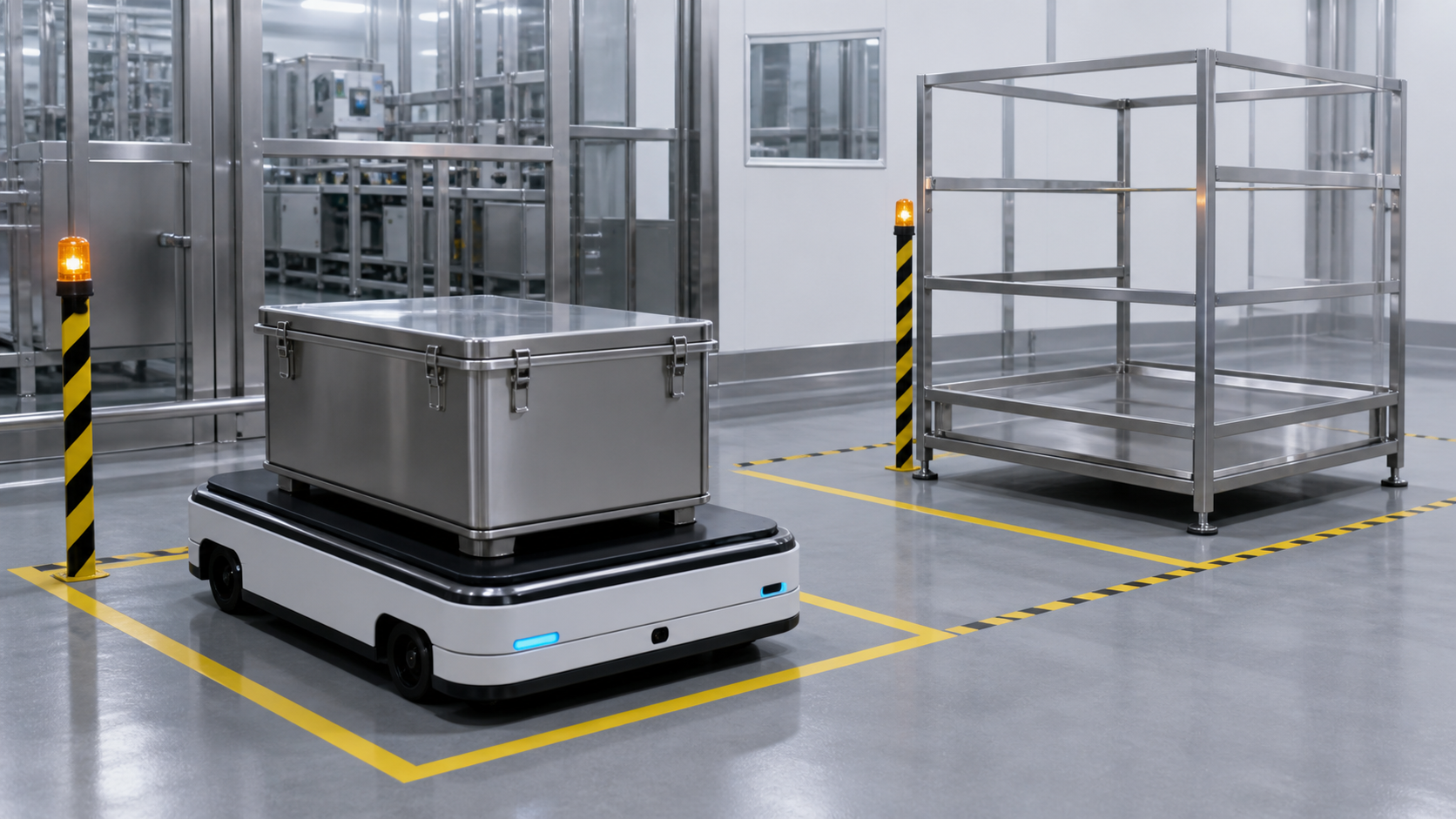

Figure 2: During an exception, the AMR retains the material in a defined isolation bay with the container supported by its deck

Make every transfer reviewable

An AMR solution for pharmaceutical manufacturing should ultimately support a stable and explainable material flow. A sequence in which material is picked only when its status permits movement, handed over after receiving confirmation, and placed in a controlled location when an exception occurs can reduce verbal chasing while keeping review close to the actual work.

When material status and transport action remain aligned, the AMR becomes a reliable execution unit in intralogistics. It moves more than a container: it carries the boundary, location, and handoff condition that the material needs at its current step.
