AMRs and Floor Joints: Turning Passability into a Managed Route Capability

AMRs and Floor Joints: Turning Passability into a Managed Route Capability

Move Beyond “Can It Cross?”

AMR projects often validate gradeability, clearance, and rated payload early in the process, while treating the floor as static background. In daily operation, the more common challenges are smaller: expansion joints, repaired floor edges, thresholds, short ramps, trench covers, and locally wet areas after cleaning. Each may look harmless in isolation. Combined with a turn, a full cart, a braking event, or poorly rolling casters, however, it can create speed variation, load movement, or repeated task retries.

That is why a useful route question is not simply whether a vehicle can get across. It is whether the vehicle, carrier, and load can pass repeatedly and predictably under defined load, speed, and maneuver conditions. When the floor condition changes, the operation should also know whether to slow down, take an alternate path, or pause the task. With those conditions made explicit, the floor becomes part of the logistics capability rather than a background construction item.

Four Conditions That Better Describe Real Passability

The first is geometry. The width, depth, and edge profile of an expansion joint, together with the height difference and usable width of a threshold or repair ramp, must be considered alongside underbody clearance, drive-wheel location, cart caster diameter, and the turning path. A vehicle that crosses an edge empty and straight may not produce the same result with a loaded cart in a turn.

The second is the load condition. An under-rider AMR moving a rack, fixture, or material cart transmits small floor shocks into the load above. A high center of gravity, unsecured containers, or casters that do not swivel consistently can amplify movement at a transition. Reliable transport is not a chassis-only question. It is a property of the entire vehicle, carrier, and load combination.

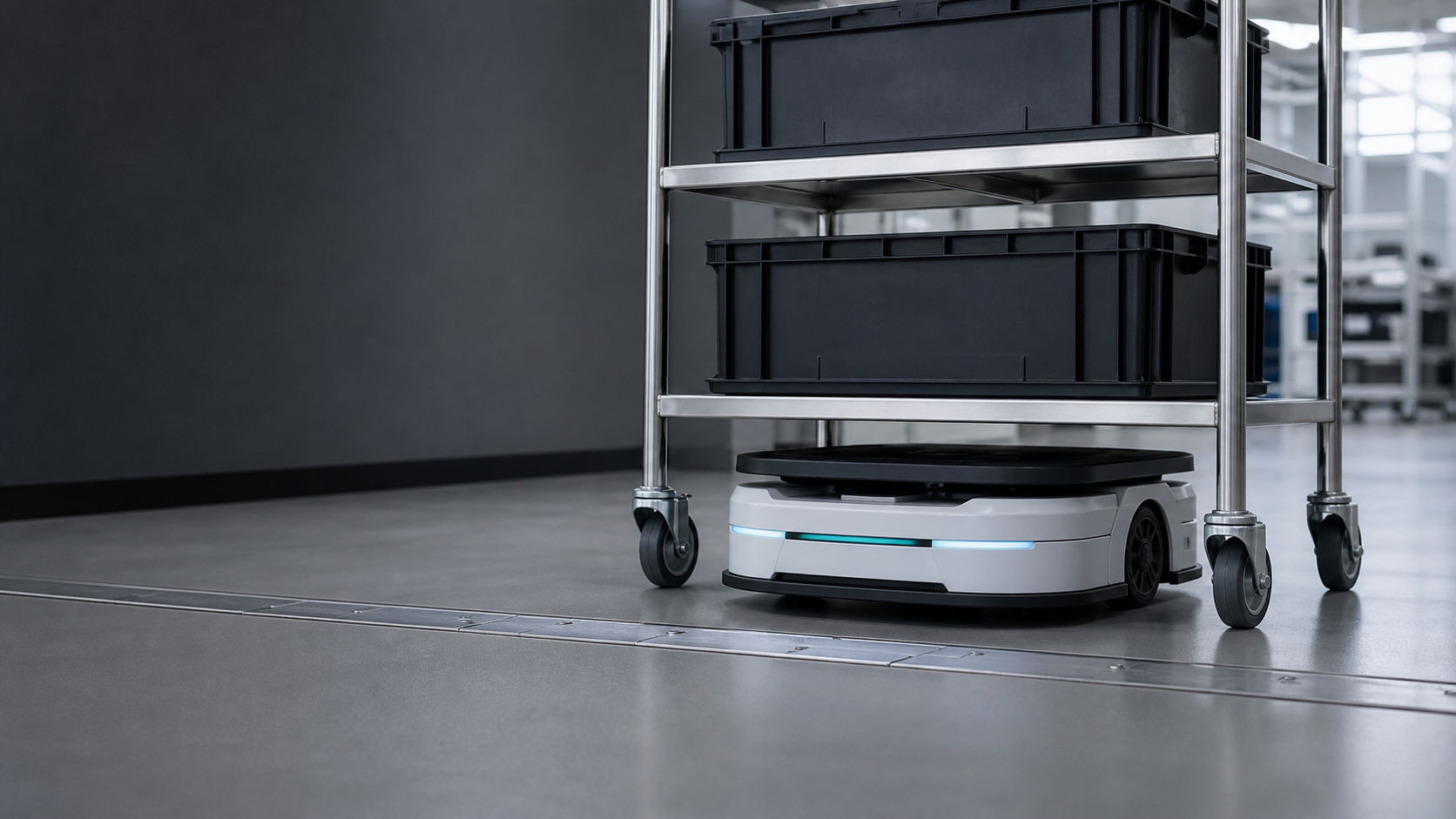

Figure 1: A low-profile under-rider AMR and material cart crossing a flush floor joint

Make a Transition Zone a Governed Route Segment

The third condition is maneuver. The same floor joint behaves differently during straight low-speed travel, a loaded turn, a merge, or braking. It is more practical to define a transition as a short route segment rather than a single map point: decelerate before entry, avoid turning or stopping on the edge where possible, and return to normal speed only after exit. Sensitive materials can be assigned to a smoother alternate route when the task profile requires it.

The fourth is operational state. Temporary cable protectors, floor repairs, washdown water, and a newly installed doorway ramp can all change the original route condition. If the change is not marked and linked to a speed rule and recovery condition, dispatch will continue treating the path as unchanged. Clear states such as temporarily passable, restricted, and unavailable are more durable than informal verbal warnings.

The rule should travel with the route, not only with the vehicle. A clean, dry transition may be appropriate for the normal fleet, while a cart with smaller casters or a vibration-sensitive payload calls for a different speed profile. That distinction prevents a generic vehicle capability statement from being mistaken for a universal operating instruction.

Use a Reviewable Route-Condition Framework

The framework does not need to be mathematically elaborate. A useful minimum set is the route location, transition type, allowed carrier, load range, recommended speed, whether turning or passing is allowed, and the response when the surface changes. That gives engineering, equipment, EHS, and production teams a shared language that is more actionable than saying a section of floor feels uneven.

Tests should resemble the combinations seen in real work rather than a single empty straight-line pass. Include loaded and unloaded moves, representative caster conditions, straight and turning motion, entry and recovery speeds, and floor states before and after routine cleaning. The goal is not to chase an artificial extreme. It is to identify the stable operating boundary and establish usable rules before a route exceeds it.

A short route-condition register can also make change control easier. When a construction activity, maintenance repair, or cleaning method alters a crossing, the owner can review one record and decide whether a speed limit, route closure, or re-test is required. This is a practical way to protect continuity without turning every temporary condition into a full system redesign.

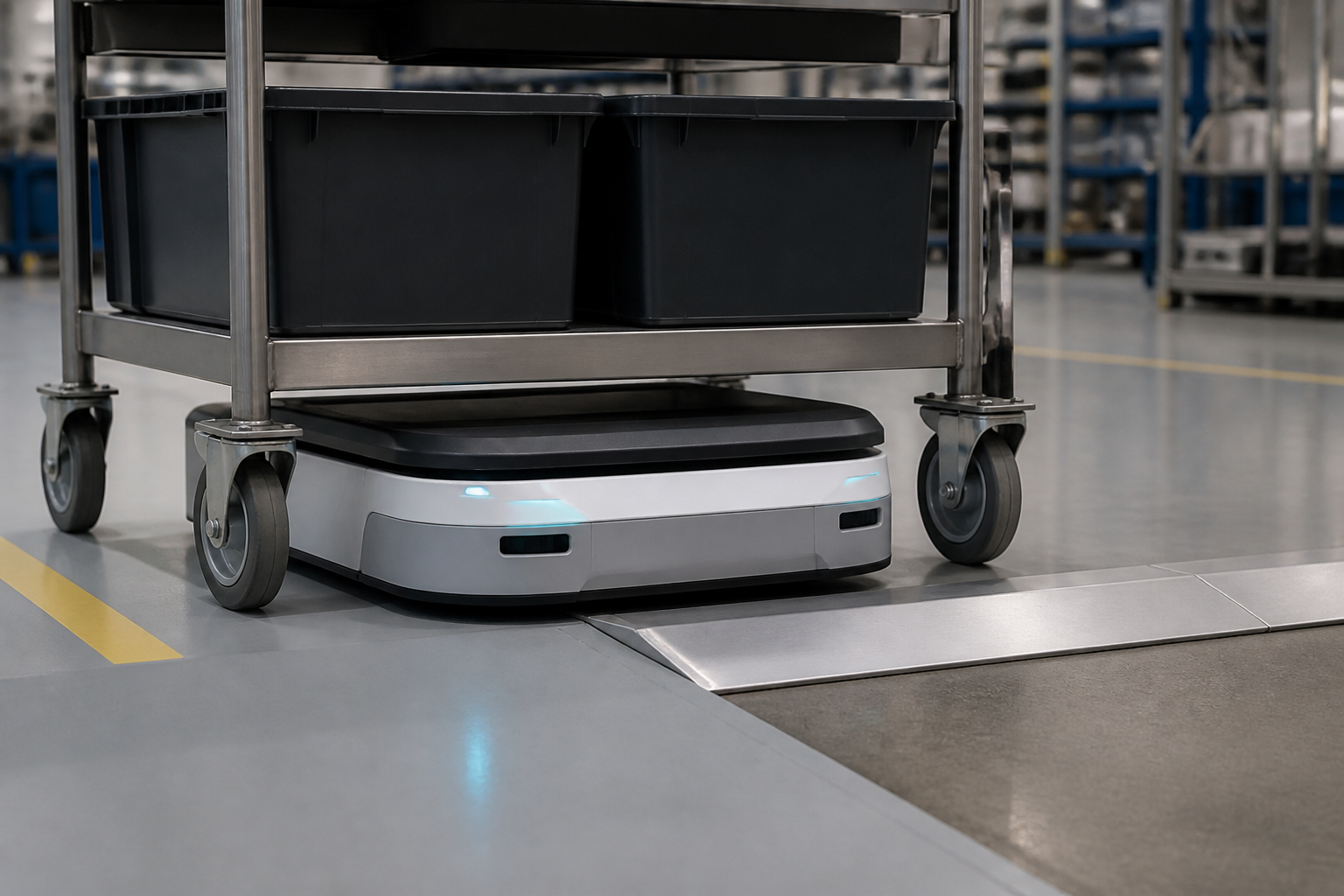

Figure 2: A shallow ramp makes a repaired-floor transition a controlled route segment

Preserve Predictability, Not Just a Smooth Surface

Where a transition needs improvement, a ramp, cover plate, or floor repair is only one part of the answer. The repaired height difference, surface friction, and edge profile should be repeatable and should allow both the AMR and the cart casters to cross cleanly. On frequently used paths, the transition should also appear in routine checks: Is the cover secure? Is an edge damaged? Is there oil, water, or debris? Has temporary material reduced the usable clearance?

The value of an AMR comes from turning repeated moves into a dependable rhythm. A route is therefore more than a line on a map; it is a set of conditions that must remain true. Managing expansion joints and temporary transitions may sound like a small engineering detail, but it protects the predictable margin behind every loaded move.

For manufacturers scaling mobile automation across several work areas, this approach also supports a clearer handover between facilities and operations. Facilities teams can maintain the surface condition, while operations teams maintain the task rules. Neither group has to solve the problem alone, and the AMR fleet receives a route environment that is easier to operate consistently.
