A point-to-point link governs a communication boundary, not just coverage

In plant logistics, wireless infrastructure provides broad connectivity. Optical communication is better suited to specific movements with fixed nodes, known geometry, and a need for highly predictable authorization and confirmation. Typical examples include an elevator approach, a controlled processing cell, a handoff island, or a contained equipment area. It is not a substitute for wireless; it defines a deliberate communication boundary for a critical part of a task.

That changes the design question. Instead of asking only how far the link can reach, teams need to know when a robot enters the link, which station can confirm arrival, and what happens if a rack, temporary fixture, or opening door interrupts the line of sight. Where will the robot stop? What will trigger revalidation? How will it return to a safe, executable route? With those answers, an optical link becomes an operations capability rather than a standalone communications component.

Start with a visibility corridor defined by the logistics action

The first step is not to place as many stations as possible. It is to identify the movements that need deterministic confirmation. For each movement, map the entry point, deceleration segment, stop position, task-confirmation point, and exit point. When a latent lifting AMR carries a wheeled metal rack, the corridor must be checked against the combined envelope of the robot and rack, not the chassis path alone.

Station height, orientation, and mounting position must be reviewed together with rack uprights, safety rails, buffers, and the actual load carriers present during production. A link that works in an empty factory may be blocked by a rack waiting in the normal operating position. A robust design confirms visibility at defined task points, then allows the robot to enter the next action; it does not assume continuous visibility across the whole route.

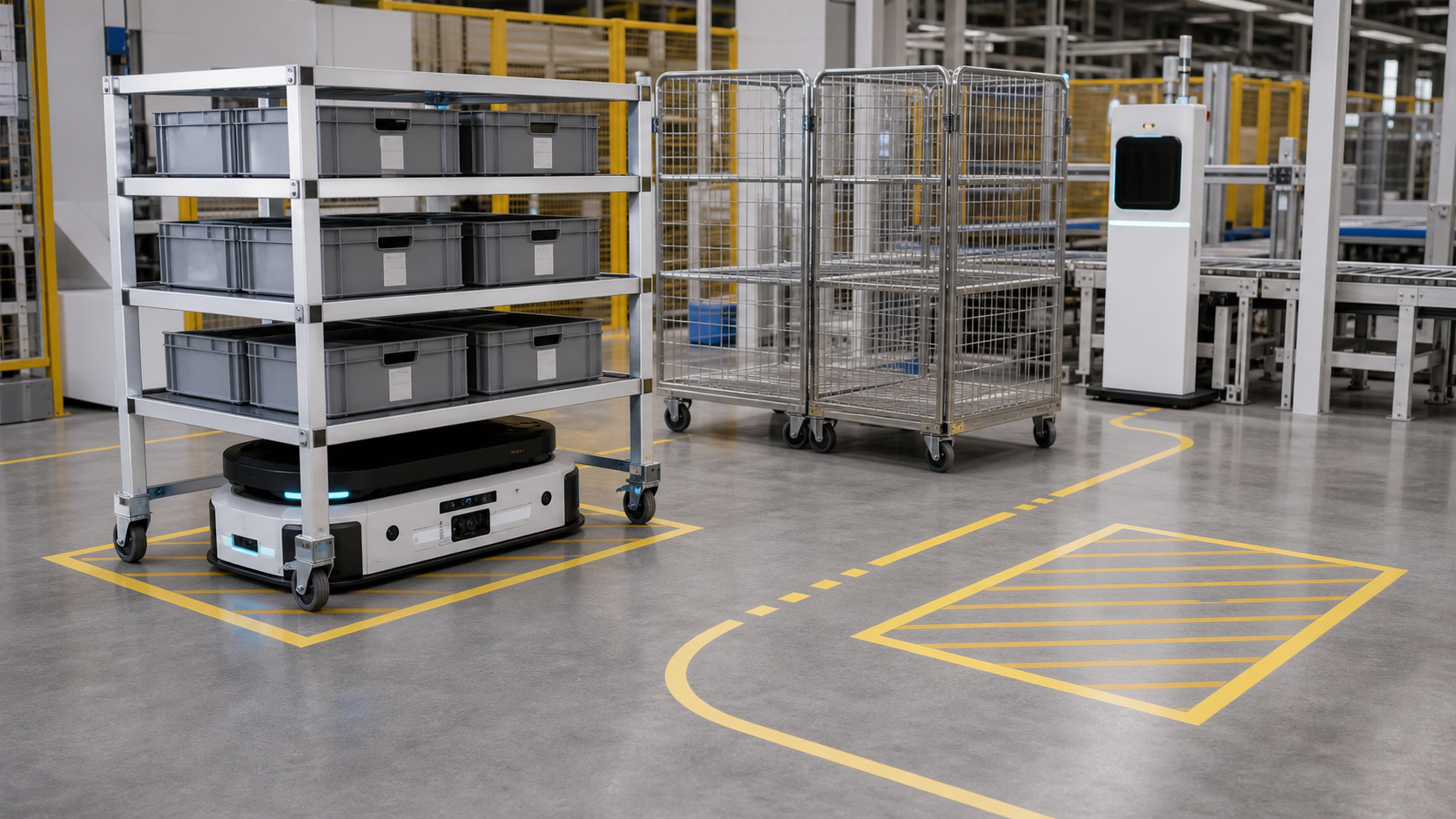

Figure 1: A latent lifting AMR securely supports a metal rack within a defined visibility corridor

A blockage is not necessarily a failure, but it needs a recovery action

Temporary obstructions are normal in a factory: empty roll cages awaiting return, packaging materials, mobile maintenance barriers, and short-term staging can all change a line of sight. If loss of the link simply leaves a robot stranded, the robot may occupy a main aisle and delay later tasks. A route with a marked waiting bay, a controlled deceleration segment, and a verified retreat point turns the same obstruction into a manageable task state.

The recovery logic should be simple and explicit. After a link is lost, the robot slows down and either completes a permitted short movement or retreats into a waiting bay. Once visibility is restored, it does not immediately resume full-speed travel; it first verifies carrier state, route occupancy, and receiving conditions at the next station. This makes the robot's behavior understandable to the people working around it.

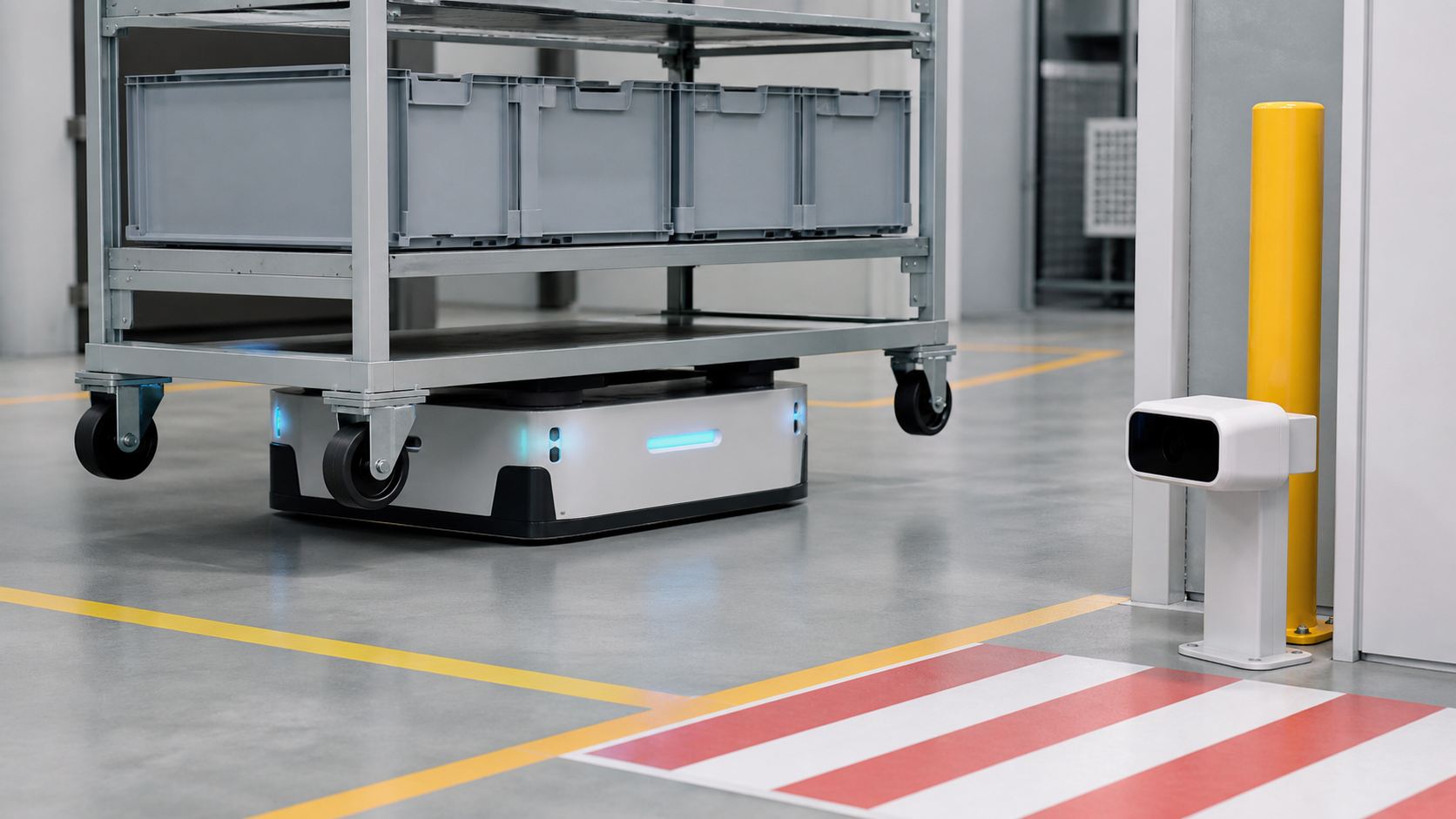

Figure 2: When temporary carriers block visibility, the AMR waits in a marked bay for revalidation

Put link verification into task execution, not only commissioning

Optical communication should not be validated only once at installation. Useful validation runs the actual task: Does the link remain clear with a loaded rack? What happens when another robot is waiting nearby? When a trolley or cleaner briefly crosses the corridor, does the system enter the correct wait-and-recover state? These tests check the condition that production will really create, rather than an ideal empty-path scenario.

The results should be recorded alongside the task states of the station. If the layout changes, rack height changes, or new equipment enters a waiting area, the record tells the team whether a recheck is needed and where the stopping point may need adjustment. That is more useful than discovering recurring, seemingly random link interruptions only after production starts.

Begin at critical stations and build rules that can be reused

For most factories, a practical starting point is one or two critical stations: a contained-cell entrance, a rack handoff between defined processing units, or an area where controlled communication is particularly valuable. Establish one repeatable rule set covering carrier envelope, visibility boundary, safe waiting position, exception recovery, and retest after changes before expanding to additional stations.

When the task model can state when a link is required, how the AMR exits safely when it is unavailable, and how it re-enters after confirmation, the optical link stops being just a network setting. For latent lifting, rack transfer, and controlled station handoffs, that is how point-to-point communication supports a stable logistics rhythm.
