Adding a second tote position behind the first one is often treated as a simple storage-density decision. For a CTU-based tote system, however, deep storage changes the operating conditions of every retrieval. A tote must be identifiable, reachable at the correct height, compatible with the handling mechanism, and able to travel back through a clear path. The first location, the aisle envelope, and the retract path become part of the task. A deep location can exist in inventory records while still being unavailable for a stable retrieval. That is why capacity alone is an incomplete planning metric. The practical metric is the access window: the set of conditions that makes a specific tote retrievable now.

Define the access window before the robot extends

A robust deep-storage task should be tested before the CTU begins its horizontal motion. Four checks are especially useful. First, verify that the tote dimensions, support surfaces, and load condition match the approved handling method. Second, confirm that the front position is empty or otherwise passable; a temporary carrier, a misplaced tote, or an overhanging item can close the path to the rear position. Third, validate the CTU's arrival pose against the rack geometry, including height, lateral position, and clearance from shelf beams. Fourth, reserve enough space for the loaded mechanism to retract. These checks turn a vague instruction such as retrieve from location B-2 into a controlled movement with known preconditions.

The front position is the entrance to the rear position

In a two-deep rack, the front location is not merely another inventory address. It is the physical approach corridor to the rear tote. Treating it as a binary occupied-or-empty field often hides the real situation. A better status model distinguishes empty, passable, restricted, and awaiting verification. A front location can appear empty but still be restricted by an improperly parked carrier, a protruding package, or a rack condition that reduces usable clearance. When this status is visible to the task logic, the system can choose a different tote, launch a clearing task, or hold the request safely. It avoids discovering the problem only after the CTU is already extended into the rack.

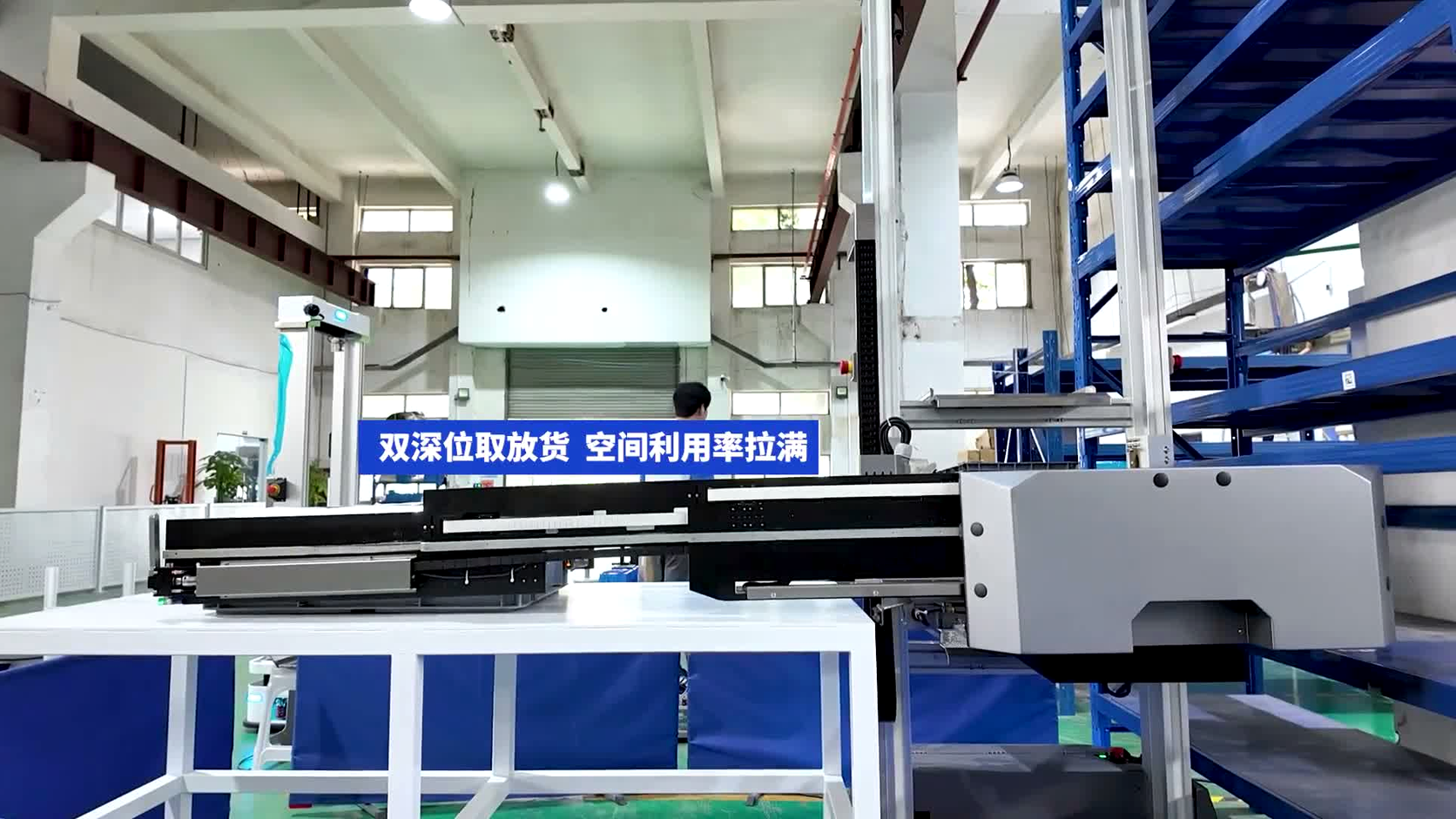

Figure 1: A double-deep CTU uses a horizontal telescopic mechanism to cross the front position

Retract clearance deserves its own design review

The most delicate part of a deep retrieval is frequently the return movement rather than the initial reach. Once the tote is secured, the combined envelope of the mechanism and load is larger than the empty CTU. Rack uprights, beams, adjacent carriers, protective structures, and aisle boundaries must all remain outside that envelope. The same is true at the handoff end of the move: the CTU needs a predictable place to lower or present the tote without forcing a sharp correction. Designing and monitoring the loaded retract path separately helps teams classify recurring events accurately, whether the source is front-slot occupancy, tote dimensional variation, pose error, or an obstructed exit.

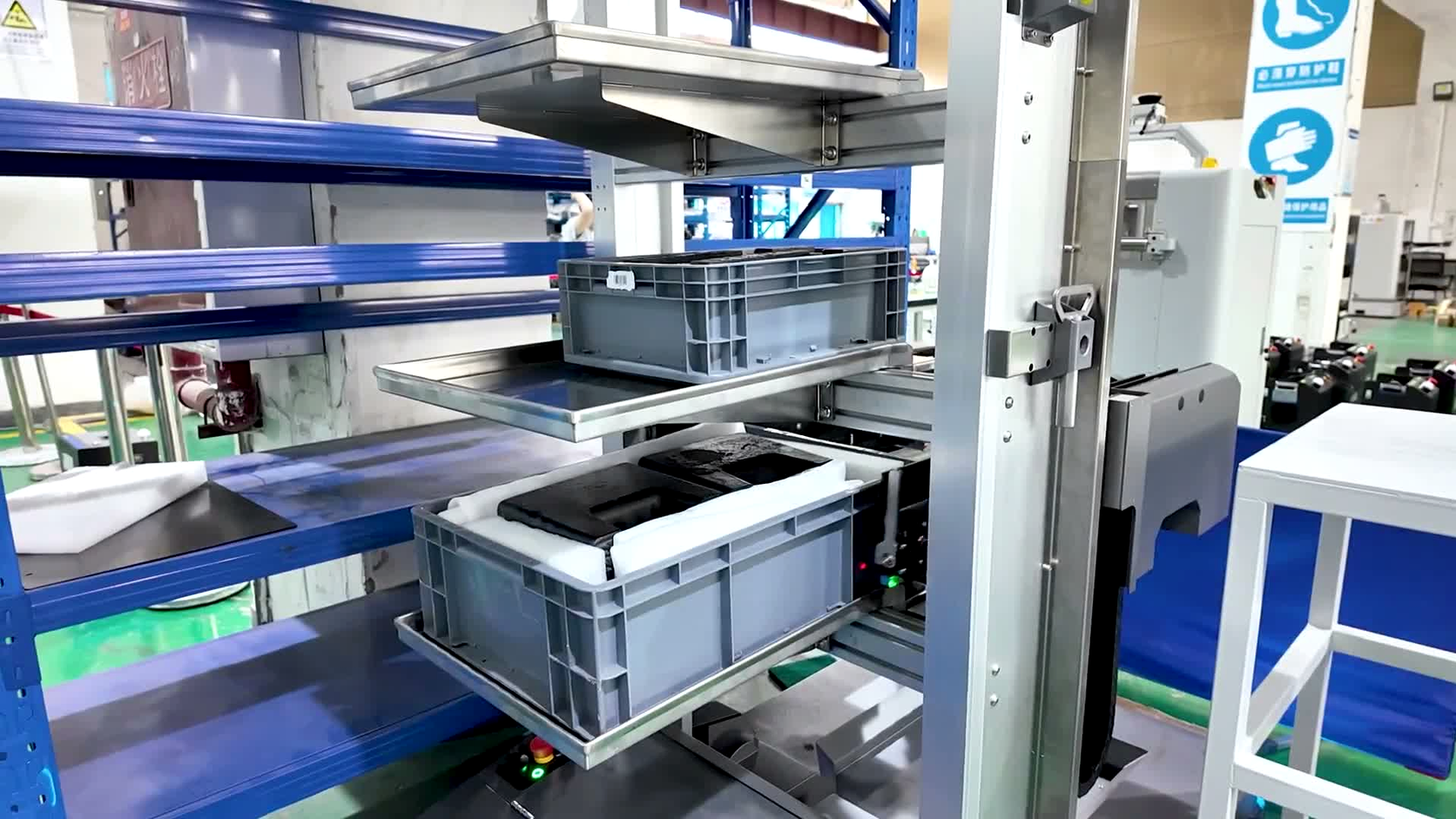

Figure 2: The tote remains fully supported on the CTU carrier during retract

Use storage policy to protect retrieval reliability

Deep locations are not necessarily the best home for every tote. Fast-moving items, time-sensitive line-side materials, and frequent single-tote requests benefit from easy access and short recovery paths. Deep storage can be more suitable for stable replenishment, batch movements, or items with predictable release patterns. The decision should combine demand history with tote geometry, usable front-slot status, and the ability to consolidate work. This is not a call to reserve every front location for fast movers. It is a call to make the storage policy aware of the mechanical reality that sits behind a location code.

Make exceptions visible instead of forcing retries

A mature operation gives the system safe alternatives when a retrieval window is not available. It may select an equivalent tote, create a front-slot clearing task, flag the rear tote for verification, or route the CTU to a defined waiting point. These actions preserve the integrity of the rack and the load while making the reason for the exception visible to operations and maintenance. The goal is not to make a robot persist through uncertain geometry. The goal is to let every deep-storage task proceed only when the carrier, rack, pose, and retract path support a predictable movement.

Deep storage works when every movement has a window

A deep tote rack delivers value when space efficiency and retrieval reliability are designed together. That means treating the front position as an access condition, validating the reach and retract envelope, and allowing task logic to act on real physical states. With that discipline, a CTU is not asked to solve every mismatch at the rack face. It is given the conditions to make a stable, repeatable move from the start.
