AMR Sensor Readiness: Why Clear Perception Belongs in Daily Operations

AMR Sensor Readiness: Why Clear Perception Belongs in Daily Operations

Clear perception is not a permanent condition

AMR navigation, obstacle detection, and docking depend on continuous, usable perception. A sensor that performs well in a controlled test area can face a very different reality in machining, packaging, warehousing, or cross-temperature material flow: fine dust, oil mist, condensation, reflective surfaces, splash, and repeated washdown activity. The operational question is not simply whether a sensor is installed. It is whether the robot can still perceive its working environment reliably at the start of every shift, along every route, and before every critical movement. When that distinction is ignored, intermittent slowdowns, repeated stops, and unnecessary rerouting are often blamed on scheduling instead of perception readiness.

Separate contamination, obstruction, and environmental change

Sensor readiness becomes easier to manage when the risks are classified. The first class is surface contamination, such as fine powder, oil film, or moisture on a sensing window. These conditions can gradually reduce usable sensing margin. The second is external obstruction: a newly placed rack, temporary barrier, loose guard, or a load carrier that extends beyond its allowed envelope. The third is a change in the environment itself, such as wet flooring, highly reflective material entering an aisle, or a process machine changing local lighting and airflow. The corrective actions differ, but the three conditions belong in one daily inspection and event-recording practice.

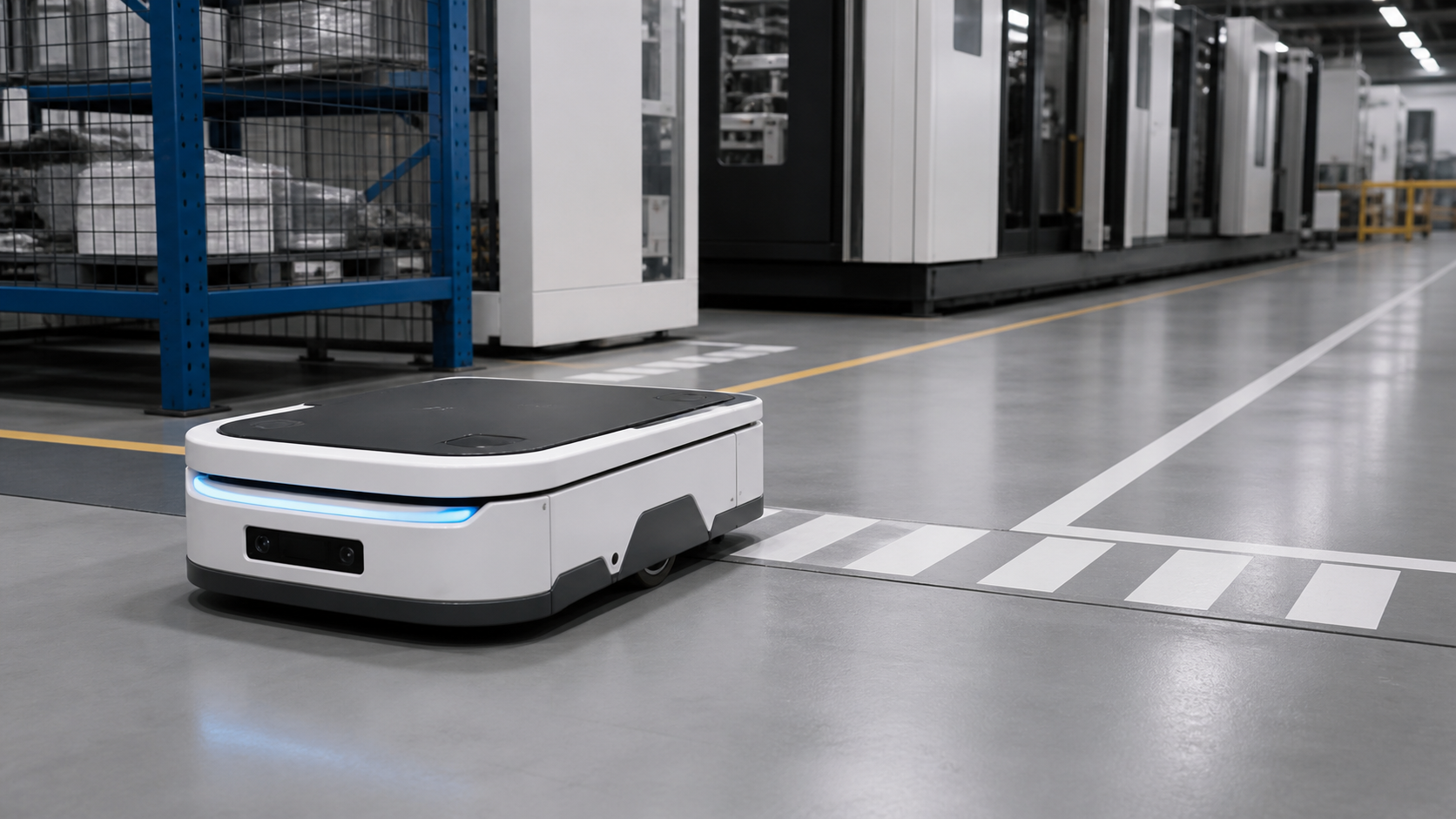

Figure 1: An AMR performs a controlled sensing check before entering a critical aisle

Make critical routes perception-aware tasks

Not every route needs the same level of verification. Human-and-robot shared areas, equipment doorways, narrow aisles, precision docking points, and handoffs for high-value materials are more sensitive to perception quality. These areas benefit from explicit entry conditions: the sensing state is normal, the target space is clear, and speed and safety-zone settings match the task. If confidence drops, the preferred response is to slow down, pause for verification, or move to a safe waiting point—not to let the AMR continue with unresolved uncertainty. In this way, perception quality becomes part of task design rather than a hidden equipment parameter.

Inspection is more than an occasional wipe

Useful maintenance must match the site’s contamination mechanism. In dusty corridors, teams need a clear inspection interval, a cleaning method that does not scratch the sensing surface, and a check that no residue remains. In areas exposed to oil mist or condensation, temperature and humidity changes, equipment exhaust, and the timing of entry all matter. The key is to turn inspection into a repeatable operating rhythm: a pre-shift check, a verification after an exception, a targeted check after an environmental change, and, where appropriate, a fixed inspection point. The controlled check location shown in Figure 2 is valuable because it gives the activity a defined time, place, and outcome.

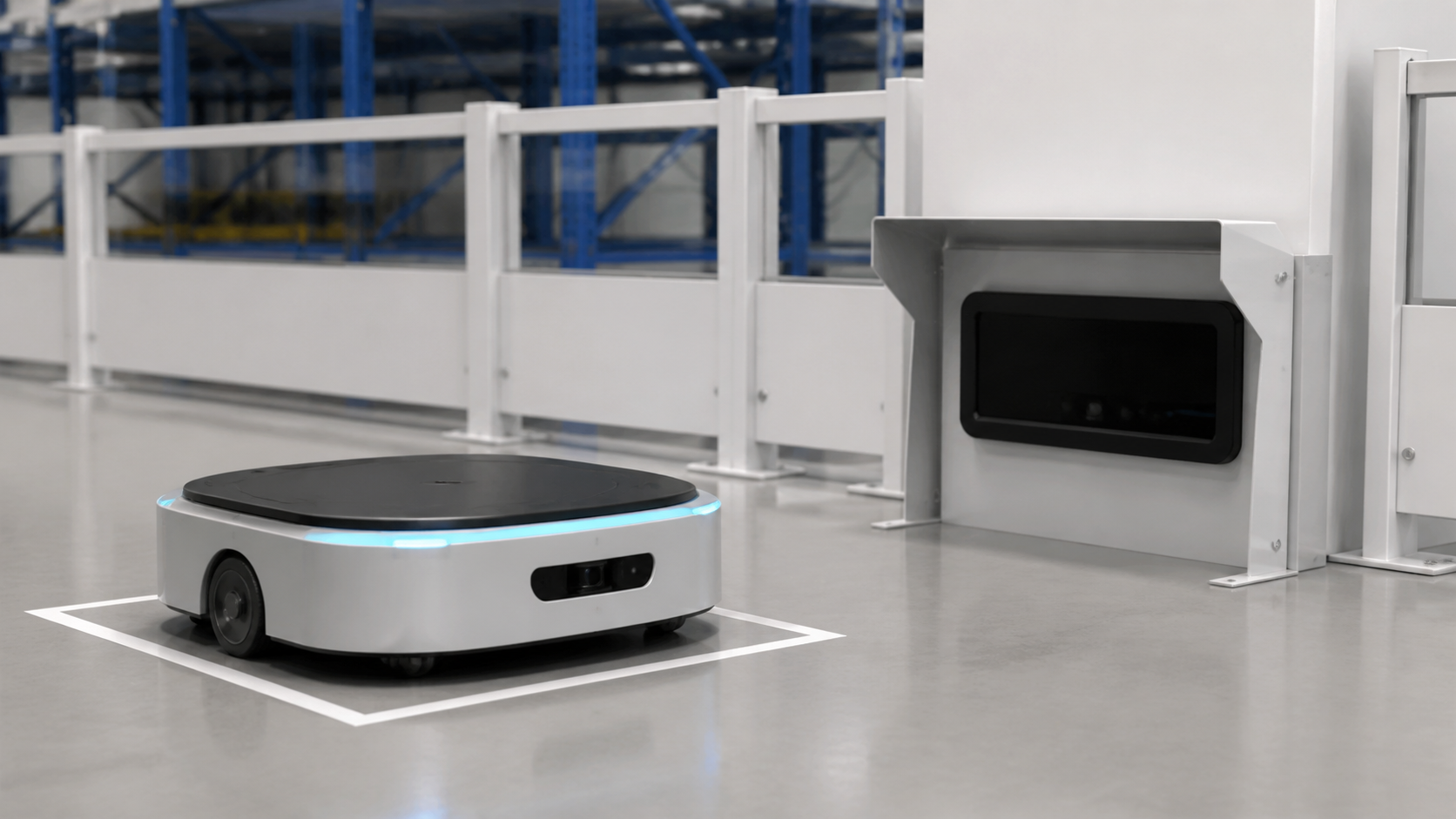

Figure 2: A fixed inspection point gives sensor readiness a defined time and outcome

Use event data to find the real weak points

Sensor readiness should also be reviewed through operations data. The most useful records do not have to be elaborate. They can capture which robot, route, and shift experienced a protective stop, low-speed mode, repeated localization attempt, or manual cleaning; and whether dust, oil mist, wet flooring, or temporary obstruction was present nearby. Over time, those records distinguish isolated incidents from repeatable patterns. Improvements can then be assigned to corridor housekeeping, process isolation, inspection rhythm, routing rules, or physical protection. Reliable intralogistics does not mean that the environment never changes. It means that change is detected early, handled safely, and made less likely to recur.

Treat sensing state as an operating condition

An AMR creates value not only by moving autonomously, but by behaving predictably in a changing industrial environment. Bringing sensor windows, environmental obstructions, and perception margin on critical routes into daily operations helps maintenance move from reactive troubleshooting to proactive control. When cleaning, inspection, task degradation, and event review work together, the robot does more than travel from point to point. It completes each material movement with a more stable and controlled operating basis.

Design the environment around the sensor

Sensor readiness is not owned by the robot alone. A durable solution often involves small changes in the surrounding process: keeping dusty activities away from a narrow passage where the AMR must make a precise decision, locating cleaning or air-blow activities so they do not create a new temporary obstruction, and defining where temporary materials may be staged. Protective features also need to be reviewed as a system. A guard that protects a sensor window but makes routine cleaning difficult can create a different maintenance risk. The best design is usually the one that gives the sensor a clear field of view, keeps the servicing action simple, and makes abnormal conditions visible before they affect a critical task.

Give operations and maintenance a shared language

Many recurring AMR incidents sit between operational and maintenance responsibilities. Operators see an unexpected stop; maintenance teams see a clean sensor after the event has passed; process owners may not know that a temporary change affected a high-risk aisle. A short shared checklist reduces that gap. It can define what counts as a perception-related exception, which observations are required, when the robot may return to service, and who reviews repeated cases. This is not extra bureaucracy. It gives teams a practical way to convert scattered symptoms into improvements that protect throughput, safety, and equipment availability at the same time.
