When a Rack Moves a Few Centimeters: Why Robots Need Geometric Slot Validation

When a Rack Moves a Few Centimeters: Why Robots Need Geometric Slot Validation

A Slot Is Not Just a Coordinate

Warehouse automation usually represents a rack location as a stable coordinate. The robot knows where to travel, how high to lift, and from which direction to approach a pallet. That model is necessary, but it is not the whole operating reality. Rack uprights can shift slightly after an impact. A protective guard may be replaced. A beam can be re-secured after maintenance. Floor settlement, a pallet that is not fully seated, or a load that overhangs its carrier can also change the usable opening by a few centimeters.

A skilled driver may absorb small changes through observation and experience. An autonomous vehicle should not be expected to do that implicitly. For a robot, an entry that was valid in the original map may no longer be valid in the live aisle. Reliable putaway and retrieval therefore require more than a location ID. They require confirmation that the slot is still a usable geometric space at the moment an action is about to begin.

This distinction is especially important in facilities that run many repeatable moves across long operating windows. A small physical change can propagate into recurring retries, delayed replenishment, and avoidable operator intervention if the system treats its original geometry as permanently true.

That means considering the current positions of uprights and beams, clearance below the beam, the pallet opening, the outside dimensions of the load, and the vehicle's own mast, forks, turning envelope, and stopping distance. A task should move from travel to contact only when these relationships are within an approved envelope.

Validate Before Contact, Not After an Exception

The most useful moment for geometric slot validation is before the forks enter a pallet, not after an unexpected contact or a failed lift. During the final approach, a robot can use vision, lidar, or a fused sensor view to establish a local reference. It can compare observed rack geometry with the task model: are the uprights where they are expected, is a beam occupying the required clearance, is the pallet seated correctly, and does the visible load remain inside its permitted outline?

This does not require turning every aisle into a metrology project. The purpose is practical: give the next motion a trustworthy set of boundaries. When the check passes, the vehicle can proceed to alignment, lifting, and fork insertion. When the difference is small, it may slow down, resample, or make a limited correction to its approach. When the difference exceeds an approved recovery range, it should stop in a safe waiting position and create an actionable review event rather than repeatedly attempting the same motion.

Moving the decision upstream changes the character of the problem. The system discovers uncertainty while it is still observing, not when the load is already in contact with a rack or a fork. That protects equipment and goods, while producing an event record that explains why a task was delayed.

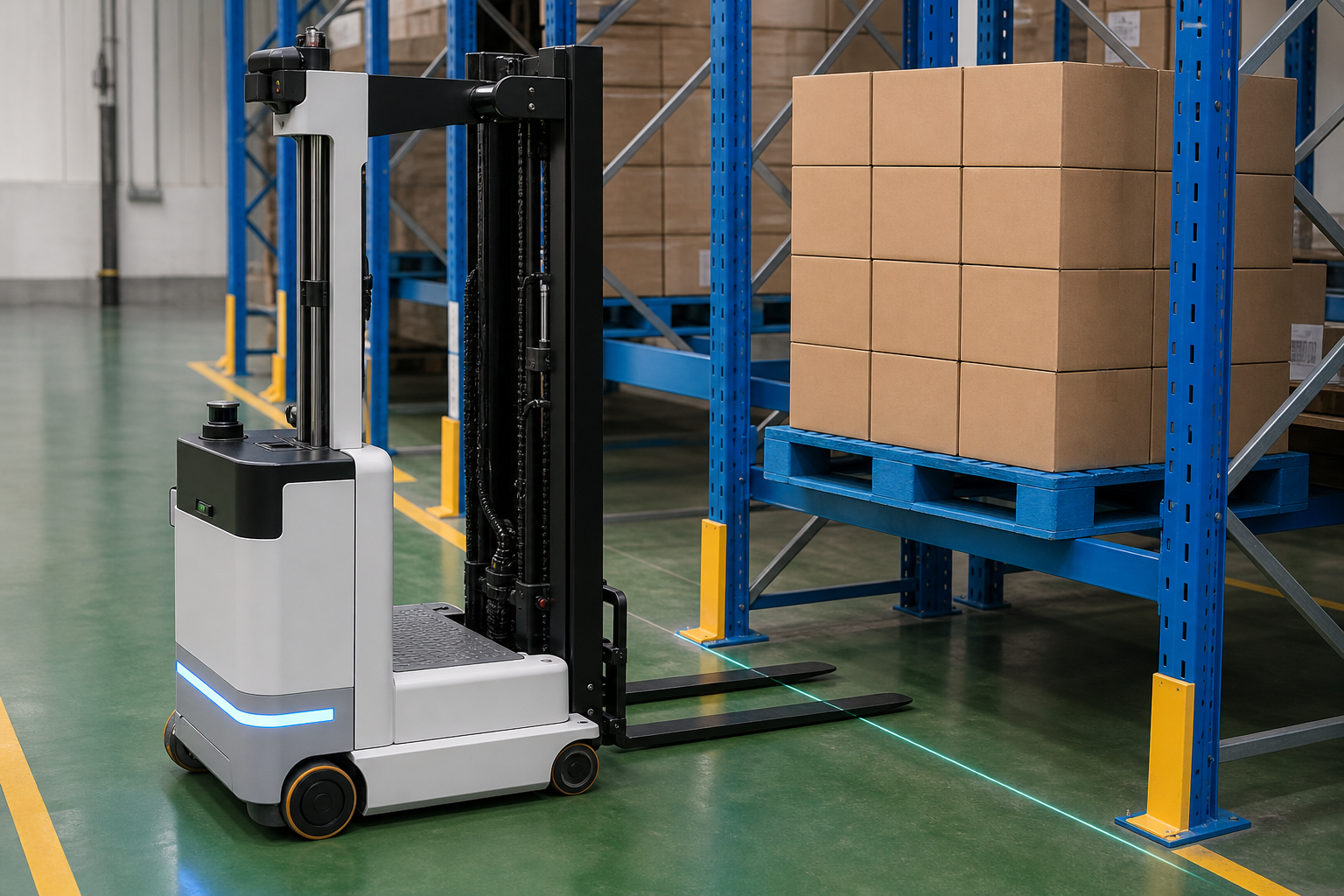

Figure 1: An autonomous forklift validates rack, pallet, and entry clearance before fork insertion

Tolerance Must Follow the Task and the Carrier

Not every small displacement should trigger the same response. An empty pallet, a tall loaded pallet, a thin fixture, and a deformable tote have very different sensitivity to clearance and fork posture. Lighting, occlusion, and structural stiffness can also differ between rack levels. A single global threshold is likely to fail in one of two ways: it either blocks too many normal moves or allows meaningful geometric change to pass unnoticed.

A stronger operating model classifies outcomes such as proceed, recheck, and do not execute, then ties those outcomes to the carrier, load, slot, and movement type. An empty pallet may be eligible for one slow re-sampling attempt. A high-center-of-gravity load should not be repeatedly probed. A low, open, well-lit location may permit a small approach correction, while a high-level or narrow-aisle task with uncertain load geometry should move directly to human confirmation.

The goal is not to minimize pauses at all costs. It is to make every continued motion conditional on evidence that is appropriate for that motion. This is a more useful definition of autonomy in a working warehouse: the system knows when it has enough certainty to proceed and when it does not.

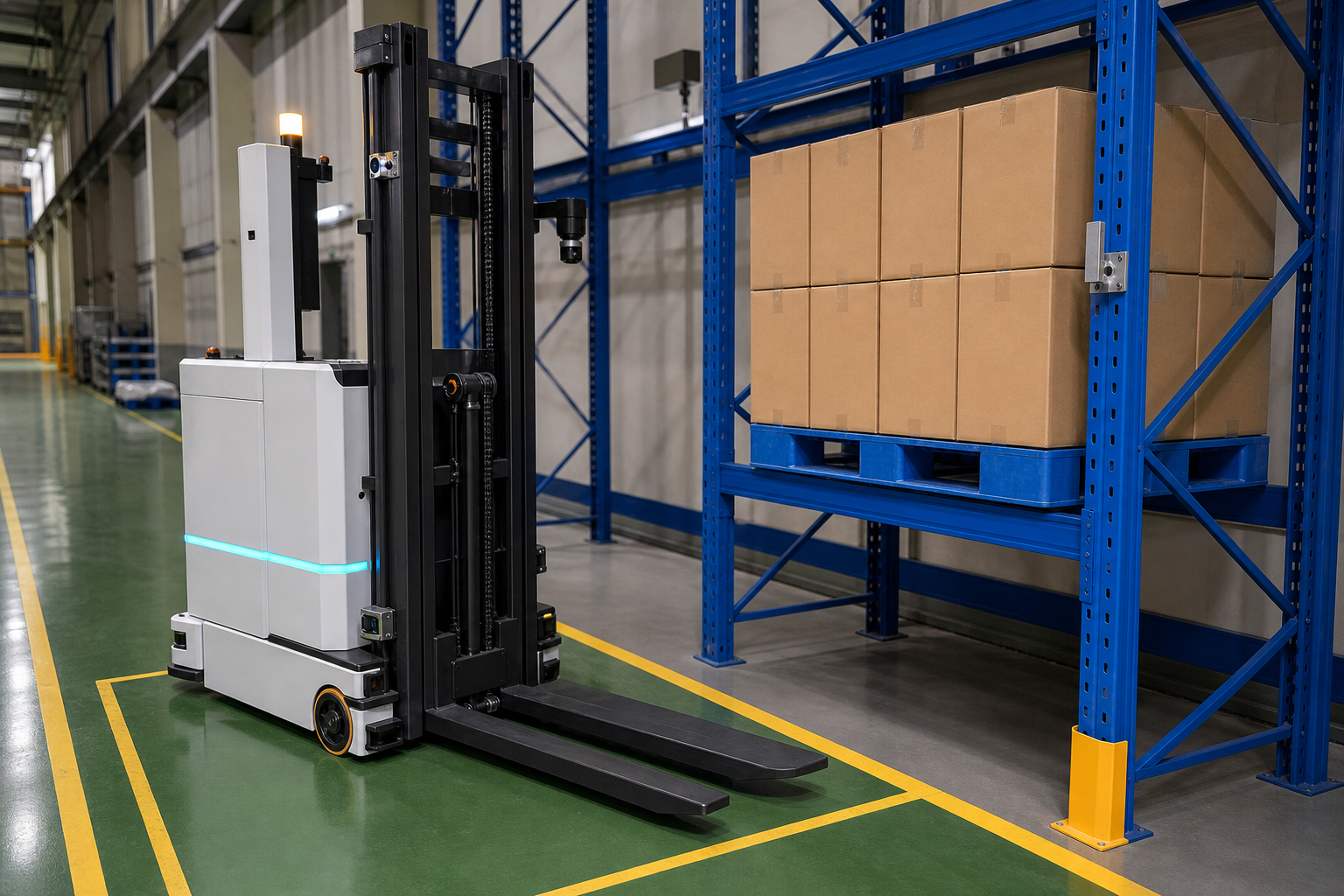

Figure 2: When deviation exceeds the approved range, the robot waits safely for review

Turn Individual Stops into Rack Governance

Geometric validation has limited value if it remains a collection of isolated vehicle alarms. The more useful output is a pattern across space and time. Does one location repeatedly produce a lateral offset? Did a group of locations begin failing after maintenance? Does a specific pallet type create recurring outline exceptions in one zone? These questions convert a single task interruption into an input for rack inspection, carrier improvement, route policy, and preventive maintenance.

This also changes how automation performance should be evaluated. Acceptance should not stop at proving that a robot can complete one nominal putaway. The system should also show that when live geometry changes, it detects the condition safely, classifies it correctly, follows the right recovery path, and preserves a traceable event. Those are the behaviors that help operations teams manage a warehouse after the launch team has left.

For Chengdu Heli Intelligent, this perspective aligns mobile robotics with the realities of industrial material flow: vehicles must not simply reach a coordinate. They must make sound, repeatable decisions at the physical boundary of each task. When a robot verifies the real slot before it enters, warehouse efficiency rests on a condition that can be observed, explained, and improved.
