AMRs During Changeovers: Manage Temporary Zones and In-Transit Materials Together

AMRs During Changeovers: Manage Temporary Zones and In-Transit Materials Together

A production-line changeover alters much more than an AMR route. Fixtures move, guards are reconfigured, receiving tables change height or orientation, and a drop-off point that was valid ten minutes ago may no longer be ready. If the fleet only receives a reroute instruction, an AMR can still bring an in-transit load to a station that cannot safely accept it.

That is why changeover control should be treated as a logistics state transition, not a navigation exception. Temporary exclusion zones, in-transit loads, receiving-station readiness, and recovery order need to operate within one coordinated rule set.

A Changeover Changes Site State, Not Just the Map

When a line enters changeover, four operational conditions often change at once: whether a travel area is safe, whether a station can receive, whether a carrier or fixture is still identifiable, and whether a task can finish within its planned operating window. Updating a no-go polygon alone does not answer the harder questions: where should an AMR that has already departed go, and when does a load count as truly handed over?

A practical approach is to model the changeover as a set of readable site states. A zone can move from normal operation to draining and then to frozen. A station can move from accepting to pending verification. A carrier can move from deliverable to controlled staging. Dispatch decisions can then be made against those states instead of relying on improvised judgment at the line.

Build a Logistics Boundary Around the Changeover Window

Before physical reconfiguration begins, define a logistics boundary that matches the work area. For AMRs, that boundary is more than a place they cannot enter. It should also include a verified temporary holding bay and a route that remains safe for exit. The fleet can then finish nearby work at a known safe location instead of waiting repeatedly at the edge of a changing area.

An executable window commonly has three modes: normal, draining, and frozen. In draining mode, no new tasks are assigned to the affected destination. Tasks already in motion may proceed only to a verified holding position or an unaffected safe endpoint. In frozen mode, every entry request is rejected or redirected. The state change should happen before the physical work starts, leaving enough time to clear the area.

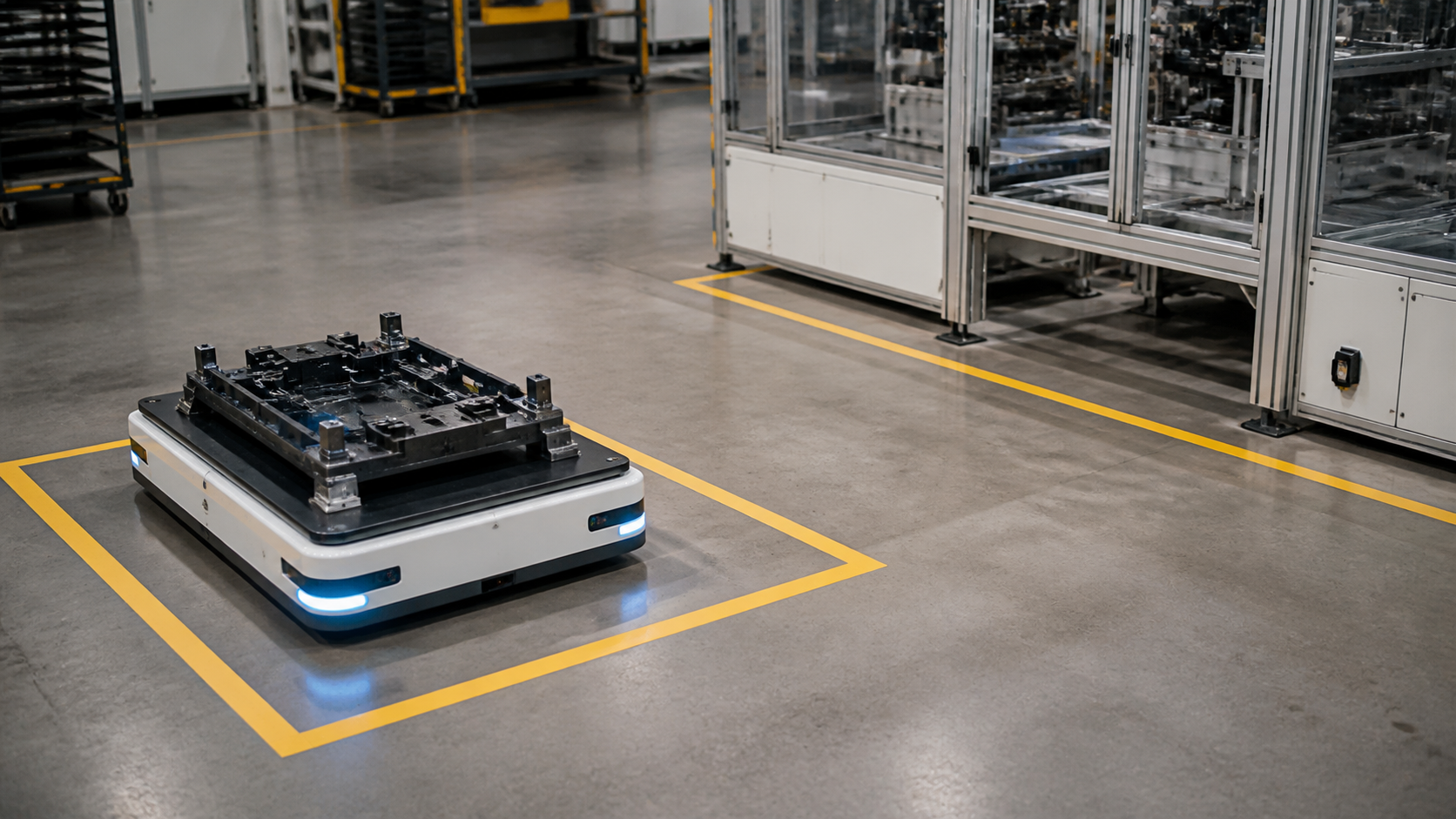

Figure 1: A verified temporary holding bay keeps fixtures outside the changeover area

Do Not Reduce an In-Transit Load to Continue or Cancel

The most easily overlooked object during a changeover is the load that has left its origin but has not completed its handoff. Cancelling its task does not remove the physical risk. A fixture on a flatbed AMR still needs a stable resting place, while the system must preserve its identity, orientation, destination version, and carrying state.

Predefine three outcomes for these tasks: continue to an unaffected safe station, enter controlled temporary staging until the new station is confirmed, or return to origin or to a nominated recovery point by an approved path. The decision should consider more than distance. It should also check whether the carrier may be staged, whether fixture orientation can be preserved, whether the next operation depends on the load, and whether the redirected route crosses a new risk boundary.

Give the New Station Receiving Qualification Before Releasing Work

A completed changeover does not mean logistics can restart immediately. The new receiving point needs basic qualification: its height must match the carrier interface, its locating datum must be available, its safety zone must be released, and the load orientation must suit the next operation. For a flatbed AMR, the fixture should remain reliably supported by the platform and guide features. Until the receiving table is confirmed, the fleet should not mistake arrival for delivery.

Turning those checks into a receiving qualification gives recovery a clear sequence. Dispatch releases a task type only after the station moves from pending verification to ready. If a first-load check fails, the task returns to staging or controlled review instead of accumulating in front of the new station.

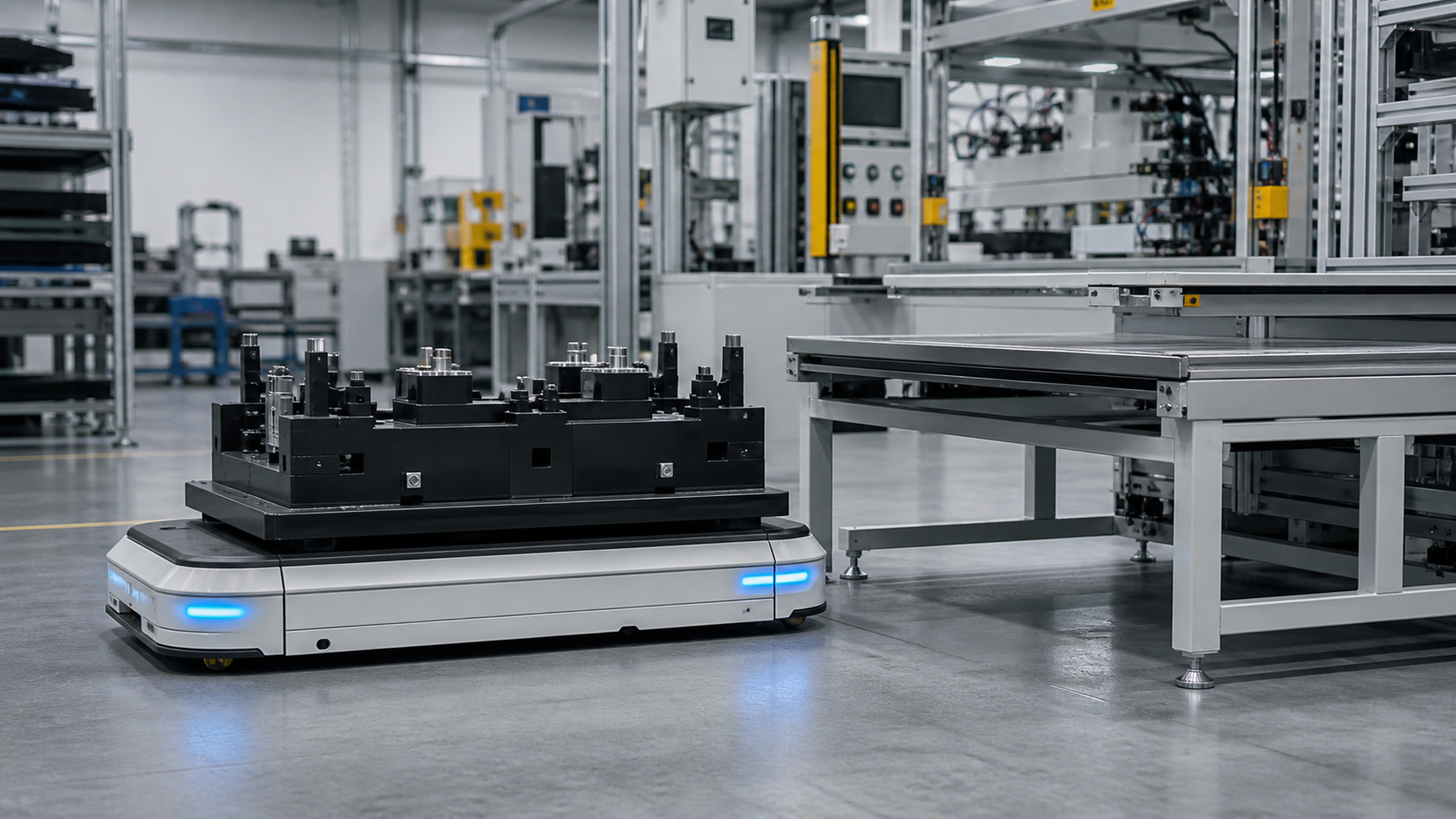

Figure 2: A receiving station must be qualified before a fixture handoff is released

Treat the First Recovered Tasks as Verification Tasks

The first tasks after a changeover should not be asked to prove full throughput. Start by limiting task type, route, and station count. Verify a move from staging into the new zone, alignment at the station, and handoff confirmation before releasing the next batch. This exposes small but material deviations in travel boundaries, wait time, fixture orientation, receiving height, and scanning logic.

Capture the evidence: zone-state version, task creation and redirection reason, actual stop position, receiving-qualification result, exception code, and recovery time. These records are not administrative overhead. They become reusable rules for the next changeover.

Make Temporary Control a Repeatable Capability

Manufacturing sites will continue to change lines, fixtures, and stations. A mature AMR deployment does not assume the site remains static. It knows when to stop dispatching, how to place an in-transit load safely, when a new station may receive, and how to return to a safe state when something is not ready. By turning those rules into zone templates, staging policies, and recovery checklists, a fleet can keep intralogistics predictable even while the production line changes.

The value of this approach is operational clarity. Production, maintenance, and logistics teams can work from the same changeover window: which zone is draining, which carrier is staged, which station is qualified, and which recovery step is next. That shared state helps prevent a short equipment adjustment from becoming an avoidable material-flow interruption.
