Roller Conveyor AGVs at Packaging Lines: Control the Handoff Window

Roller Conveyor AGVs at Packaging Lines: Control the Handoff Window

At the end of a packaging line, a carton may be sealed, labeled, and cleared by the upstream process, yet still have nowhere safe to go. The downstream conveyor may be processing earlier cartons, a sortation branch may be changing mode, or a palletizing buffer may be temporarily unavailable. If a roller conveyor AGV receives a transport order and transfers immediately on arrival, a small handoff point can quickly become a source of line-wide variability.

That is why the role of a roller conveyor AGV is more than moving cartons between locations. It can turn the question of when a carton may transfer into an explicit operating capability. The goal is not to keep rollers turning at all times. It is to make every roller movement happen inside a handoff window in which both sides are ready.

1. Packaging Complete Does Not Mean Ready for the Main Line

A finished carton has satisfied the release conditions of the packaging process. It has not necessarily satisfied the receiving conditions of the next process. A downstream lane may have no free zone, a destination module may be in a changeover state, or a palletizer may be committed to a different pattern. Treating these conditions as a single “pick and deliver” command creates uncontrolled queues at the station: some cartons occupy an AGV, some occupy a buffer, and others enter the line before the line can absorb them.

A more resilient design separates end-of-line movement into two decisions. First, confirm that the carton is ready to be transported. Then confirm that the target position is ready to receive it. The first decision concerns carton condition, readable identification, and physical dimensions. The second concerns conveyor availability, downstream permission, safety interlocks, and the ability to release the carton after arrival. A true handoff window exists only when both conditions are true.

2. Define the States That Make a Handoff Window Usable

The operating model does not need excessive complexity, but it needs states that machines and operators can interpret in the same way. For a roller conveyor AGV, the window should normally establish whether the target has been reserved, whether the receiving conveyor is empty and permitted to run, whether the AGV has accurately docked, whether the carton is stable and supported correctly, and whether the target can confirm receipt after the carton leaves the AGV.

In mixed-carton environments, short production runs, or layouts where two packaging lines share downstream equipment, the window should also specify which carton types or task classes are allowed into the destination. This prevents a carton that is oversized, awaiting label verification, or assigned to inspection from being pushed into the normal flow. Making that decision before transfer is usually far easier to recover from than an emergency intervention on the main line.

3. Roll Only When Both Sides Are Ready

A roller transfer is not merely a mechanical contact. It is a sequence with a defined order. The AGV enters a waiting position near the station. After the destination issues a receiving permission, the robot verifies its docking position. Both sides enter an interlocked state, and only then do the rollers start. During transfer, the system should confirm that the carton is actually moving rather than treating a start command as proof of success. The destination confirms receipt only after the carton is fully inside its boundary, and the AGV then releases the station and proceeds to its next task.

This sequence separates arrival from successful transfer. Arrival is a robot-position event; successful transfer is a change in material custody and processing responsibility. That distinction helps an operator understand who currently holds a carton, why it is waiting, and for how long. It also prevents one side from stopping while the other continues to drive, which can create carton pressure, roller slip, or idle motion.

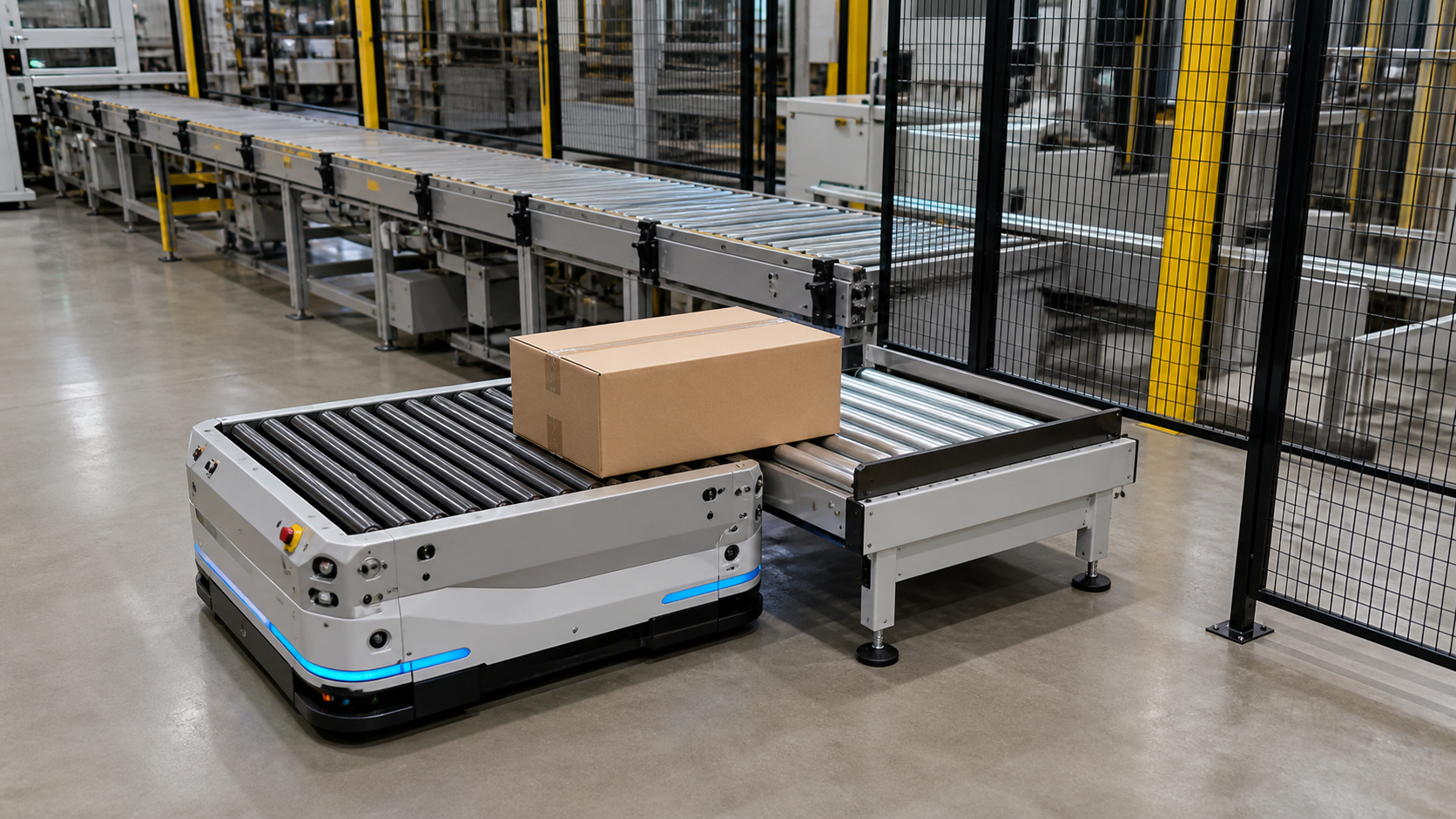

Figure 1: The roller conveyor AGV waits at a defined handoff position until receiving permission is issued

4. Keep Exceptions Out of the Normal Rhythm

The difficult cartons are usually not the normal ones. They are the cartons with unreadable labels, out-of-tolerance dimensions, weight anomalies, changed destinations, or a downstream stop. When an exception carton remains on the normal route, the main line is forced to wait for an object with an unknown recovery time. A more practical design assigns a dedicated short-term inspection or recovery buffer. When the target cannot receive, the AGV delivers the carton to this controlled position while retaining the original task context, reason code, and carton state.

The purpose is not simply to add a bypass. It is to confine uncertainty to a visible and manageable area. Normal cartons continue through available windows, while exception cartons wait for manual review, reassignment, or downstream recovery. In a tightly paced packaging area, this type of separation is often more effective than making every connected device wait for the same uncertain event.

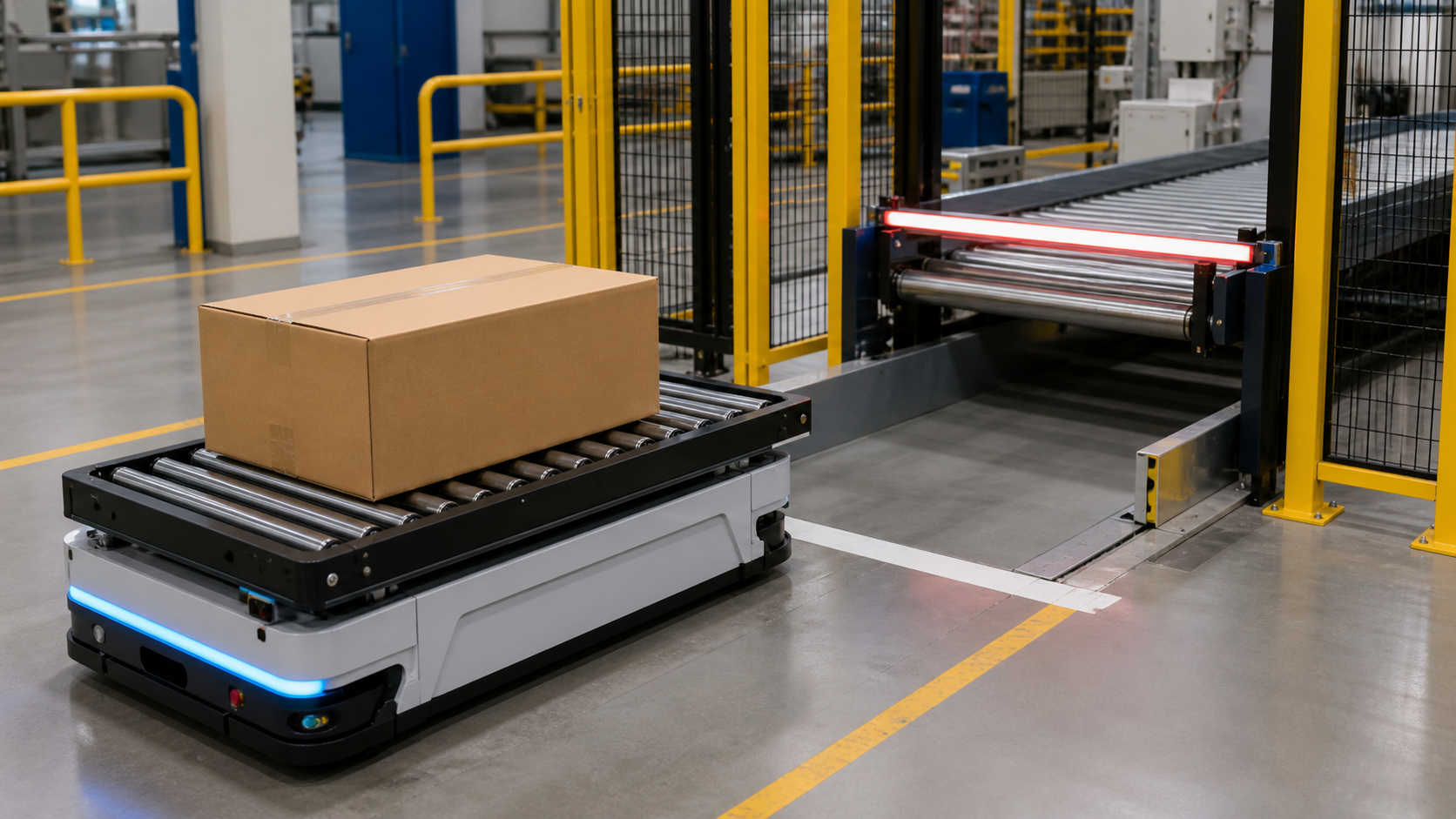

Figure 2: An exception carton is directed to a dedicated roller buffer instead of occupying the main packaging flow

5. Use Events to Improve the Last Ten Meters

Once the system is running, the most useful data is often not the total number of deliveries. It is the evidence of which window was occupied, why it did not open, and how the condition recovered. Useful events include arrival wait time, receiving-permission delay, roller-transfer duration, failed retries, exception-diversion reasons, and buffer dwell time. Over time, these records help distinguish whether a constraint comes from downstream capacity, unclear carton rules, or an unstable station signal.

For packaging operations, dependable flow does not come from maximizing the appearance of speed at the transfer point. It comes from defining receiving conditions, action order, and exception destinations before demand variation or equipment changes force the issue. With a controlled handoff window, roller conveyor AGVs can help make the last meters of packaging logistics more predictable, observable, and easier to recover.
