In assembly operations, a fixture is not just another load. It may carry datums, locating pins, clamps, a part nest, and the history of the previous operation. If it reaches a workstation on time but in the wrong orientation, with a clamp unreleased or a locating feature missing, the line cannot safely begin the next cycle. That is why AMR fixture delivery should be designed around assembly readiness, not simply transport completion.

The distinction changes the handoff between intralogistics and manufacturing engineering. The AMR brings the fixture to the right place at the right time. The fixture, receiving station, and control logic together prove that it has arrived in the right condition. When those responsibilities are connected, mobile robots can support a repeatable rhythm instead of moving a manual inspection step to the front of the line.

1. A delivered fixture is not necessarily an available fixture

A tote is commonly described by quantity, lot, and destination. An assembly fixture carries additional geometric and process attributes. Its datum surfaces, pins, clamp state, load orientation, and residual-part condition can all affect the next operation. If those attributes exist only in an operator’s memory, higher delivery frequency can concentrate more uncertainty at the workstation.

A practical first step is to define the minimum assembly-ready state. The fixture identity must match the order. Its direction and reference surfaces must be correct. Critical locating elements must be present. Clamps must be in the permitted state. The fixture must not carry an unintended part, and the destination station must have released a receiving position. The list does not need to be long; it does need to be recognizable on the floor, recorded by the system, and able to stop a task when a condition is not met.

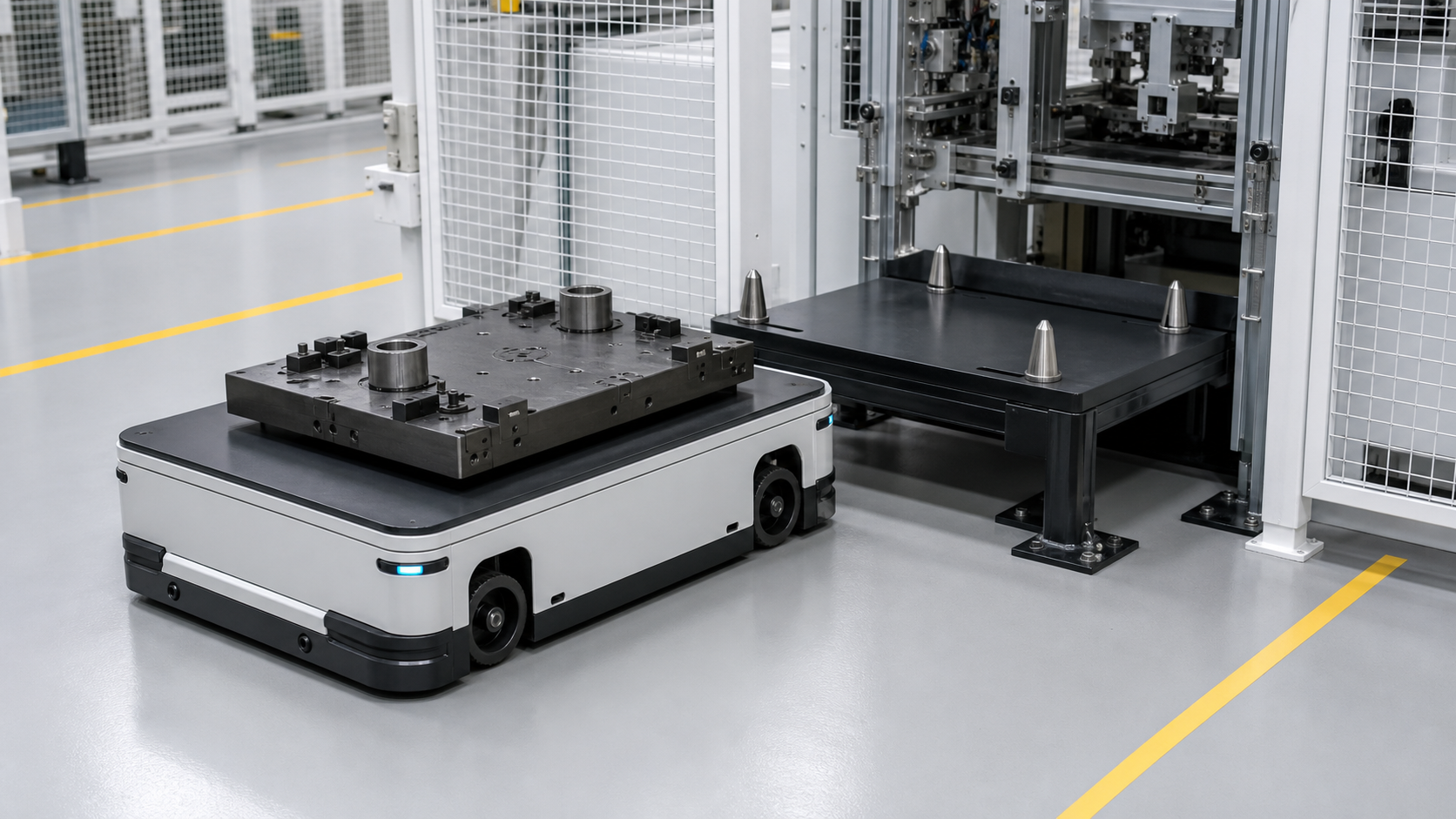

Figure 1: A flatbed AMR waits at a fixture receiving table with a defined space for alignment and handoff verification

2. Model the fixture as a manufacturing object with state

The scalable approach is a state card for each fixture family, not an ID alone. It can describe the required orientation, the pins that must be present, when a clamp may open, and which stations may receive the fixture. The AMR dispatch is then no longer a generic instruction to move a tool. It becomes a process-logistics task with entry conditions and a verifiable completion condition.

This does not require a sensor-heavy design everywhere. Complex or high-value fixtures can combine datum features, mechanical poka-yoke, protected status switches, and targeted vision checks. Stable, repetitive fixtures may need only clear locating geometry and a station confirmation. The critical design choice is whether the result can drive one of three actions: release for handoff, hold for review, or return to a controlled buffer.

3. Turn geometric alignment into a process condition

The final distance between an AMR and a receiving station is often where an otherwise good concept becomes fragile. Guide features, locating cones, support faces, and safety clearances should be designed together with the fixture base and datums. After the AMR stops in its allowed position window, the station can receive the fixture. Only when the fixture is fully supported and the required clamp conditions are satisfied should the robot withdraw or the equipment start.

The goal is not to demand unrealistic positioning precision from the robot. It is to define a manageable boundary for normal variation. For large fixtures or asymmetric loads, the bearing sequence among the AMR deck, fixture supports, and station support faces must be explicit. A handoff should not rely on an impact or a vague “close enough” contact that introduces side loads and downstream assembly error.

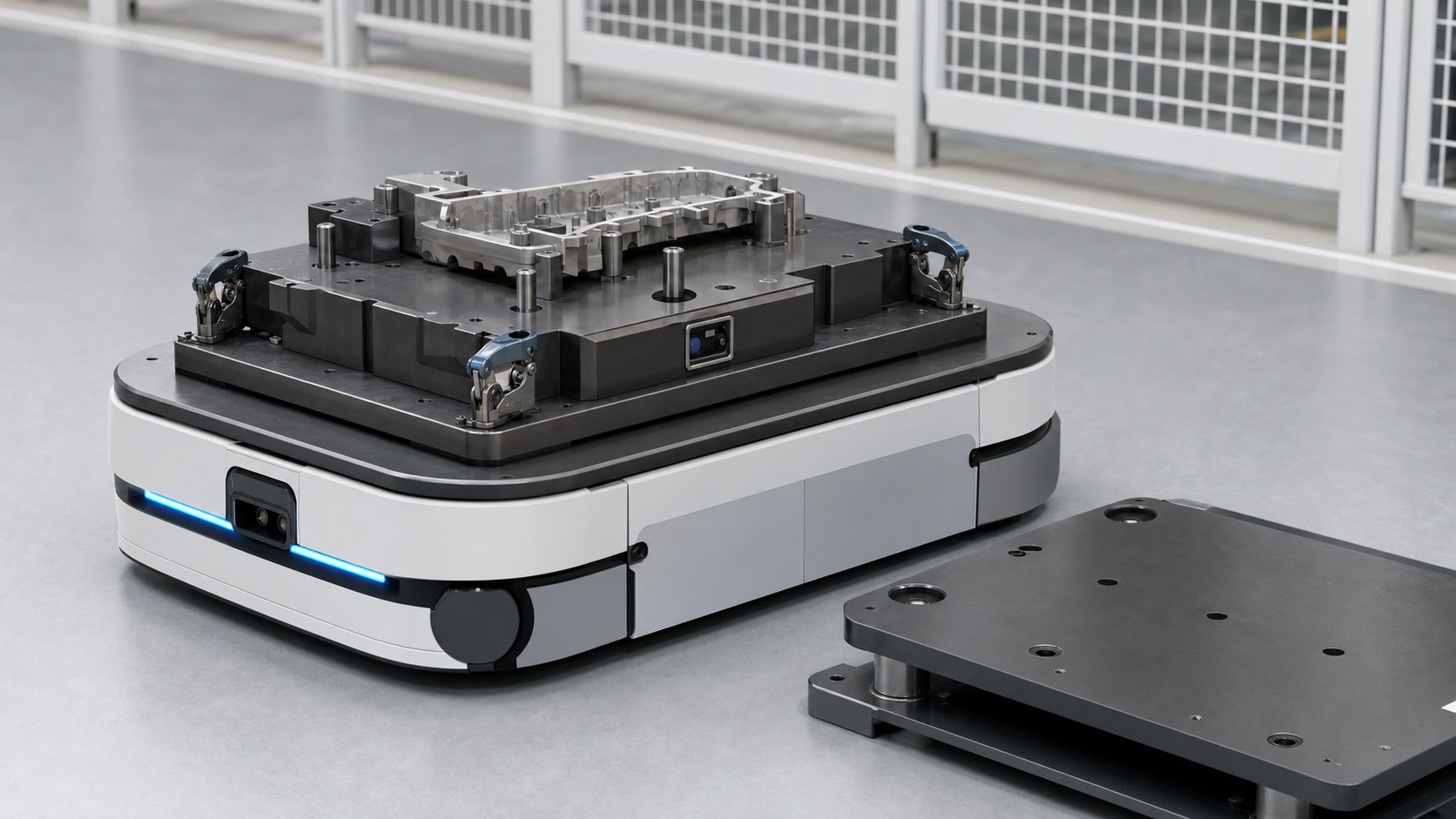

Figure 2: Locating pins, clamps, and bearing datums should be verified before a fixture leaves its controlled staging position

4. Keep exceptions out of the main takt

When orientation, clamp state, or station availability is wrong, repeatedly trying to complete the delivery is usually the least predictable option. A better pattern is a controlled buffer. The AMR brings the fixture to a reviewable position while retaining the task context and fault reason. Once the issue is cleared by equipment or personnel, the same rules can release the next move. The exception stays visible and traceable instead of becoming a temporary crowd around the production station.

For an initial deployment, choose one line with frequent changeovers, many fixture types, or a high cost of manual judgment. Track re-adjustments after arrival, wrong-fixture events, uncleared clamps, and station waits. Then convert the repeated causes into state fields or mechanical poka-yoke. As the rules become stable, AMRs can evolve from instruction-driven transport into delivery governed by process conditions.

The value of fixture logistics is therefore more than fewer manual trips. It captures decisions that once depended on individual experience and turns them into verifiable shop-floor conditions. Robots, fixtures, and stations no longer need to infer each other’s intent, making assembly rhythm easier to sustain through changeovers, line expansion, and workforce changes.

5. Start with ownership and a small operating rule set

An assembly-ready handoff works best when the ownership of each condition is explicit. Manufacturing engineering should define the fixture datum, clamp, and part-state requirements. Automation engineering should define the station confirmation and safe sequence. Logistics should define dispatch priorities, buffer capacity, and the recovery action when a condition fails. This prevents the AMR from being treated as the default owner of every uncertainty around a fixture.

The first rule set can remain deliberately small: identify the fixture, confirm the allowed orientation, check the receiving station, verify the handoff, and record the outcome. These five steps create a useful operational baseline. They also make later improvements easier, because a recurring delay can be connected to a specific missing condition rather than being described only as an AMR or equipment problem.
