AMR Doorway Control: Turning a Rapid Door into a Controlled Passage Window

AMR Doorway Control: Turning a Rapid Door into a Controlled Passage Window

In a production facility, rapid doors, cleanroom doors, cold-store doors, and controlled partitions are often treated as ordinary points on an AMR route: the vehicle approaches, the door opens, the vehicle passes, and the door closes. That simplified sequence becomes fragile when the same doorway also protects an environment, serves pedestrians and forklifts, and handles repeated robot traffic. Opening the door simply because a robot arrives can create a new source of cycle-time variability.

The engineering task is not only to issue an open command. It is to create a passage window that can be confirmed, occupied, and released. When the door, vehicle, load carrier, and downstream space are evaluated inside the same window, an AMR is less likely to wait under the curtain, make repeated approaches, or stack work behind a busy doorway.

A Doorway Is a Shared Resource, Not the End of a Route

A high-frequency door has its own opening and closing time, hold-open logic, light curtain or anti-pinch protection, and limited space on both sides. An AMR reaching the door proves only that it has completed one segment of travel. It does not prove that the door can open safely or that the receiving area is ready. If the door is treated as a passive actuator, random vehicle arrivals are transferred directly into door motion, frequent cycles, queues, and inconsistent task completion times.

A more useful model is to treat the doorway as a passage resource shared by several participants. It needs a request, an entry check, and a clear release signal after passage. This does not require an oversized control project. It focuses attention on a short physical boundary that often sets the pace for an entire cross-zone flow.

Validate the Vehicle, Load Carrier, and Downstream Space Before Opening

First, validate the vehicle. The AMR should decelerate, localize, and confirm its arrival in a controlled holding area outside the door, not brake at the curtain. The holding area needs enough length for the load carrier, turning clearance, and safety sensing. A latent lifting AMR carrying a mobile rack must not let the rack envelope enter the door protection zone before release.

Second, validate the load carrier. Door clear width and clear height should be task constraints, not informal assumptions. For wheeled racks, totes, or tall fixtures, the review should include lifted ground clearance, lateral sway, and the effect of thresholds on the carrier posture.

Third, validate the downstream space. An open door does not automatically mean the far side is available. If work is taking place beyond the door, a forklift is crossing, or the receiving position is occupied, the stable action is to defer the passage window, not to leave an AMR waiting in the doorway.

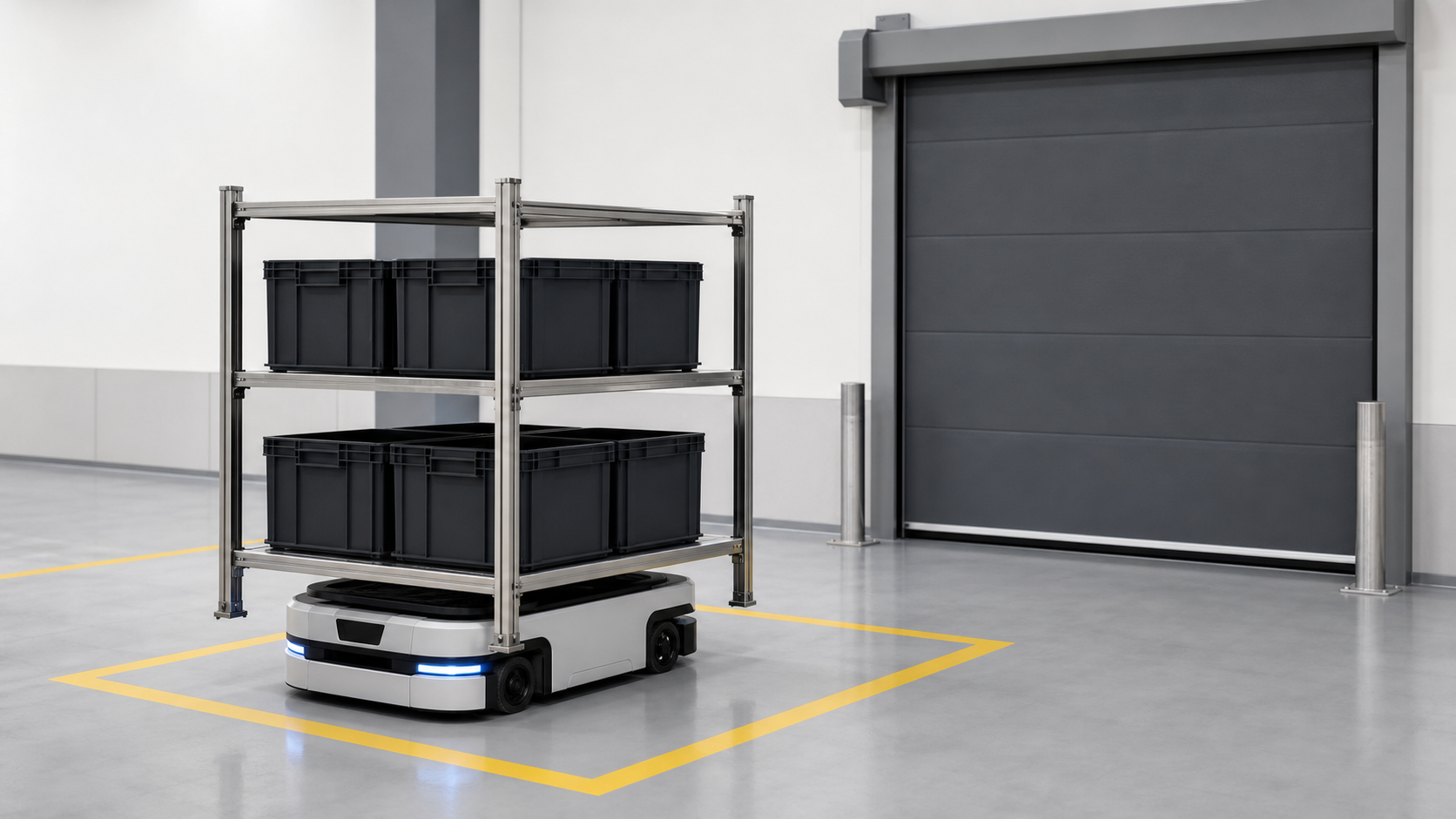

Figure 1: A latent lifting AMR confirms passage conditions in a controlled holding zone

Replace a Single Open Command with Request, Confirm, Occupy, and Release

A reusable doorway passage window needs at least four states. Request: the AMR asks to pass before entering the holding area, without immediately opening the door. Confirm: the door logic verifies door availability, downstream availability, and compliance with the carrier envelope. Occupy: once the door is fully open and the passage area is clear, the vehicle receives one controlled authorization to pass. Release: the window ends only after both the AMR and carrier have left the sensing zone and the downstream space is no longer reserved for that task.

These states turn door opening from an instant command into a bounded process. Different door controllers and different AMR types can use the same state semantics when configuring interfaces and recovery logic.

The Rapid Door Should Support Predictable Passage, Not Chase Vehicle Arrival

In high-frequency flows, door behavior should match vehicle approach speed and the distance to the holding area. If a door starts only when an AMR reaches the threshold, the vehicle either stops abruptly or attempts to proceed as soon as the curtain rises. Both reduce margin. A better sequence prepares the door after arrival at the holding area, releases the vehicle only after all conditions are confirmed, and keeps the opening available for the complete vehicle-and-carrier passage.

For repeated traffic in the same direction, a short follow-on window may be retained after the first task releases it. That window should still depend on real downstream availability and carrier clearance, not on leaving a barrier open indefinitely. This avoids unnecessary door cycles without weakening the boundary the door is meant to protect.

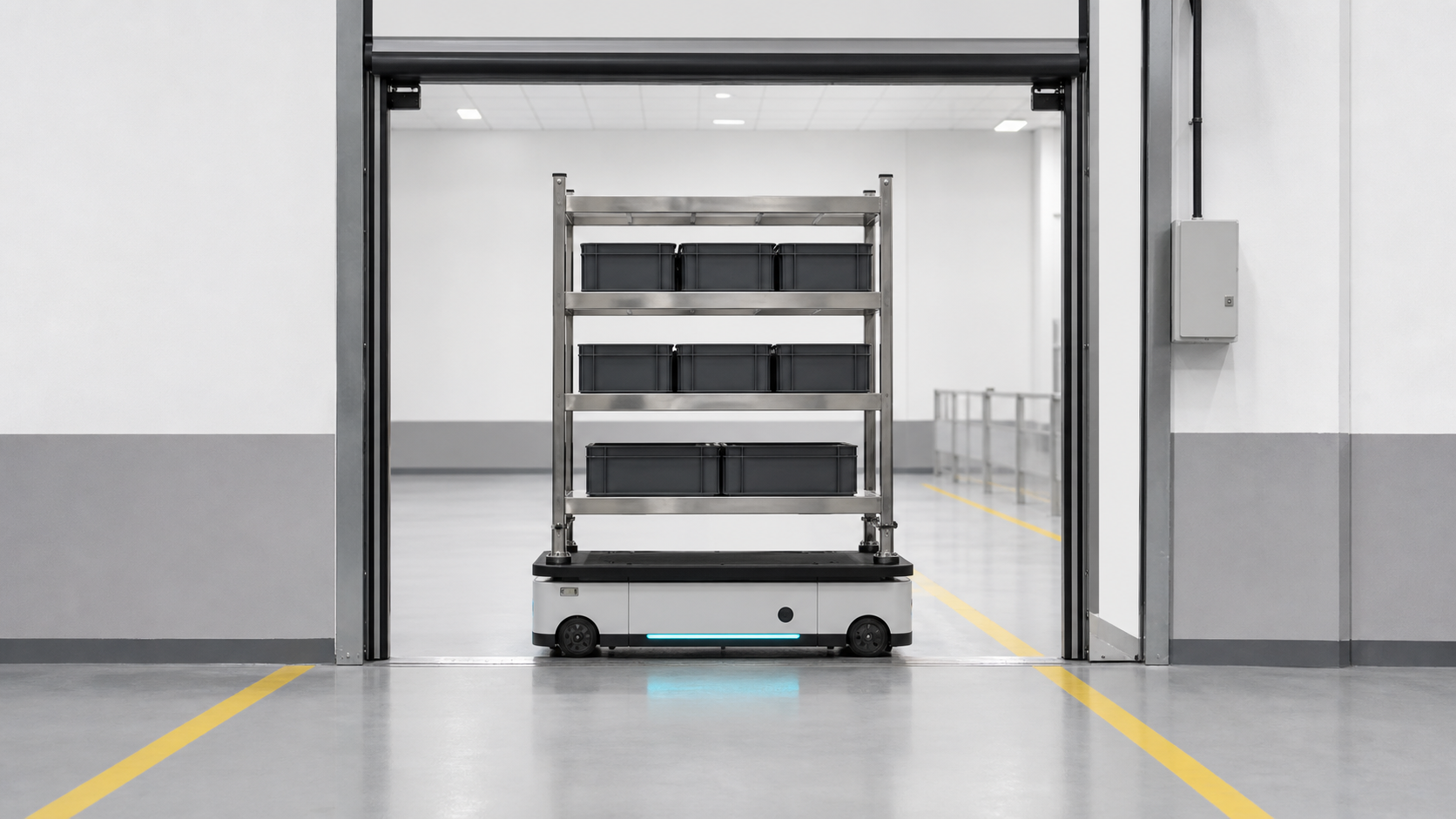

Figure 2: After the door is fully open and downstream space is available, the AMR passes at a controlled speed

Keep Exceptions Outside the Doorway Whenever Possible

The recovery principle is straightforward: if an issue can be detected outside the door, do not discover it after the vehicle enters the opening. A door not in position, a continuously blocked light curtain, temporarily occupied downstream space, a failed carrier-envelope check, or an incomplete communication state should keep the task in the external holding area or return it to the previous safe point.

Once an AMR has been granted a window and enters the doorway, the controls must avoid contradictory actions. The door should not close while the vehicle or carrier remains in the sensing range, and the vehicle should not remain under the door for an extended period because of a short downstream interruption. Controlled completion, controlled retreat, and clearly defined assisted-recovery branches should be specified and recorded as events.

Use Four Data Views to Judge Whether the Doorway Is Actually More Stable

A doorway improvement project does not need an elaborate scorecard to begin. Four measurements are enough: waiting time from request to release, actual occupancy time after the door opens, reasons a task was deferred outside the door, and the number of abnormal exits after entering the opening. Together, they help the site identify whether the constraint comes from door response, downstream space, carrier geometry, or task-arrival rhythm.

With a consistent review rhythm, the rapid door becomes more than a piece of electromechanical equipment on a route. It becomes a controlled handoff in intralogistics. For manufacturing sites with frequent cross-zone delivery, that boundary design can reduce repeat waiting more effectively than simply increasing AMR speed.
