Before Batch Release: How AMRs Turn Staging into a Controlled Manufacturing Rhythm

Before Batch Release: How AMRs Turn Staging into a Controlled Manufacturing Rhythm

In high-mix manufacturing, moving a container from the warehouse to the line does not automatically make its contents ready for use. It may still be awaiting a quality release, a changeover, an available receiving position, or a defined process window. When all of those situations are treated as simple “waiting,” material gets moved into corridors, line-side areas, and ad hoc empty spaces. The result is not faster flow. It is weaker batch separation and harder-to-explain waiting.

A more reliable approach is controlled staging. An AMR moves the carrier to the right place, but batch status, station availability, and timing conditions determine whether the task can start, where it may wait, and when it may be handed to the next operation. The vehicle is then not executing an isolated trip; it is executing a verified part of the manufacturing rhythm.

Separate “waiting for a station” from “waiting for release”

Many factories place every not-yet-consumed item in the same waiting area. That masks an important difference. Waiting for a station means the material is already eligible for use but the downstream operation has no capacity. Waiting for release means that a quality, batch, process, or human-confirmation condition is still open. The first case can queue by takt. The second must keep a controlled boundary and should not enter a normal line-side zone merely because a nearby space is free.

For that reason, a staging location needs more than a coordinate. It should define the carrier types it accepts, the states that may remain there, the maximum dwell time, and the authority allowed to move material onward. In an AMR system serving multiple lines, these operational rules often matter more than physical proximity to the station.

A staging bay needs executable meaning, not only floor markings

Controlled staging works when location and status have an explicit relationship. Separate positions can represent “awaiting release,” “released and ready for handoff,” “waiting for station capacity,” or “exception pending review.” They do not necessarily need to be far apart, but they should not share the same task logic. When an AMR arrives, the carrier, batch, and destination state should be checked together. If the conditions are not met, the vehicle needs a defined fallback path instead of repeated attempts at the same entrance.

Where mobile racks are used, a latent lifting AMR should enter the rack opening straight on, lift at the designed support points, and transport only after the load is stable. At a staging position, the rack legs should be fully back on the floor before the AMR exits. This clear load-bearing sequence reduces mechanical ambiguity and makes the “carrier arrived and remains controlled” condition easier for the station to confirm.

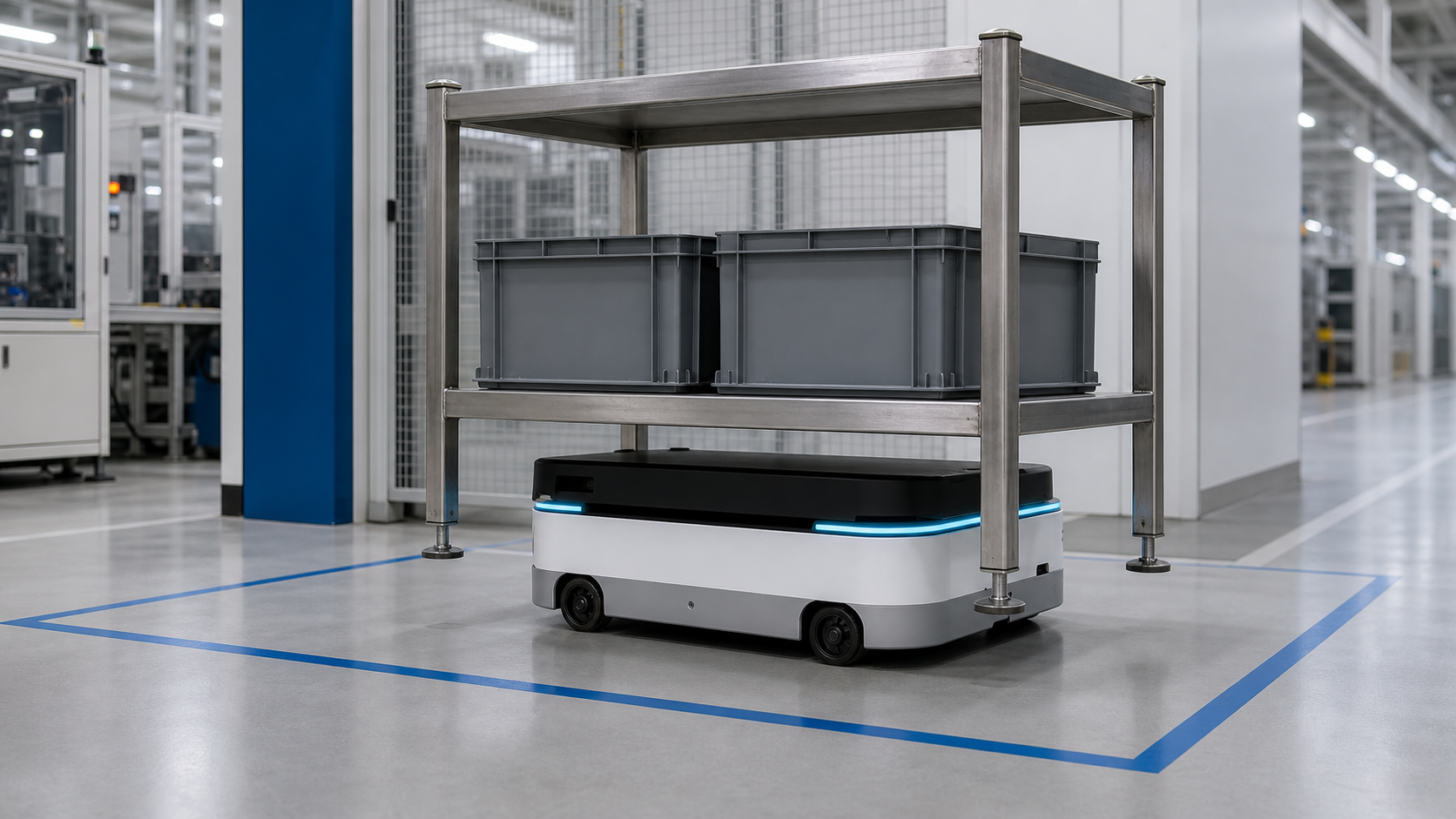

Figure 1: A latent lifting AMR places a sealed mobile rack in a controlled staging bay

The carrier moves with the batch boundary

Traceability is often strong in a software record but less visible once material reaches the line. Making the carrier a practical part of the batch boundary restores clarity during movement. Whether a container is closed, whether mixed contents are allowed, whether confirmation is complete, and whether it may enter a particular station should all influence task creation and handoff confirmation. The AMR does not replace quality decisions. It prevents unconfirmed material from entering a default-use area before those decisions are complete.

This matters in frequent-changeover and parallel-process environments. Similar-looking totes, comparable fixtures, and short-notice orders can all increase the chance of a wrong delivery. Checking carrier and state together separates “arrived at the area” from “approved for use,” which preserves the decision boundary that the process needs.

Let receiving availability determine departure time

Released material does not always need to travel to the station immediately. If the receiving zone is still occupied by the previous batch, an early arrival simply shifts waiting from the staging bay to the line side and can obstruct traffic. A more stable rule checks receiving capacity, clearance from the preceding operation, and the allowed arrival window before an AMR leaves the released-material buffer.

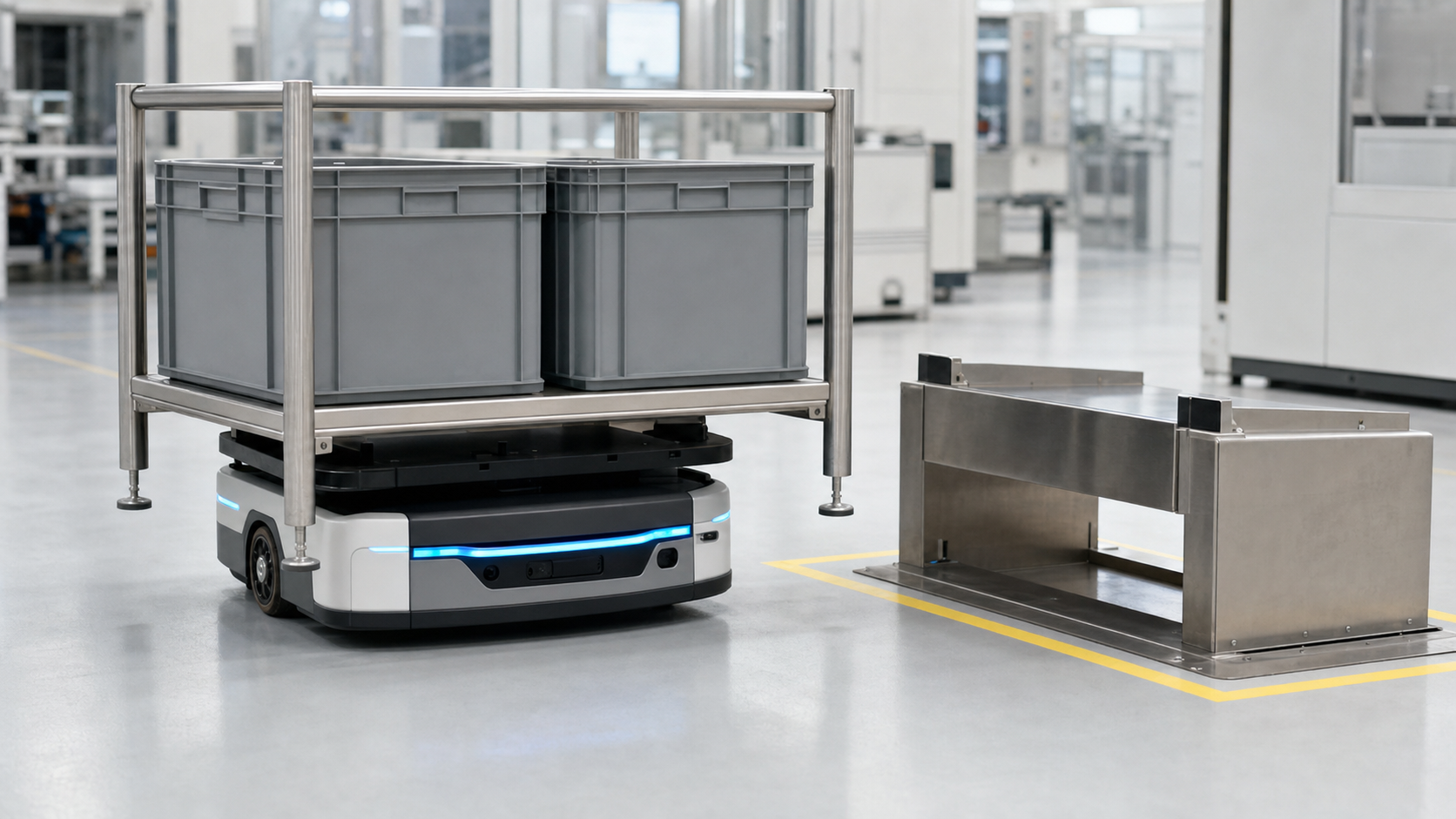

Figure 2: A released rack is handed off by AMR once the receiving station is available

That rule is not process complexity for its own sake. It eliminates unproductive dwell time. Keeping waiting inside designed buffer positions keeps the line side orderly and makes exceptions easier to see. The objective is not to make the vehicle leave as soon as possible; it is to make every departure lead to a station that can actually receive the carrier.

Exceptions should converge into a recoverable path

Exceptions will occur on both sides of release: a delayed changeover, an unclosed container, a temporarily occupied receiving point, or missing confirmation data. If each case leaves an AMR waiting in place or retrying without a limit, local uncertainty quickly becomes corridor congestion. A practical design uses bounded retries, identifiable holding positions, and explicit recovery conditions. After a safe set-down, the task retains its current state and reason for interruption until a rule or an authorized operator releases it to continue.

Measure whether waiting has become explainable

The value of controlled staging is not captured by trip count alone. Useful indicators include whether not-yet-released material entered the intended buffer, whether released material reached a genuinely available station, whether exceptions left the travel path within the expected time, and whether a batch experienced repeated moves or entered the normal flow incorrectly. These measures turn waiting from an invisible loss into an improvable operating condition.

When staging is designed as part of the manufacturing rhythm, an AMR does more than transport a carrier from point A to point B. It protects the right batch boundary at the right time. For factories balancing flexibility, traceability, and line-side order, that discipline is often more valuable than simply increasing travel speed.
