In heavy industrial tooling transport, an AMR payload rating is only the starting point. Reliable intralogistics emerges when the load, lift interface, and route environment are reviewed within one operating envelope.

The real risk is rarely visible in the payload table

When an AMR is introduced to move dies, welding fixtures, tooling bases, or other large industrial assets, the first question is usually whether the vehicle can carry the weight. It is an essential question, but it is not the whole engineering question. A rated payload describes capability under defined conditions. The live application also contains center-of-gravity offset, lift-contact geometry, floor joints, turning radius, acceleration events, and changes in posture at pickup and drop-off. Any one of these can turn an apparently comfortable payload margin into throughput variation or recurring exceptions.

For this reason, a heavy-duty deployment should not treat tonnage as its only entry criterion. The vehicle, the tooling, and the route should be designed as one load-bearing operating unit. The first task is not simply to choose a vehicle. It is to define the operating envelope in which the load can move repeatedly and predictably.

Build three engineering views: center of gravity, contact, and route

The first view is the center-of-gravity map. In addition to gross weight, the team needs the load's longitudinal, lateral, and vertical center of gravity, as well as any changes between process states. Tooling with offset mechanisms, overhangs, or concentrated mass can amplify lateral inertia at turns and floor transitions. A practical review marks the effective load-bearing area, the lift-contact points, and the projected center of gravity together. A fixture that can be lifted is not automatically a fixture that can be transported reliably.

The second view is the contact map. An undercar AMR must enter the fixture from below and support it through the intended lift interface. After lifting, the fixture feet must be clearly off the floor; the load should not remain partly supported by the floor and partly by the robot. Contact location, stiffness, and allowed tolerance directly affect repeatable lifting and determine whether start-stop events create visible movement in the fixture.

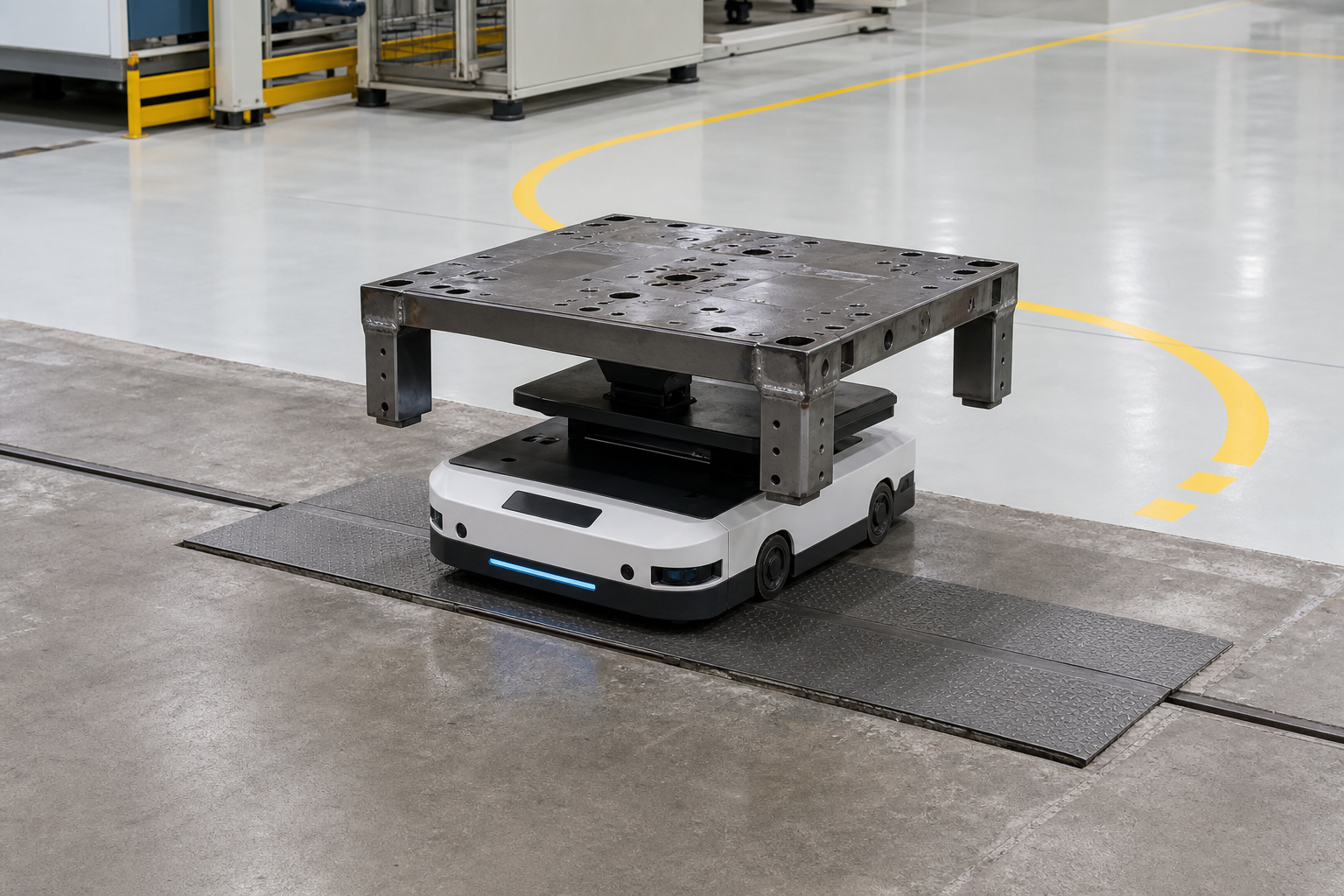

Figure 1: A heavy-duty AMR keeps a lifted tooling fixture level through a turning zone

Let the motion profile change with the route

The third view is the route map. Straight sections, narrow transitions, floor joints, ramps, turns, and docking zones place different demands on the same heavy-duty AMR. A single fixed speed for an entire task can appear simple, but it hides the most important differences. Straight travel needs smooth acceleration and braking. A floor transition needs impact and posture control. A turn requires more conservative limits for speed and acceleration.

A more operational approach is to define a combined strategy for each route segment: speed, acceleration, curvature, and load state. A route is not merely passable or blocked. For a large fixture, it may be suitable for full-load travel, suitable only at reduced speed, or in need of rerouting or site improvement. This classification aligns fleet behavior with physical conditions and gives the engineering team a clear basis for later changes.

Treat floor and turning quality as an operating variable

Cracks, settlement, temporary steel plates, contamination, and small local changes near stations may not be the most visible issues on launch day. In high-frequency use, however, they can become meaningful. For a heavy AMR, surface quality affects vehicle vibration and may also influence sensing, localization, and load posture. Safety guidance for driverless industrial trucks likewise recognizes that the operating zone materially affects safe operation. Site conditions are therefore not an afterthought once the equipment is delivered.

High-frequency segments deserve routine observation. Teams should record repeated deceleration, re-localization, lift failures, small fixture displacement, and impacts at joints. When the same location repeatedly generates an exception, the first investigation should include the floor, the contact surface, and route geometry—not only more tolerance in robot software. Where a permanent repair cannot happen immediately, controlled speed reduction, load limitation, or a managed detour can serve as a temporary measure with explicit release criteria.

A concise route-condition register makes this discipline practical. For each sensitive segment, record the fixture family, permitted load state, required travel mode, current surface condition, owner, and review trigger. The register does not replace a formal risk assessment. It creates a shared operational memory so that a new fixture, a repaired floor, or a changed station layout prompts an informed re-check instead of an assumption that yesterday's settings remain valid.

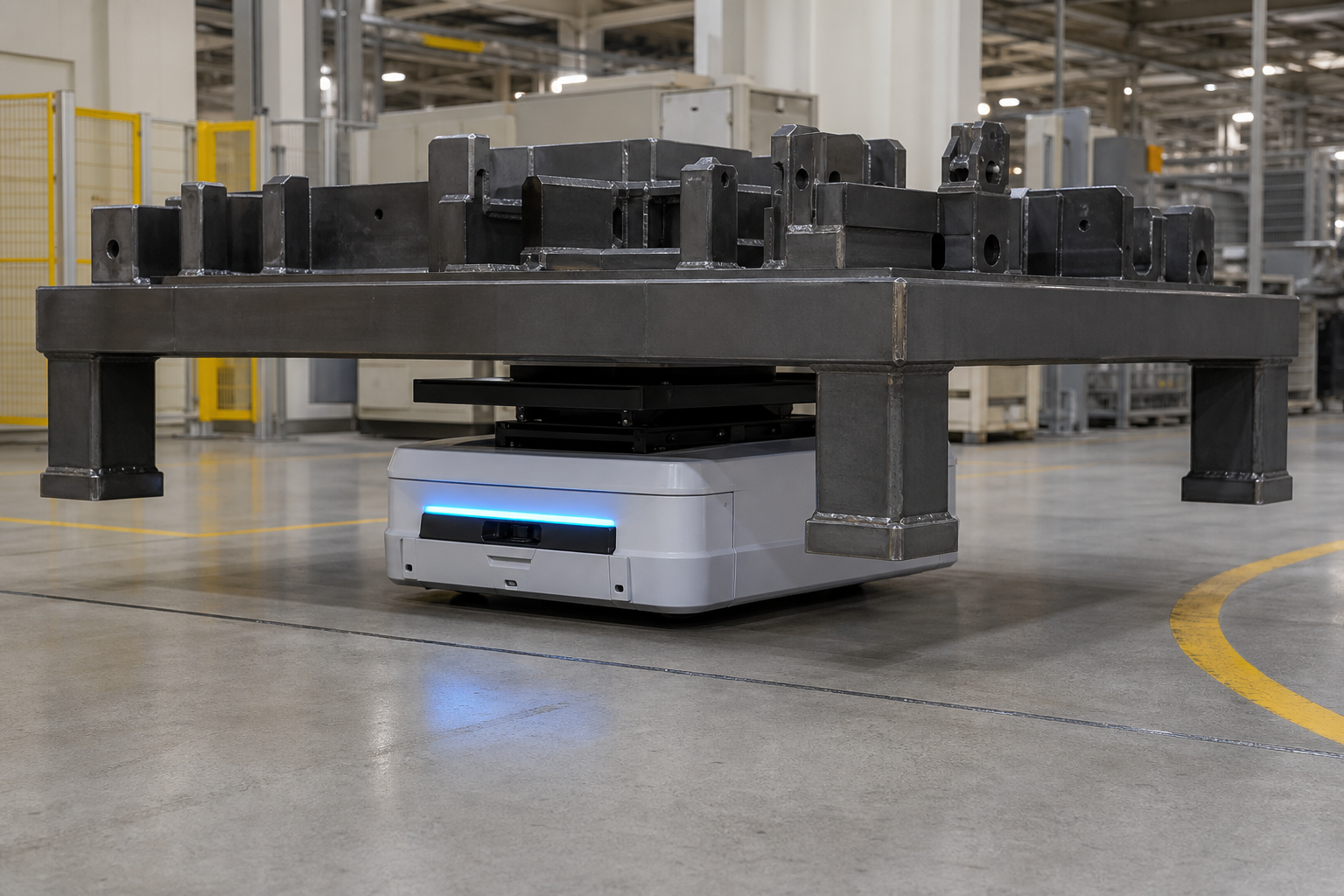

Figure 2: Floor transitions and route curvature belong in the heavy-duty operating-envelope review

Use small-batch validation to create reusable rules

Heavy tooling moves are best scaled in stages. Begin with representative fixtures, routes, and production cadence. Observe empty, partial, and full-load behavior, then turn the measured acceleration and braking response, cornering behavior, lift repeatability, and handoff variation into operating rules. The result is not an isolated acceptance record. It is a usable basis that can be applied to similar tooling and similar route sections.

A mature heavy-duty AMR application does not end when the vehicle can move the load from point A to point B. Its goal is to keep every loaded trip inside an operating envelope that is understandable, inspectable, and adjustable. When payload, center of gravity, contact, and route are reviewed on the same engineering drawing, the conversation moves beyond vehicle capability toward reliable delivery and long-term operation.
