AMR Handoffs for High-Value Materials: Delivery Alone Is Not Enough

AMR Handoffs for High-Value Materials: Delivery Alone Is Not Enough

The Risk Often Begins After Arrival

In electronics, medical consumables, precision tooling, and other controlled material flows, an AMR has completed only half of its work when it brings a tote or trolley to the target area. The more difficult questions begin after arrival: does the material still match the assigned task, is the receiving point authorized and available, is the container still closed, who may take custody, and where should the material wait if the task is interrupted?

A system that records only “vehicle arrived” leaves a gap exactly where certainty matters most. A dependable handoff should not rely on verbal acknowledgement or later manual entries. It should create a verifiable relationship, at the same moment, among the material, the carrier, the station, and the task. That is how an AMR becomes more than a transport device: it becomes a controlled handoff node.

Break Every Handoff into Four Verifiable Events

The first event is release from origin. Before a task starts, the system should confirm the material identity, batch or serial context, destination, and permitted carrier type. For enclosed material, container closure should be part of the release condition. The second event is in-transit binding. The vehicle, trolley, and totes should retain an explicit object relationship rather than being linked only by a temporary task number. This prevents a reassigned mission from creating an ambiguous “robot arrived, material unknown” situation.

The third event is arrival validation. Reaching a station is not the same as completing a handoff. The station should be available, receiving permissions valid, the transfer zone clear, and the material condition acceptable. Only then comes the fourth event: custody-state change. The system can move the material from transport to pending consumption, putaway, inspection, or processing. Separating these events makes exceptions traceable to a specific state instead of grouping them under a generic task failure.

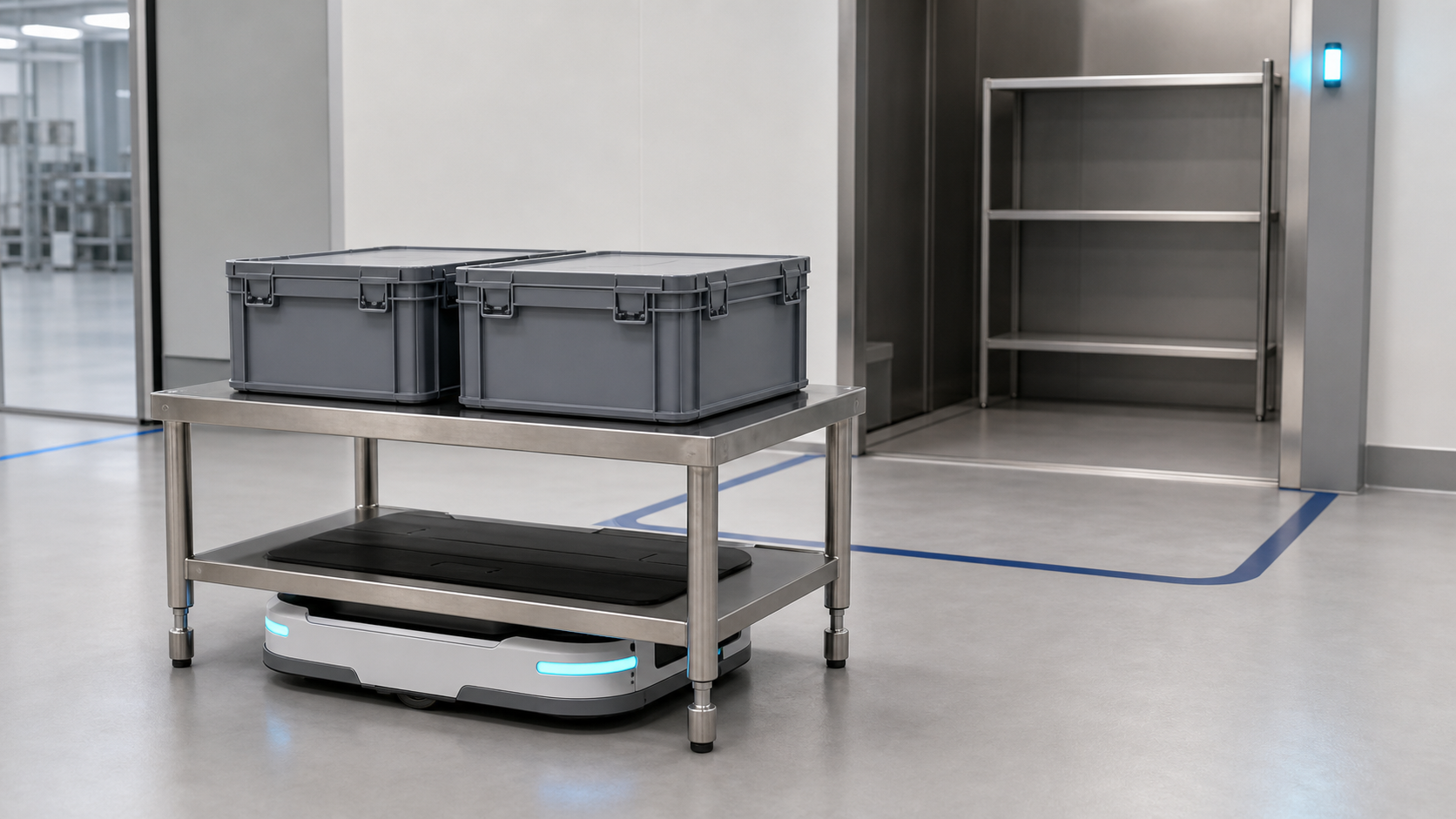

Figure 1: Verify carrier, material and station conditions before controlled handoff

The Carrier Is a Second Identity, Not Just Hardware

High-value materials usually move with reusable totes, carts, sealed cases, or dedicated fixtures rather than as individual items. The carrier provides both physical support and a process boundary. A robust design therefore keeps two identities visible: the material identity tells the system what is being moved, while the carrier identity explains how that material is being contained and transported. Both relationships should remain consistent through loading, travel, placement, and carrier return.

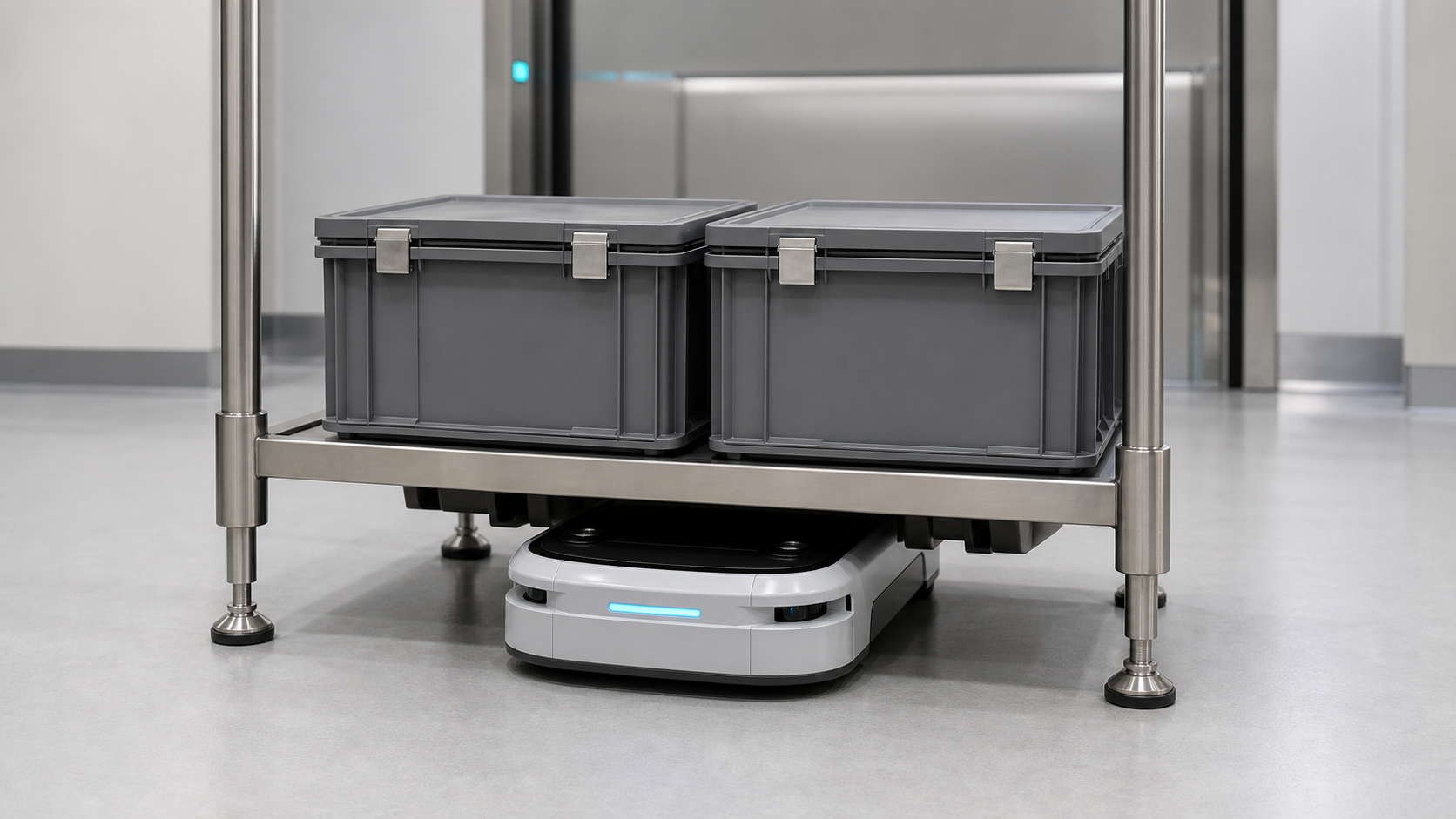

For a latent-lifting AMR, the carrier also determines the physical operating posture. The robot must enter the trolley from the correct direction, support it at the lifting interface, and transport it only after the load is stable. At release, the trolley feet or casters must be firmly settled before the robot exits. Confirming this real-world support relationship alongside the digital state prevents a false completion signal when the handoff is still physically unfinished.

Station design matters just as much. The receiving point should define an approach lane, a release position, a usable buffer, and a clear condition for handoff completion. Sensing, access control, and a simple confirmation interface can work together without making the station complicated. The goal is not to add technology for its own sake; it is to make the correct next action unambiguous for the AMR, the receiving workflow, and the person who may later review an exception.

Exception Handling Must Preserve Location, Authority, and Recovery Path

A controlled handoff should not treat every exception as an unconditional retry. An unreadable identifier, occupied station, expired receiving authorization, material that needs review, and a brief communication interruption may all pause a task, but they require different boundaries. The workflow should distinguish whether the AMR may wait, move to a controlled isolation buffer, return to origin, or continue only after an authorized review.

An isolation buffer is not simply a parking position. It should retain the material identity, current container state, reason for entry, arrival time, and the permitted next action. It must also prevent another task from dispatching the same material again. With those controls in place, a later shift change or recovery action can be based on recorded state rather than on someone reconstructing what happened from memory.

This boundary also protects normal throughput. Material that needs review is held in a known location instead of blocking the receiving station or circulating indefinitely. Meanwhile, the AMR fleet can continue serving other approved tasks. In that sense, carefully designed exception handling is not a separate layer added after deployment; it is part of how a high-value material flow stays predictable under everyday variability.

Figure 2: Move an exception task to an isolation buffer with a recoverable state

Measure Whether the Handoff Can Be Replayed and Explained

Handoff quality is not captured by completed AMR missions alone. More useful measures include first-arrival handoff completion, safe exit when receiving conditions are not met, coverage of exceptions that enter an explicit state, recovery after authorized review, and continuity of material and carrier identities across the process. Together, these measures answer a practical question: at every state change, can the material still be explained, traced, and handled correctly?

The record should be useful to operations, not merely stored for audit. A supervisor investigating a stopped task needs to see the last confirmed location, the assigned carrier, the station condition, and the permitted recovery action. A quality or production team needs the same event history in language that connects the physical move to the material process. Designing concise, consistent handoff events makes both views possible and avoids a separate manual reconciliation process after every exception.

For manufacturers seeking stable movement of controlled materials, the first priority is not higher AMR speed. It is clearer definition of every handoff point. Chengdu Heli Intelligent can support projects that combine latent-lifting AMRs, physically correct trolley and tote support, station sensing, and task-state design, helping teams evolve from simple delivery toward a verifiable chain of material custody.
