The challenge is at the threshold, not in the number of floors

In a multi-floor factory or warehouse, AMR operation is often reduced to a simple requirement: connect the fleet to a freight elevator. That description misses the part that determines whether the flow stays reliable. The critical moments are usually the few seconds around the elevator door: who reserves the lift, whether the arriving task is still eligible to enter, whether the rack and cabin clearance remain valid, whether the vehicle should proceed after the doors open, and whether the destination floor can receive the load. An elevator cuts what looks like a continuous route into several bounded transport states. If one of them is ambiguous, queues form at the doorway.

For this reason, an elevator should not be treated as an automatically opening door. It is a short-duration work station that must be reserved, entered, occupied and released in a controlled sequence. With an under-rider lifting AMR, the vehicle, mobile rack and totes move as one load unit. The operating logic must confirm more than vehicle position. It must also confirm load stability, cabin availability, a clear door zone and a ready receiving point on the next floor.

Break each lift ride into four confirmable stages

Stage one is call and reservation. A vehicle should not arrive at the door and compete for the elevator at the last second. The system should create a time window using estimated arrival, elevator direction, carrier height and destination-floor demand. Stage two is the pre-door waiting state. The AMR holds at a defined staging position that preserves door travel, pedestrian clearance and turning space for other equipment. The load status and task priority should remain visible while it waits.

Stage three is cabin entry and confirmation. After the doors are fully open, the AMR enters slowly on the cabin centerline. The under-rider remains fully beneath the rack, with real clearance between the rack, totes and cabin boundaries. Once inside, the system confirms that the vehicle is stopped, the carrier is correctly supported and the cabin is not occupied by another object before allowing travel. Stage four is destination release. The doors open, the exit route is available and the target handover point is ready. Only when all three conditions are true should the task change from in-elevator to ready-for-delivery.

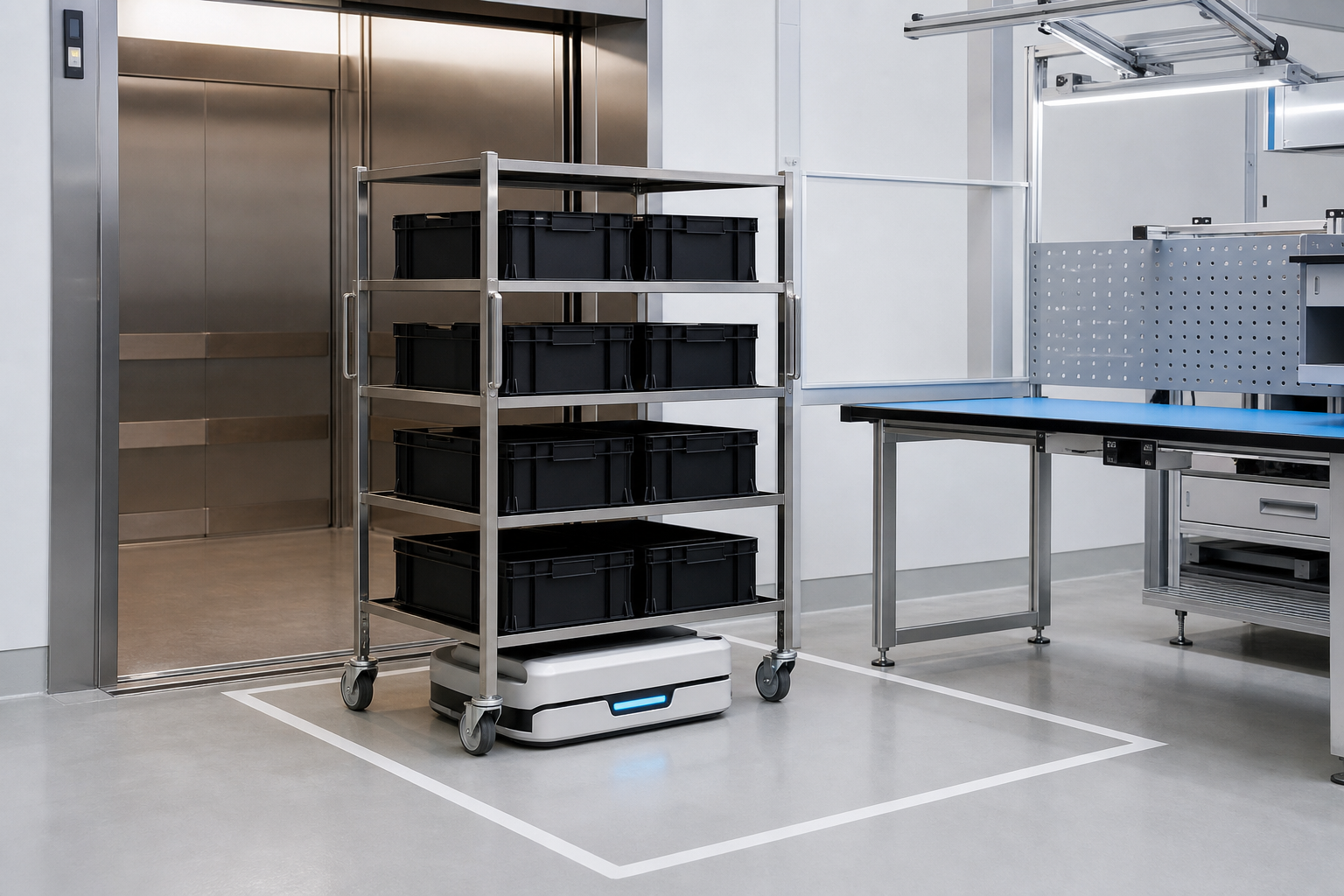

Figure 1: Confirm vehicle, carrier and door-zone states before the elevator begins travel

A waiting zone must manage carrier state, not just a queue

Many layouts draw a single parking box in front of the elevator and call it a waiting zone. In operation, an empty vehicle, a loaded rack, a priority replenishment task and a task requiring manual review cannot all compete for the same box under the same rule. A more robust design distinguishes between positions that are eligible to enter, reserved for a lift call and ready to release. Each task category also needs an escalation rule for excessive wait time. When the elevator is briefly busy, the system can hold the vehicle safely, redirect it to an alternate staging point or request a controlled manual decision instead of allowing a carrier to block the doorway.

The waiting area also needs to be checked against the cabin envelope and the real motion envelope of the loaded vehicle. For an under-rider AMR moving a wheeled rack, the combined footprint, center of gravity and turning allowance differ from an empty vehicle. Door clearance, turning radius and stopping centerline should therefore be verified in the loaded transport posture. An empty-vehicle route is not evidence that a full carrier can make the same move safely.

Recovery logic needs more than “call the elevator again”

Cross-floor exceptions often occur at a state change: the elevator arrives late, the destination exit is occupied, the vehicle misses its entry window, the receiving station is paused or the carrier needs inspection. Sending every exception back to a generic re-call action creates duplicate reservations and extra crowding at the door. A better recovery approach first preserves the safe state of the vehicle and carrier, then decides whether to cancel the reservation, defer the task, return to the waiting zone, use an alternative lift or continue after a controlled human confirmation.

The boundaries of each recovery action should be explicit. If the AMR has not entered the cabin, it can withdraw safely and release its reservation. If it is already inside, the priority is a stable stop and a controlled exit at the destination. If the destination exit is not available, the cabin or exit buffer must remain occupied in the operating logic so that a following task does not enter too early. Clear rules keep a disruption contained within one task rather than allowing it to become a floor-to-floor throughput fluctuation.

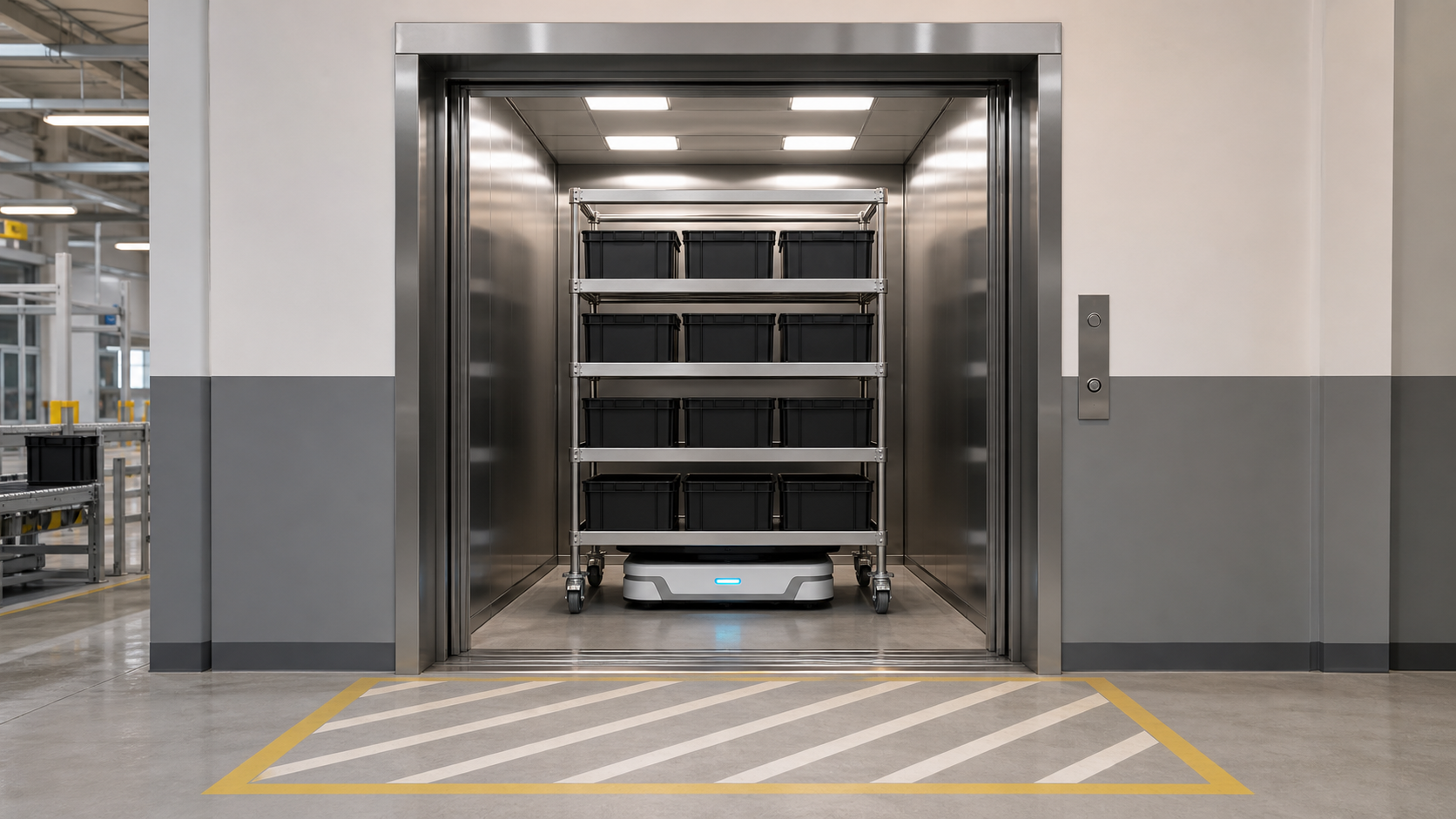

Figure 2: Use a controlled exit buffer for handover instead of occupying the active aisle

Measure cross-floor flow as an operating system

A cross-floor design is not proven by a single successful trip. The more useful indicators are wait time from reservation to cabin entry, first-pass entry success, exit wait after arrival, recovery duration for exceptions and the impact of elevator peaks on nearby tasks. When these measures are segmented by floor, time window, carrier type and task priority, teams can distinguish between insufficient door-side buffering, a mismatch in station rhythm and a genuine elevator-capacity constraint.

For flexible manufacturing logistics, a floor transition is not simply extra distance. It is another state change that has to be managed precisely. When calling, waiting, entering, arriving and handing over become a continuous, confirmable transport process, AMRs can relay loads reliably between floors. The freight elevator then becomes a controlled component of the intralogistics network rather than an unpredictable interruption in the route.
