Making Autonomous Forklifts Robust to Pallet Variability: Recognition, Alignment and Forking Verification

Making Autonomous Forklifts Robust to Pallet Variability: Recognition, Alignment and Forking Verification

Why pallet variability becomes an uptime risk

In pallet put-away, line-side replenishment and finished-goods transfer, the difficult part is rarely the route from point A to point B. The difficult part is that each pallet arrives slightly differently. It may be rotated by a few degrees, partially obscured by stretch wrap, unevenly loaded, or sitting on a floor with small height variation. A human operator makes visual corrections almost unconsciously. An autonomous forklift must turn that judgement into observable, executable and verifiable steps.

When a fork cycle is treated as one final motion after navigation, variability surfaces in the last meter. A system may detect a pallet outline while its forks are not truly aligned with the openings. It may move forward successfully while the load is not fully supported. A robust deployment treats pallet variability as a normal operating input, not as an exception to be discovered after go-live.

Observe the target before choosing the approach

Reliable handling starts with a richer target model. The system needs to establish position, orientation, usable fork openings, load envelope and rack or station boundaries; it cannot stop at deciding that a pallet is present. For reflective packaging, wrapped loads or partial occlusions, the deployment team should define operating limits: which deviations can be absorbed by a controlled correction, and which require a recheck or human intervention.

This is also why station design matters. Clearance in front of a location, stable floor references and repeatable pallet placement all affect the quality of the final approach. Giving sensing systems an adequate view and a predictable approach zone is usually more productive than trying to recover every condition by increasing travel speed or repeatedly retuning parameters.

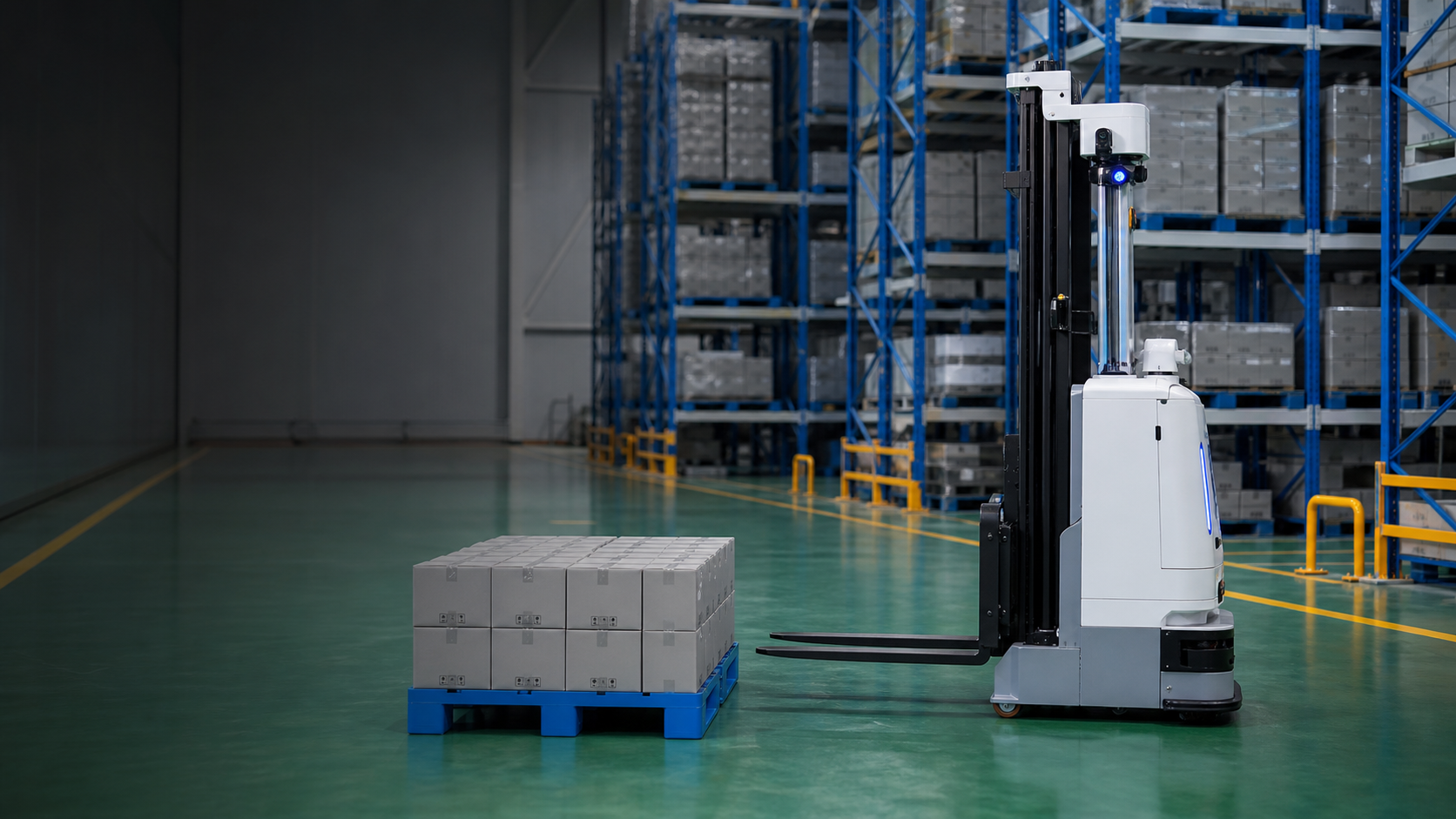

Figure 1: Vision-guided pallet recognition and approach alignment

Alignment is a controlled process, not a single pose

After arriving at a task location, the forklift should enter a low-speed, short-distance and interruptible alignment state. Vision or lidar data can estimate the residual error; small angular and lateral corrections then bring the vehicle centerline, the two forks and the pallet openings into parallel relationship. The meaningful question is not whether one ideal pose can be calculated. It is whether residual error can be recognized and corrected inside a safe operating window.

Fork height must be controlled at the same time. Before insertion, fork tips should be slightly below the supporting deck, avoiding contact with pallet cross members or an unintended push on the load. Continuous forward force is not a substitute for alignment. When the remaining error exceeds the approved limit, the correct response is to back away, observe again or move the task into an exception queue. This restrained sequence reduces product damage and unproductive retry cycles.

Verify support, not merely fork insertion

A fork entering a pallet is not the end of the task. A stronger workflow verifies that the forks have reached comparable depth, the pallet is level, the load is close to the mast and the posture remains stable after lifting. Confirmation can combine travel signals, vision, load changes and other sensors. The key distinction is between a pallet that is genuinely supported and one that has only been touched.

If confirmation is incomplete, risk should not be carried forward at travel speed. The system can reverse in place, reset at low height, make a second observation or route the task to controlled review. That creates an operation that can explain the outcome of every fork cycle, rather than a route that looks smooth until an ambiguous pickup interrupts the process.

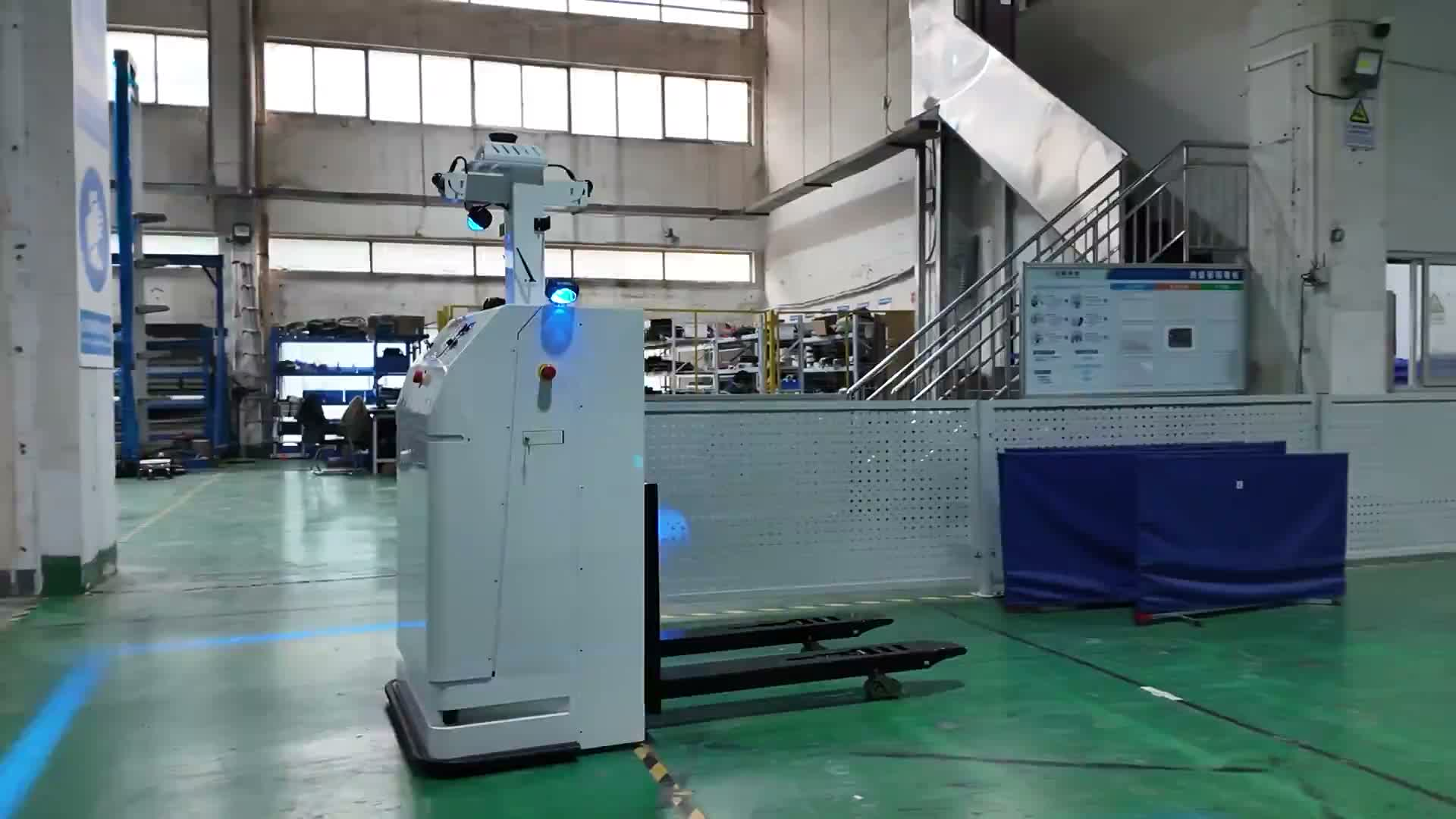

Figure 2: Low-height controlled approach before a pallet pickup

Make exceptions recoverable and schedulable

Damaged pallets, blocked openings, off-center loads and occupied locations should not all be labeled as the same pickup failure. A useful design classifies exceptions. Conditions that can be recovered automatically can trigger a new alignment and a second confirmation. Conditions that need site correction can request pallet adjustment or obstacle removal. Load-stability issues should remain at low height and enter controlled waiting.

With this structure, fleet control can preserve the state of the affected station, prevent other vehicles from making duplicate approaches and continue allocating work to available paths and vehicles. Exceptions do not disappear, but they become traceable process nodes instead of one stalled forklift becoming a disruption for the whole area.

Put practical availability into the operating metrics

Autonomous forklift performance should be measured beyond task count and travel efficiency. Teams should track first-pass pickup success, average retries, recovery duration, the distribution of pallet-related exceptions, and variance by location or shift. These measures turn the question from whether a vehicle can move into whether the system can consistently support the required operating rhythm.

The value of an autonomous forklift is not simply replacing one isolated action. It is making each pallet handoff more predictable. When recognition, alignment, forking verification and exception routing form one closed operating loop, the system is better prepared to work reliably with the variation that exists in real warehouses and factories.

Validate recovery paths before production launch

A practical acceptance exercise should include more than nominal pallet pickups. It should rehearse permitted pallet rotation, partial occlusion, an unsuccessful first insertion, a confirmed pickup and a condition that must be sent for review. The goal is to verify how the vehicle, the station and fleet control behave together when a condition moves beyond the normal operating envelope.

This approach gives operations teams a clear response model before volume increases. It also produces a useful baseline for later tuning: if first-pass success changes, teams can distinguish a change in pallet quality or station condition from a change in vehicle behavior. That evidence supports steady improvement without hiding risk behind a single headline efficiency figure.
